JHEMCU NOXE F4 V2 DELUXE 3-6S V3 FLIGHT CONTROLLER FOR DJI - 20X20MM

189.77
94.89 Save 50%
Tax included
Promotional banner of JHEMCU and Avifly partnership in FPV.

Brand
JHEMCU
Quantity:
1
Shipment:

On monday

Availability:
Last items in stock
Supply:
for freeCheck delivery costs
Gift:
Soon!

You might also like

JHEMCU NOXE F4 V2 DELUXE – 2–6S Flight Controller with DJI HD Support

Compact and reliable 20×20 mm FC with OSD, barometer, and Blackbox

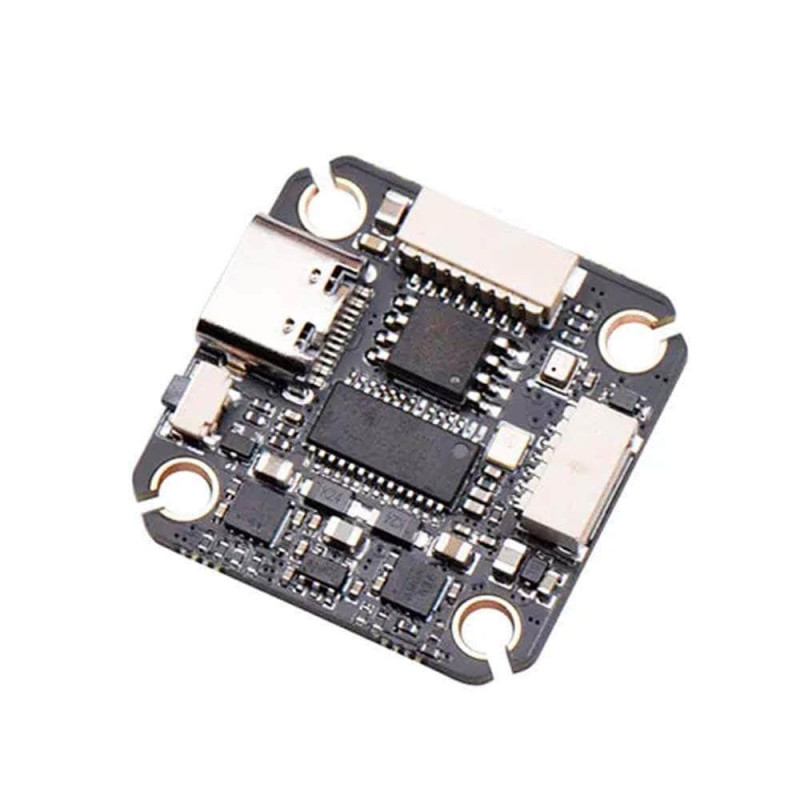

JHEMCU NOXE F4 V2 DELUXE is a high-performance flight controller designed for 2–6S FPV drones. Featuring the STM32F411 processor, MPU6000 gyro, integrated AT7456E OSD, and a plug-and-play port for DJI HD, it ensures stable flight and easy integration. The DELUXE version also includes a BMP280 barometer and 16MB Blackbox memory for advanced flight data logging and tuning.

Key Features:

  • ✅ Input voltage: 2–6S LiPo (7–26V)
  • ✅ MCU: STM32F411CEU6 (100 MHz)
  • ✅ Gyroscope: MPU6000
  • ✅ Integrated OSD (AT7456E)
  • ✅ Dual BEC: 5V/3A and 10V/2A
  • ✅ DJI HD port (plug-and-play compatible)
  • ✅ 2 UART ports, I2C, USB-C
  • ✅ Receiver protocols: SBUS, IBUS, DSM2/X, CRSF
  • ✅ WS2812 LED and buzzer support
  • ✅ DELUXE version includes BMP280 barometer and 16MB Blackbox
  • ✅ Weight: 4.5 g

📋 Technical Specifications:

  • Model: JHEMCU NOXE F4 V2 DELUXE
  • Dimensions: 27×27 mm (20×20 mm mounting pattern, M3)
  • MCU: STM32F411CEU6
  • Gyro: MPU6000
  • OSD: AT7456E
  • Barometer: BMP280
  • Blackbox: 16MB
  • Ports: 2× UART, I2C, USB-C
  • Input voltage: 2–6S LiPo
  • BEC: 5V/3A and 10V/2A
  • Weight: 4.5 g

📦 Package Includes:

  • 1× JHEMCU NOXE F4 V2 DELUXE Flight Controller
  • 1× DJI HD cable
  • 1× Mounting screw set
No customer reviews for the moment.
