Flywoo GOKU F722 PRO V2 30x30 flight controller for FPV drones
  • Flywoo GOKU F722 PRO V2 30x30 flight controller for FPV drones
  • STM32F722 flight controller with MPU6000 gyro and OSD
  • GOKU F722 V2 board with DJI O3 Air Unit compatibility
  • Flywoo GOKU F722 PRO V2 – 30×30 Flight Controller, STM32F722
  • Flywoo GOKU F722 PRO V2 – 30×30 Flight Controller, STM32F722
  • Flywoo GOKU F722 PRO V2 – 30×30 Flight Controller, STM32F722
  • Flywoo GOKU F722 PRO V2 – 30×30 Flight Controller, STM32F722

Flight Controller Flywoo GOKU F722 PRO V2 featuring STM32F722 processor and MPU6000 gyro

Flywoo

SKU: FW19003495
236.77
Out-of-Stock

Flywoo Banner – Avifly Official Distributor of Flywoo FPV: micro drones, long-range platforms, ultra-light frames and premium FPV components

  • 30-day returns No questions asked
  • 12 mo warranty Manufacturer + Avifly
  • Shipping availability Same day before 12:00

Flywoo GOKU F722 PRO V2 – 30x30 mm Flight Controller with MPU6000

Advanced flight controller for FPV drones featuring STM32F722 processor and MPU6000 gyro

Flywoo GOKU F722 PRO V2 is a powerful 30x30 mm flight controller designed for high-performance FPV builds. It features an STM32F722 processor, a reliable MPU6000 gyro, onboard OSD, barometer, and blackbox. The modular layout with plug-and-play ports makes it easy to install and maintain. Fully compatible with DJI O3 Air Unit, it supports up to 8 motors and includes a full set of signal cables.

Key Features:

  • ✅ High-performance STM32F722 processor (216 MHz)
  • ✅ Precise MPU6000 gyroscope for smooth flight performance
  • ✅ Built-in AT7456E OSD and DP310 barometer
  • ✅ 16MB onboard blackbox for data logging and tuning
  • ✅ Modular plug-and-play connectors for easy setup
  • ✅ Supports up to 8 motors – dual 4in1 ESC connection ports
  • ✅ Dual BEC output: 10V/2A and 5V/2A
  • ✅ Fully compatible with DJI O3 Air Unit

? Technical Specifications:

  • Model: GOKU F722 PRO V2
  • Processor: STM32F722
  • Gyro: MPU6000
  • OSD: AT7456E
  • Barometer: DP310
  • Blackbox: 16MB onboard flash
  • UARTs: UART1 / UART2 / UART3 / UART4 / UART5 / UART6
  • Input voltage: 7.4V–26V (2–6S LiPo)
  • BEC: 10V/2A and 5V/2A
  • Mounting pattern: 30.5×30.5 mm (M3)
  • Dimensions: 37×37×8 mm
  • Weight: 9.9 g

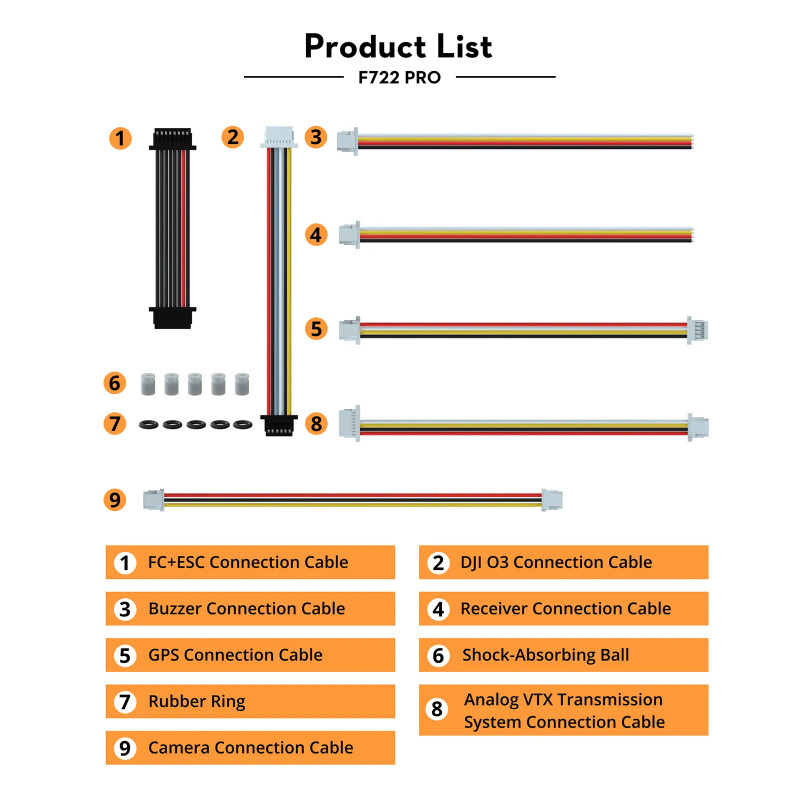

? Package Includes:

  • 1× Flywoo GOKU F722 PRO V2 flight controller
  • 1× FC to ESC signal cable
  • 1× Buzzer cable
  • 1× GPS cable
  • 1× DJI O3 cable
  • 1× Receiver cable
  • 4× M3 mounting dampers
  • 7× M3 rubber grommets
  • 1× Analog VTX cable
  • 1× Camera cable

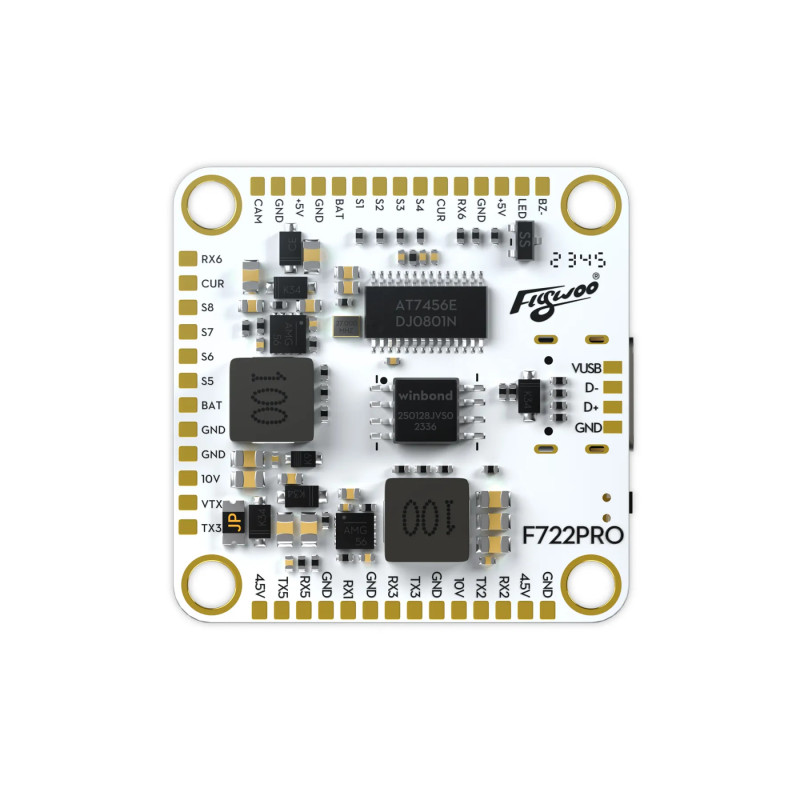

Top view of Flywoo F722 PRO V2 FC with plug-and-play ports
Full Flywoo F722 V2 flight controller kit with cables and grommets
