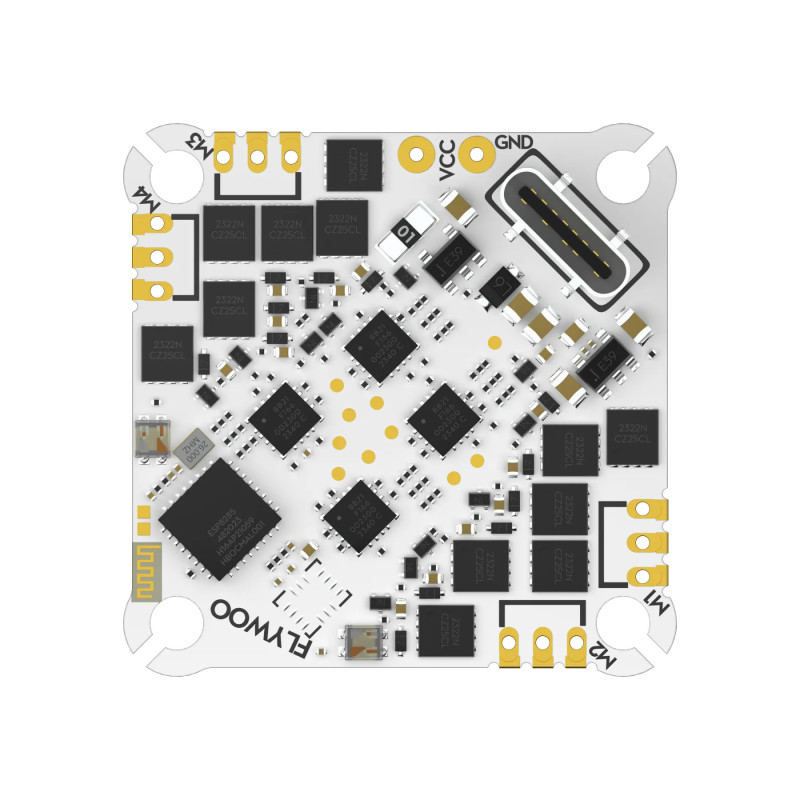

  • Compact AIO FC with 12A ESC and built-in ELRS receiver

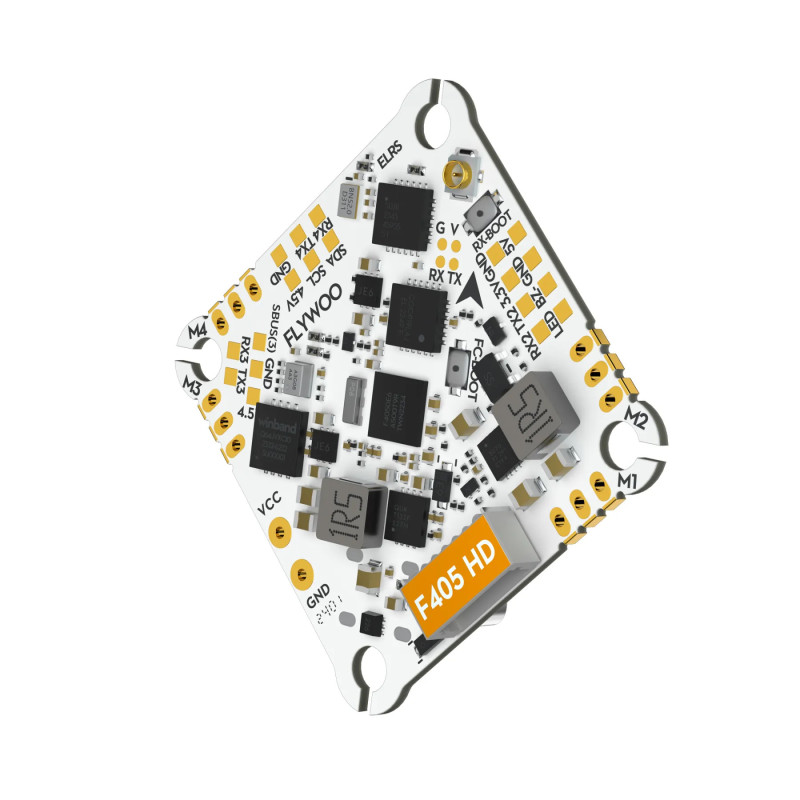

  • GOKU F405 AIO with USB-C, barometer and 5V/9V BEC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC
  • Flywoo GOKU F405 HD AIO V2– 1–2S Flight Controller with ELRS & 12A ESC

Flight Controller (FC) Flywoo GOKU F405 HD 1–2S 12A ELRS AIO V2

337.77
Tax included
Avifly – official partner and distributor of Flywoo FPV brand.

Brand
Flywoo
Quantity:
7
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

Flywoo GOKU F405 HD 1–2S 12A ELRS AIO V2 – All-in-One Flight Controller

Compact and powerful AIO FC with built-in ELRS 2.4G receiver, ideal for 1–2S digital FPV builds

Flywoo GOKU F405 HD 1–2S ELRS AIO V2 is a lightweight all-in-one flight controller designed for micro FPV drones. It features an STM32F405 processor, ICM42688P gyro, 4in1 12A BLHeli_S ESC, built-in ExpressLRS 2.4G receiver (UART), onboard barometer, and 8MB blackbox. With switchable 5V/9V BEC, USB-C port, and plug-and-play connectors, this AIO is ideal for compact, high-performance digital builds.

Key Features:

  • ✅ Integrated ELRS 2.4G UART receiver (built-in)
  • ✅ STM32F405 MCU and ICM42688P gyro for stable performance
  • ✅ 4in1 12A BLHeli_S ESC with Bluejay 48KHz firmware
  • ✅ Barometer DPS310 / SPL06 for precise altitude readings
  • ✅ 8MB onboard blackbox for tuning and analysis
  • ✅ 6x UARTs, I2C, SBUS input

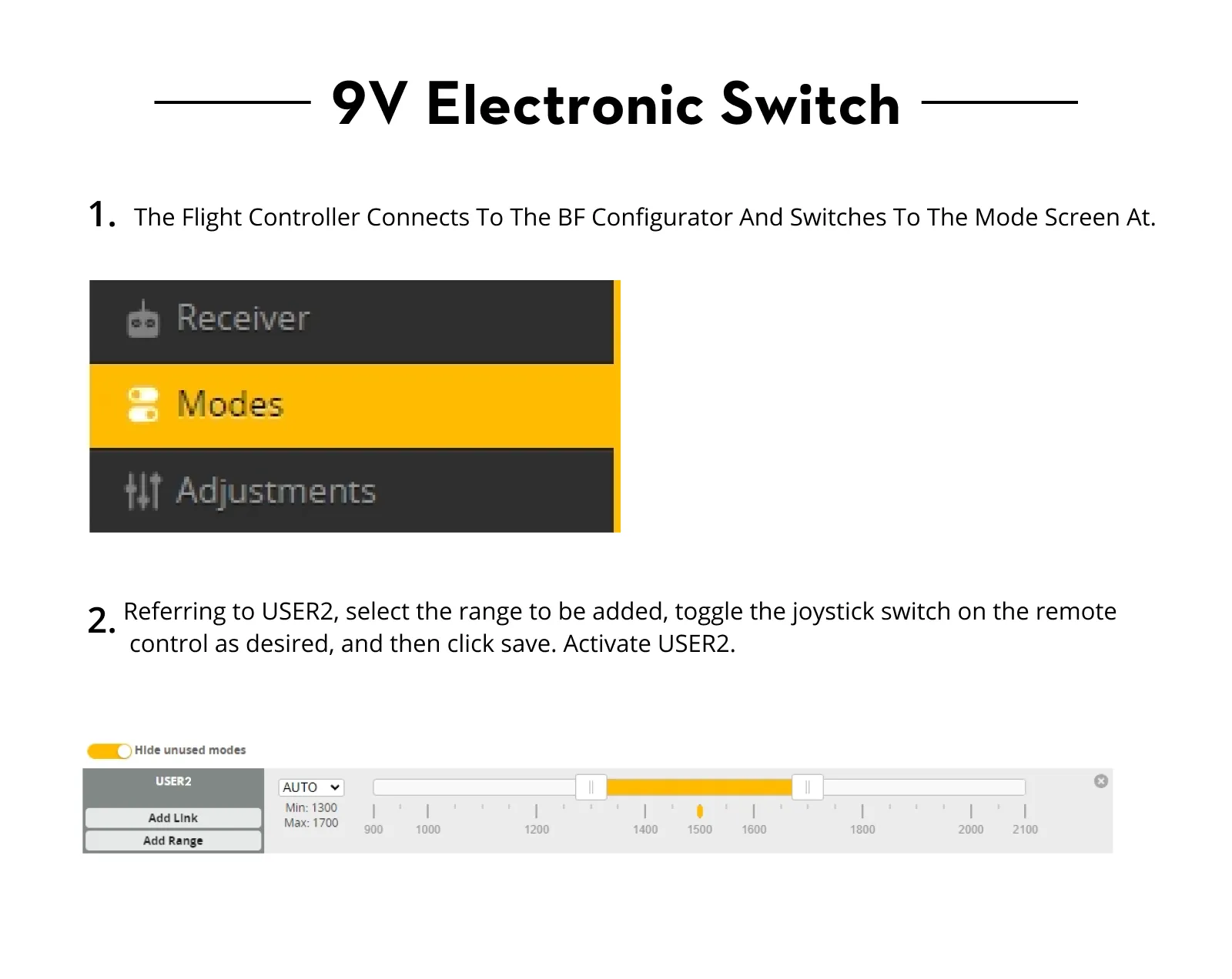

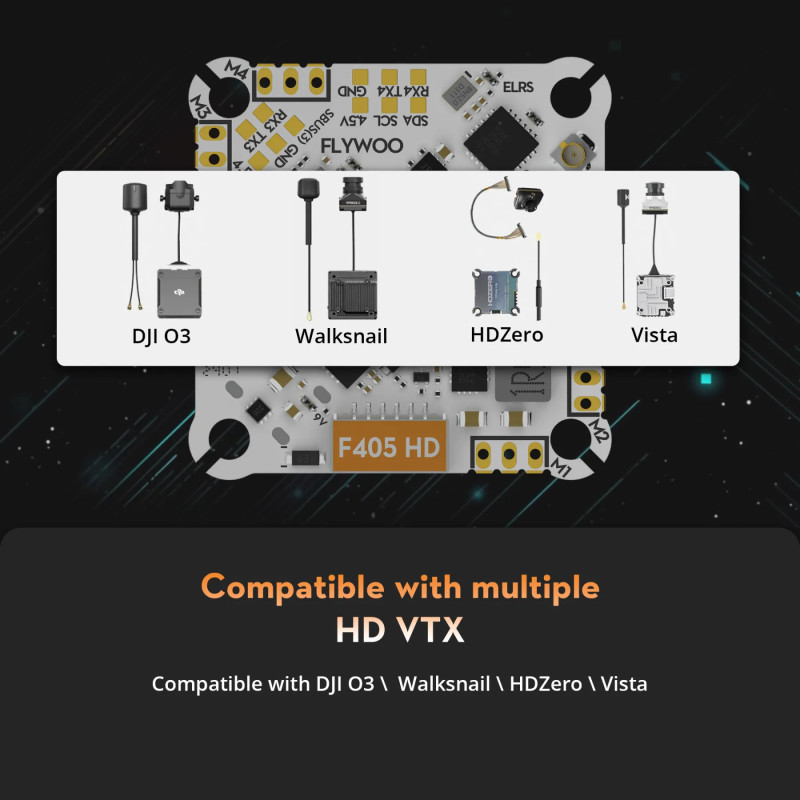

  • ✅ 5V/2A BEC and switchable 9V/2A output (DJI compatible)

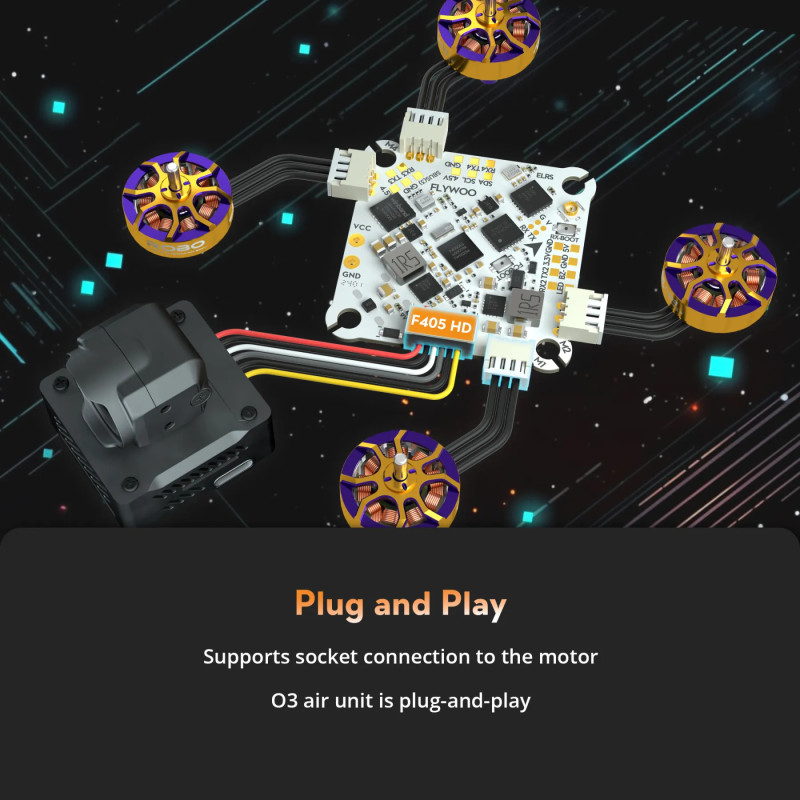

  • ✅ USB-C port and motor socket connectors
  • ✅ 25.5×25.5 mm mounting (M2), only 4.9 g weight

📋 Technical Specifications:

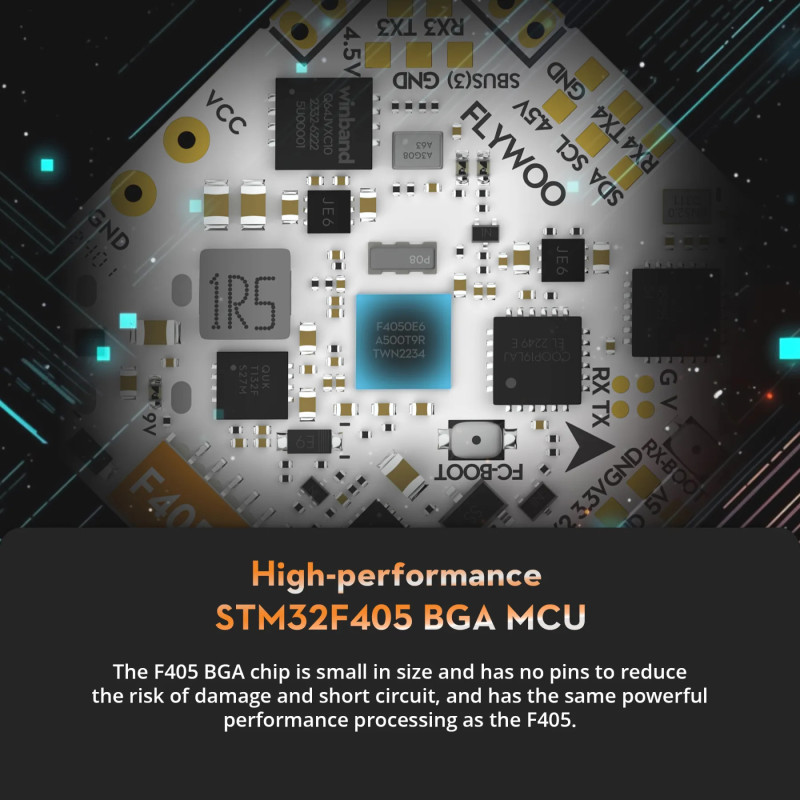

  • MCU: STM32F405BGA
  • Gyroscope: ICM42688P
  • ESC: 4in1 12A BLHeli_S (Bluejay 48KHz)

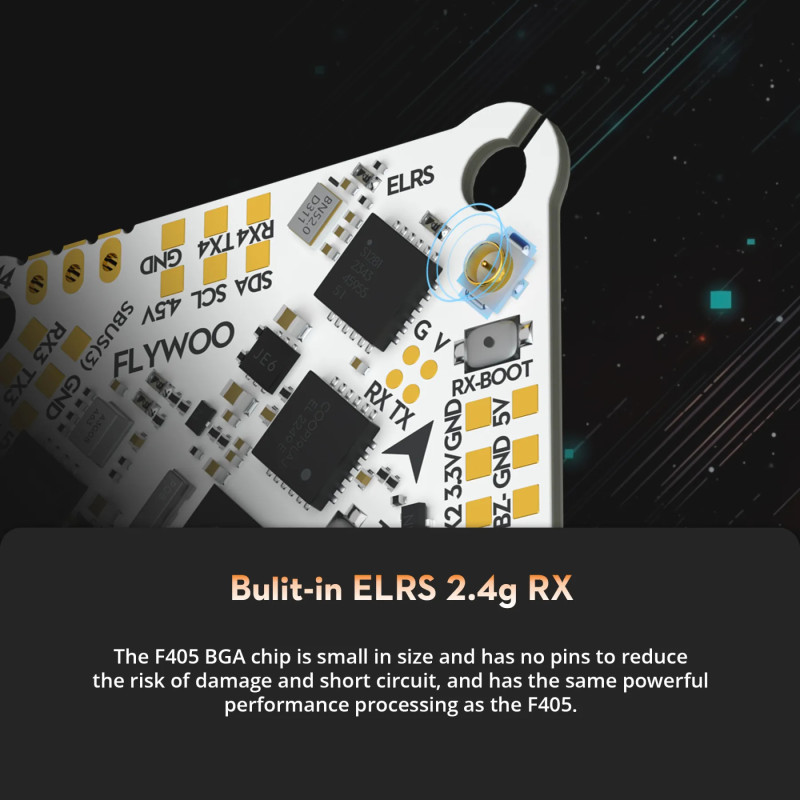

  • Receiver: ELRS 2.4G (UART, built-in)
  • Barometer: DPS310 / SPL06
  • Blackbox: 8MB flash memory

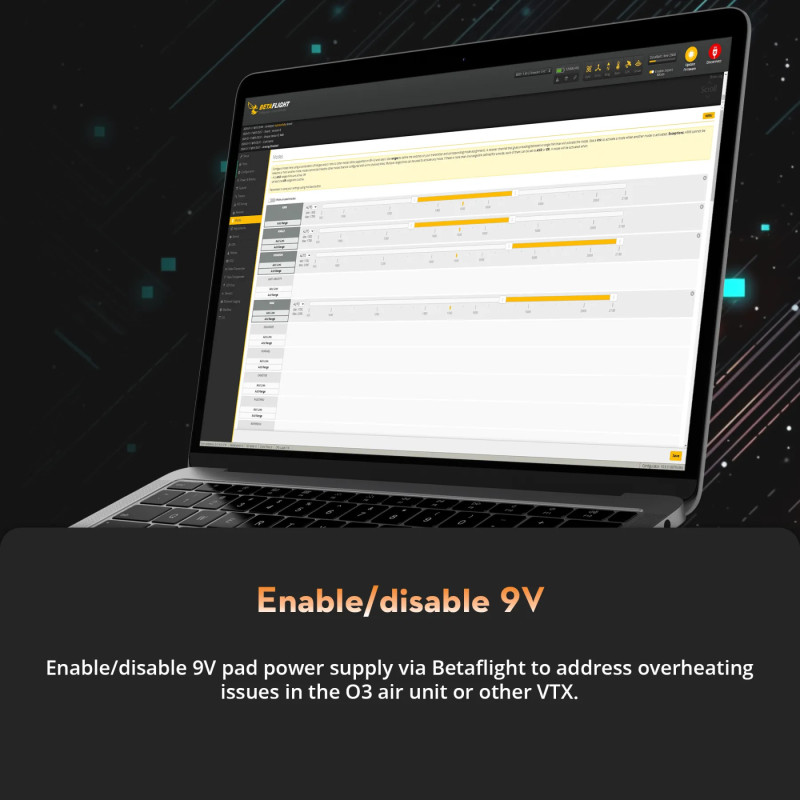

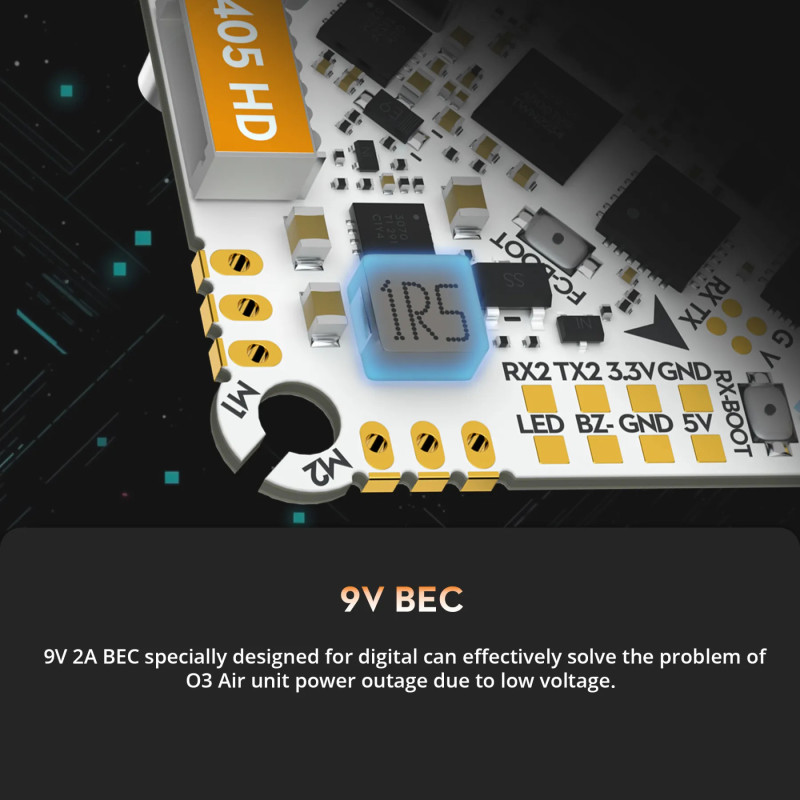

  • BEC Output: 5V/2A and 9V/2A (switchable)

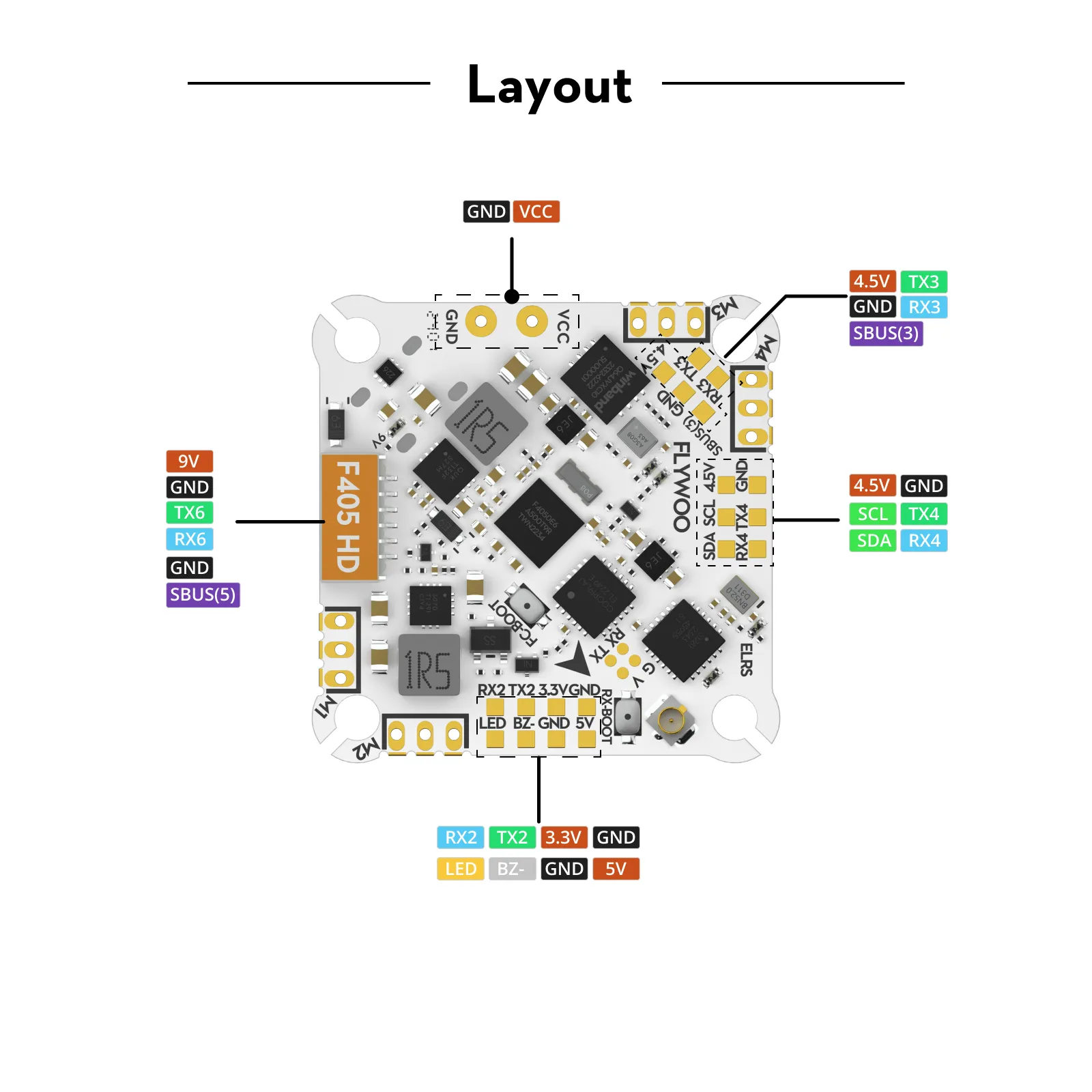

  • UART Ports: UART1–6, I2C, SBUS input

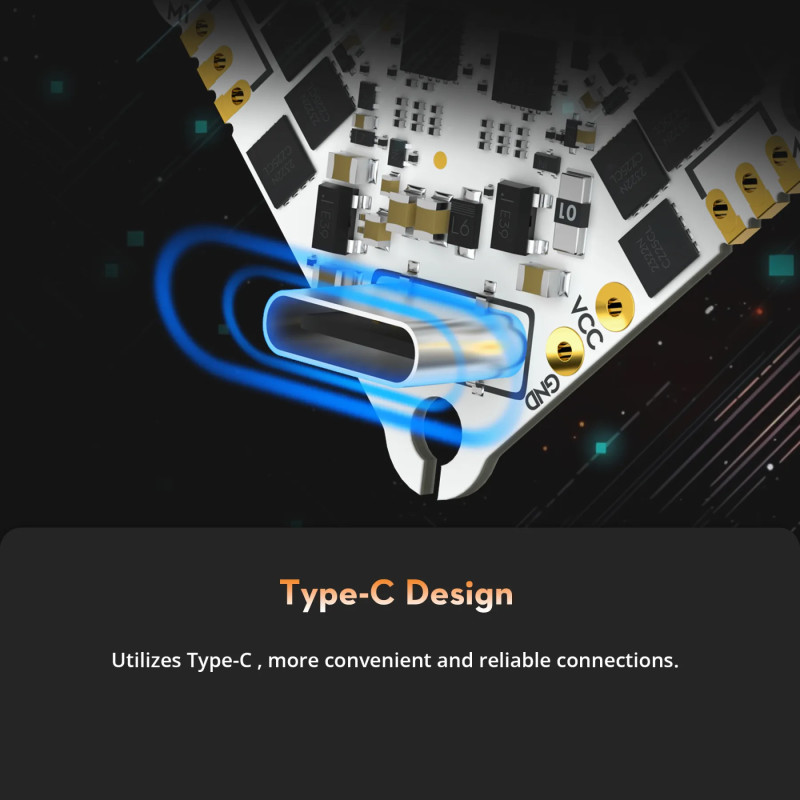

  • USB: USB Type-C

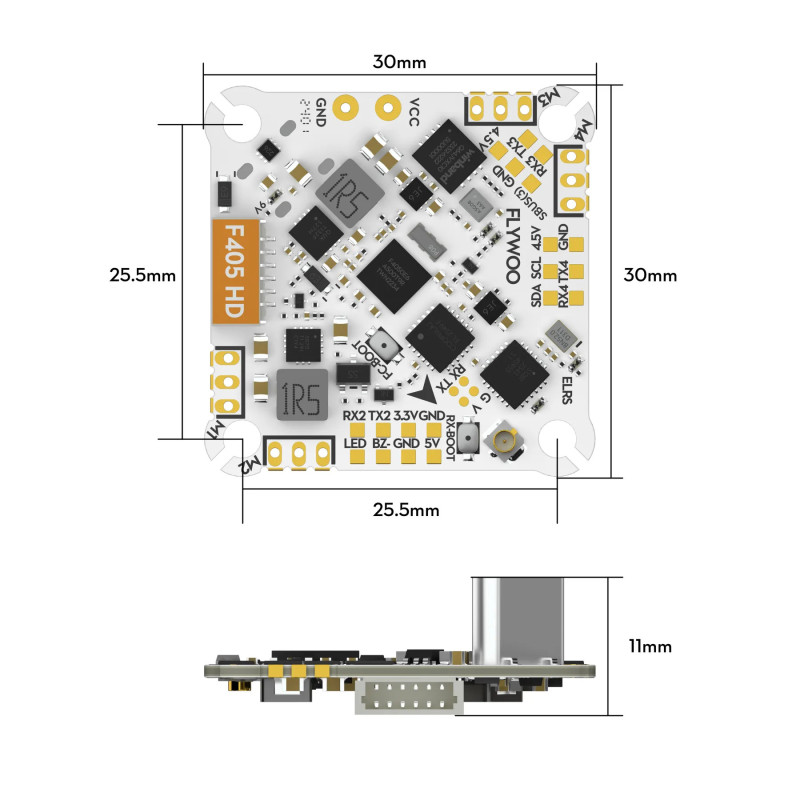

  • Dimensions: 30×30 mm board
  • Mounting Pattern: 25.5×25.5 mm (M2)

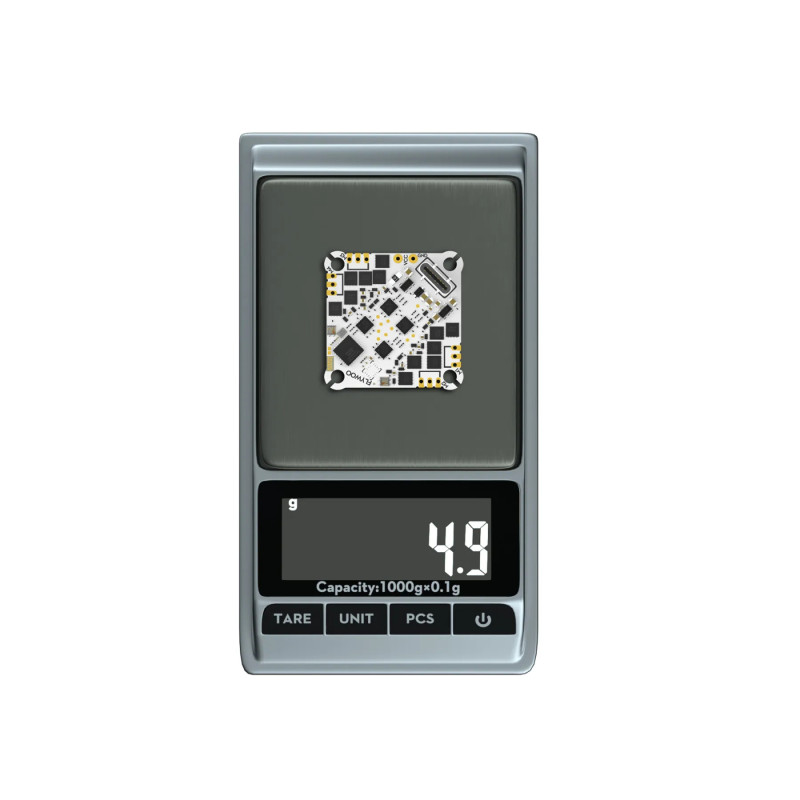

  • Weight: 4.9 g

📦 Package Includes:

  • 1× Flywoo GOKU F405 HD 1–2S 12A ELRS AIO V2
  • 1× ELRS 2.4G antenna (ELRS version only)
  • 1× XT30 power cable
  • 1× PH2.0 battery cable
  • 1× Capacitor
  • 1× DJI O3 signal cable
  • 4× JST motor plugs
  • 4× M2×10 mounting screws
  • 4× M2 nuts
  • 4× M2 rubber dampers

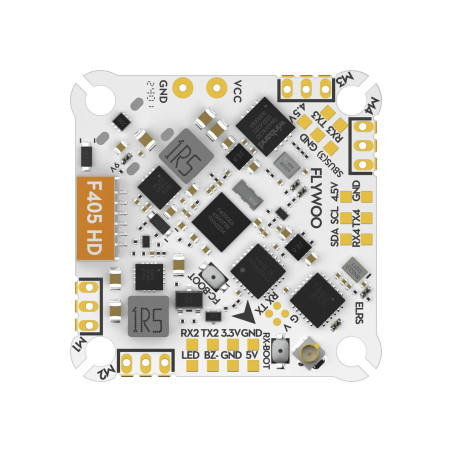

Top view of Flywoo 1–2S AIO board for micro digital drones

FPV controller with 6 UARTs, gyro, blackbox and power cables

All-in-one flight controller for toothpick and whoop builds



Flywoo F405 AIO V2 z Bluejay 48KHz i 6 UART-ami
