JHEMCU F411ELVTX – AIO Flight Controller with ELRS and 400mW VTX

All-in-one FC for micro FPV drones – 1–2S LiPo, built-in ELRS 2.4G, 5.8G VTX, BLHeli_S ESC

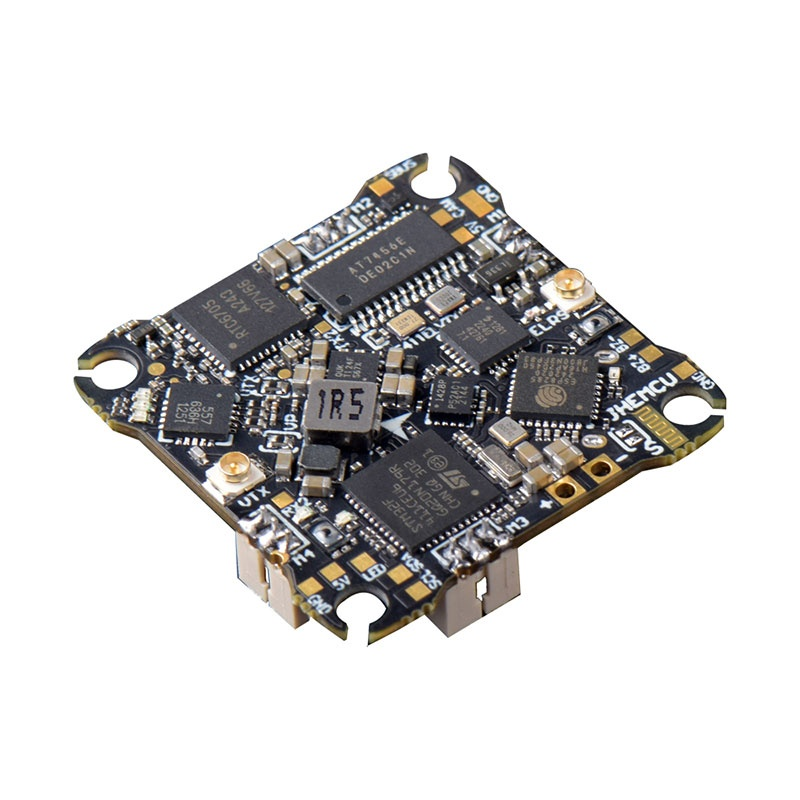

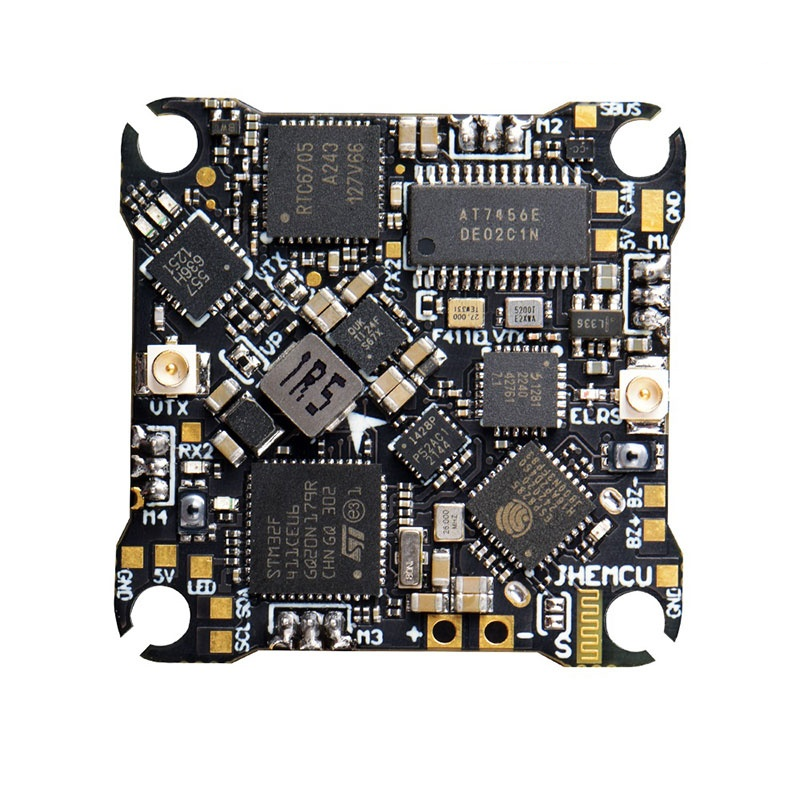

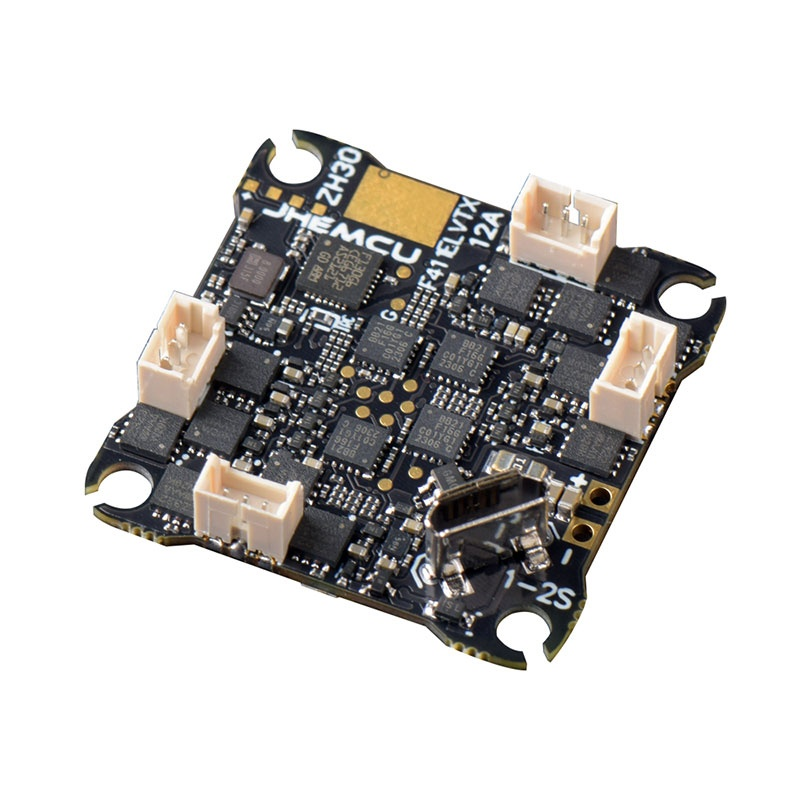

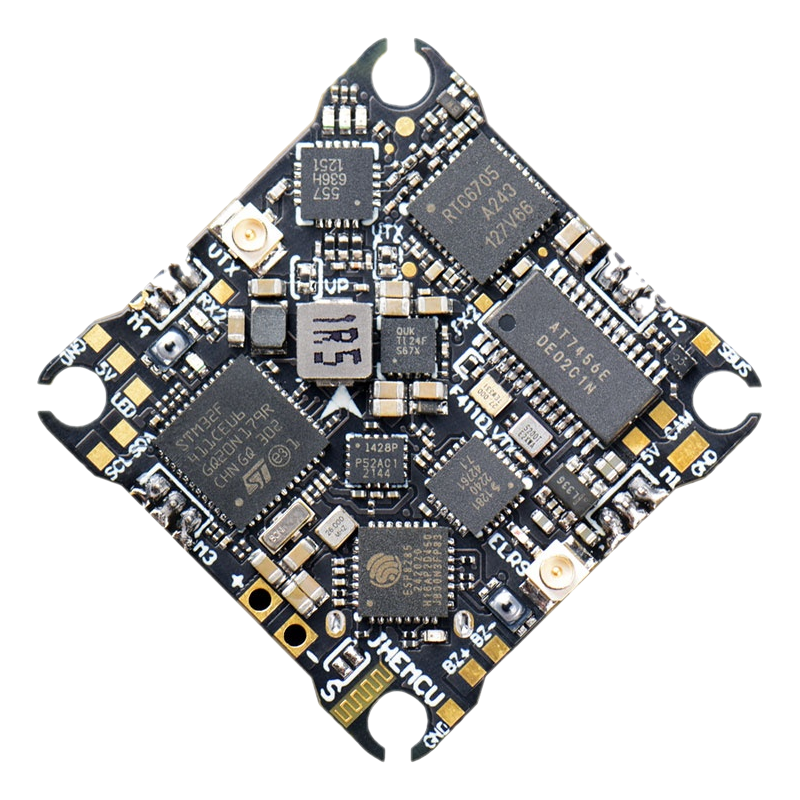

JHEMCU F411ELVTX is a compact All-In-One flight controller designed for ultra-light FPV builds. It combines FC, 2.4G ExpressLRS receiver and a 5.8GHz VTX (up to 400mW). With an ICM-42688-P gyro, integrated OSD, and 12A BLHeli_S ESC, the F411ELVTX is a perfect solution for 1S–2S micro builds with minimal wiring.

Product Features:

  • ✅ STM32F411 processor with ICM-42688-P gyro
  • ✅ Built-in 2.4G ELRS receiver (JHEMCU EP24 firmware)
  • ✅ 5.8G VTX – 25–400mW, SmartAudio compatible
  • ✅ 4-in-1 ESC 12A BLHeli_S (Z_H_30 firmware)
  • ✅ OSD, voltage/current sensor, micro USB
  • ✅ Lightweight – only 4.4 g

? Technical Specifications:

  • MCU: STM32F411CEU6 (100 MHz)
  • Gyro: ICM-42688-P
  • OSD: AT7456E
  • ESC: 4-in-1 12A BLHeli_S (Z_H_30)
  • ELRS RX: Built-in 2.4G (JHEMCU EP24 V3.0.0)
  • VTX: Built-in 5.8GHz (25/100/200/300/400 mW)
  • Input: 1–2S LiPo
  • BEC: 5V/1.5A
  • UART: 2 ports (UART1 for RX, UART2 for VTX)
  • USB: Micro USB
  • Mounting: 25.5×25.5 mm (M3)
  • Dimensions: 30×30 mm
  • Weight: 4.4 g

? Package Includes:

  • 1× JHEMCU F411ELVTX AIO Flight Controller
