Flight Controller SpeedyBee F405 WING APP

SpeedyBee

SKU: SB-F405WING-APP
199.99
Out-of-Stock

SpeedyBee – innovative FPV flight controllers, stacks, and accessories officially distributed by Avifly.

  • 30-day returns No questions asked
  • 12 mo warranty Manufacturer + Avifly
  • Shipping availability Same day before 12:00

Flight Controller SpeedyBee F405 WING APP Fixed Wing

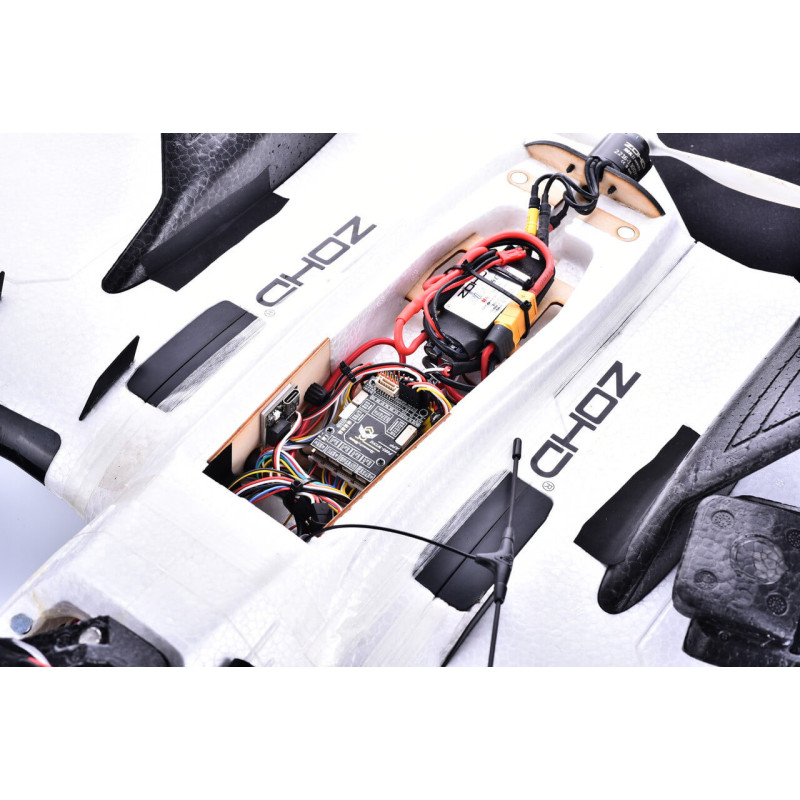

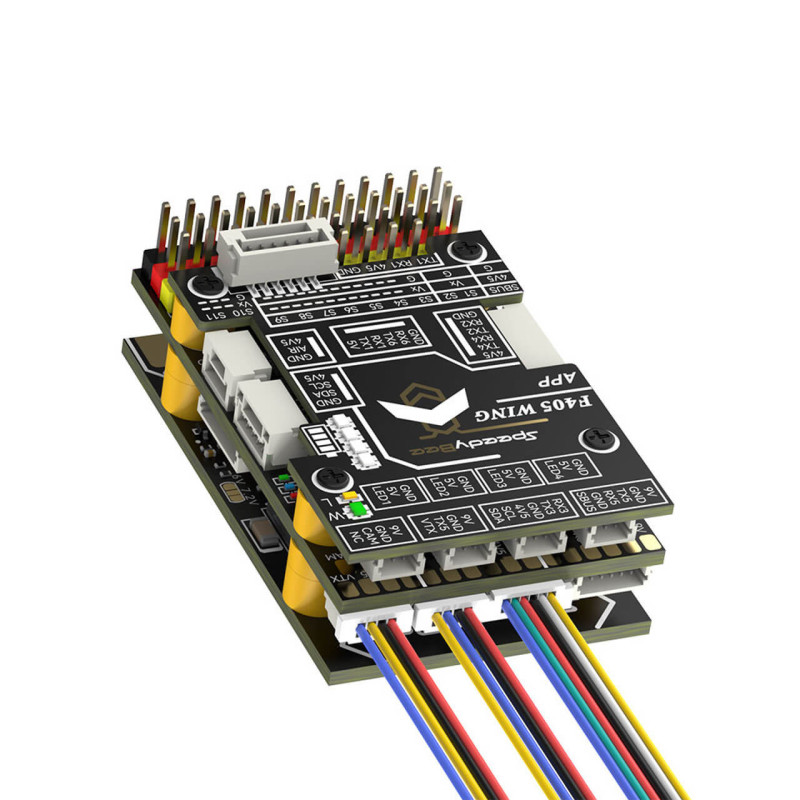

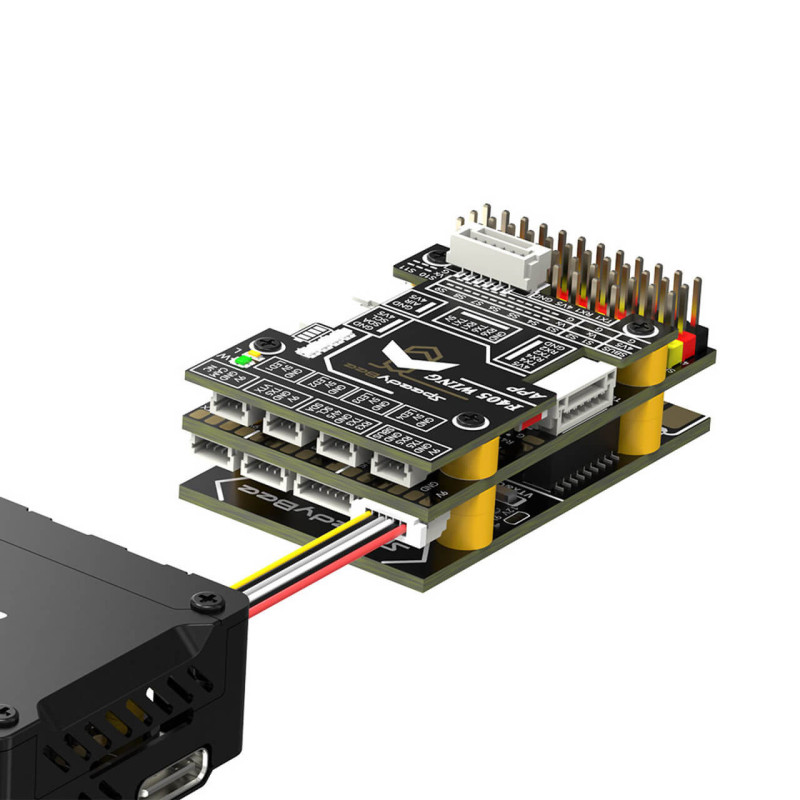

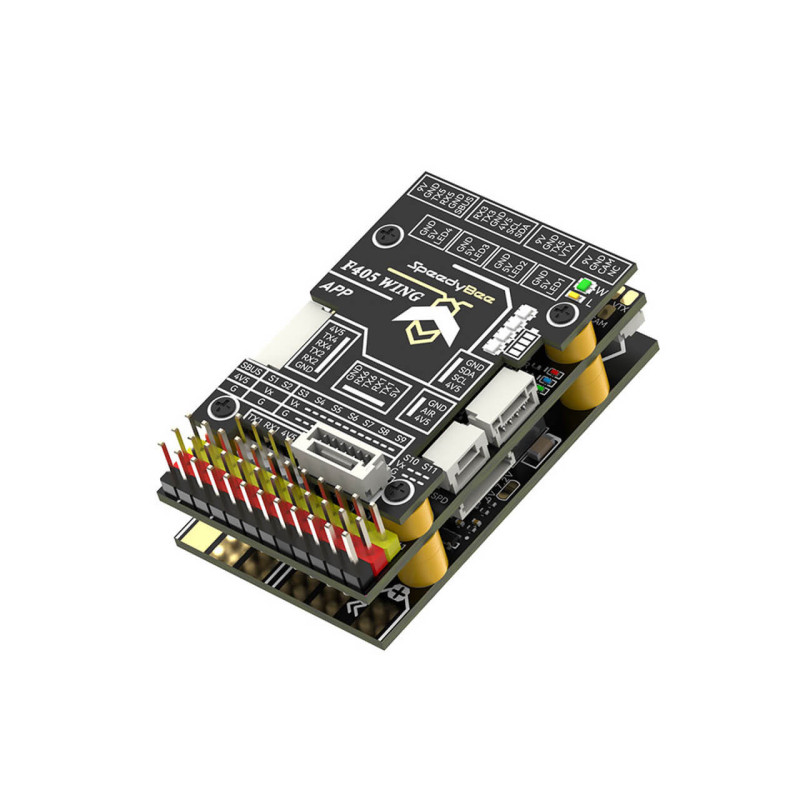

The SpeedyBee F405 WING APP is an advanced flight controller designed specifically for RC fixed-wing aircraft. Featuring a powerful STM32F405 microcontroller, a fast ICM-42688-P IMU, and a precise SPL006-001 barometer, it ensures stable and accurate control. The controller offers 6 UART ports, supports ELRS/CRSF and SBUS receivers, and has a built-in SBUS inverter.


With integrated wireless connectivity (BLE, Wi-Fi, Bluetooth SPP), flight configuration and monitoring are incredibly easy using the SpeedyBee or QGroundControl apps. Additionally, the controller has 12 PWM outputs, a MicroSD card slot for blackbox logging, and 4 ADC inputs.

The set also includes a PDB board with 5.2V, 9V, and adjustable 4.9V BECs, allowing for stable power supply to various components. An optional wireless board with a WS2812 LED controller and battery level indicator is also available.


Key Features:

  • Designed for fixed wings: Optimal control for RC airplanes.
  • F405 MCU & ICM-42688-P IMU: High performance and precision.
  • APP Connectivity (BLE/Wi-Fi/Bluetooth): Easy configuration and monitoring.
  • Multiple UART & PWM ports: High connection flexibility.
  • Built-in BEC on PDB: Stable power supply for components.


Flight Controller Specifications:

  • MCU: STM32F405, 168MHz, 1MB Flash
  • IMU: ICM-42688-P
  • Barometer: SPL006-001
  • OSD Chip: AT7456E
  • Blackbox: MicroSD Card Slot
  • UART: 6 sets
  • I2C: 1x
  • ADC: 4x
  • PWM: 12x

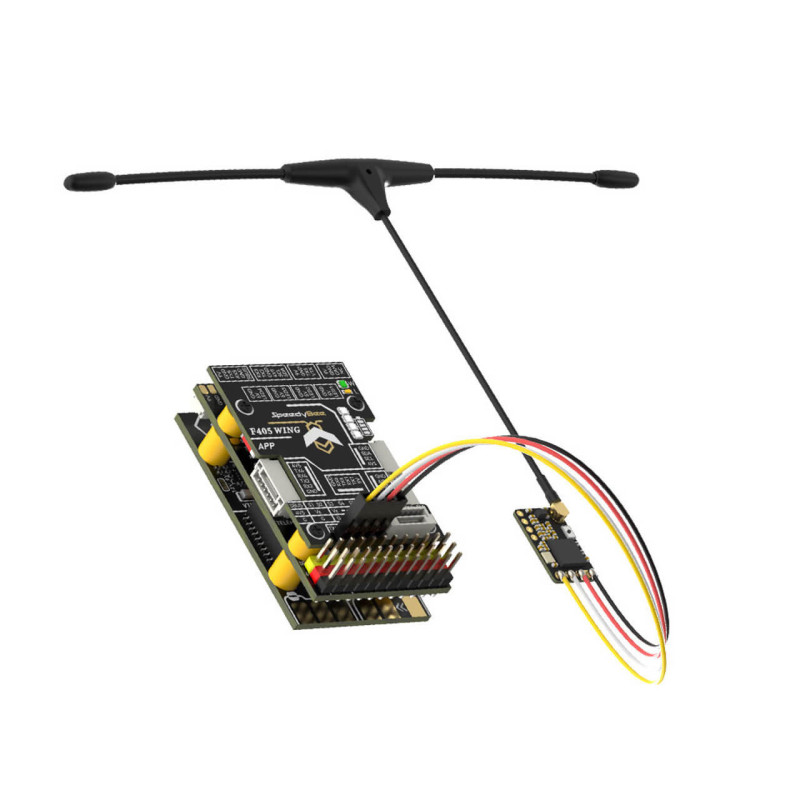

  • Receiver: ELRS/CRSF (UART1), SBUS (UART2-RX)
  • Firmware: INAV (default), ArduPilot
  • Weight: 8.9g

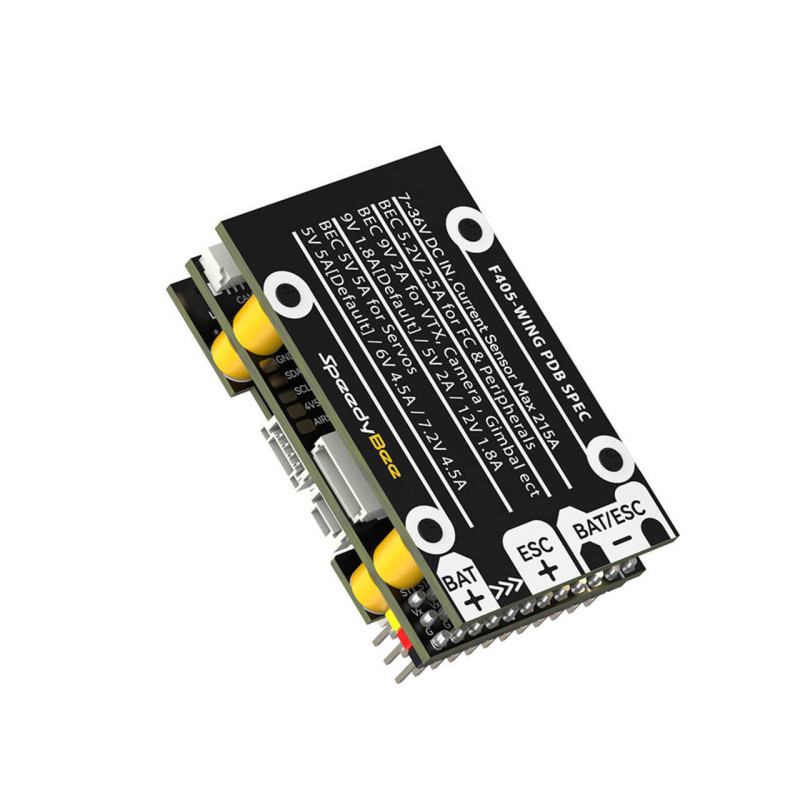

PDB Board Specifications:

  • Input Voltage Range: 7~36V (2~6S LiPo)
  • Battery Voltage Sensor: Yes
  • Battery Current Sensor: 90A continuous, 215A peak
  • FC BEC: 5.2V/2.4A (continuous), 3A (peak)
  • VTX BEC: 9V/1.8A (continuous), 2.3A (peak), adjustable 5V/12V
  • Servo BEC: 4.9V/4.5A (continuous), 5.5A (peak), adjustable 6V/7.2V
  • Weight: 11.4g


Wireless Board Specifications (Optional):

  • Wireless Configuration: BLE, Wi-Fi, Bluetooth SPP
  • LED Controller: 4x WS2812
  • Battery Level Indicator: 4x RGB LED
  • Weight: 4.2g

Manual

UserManualEnglish UserManual中文 UserManualArduPilot Stable Firmware
