T-Motor F7 AIO-F722 – Flight Controller + 35A ESC 2–6S

Versatile HD/Analog AIO flight system for multirotor FPV drones

The T-Motor F7 35A AIO is an all-in-one flight controller with an integrated 35A 4-in-1 ESC, supporting 2–6S LiPo batteries. Designed for both analog and HD digital video systems, it features a vibration-resistant MPU gyro, barometer, MSP DisplayPort OSD and a dedicated HD VTX connector. Compatible with motors like 1804, 2004, 2203.5.

Key Features

  • ● STM32F722 MCU, MPU gyro
  • ● 35A BLHeli_S 4-in-1 ESC (2–6S)
  • ● Supports motors: 1804 / 2004 / 2203.5
  • ● HD VTX port, MSP DisplayPort, integrated barometer
  • ● Mounting holes: 25.5×25.5 mm

Technical Specifications

  • ● MCU: STM32F722
  • ● ESC: 35A continuous, 40A burst
  • ● Gyro: MPU6000
  • ● Mounting pattern: 25.5×25.5 mm
  • ● Compatible with HD and analog video systems

Package Contents

  • ● 1× T-Motor F7 AIO-F722 FC + 35A ESC (2–6S)

Note: Requires soldering and basic Betaflight setup.

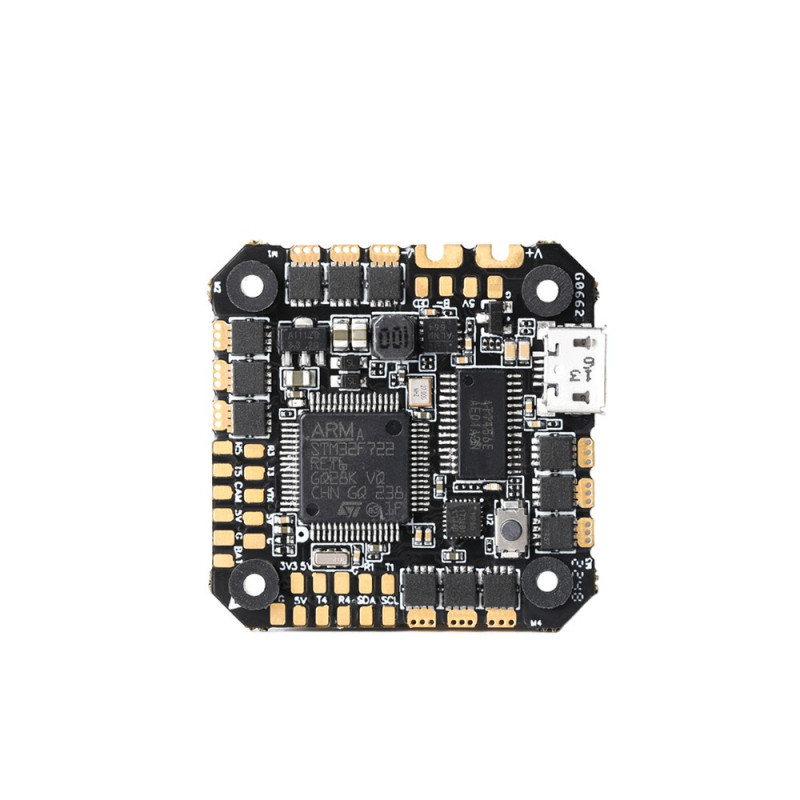

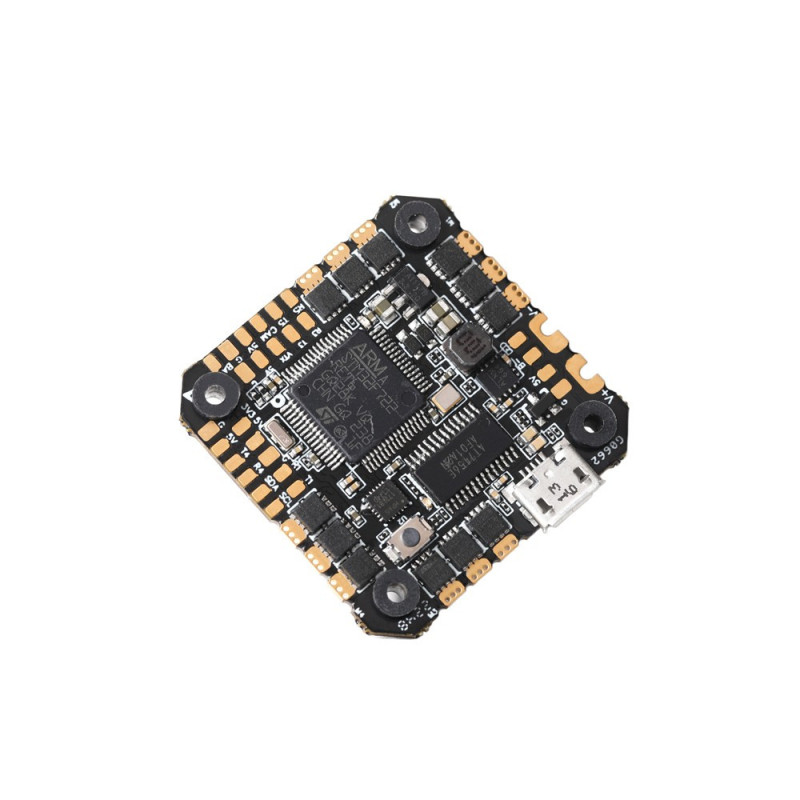

T-Motor F7 35A AIO Front View T-Motor F7 35A AIO Rear View T-Motor F7 35A AIO Side View T-Motor F7 35A AIO Connection Ports T-Motor F7 35A AIO Packaging T-Motor F7 35A AIO Full Set
