Flywoo GOKU F722 PRO Mini V2 – 20×20 mm Flight Controller (FC)

Advanced flight controller with STM32F722 processor, ICM42688 gyro, and DJI O3 Air Unit support

Flywoo GOKU F722 PRO Mini V2 is a compact 20×20 mm flight controller equipped with a powerful STM32F722 MCU, ultra-precise ICM42688 gyro, onboard OSD, barometer, and 16MB Blackbox memory. With support for DJI O3 Air Unit, plug-and-play cable design, and up to 8 motor outputs, it's ideal for advanced FPV drones with limited space.

Key Features:

  • ✅ STM32F722 MCU running at 216 MHz
  • ✅ ICM42688 gyro (SPI) for accurate stabilization
  • ✅ 16MB Blackbox for data logging and tuning
  • ✅ Built-in AT7456E OSD and DP310 barometer
  • ✅ Supports up to 8 motors and dual 4in1 ESC ports
  • ✅ Dual BEC outputs: 10V/2A and 5V/2A
  • ✅ USB-C port for easy firmware updates
  • ✅ DJI O3 Air Unit ready (plug-and-play cable included)
  • ✅ Compatible with Betaflight and iNav

📋 Technical Specifications:

  • Model: GOKU F722 PRO Mini V2
  • Processor: STM32F722
  • Gyroscope: ICM42688 (SPI)
  • OSD: AT7456E
  • Barometer: DP310
  • Blackbox: 16MB Flash memory
  • UARTs: 6 (UART1–UART6)
  • Input voltage: 7.4V–26V (2–6S LiPo)
  • BEC outputs: 10V/2A and 5V/2A
  • Dimensions: 32×29×20 mm
  • Mounting pattern: 20×20 mm (M2)
  • Weight: 9.9 g

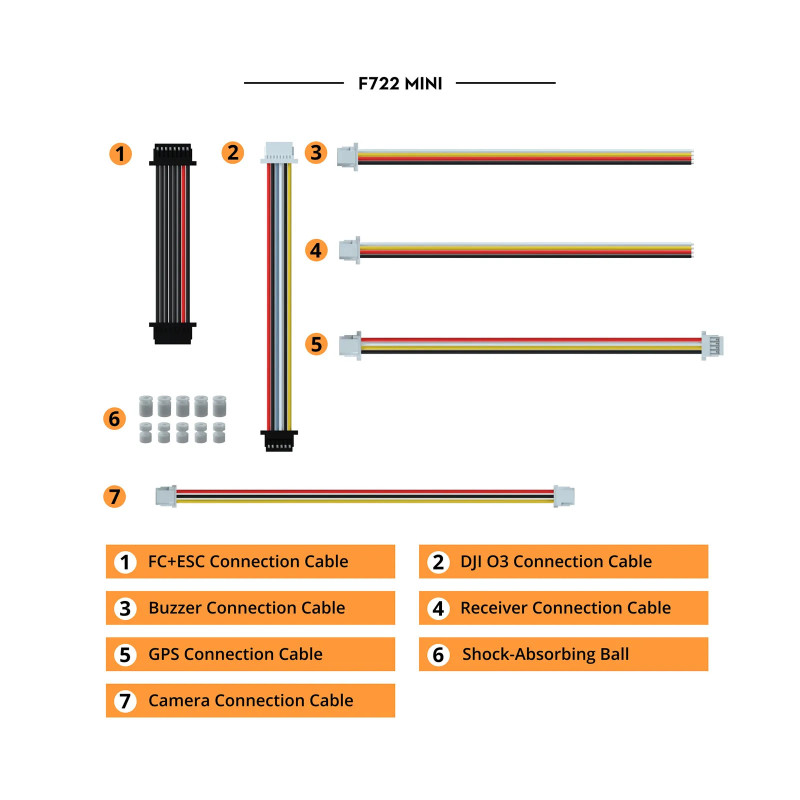

📦 Package Includes:

  • 1× Flywoo GOKU F722 PRO Mini V2 Flight Controller
  • 1× FC-to-ESC connection cable
  • 1× Buzzer cable
  • 1× GPS cable
  • 1× DJI O3 cable
  • 1× Receiver signal cable
  • 5× M3 rubber grommets
  • 5× M2 rubber grommets
  • 1× Camera signal cable

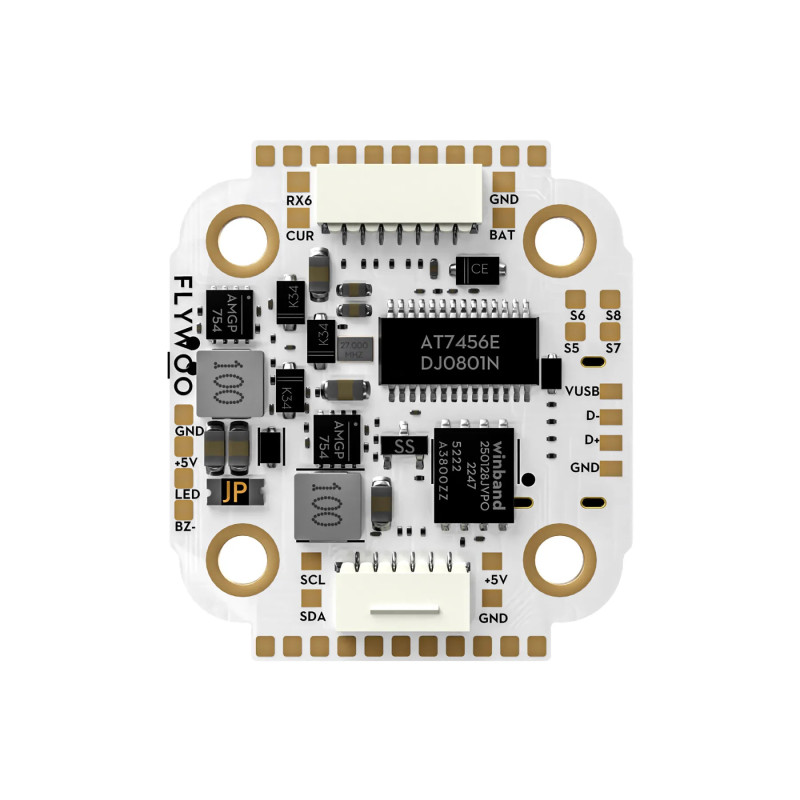

Top view of Flywoo 20x20 F7 flight controller board


Plug-and-play flight controller for FPV racing drones

Complete Flywoo GOKU F722 Mini kit with wiring accessories
