JHEMCU flight controller GF30H743 FPV DUAL BEC 5V/10V
264.77
Tax included

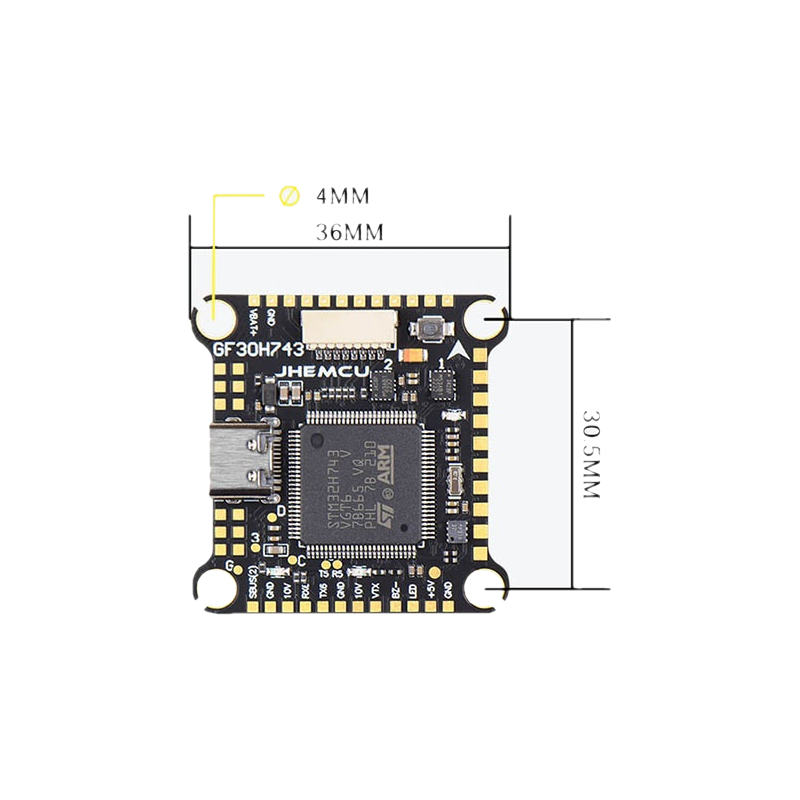

JHEMCU GF30H743 – Flight Controller with Dual BEC 5V/10V
Advanced STM32H743 480 MHz Flight Controller for FPV Drones
JHEMCU GF30H743 is a high-performance flight controller designed for demanding FPV applications. Featuring a powerful STM32H743 processor running at 480 MHz, it provides fast and stable data processing. The controller includes two built-in BECs: 5V/2.5A and 10V/2A, offering flexible power supply options for video transmitters, GPS modules, or other peripherals. It supports 3–6S LiPo batteries and integrates OSD, barometer, and dual ICM42688P gyroscopes for precise flight data. With its standard 30.5×30.5 mm mounting pattern, the GF30H743 is ideal for advanced freestyle and long-range FPV builds.
Product features:
- ✅ STM32H743 480 MHz processor – ultra-fast response
- ✅ Dual BECs: 5V/2.5A and 10V/2A – ideal for FPV gear
- ✅ Supports 3–6S LiPo input – wide voltage range
- ✅ Dual ICM42688P gyros and DPS310 barometer – flight precision
- ✅ Built-in OSD (AT7456E) – on-screen telemetry data
- ✅ 7 UART ports – plenty of expandability
- ✅ 30.5×30.5 mm mounting pattern – standard stack fit
📋 Technical specifications:
- Processor: STM32H743 480 MHz
- Gyroscopes: Dual ICM42688P
- Barometer: DPS310
- OSD: AT7456E chip
- Input voltage: 3–6S LiPo
- BEC outputs: 5V/2.5A and 10V/2A
- UART ports: UART1 to UART7
- Mounting: 30.5×30.5 mm (M3)
- Weight: approx. 7.5 g
📦 Package includes:
- 1× JHEMCU GF30H743 FPV Flight Controller
- 1× Wiring set
- 1× Mounting hardware
