Filight controller SpeedyBee F405 WING MINI Fixed Wing

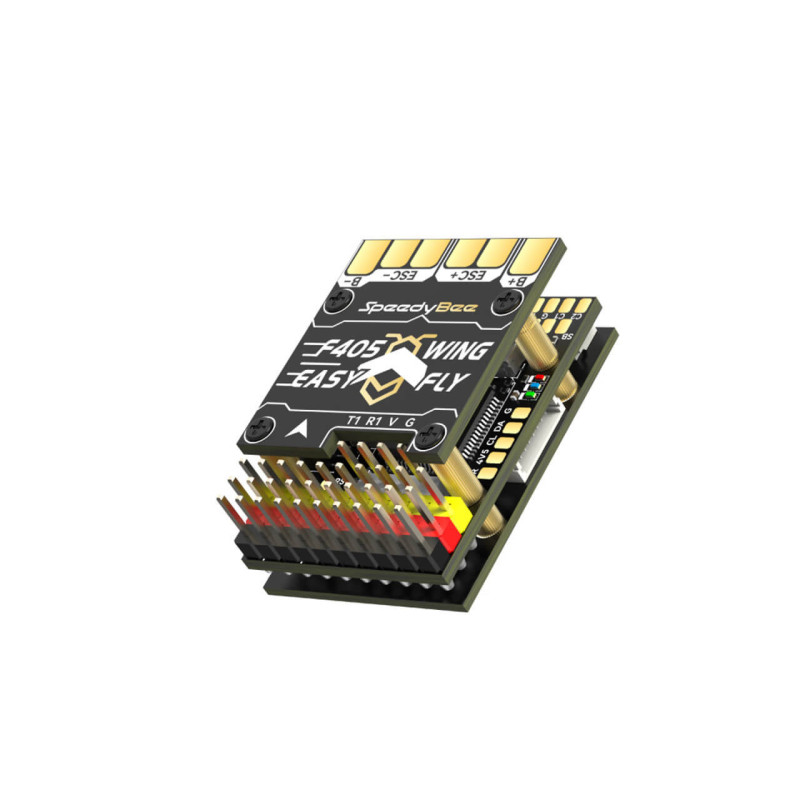

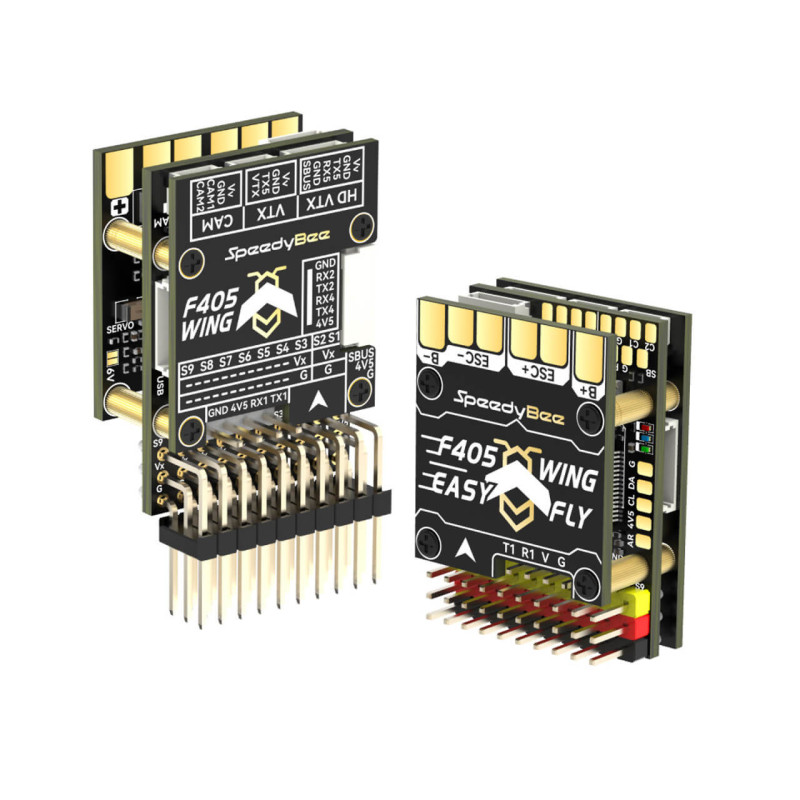

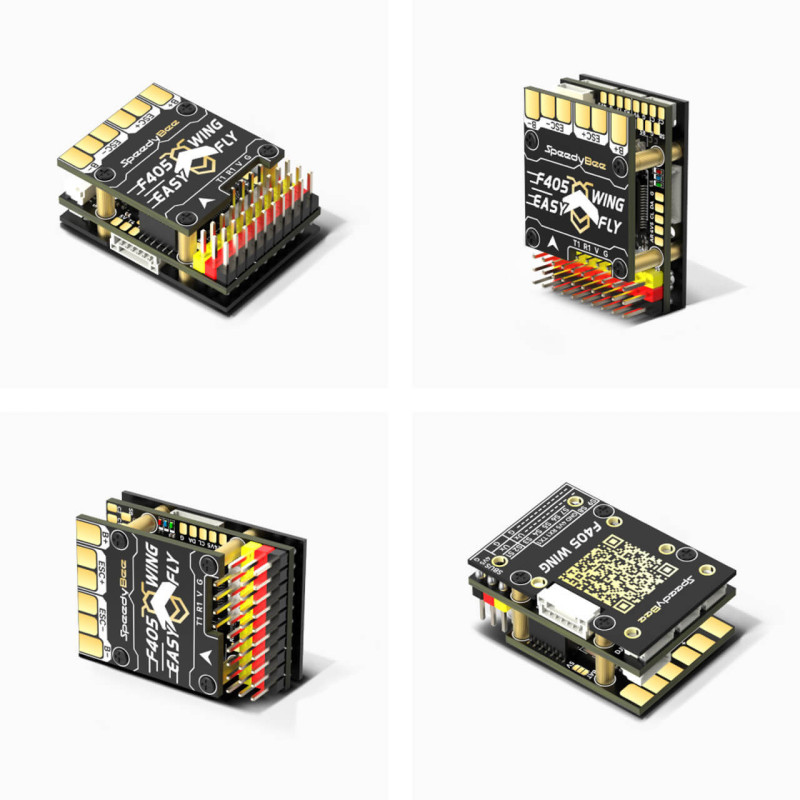

The SpeedyBee F405 WING MINI is a compact and lightweight flight controller designed specifically for small RC fixed-wing aircraft. Despite its small size, it features a powerful STM32F405 microcontroller, a fast ICM-42688-P IMU, and a precise SPL006-001 barometer, ensuring stable and accurate control. The controller has 6 UART ports, supports ELRS/CRSF and SBUS receivers (with built-in inverter), and the ability to switch between two analog cameras.

With an integrated wireless module (BLE, Wi-Fi), flight configuration and monitoring are easy using the SpeedyBee or QGroundControl apps. The controller offers 12 PWM outputs and 4 ADC inputs.

The set also includes a compact PDB board with 5.2V and adjustable 5V BECs for VTX & Camera, and a strong 5V BEC for servos.

Key Features:

• Compact and lightweight: Ideal for small fixed-wing aircraft.
• F405 MCU & ICM-42688-P IMU: High performance and precision.
• Wireless Connectivity (BLE/Wi-Fi): Easy configuration and monitoring.
• Multiple UART & PWM ports: High connection flexibility.
• Built-in BEC on PDB: Stable power supply for components.
• Dual Analog Camera Switching: Enhanced FPV possibilities.

Flight Controller Specifications:

• MCU: STM32F405, 168MHz, 1MB Flash
• IMU: ICM-42688-P
• Barometer: SPL006-001
• OSD Chip: AT7456E
• Blackbox: MicroSD Card Slot
• UART: 6 sets
• I2C: 1x
• ADC: 4x
• PWM: 12x
• Receiver: ELRS/CRSF (UART1), SBUS (UART2-RX)
• Dual Analog Camera Switching
• Firmware: INAV (default), ArduPilot
• Weight: 5.6g

PDB Board Specifications:

• Input Voltage Range: 7~26V (2~6S LiPo)
• Battery Voltage Sensor: Yes
• Battery Current Sensor: 80A continuous, 150A peak
• FC BEC: 5.2V/2A (continuous), 3A (peak)
• VTX & Camera BEC: 5V/4A (continuous), 5A (peak), adjustable (from Servo BEC) or battery voltage
• Servo BEC: 5V/4A (continuous), 5A (peak), adjustable 6V
• Weight: 5.5g

Wireless USB Extender Specifications:

• Wireless Configuration: BLE, Wi-Fi (AP/STA)
• USB Port Type: Type-C
• Buzzer: 5V Active Buzzer
• Weight: 3.2g
