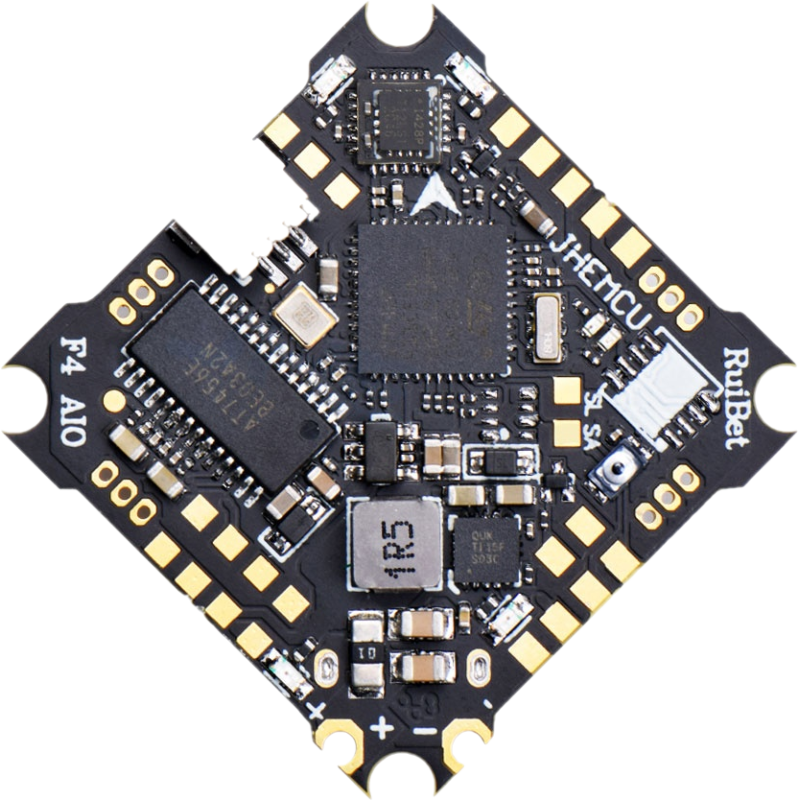

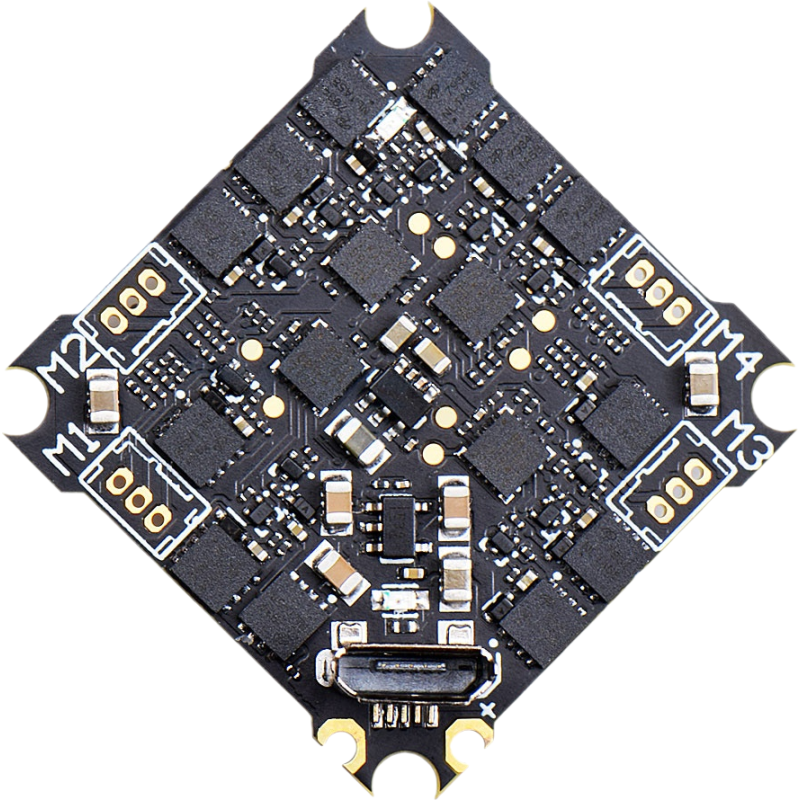

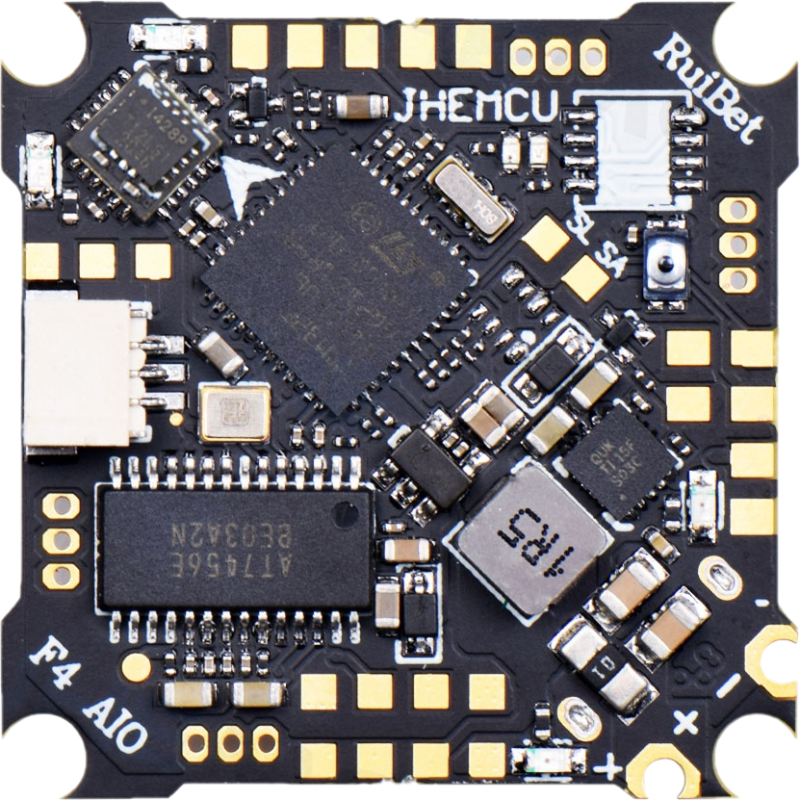

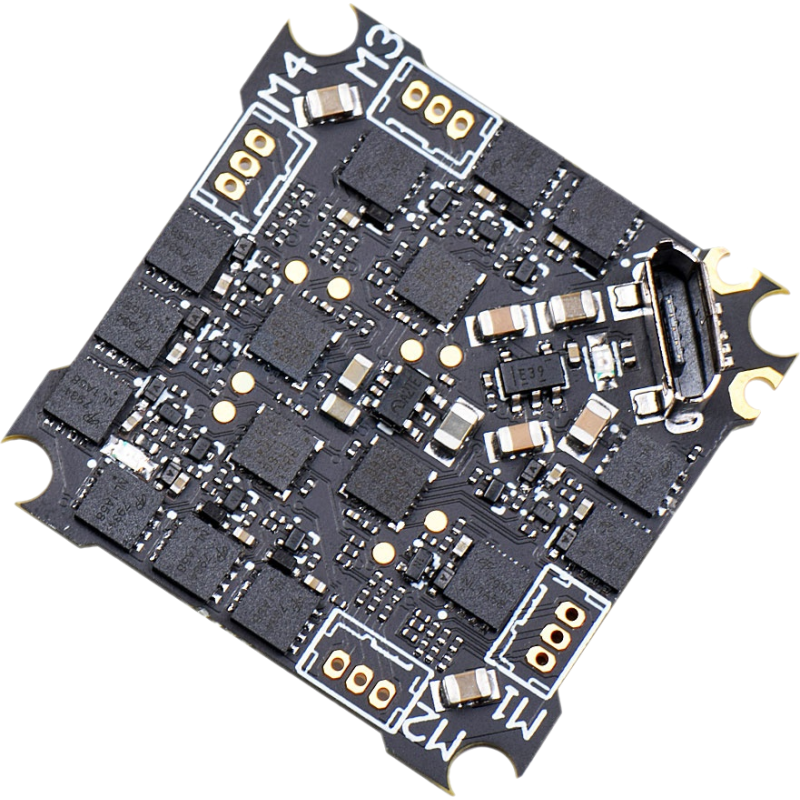

JHEMCU Ruibet F4AIO 12A – 1–2S AIO Flight Controller with ESC
  • JHEMCU Ruibet F4AIO 12A – 1–2S AIO Flight Controller with ESC
  • JHEMCU Ruibet F4AIO 12A – 1–2S AIO Flight Controller with ESC
  • JHEMCU Ruibet F4AIO 12A – 1–2S AIO Flight Controller with ESC
  • JHEMCU Ruibet F4AIO 12A – 1–2S AIO Flight Controller with ESC
  • JHEMCU Ruibet F4AIO 12A – 1–2S AIO Flight Controller with ESC

Flight Controller JHEMCU Ruibet F4AIO with 12A ESC

JHEMCU

SKU: 2023716231052
189.99
Out-of-Stock

Certified JHEMCU FPV products available through Avifly store.

  • 30-day returns No questions asked
  • 12 mo warranty Manufacturer + Avifly
  • Shipping availability Same day before 12:00

JHEMCU Ruibet F4AIO 12A – AIO Flight Controller with 12A ESC

All-In-One for micro FPV builds – 1–2S LiPo, OSD, BEC 5V, BLHeli_S ESC

JHEMCU Ruibet F4AIO 12A is a lightweight and compact All-In-One flight controller, ideal for micro drones and whoops. Integrated with a 4-in-1 ESC rated at 12A continuous per motor, it supports 1–2S LiPo. Featuring a STM32F411 processor and ICM-42688-P gyro, it delivers reliable performance in tight builds. The board includes OSD, DFU button, current sensor, and support for active buzzer.

Product Features:

  • ✅ All-In-One FC with 12A ESC – perfect for 1S/2S whoops
  • ✅ STM32F411 processor + ICM-42688-P gyro
  • ✅ Built-in OSD, current sensor, DFU and buzzer support
  • ✅ Supports DShot600, PWM, SBUS, ELRS, DSMX
  • ✅ Lightweight and compact – only 4.4 g

? Technical Specifications:

  • Processor: STM32F411
  • Gyro: ICM-42688-P
  • OSD: AT7456E
  • Input Voltage: 1S–2S LiPo
  • BEC: 5V/1.5A ±0.1V
  • UART: 2 ports (UART1, UART2)
  • Current and voltage sensing: Yes
  • DFU button: Yes
  • USB: Micro USB
  • Mounting pattern: 25.5×25.5 mm
  • Dimensions: 29×29 mm
  • Weight: 4.4 g

? Package Includes:

  • 1× JHEMCU Ruibet F4AIO 12A AIO Flight Controller
