JHEMCU NOXE F4 2–6S – Compact Flight Controller with DJI HD Support

Designed for 2–6S micro drones with 20×20 mm mounting – available in Standard and Deluxe versions

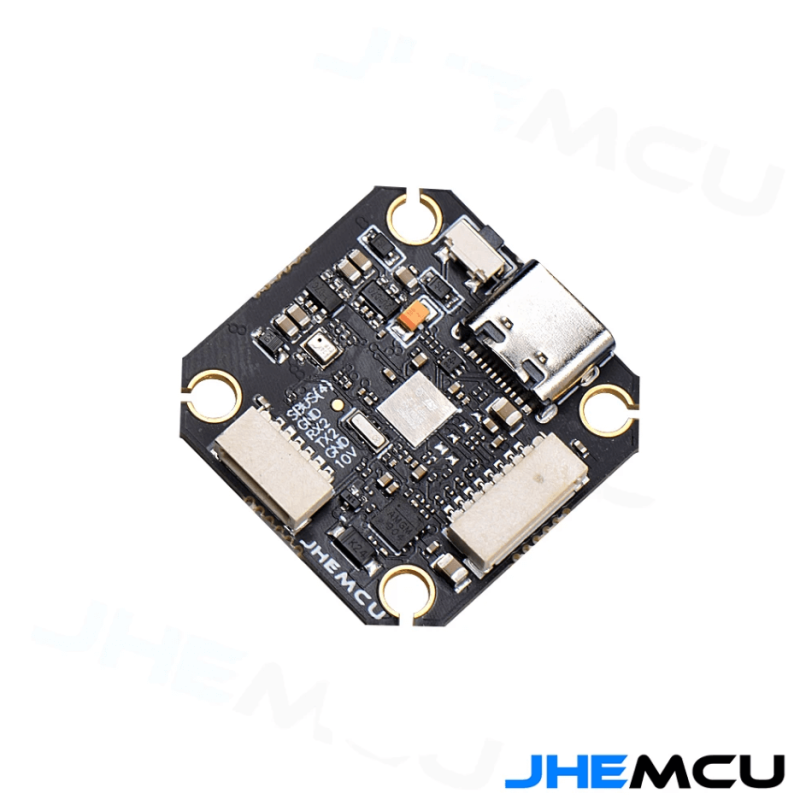

JHEMCU NOXE F4 is a powerful and compact 20×20 mm flight controller designed for modern FPV drones running on 2–6S LiPo power. It features DJI HD compatibility, integrated OSD (AT7456E), 5V/3A and 10V/2A BECs, and a wide range of signal protocol support. The Deluxe version adds a BMP280 barometer and 16MB of Blackbox memory for enhanced logging and performance analysis.

Key Features:

  • ✅ Input voltage: 2–6S LiPo (7–26V)
  • ✅ MCU: STM32F411CEU6 (100 MHz)
  • ✅ Gyroscope: MPU6000 or BMI270
  • ✅ Integrated OSD: AT7456E
  • ✅ BEC outputs: 5V/3A and 10V/2A
  • ✅ DJI HD VTX plug-and-play support
  • ✅ 2× UART ports, I2C bus
  • ✅ Receiver compatibility: SBUS, IBUS, DSM2/X, CRSF
  • ✅ Support for WS2812 LEDs, buzzer, and current sensor
  • ✅ Deluxe version includes: BMP280 barometer and 16MB Blackbox
  • ✅ Dimensions: 27×27 mm with 20×20 mm mounting pattern (M3 holes)
  • ✅ Weight: 4.5 g

📋 Technical Specifications:

  • Model: NOXE F4 V2 / V3 (Standard / Deluxe)
  • Processor: STM32F411CEU6 (100 MHz)
  • Gyro: MPU6000 or BMI270
  • OSD chip: AT7456E
  • Barometer: BMP280 (Deluxe only)
  • Blackbox: 16MB Flash memory (Deluxe only)
  • Voltage input: 2–6S LiPo (7–26V)
  • BEC: 5V/3A and 10V/2A
  • Signal protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150/300/600
  • Ports: 2× UART, I2C
  • USB: Type-C
  • Mounting: 20×20 mm M3 pattern (board size: 27×27 mm)
  • Weight: 4.5 g

📦 Package Includes:

  • 1× JHEMCU NOXE F4 2–6S Flight Controller (Standard or Deluxe)
  • 1× DJI HD VTX connection cable
  • 1× Mounting hardware set
