FNIRSI DSO-152 – 200 kHz / 2.5 MS/s Digital Pocket Oscilloscope

87.77
Tax included
Avifly - official distributor of FNIRSI

version
Brand
Fnirsi
Quantity:
38
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

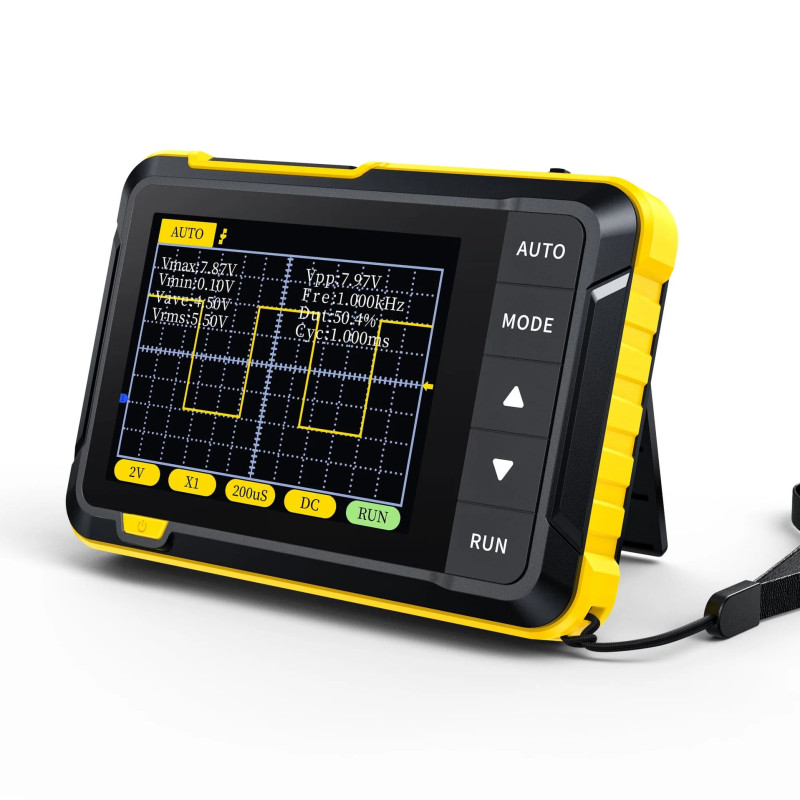

FNIRSI DSO-152 – 200 kHz / 2.5 MS/s Digital Pocket Oscilloscope

Available in Standard or P6100 Probe Edition – Compact with USB-C

FNIRSI DSO-152 is a mini digital oscilloscope ideal for quick signal diagnostics and learning electronics. With a 200 kHz bandwidth and 2.5 MS/s sample rate, it’s perfect for hobbyists, field engineers, or students. The device features a clear 2.8" TFT display, built-in 1000 mAh battery, USB-C charging, and Auto/Normal/Single trigger modes. Choose from two editions: the Standard Version (with basic crocodile clip probe) or the P6100 Version with a professional 100 MHz X1/X10 probe and BNC adapter for advanced applications.

Product Features

  • ● Bandwidth: 200 kHz, real-time sampling rate 2.5 MS/s
  • ● 2.8" TFT LCD display (320×240 px), vivid and readable
  • ● Trigger modes: Auto / Normal / Single
  • ● Auto button for instant signal alignment
  • ● Built-in square wave generator: 1 kHz (50%)
  • ● Powered by 1000 mAh battery – up to 4 hours runtime
  • ● Compact, durable and lightweight – fits in your pocket

Technical Specifications

  • ● Model: FNIRSI DSO-152
  • ● Channels: 1
  • ● Bandwidth: 200 kHz
  • ● Sample Rate: 2.5 MS/s
  • ● Input Voltage Range: ±40 V (X1), ±400 V (X10 with P6100)
  • ● Sensitivity: 10 mV/div – 20 V/div (1-2-5 steps)
  • ● Time Base: 10 µs/div – 50 s/div
  • ● Display: 2.8" TFT LCD, 320×240 px
  • ● Battery: 1000 mAh Li-ion, rechargeable via USB-C
  • ● Working Time: up to 4 hours
  • ● Dimensions: 99 × 68.3 × 19.5 mm
  • ● Weight: 100 g

Package Contents

  • ● 1× FNIRSI DSO-152 Oscilloscope
  • ● 1× USB-C Charging Cable
  • ● 1× Lanyard
  • ● 1× User Manual
  • ● Standard Version: Test lead with alligator clips
  • ● P6100 Version: P6100 (100 MHz, X1/X10) probe + BNC–MCX adapter
  • Note: Protective carrying case is not included.

FAQ

Frequently Asked Questions about FNIRSI DSO-152 (Portable Digital Oscilloscope 200 kHz)

Single-channel oscilloscope with 200 kHz bandwidth and 2.5 MS/s sampling rate
2.8" TFT color display (320×240 px)
Trigger modes: Auto, Normal, Single
USB-C powered with 1000 mAh built-in battery
Voltage measurement up to ±400 V with X10 probe

Time base range: 10 μs – 50 s/div
Vertical sensitivity: 10 mV/div – 20 V/div
Voltage range: X1: ±40 V (Vpp: 80 V), X10: ±400 V (Vpp: 800 V)
Coupling methods: AC/DC
Dimensions: 99 × 68.3 × 19.5 mm
Weight: 100 g

P6100 oscilloscope probe (1×/10×)
Alligator clip test lead
BNC to MCX adapter
USB-C charging cable
Wrist strap
User manual

Service diagnostics and repairs
Educational and DIY projects
Analog and digital signal analysis
Field testing of electronic circuits

​
