RadioMaster AG02 CNC Hall Gimbals – CNC aluminum gimbals for TX15, TX16S & Boxer

Precision control and smoother stick response

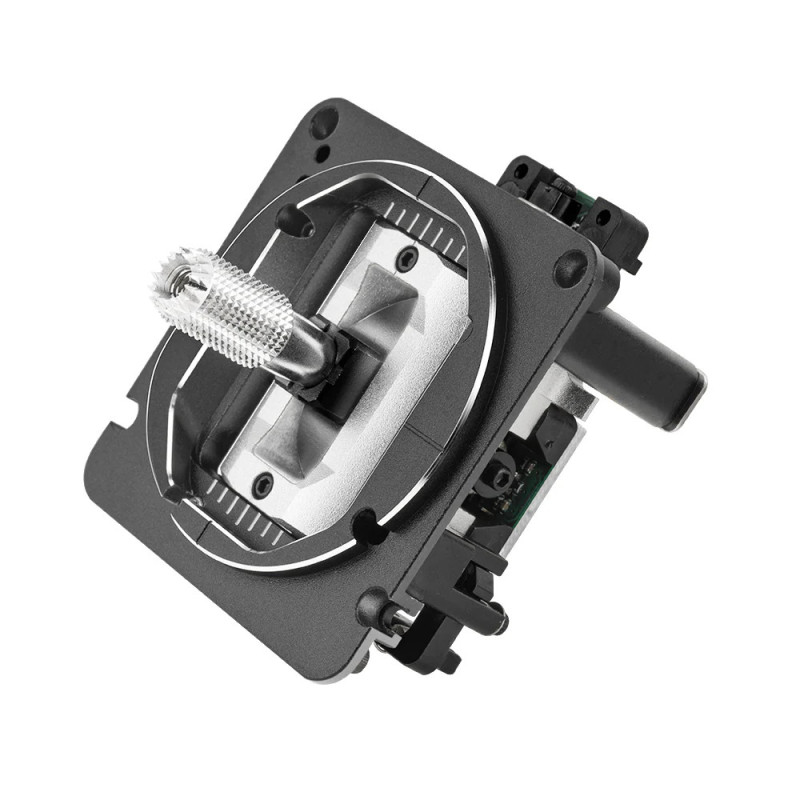

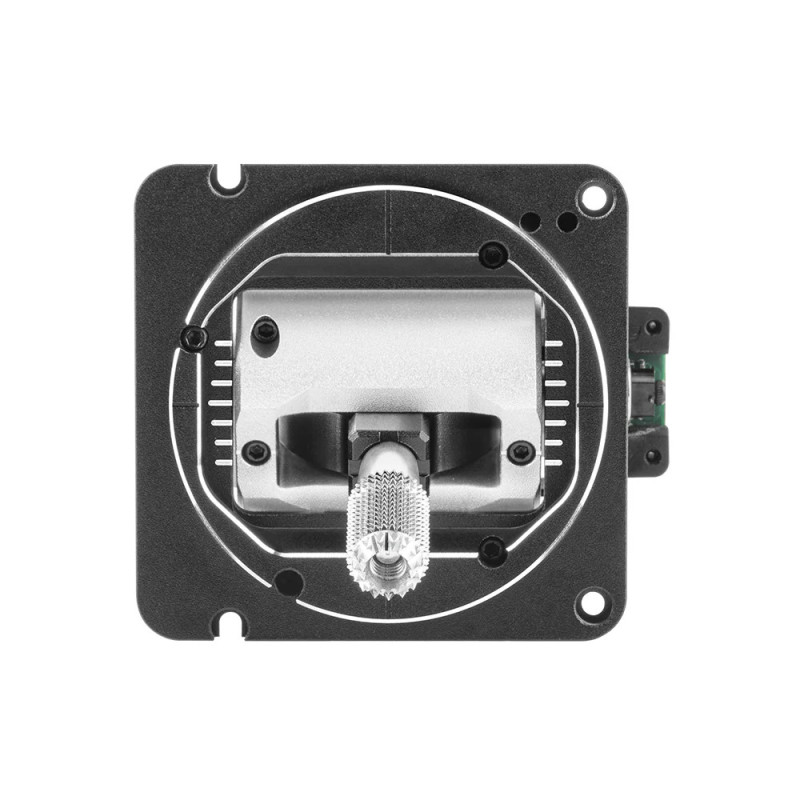

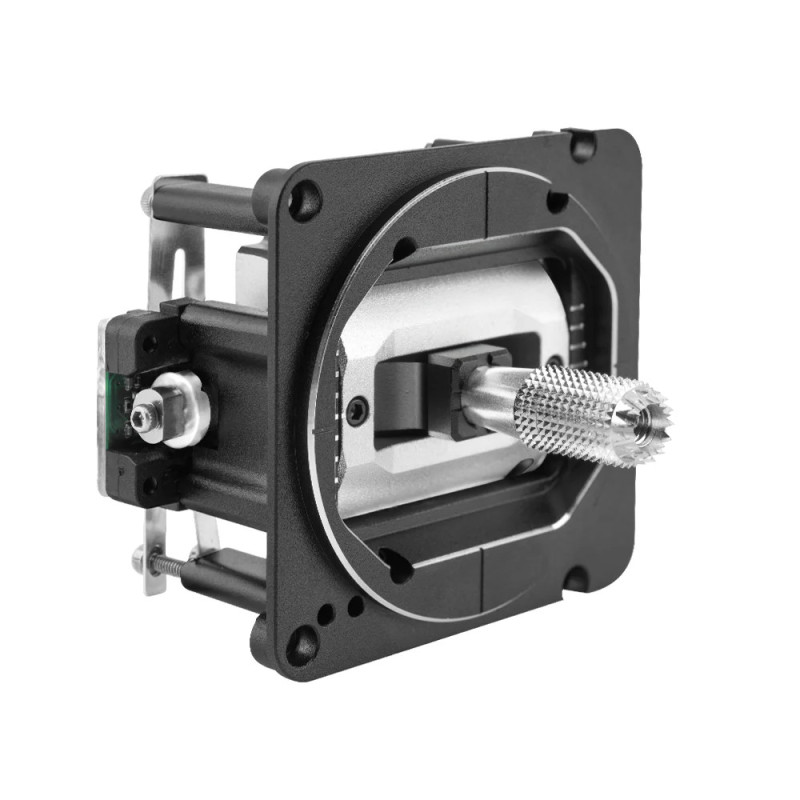

The RadioMaster AG02 CNC Hall Gimbals are an upgraded set of CNC aluminum gimbals for TX15, TX16S, and Boxer radios. With adjustable travel on both axes, Hall effect sensors, and a structure 21.6% lighter than the previous generation, they provide smoother, more accurate, and faster control response. Available in five anodized colors: Black, Red, Blue, Green, and Gold.

Key Features

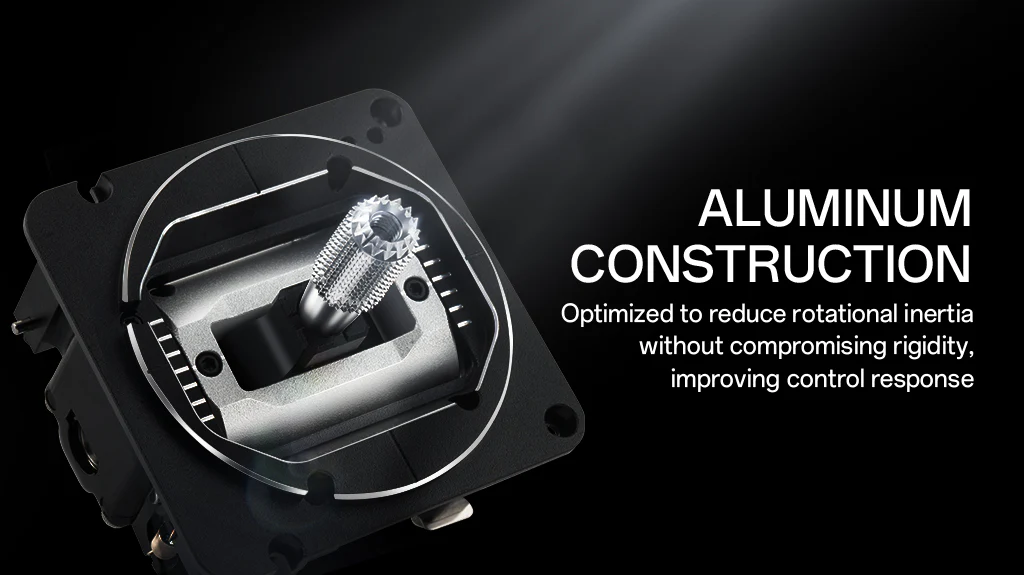

  • Full CNC aluminum build – durable and precise
  • 21.6% reduced inertia compared to AG01 gimbals

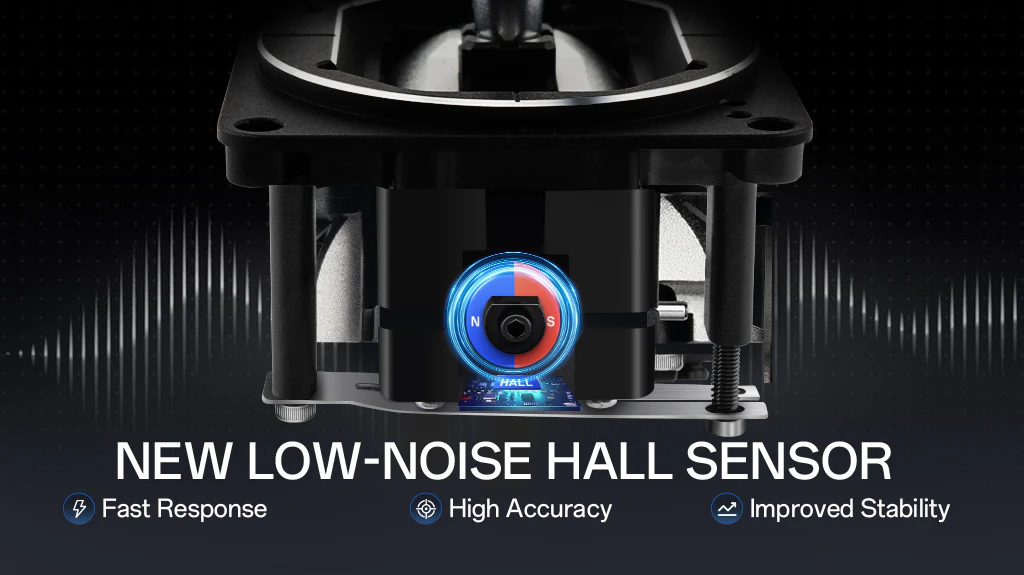

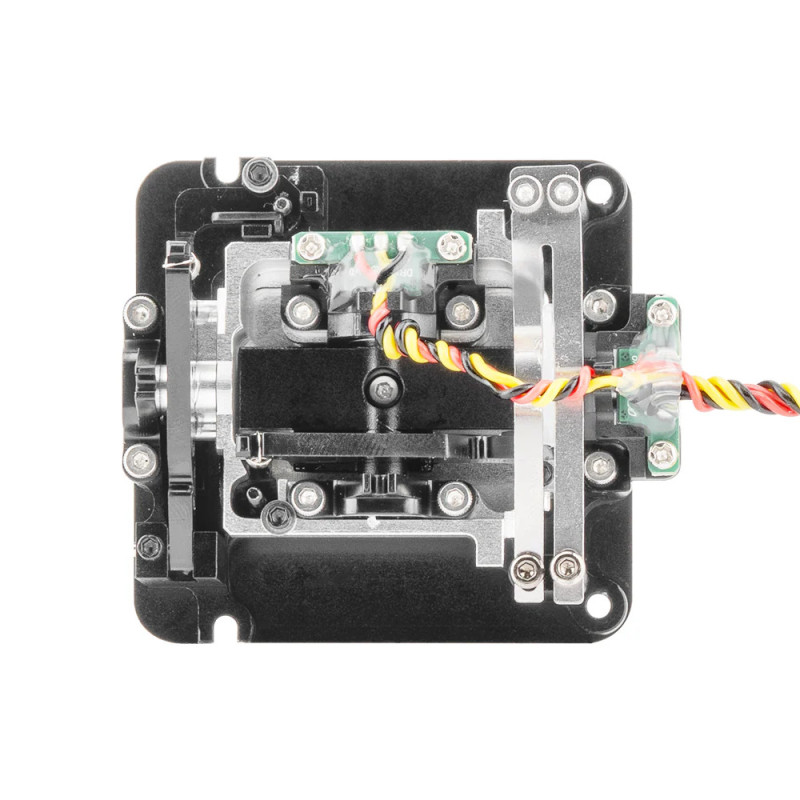

  • Hall effect sensors – fast and accurate response

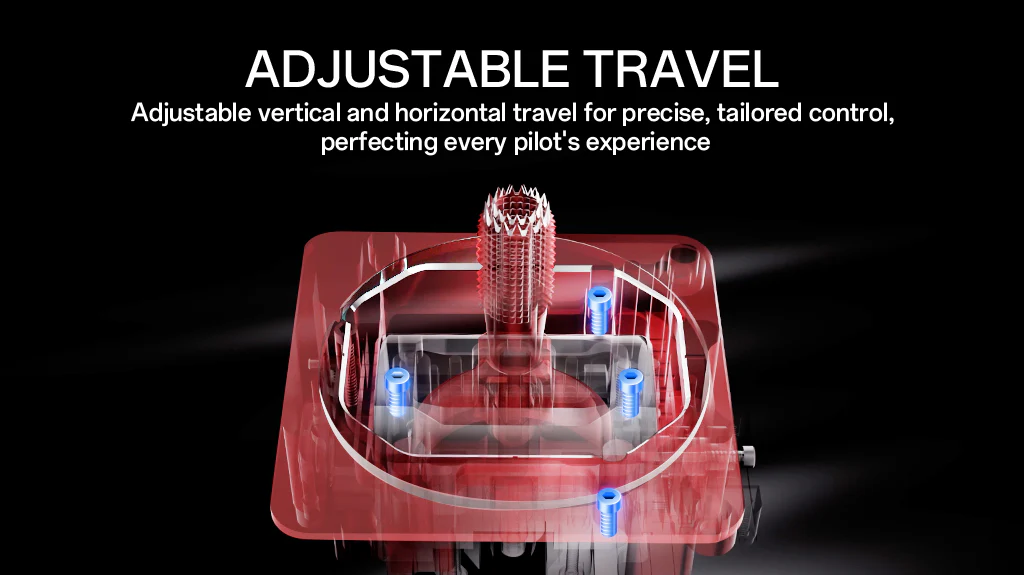

  • Adjustable X/Y axis travel range

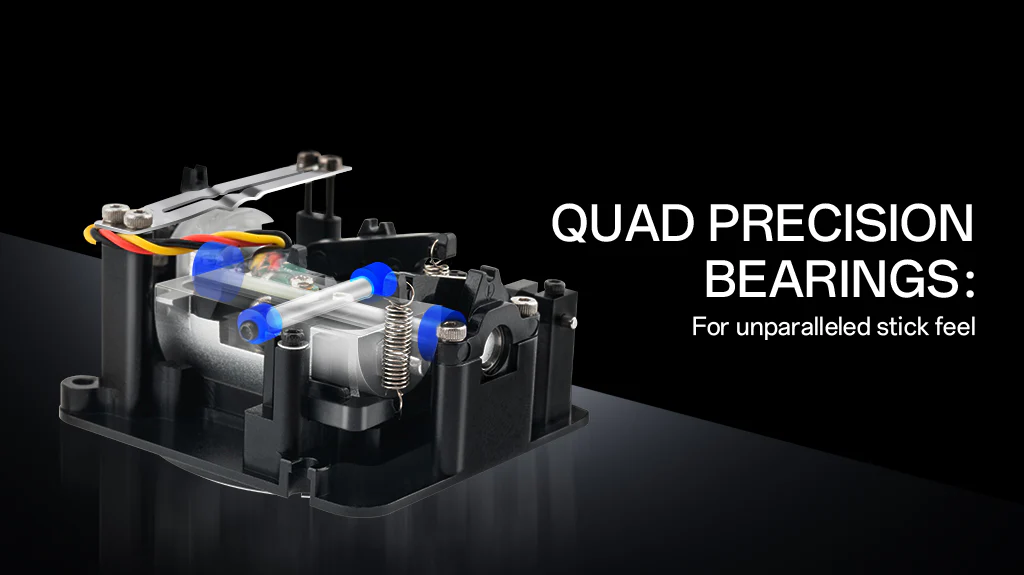

  • Quad ball bearings for smooth stick feel
  • Mode 1/2 switch and spring tension adjustment without disassembly
  • 100% mount compatibility with AG01 – easy upgrade

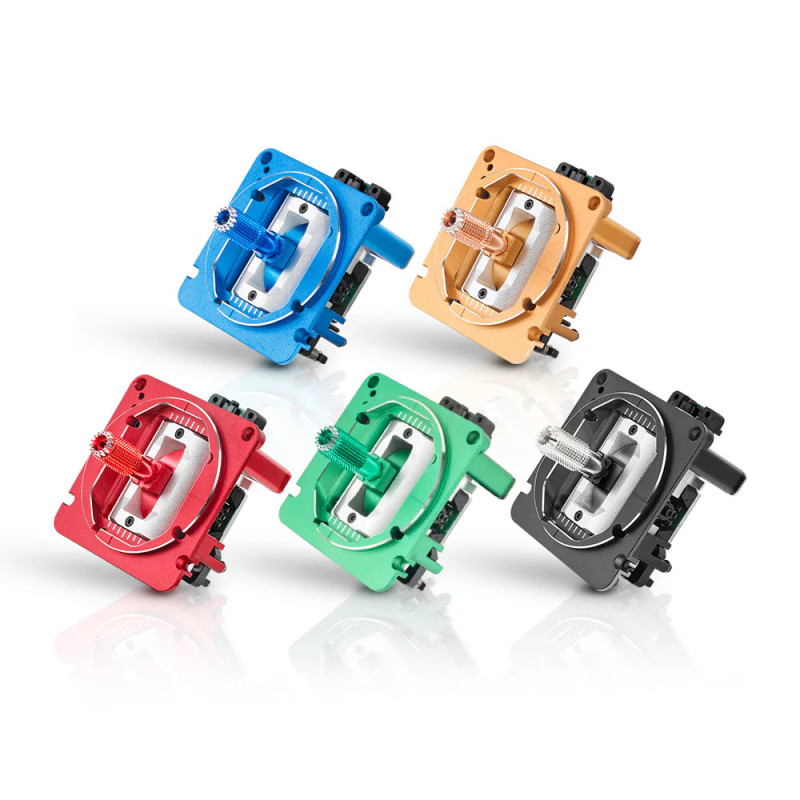

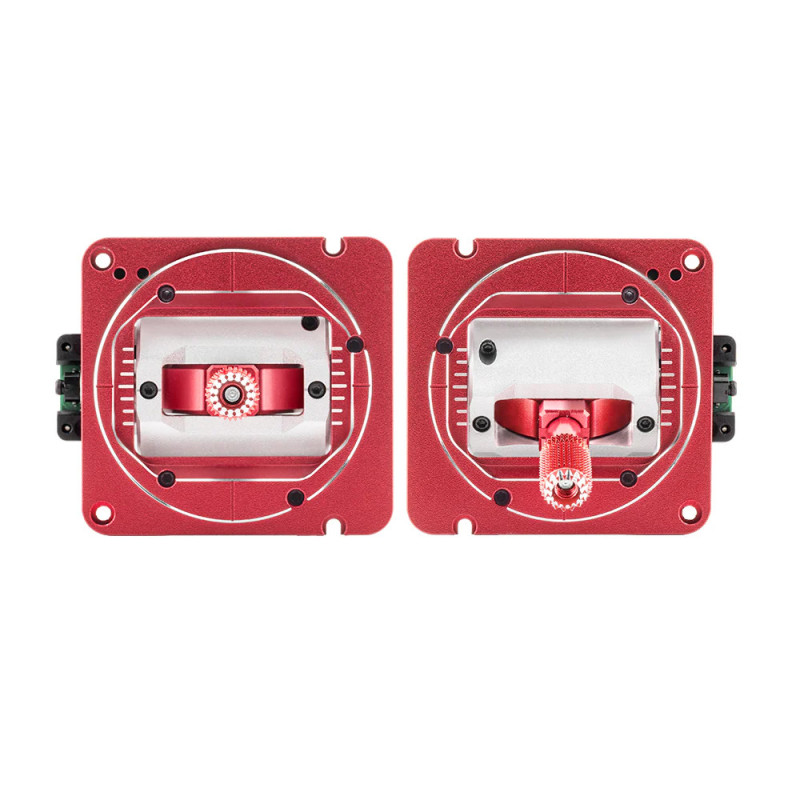

  • Available in Black, Red, Blue, Green, Gold

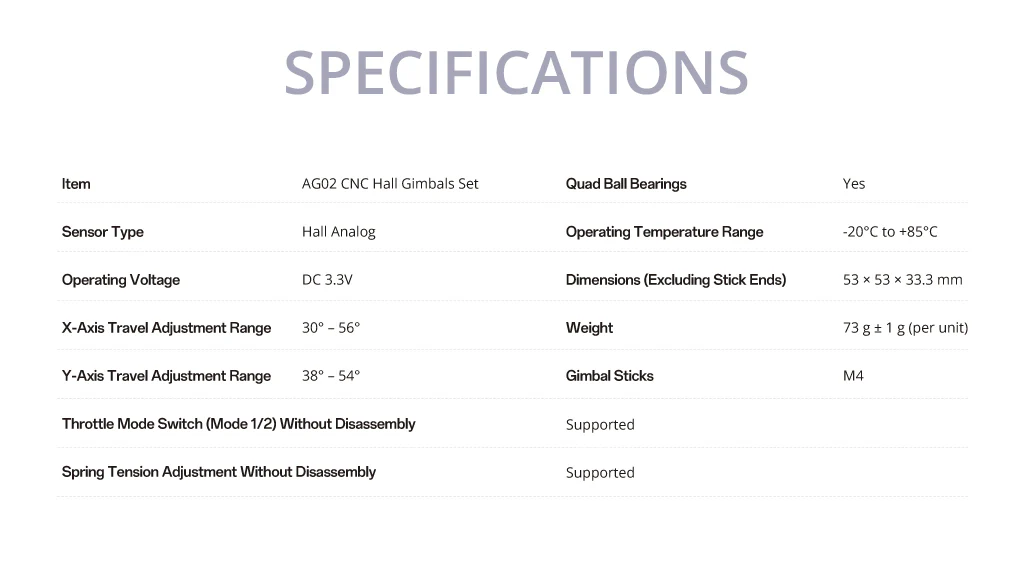

Specifications

  •  Model: AG02 CNC Hall Gimbals
  •  Sensor Type: Hall Analog
  •  Operating Voltage: DC 3.3 V
  •  X-Axis Travel Range: 30° – 56°
  •  Y-Axis Travel Range: 38° – 54°
  •  Weight: 73 g ± 1 g (per unit)

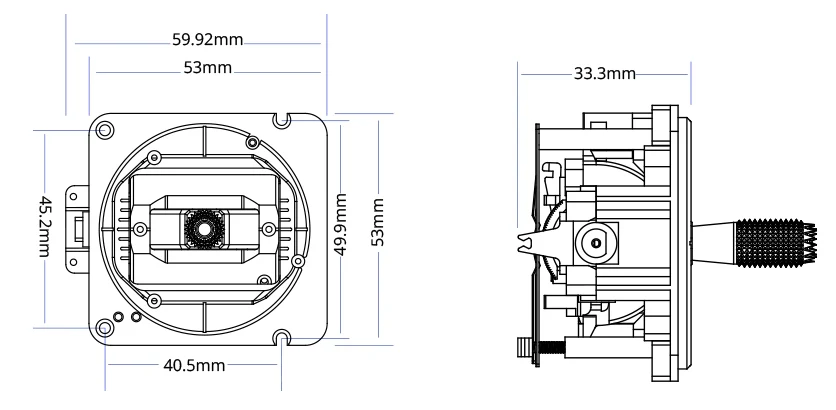

  •  Dimensions: 53 × 53 × 33.3 mm

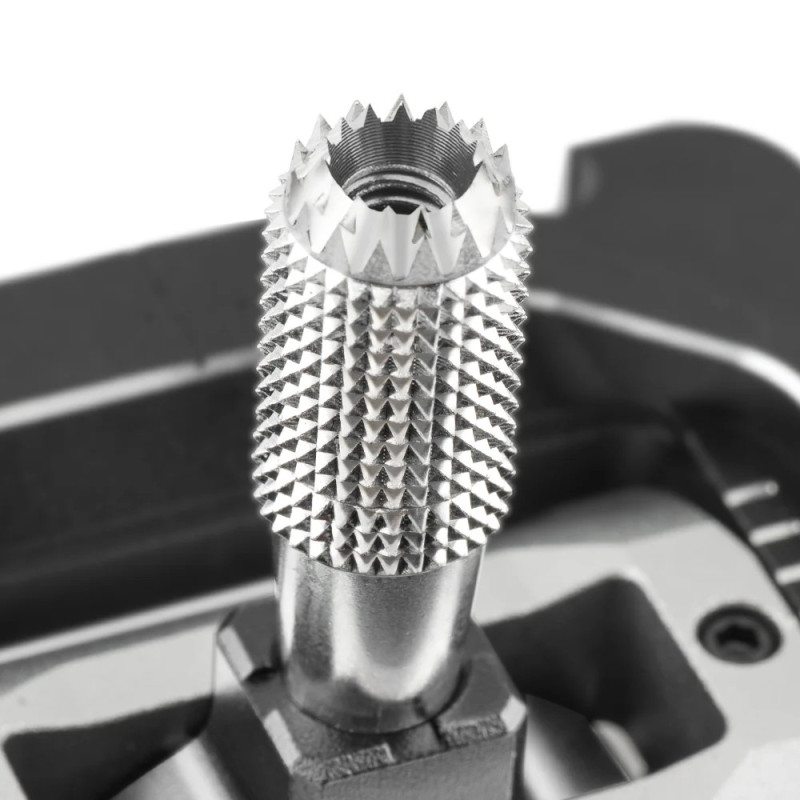

  •  Stick Ends: M4
  •  Compatibility: TX15, TX16S, Boxer
  •  Temperature Range: -20°C ~ +85°C

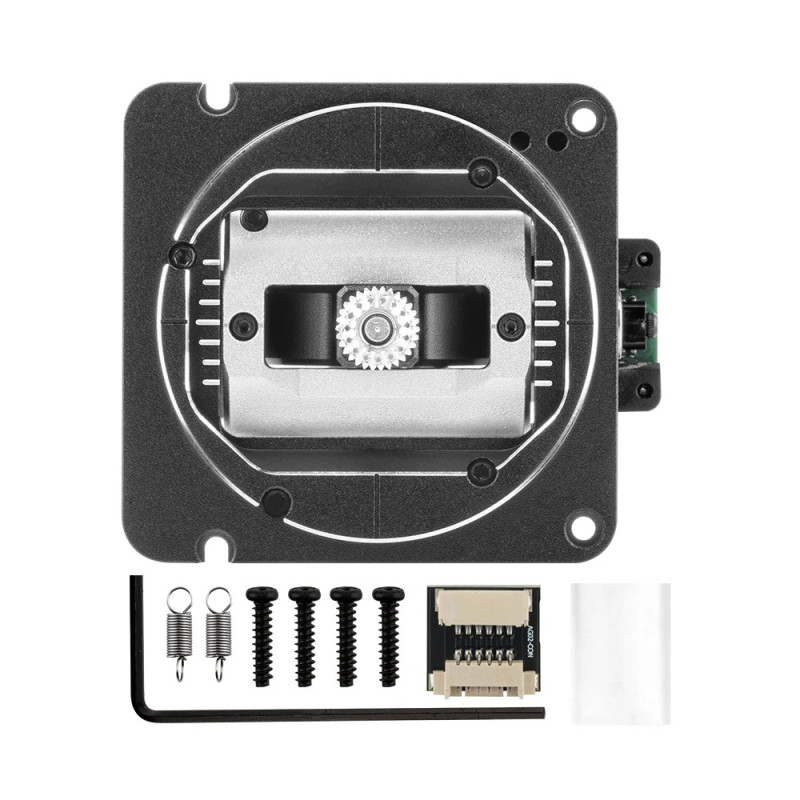

Package Includes

  • 1 pair of RadioMaster AG02 CNC Hall Gimbals
  • 4 × High tension springs

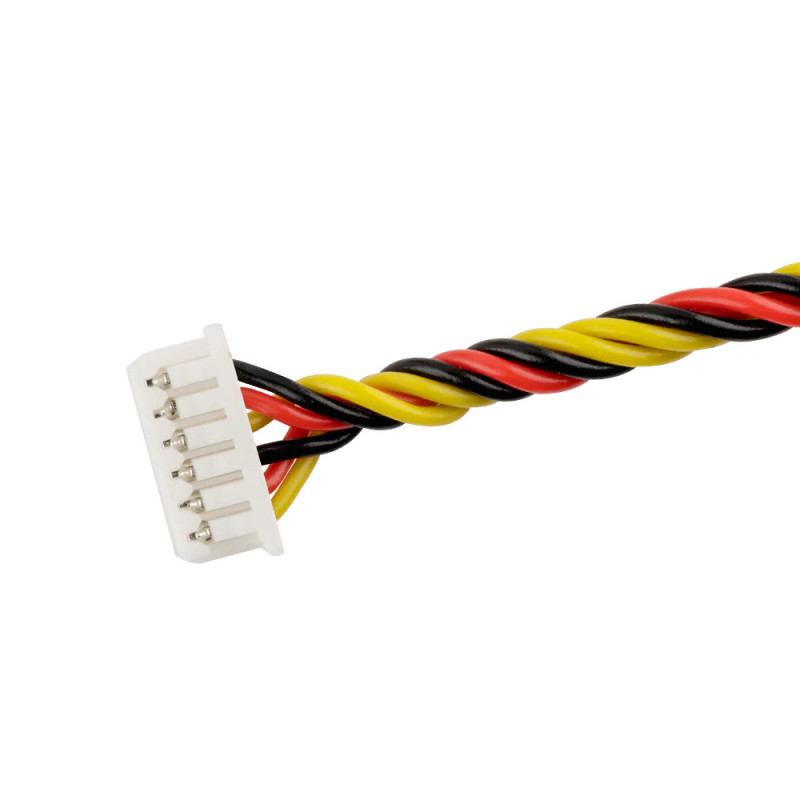

  • 2 × GH1.25-SH1.25 adapter boards (Boxer/TX16s MKII)
  • 8 × PB2.3×10 mounting screws
  • 2 × Hex wrenches
  • 1 × User manual
