Flybee 16 Frame Kit – Mounting Set for DJI O3 Lite / O4
Ultra-light micro drone frame compatible with DJI O3 Lite / O4

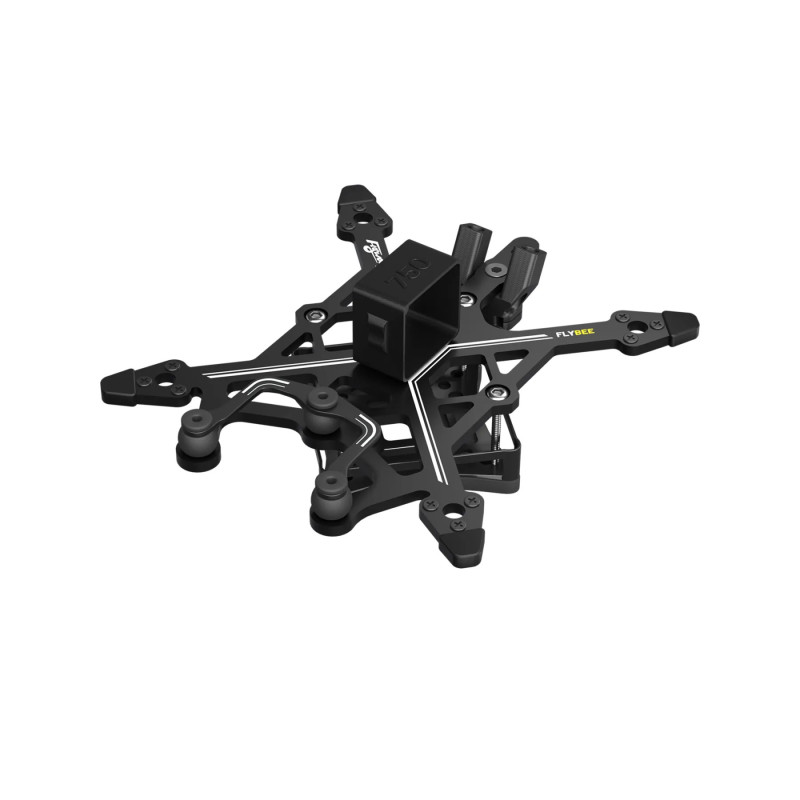

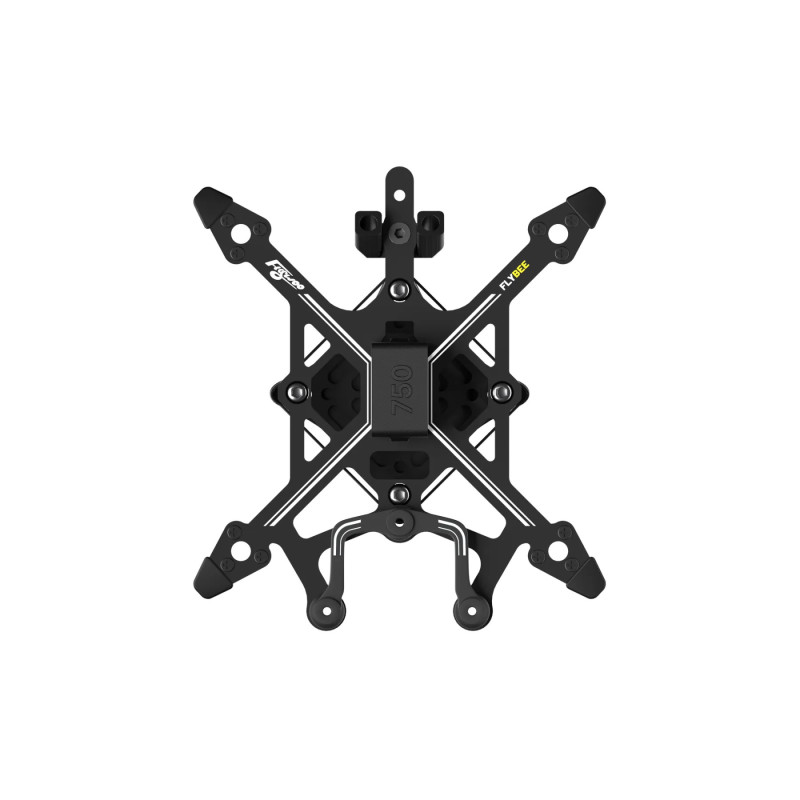

Flybee 16 is a durable, lightweight, and compact 1.6" toothpick-style frame designed for DJI O3 Lite and O4 FPV systems. With optimized mounting points and HD camera compatibility, it’s a perfect choice for building a powerful micro drone in a compact size.
Key Features
- ● Designed for DJI O3 Lite and DJI O4
- ● 1.6" propeller spacing (toothpick style)
- ● Ultra-lightweight carbon fiber structure
- ● Supports 25.5×25.5 mm AIO stacks (M2)
- ● Camera mount: 20×20 mm (HD system ready)
- ● Space for antenna and VTX mounting
Technical Specifications
- ● Material: CNC-cut carbon fiber

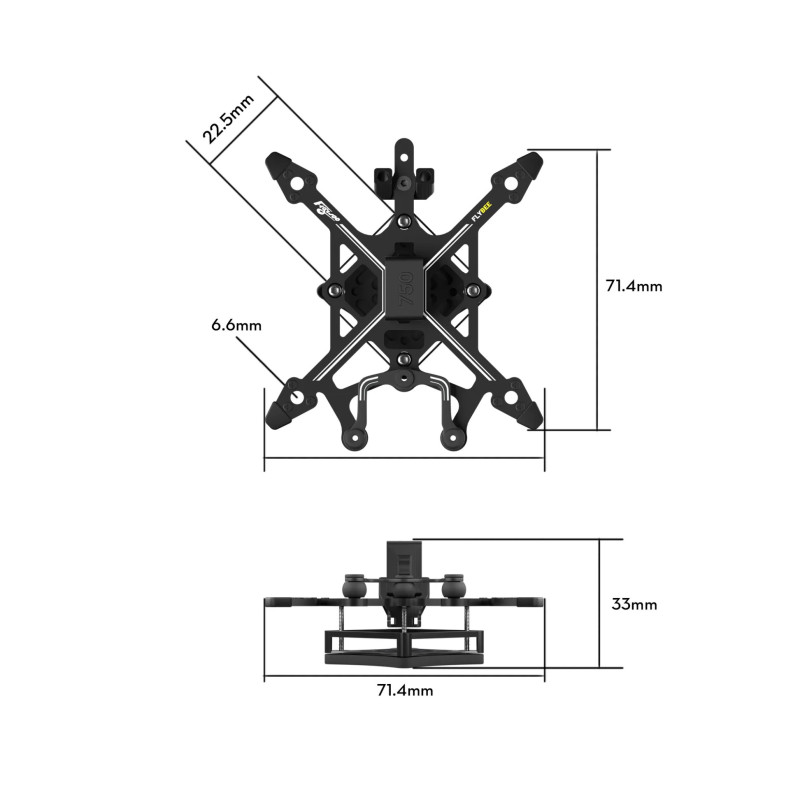

- ● Motor distance: 1.6" (approx. 75 mm diagonal)
- ● FC mounting: 25.5 × 25.5 mm (M2)
- ● Camera mount: 20 × 20 mm
- ● Weight: approx. 10 g
Package Contents
- ● 1× Flybee 16 main frame (top and bottom plates)
- ● 1× Mounting hardware set (screws, standoffs)
- ● 1× DJI VTX mount plate
Note: electronics and motors are not included – this is a frame kit only.
