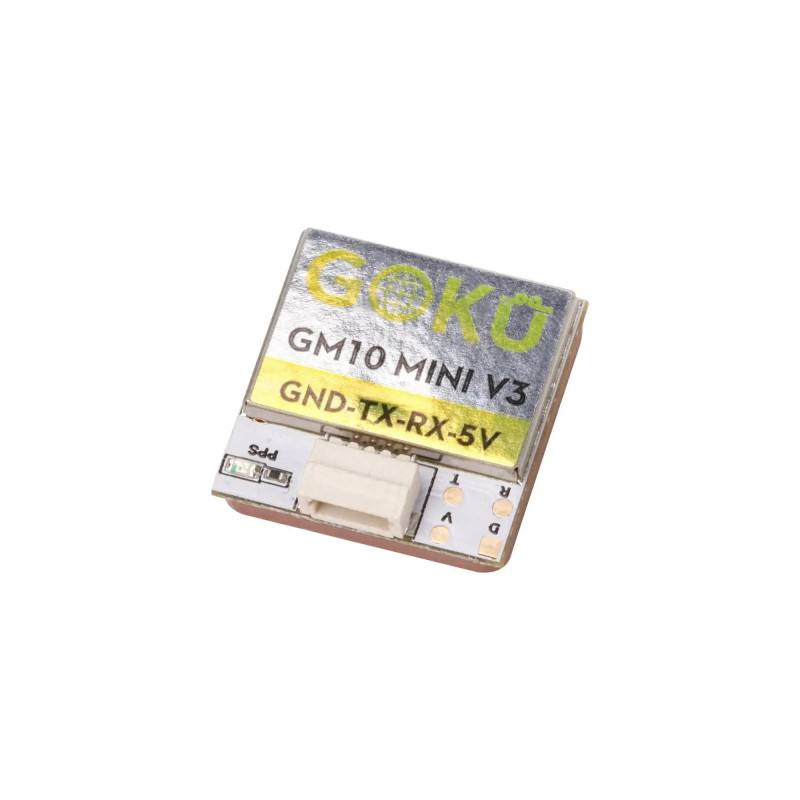

Flywoo GOKU GM10 Mini V3 GPS Module – without compass

Compact GPS module for FPV drones

The GOKU GM10 V3 GPS series is the latest generation of GPS modules from Flywoo. The Mini V3 (without compass) uses the new M10050 GNSS chipset, providing faster satellite acquisition and more accurate positioning compared to the previous GM8 V2. With its 18×18 mm size and lightweight design of only 4.7 g, it is an excellent choice for cinewhoops and micro FPV quads.

User guide

  • ● GPS chipset: M10050
  • ● Betaflight: use firmware newer than 4.3.0
  • ● INAV: use configurator 6.0.0 and firmware newer than 5.0.0
  • ● Betaflight 4.3.x supports UBLOX protocol; older (4.2.x) supports only NMEA
  • ● No performance difference between the two protocols

Technical specifications

  • ● Brand: Flywoo
  • ● Model: GM10 Mini V3 GPS
  • ● Chipset: M10050 (10th generation GNSS)
  • ● Supported GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
  • ● Channels: 72
  • ● Frequencies: GPS L1, GLONASS L1, BeiDou B1, Galileo E1, SBAS L1
  • ● Sensitivity: tracking -162 dBm, reacquisition -160 dBm
  • ● Data protocol: BF4.3.x (UBLOX) / BF4.2.x (NMEA)
  • ● Update rate: 1–10 Hz (default 10 Hz)
  • ● UART: 4800–921600 bps (default 115200 bps), TTL/RS-232
  • ● Power supply: 5 V DC
  • ● Operating limits: altitude 50,000 m, speed up to 500 m/s, acceleration <4 g
  • ● Operating temperature: -40°C ~ +85°C
  • ● Storage temperature: -40°C ~ +105°C
  • ● PPS LED indicator: yellow (blinks when GPS fix is acquired)
  • ● Size: 18 × 18 × 4.8 mm
  • ● Weight: 4.7 g (with cable)
  • ● Connector: 4-pin SH1.0 (GND, TX, RX, 5V)

Package contents

  • ● 1 × Flywoo GOKU GM10 Mini V3 GPS module (without compass)
  • ● 1 × 4-pin SH1.0 cable (100 mm)
  • ● 1 × Copper shielding foil
