Flywoo GOKU GM10 Mini V3 GPS Module – with compass QMC5883L

Compact GPS module with integrated compass

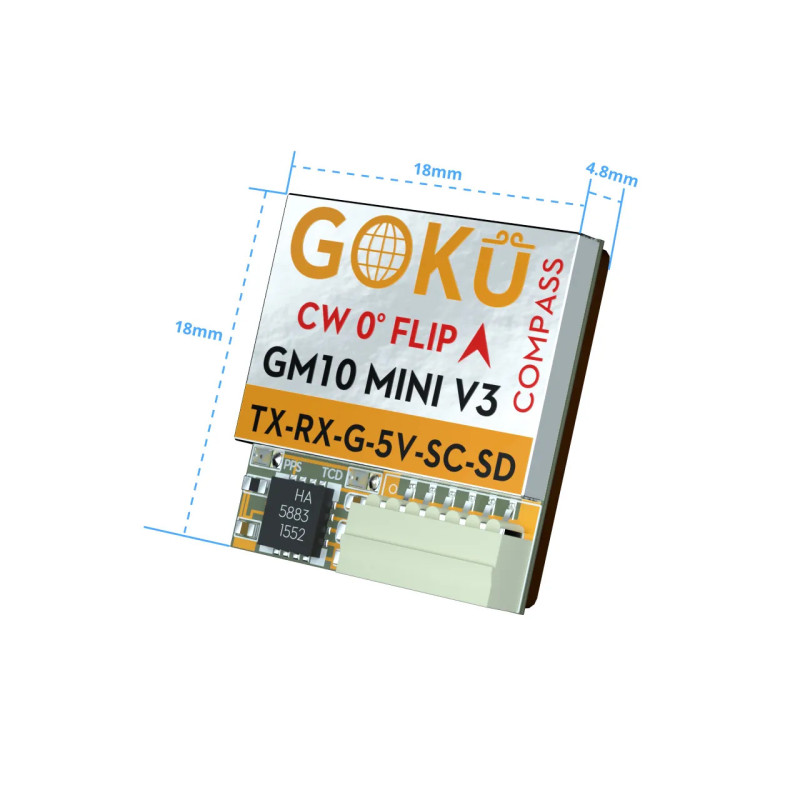

The GOKU GM10 Mini V3 with compass has the same 18×18×4.8 mm size as the standard Mini V3, but includes an integrated QMC5883L electronic compass for improved heading reference. Weighing only 4.1 g, it offers the same satellite search speed and maximum satellites tracked (up to 32) as the standard version, while providing additional orientation data.

Product features

  • ● M10050 GNSS chipset – fast fix and high accuracy
  • ● Integrated QMC5883L electronic compass
  • ● Supports GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
  • ● Compact 18×18×4.8 mm design, only 4.1 g
  • ● 6-pin SH1.0 connector: TX, RX, GND, 5V, SCL, SDA

Technical specifications

  • ● Brand: Flywoo
  • ● Model: GM10 Mini V3 GPS with compass
  • ● Chipset: M10050 (10th generation GNSS)
  • ● Compass: QMC5883L
  • ● GNSS: GPS L1, GLONASS L1, BeiDou B1, Galileo E1, QZSS, SBAS
  • ● Channels: 72
  • ● Sensitivity: tracking -162 dBm, reacquisition -160 dBm
  • ● Protocol: BF4.3.x (UBLOX) / BF4.2.x (NMEA)
  • ● Update rate: 1–10 Hz (default 10 Hz)
  • ● UART: 4800–921600 bps (default 115200 bps), TTL/RS-232
  • ● Power supply: 5 V DC
  • ● Operating limits: altitude 50,000 m, speed up to 500 m/s, acceleration <4 g
  • ● Operating temperature: -40°C ~ +85°C
  • ● Storage temperature: -40°C ~ +105°C
  • ● PPS LED indicator: yellow (blinks when GPS fix is acquired)
  • ● Size: 18 × 18 × 4.8 mm
  • ● Weight: 4.1 g

Package contents

  • ● 1 × Flywoo GOKU GM10 Mini V3 GPS module (with compass)
  • ● 1 × 6-pin SH1.0 cable (150 mm)
  • ● 1 × Copper shielding foil
