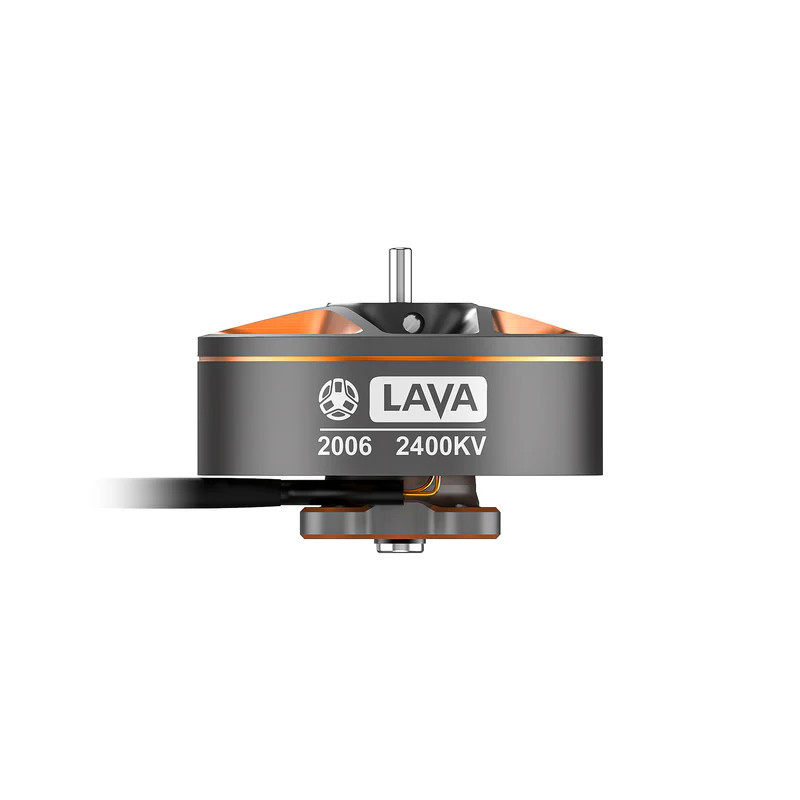

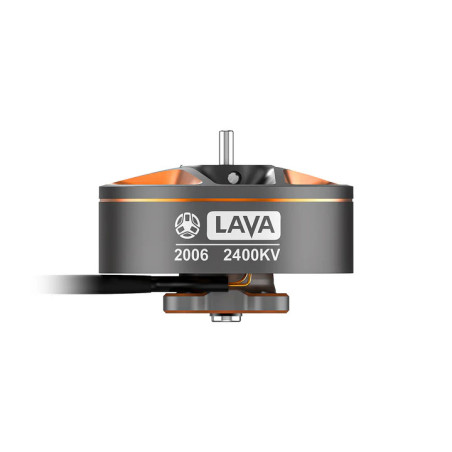

LAVA Series 2006 Brushless Motors is designed for the 6S 3.5'' quads, with high agility and acceleration. Combined with GemFan D90S 3-Blade Propellers (1.5mm Shaft)and the F722 35A AIO V2 FC, it could offer pilots flexible control. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 6S 3.5'' quads to a smoother and more stable flight level.

Bullet Point

• Specifically designed for 6S 3.5'' quads, this motor offers high agility and acceleration and features a high-performance 2400KV motor. Pilots enjoy flexible control and get more room for additional payload capacity.
• These high torque motors feature GemFan D90S 3-Blade Propellers (1.5mm Shaft) to minimize prop wash oscillation and deliver lightning-fast responses, resulting in heightened thrust and power.
• Perfectly matched with the F722 35A AIO V2 Flight Controller, this motor will bring pilots a powerful flight footage shooting experience with a 6S battery.

Specification

• Items: LAVA Series 2006 Brushless Motors
• Motor KV: 2400KV
• Maximum Power: 563.82W
• Maximum Current: 23.49A
• Color: Gray mixed orange

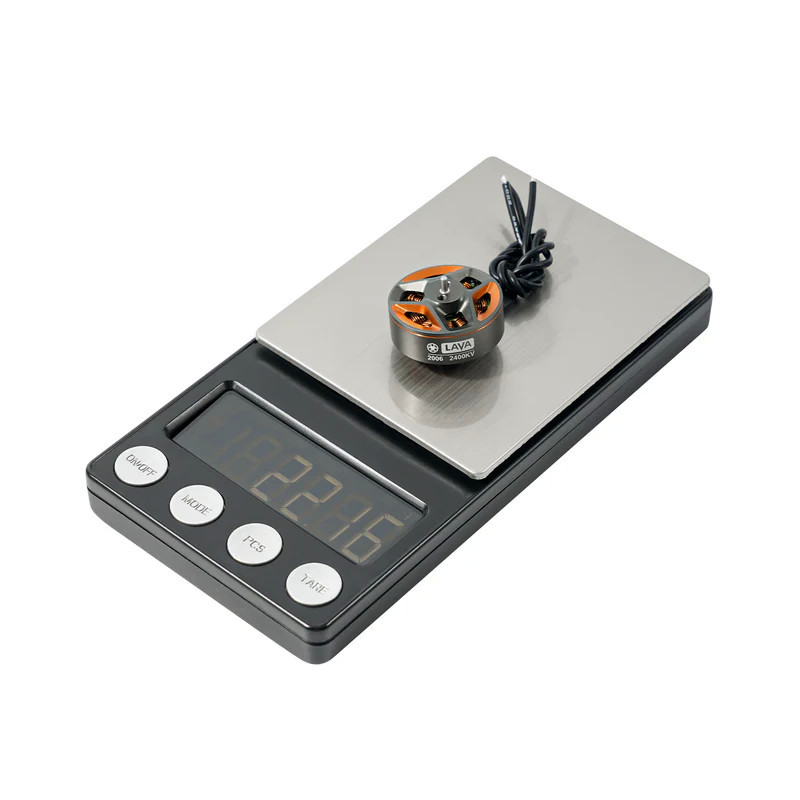

• Weight: 22.2g
• Shaft Diameter: ø1.5mm
• Shaft Length: 3.5mm
• Wire Specification: 22AWG
• Wire Length: 100mm
• Motor Mounting Hole Size: 4*M2 Ø12mm
• Propeller Mounting Hole Size: 2*M2 Ø5mm

Recommended Parts

• FC: F722 35A AIO V2 FC
• Props: GemFan D90S 3-Blade Propellers(1.5mm Shaft)
• Battery: LAVA Series 6S 1100mAh LiPo Battery, 6S 1050mAh~1400mAh Battery
• Quadcopter: Pavo35

Package

• 1 * LAVA Series 2006 Brushless Motors
• 4 * Hex Flat Head Screw M2*5
• 4 * Hex Flat Head Screw M2*7
