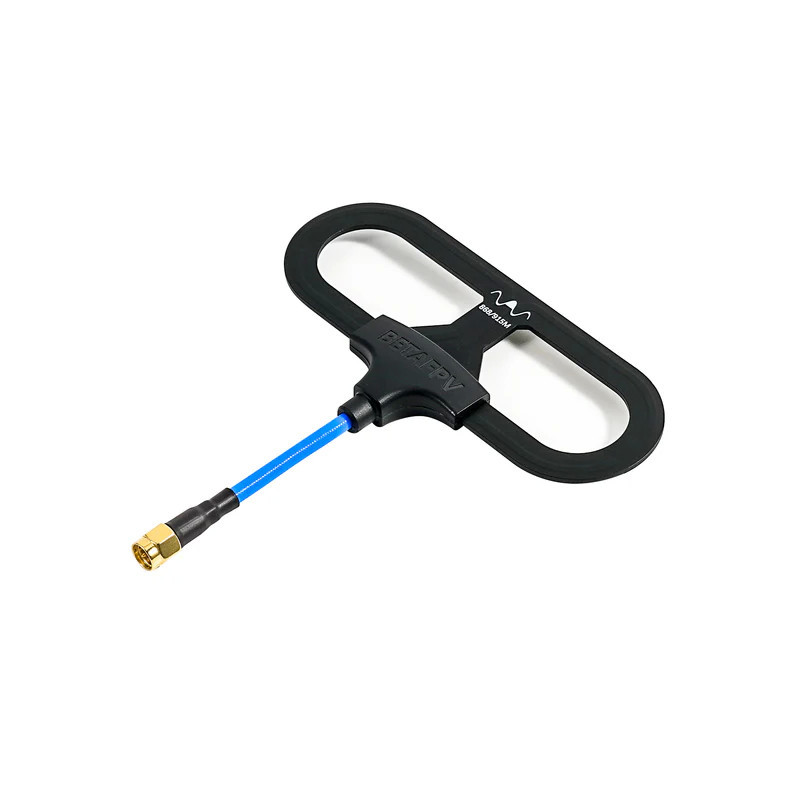

BETAFPV Loop Antenna

The BETAFPV Loop Antenna is an omnidirectional antenna designed for use with 2.4G/868MHz/915MHz TX modules or radios on drones. It offers several advantages:

• Omnidirectional Radiation Pattern: Provides 360-degree horizontal coverage for consistent signal in all directions.
• Wide Range: Covers a wider area compared to directional antennas.
• Low Signal Loss: Soldering the coaxial cable directly to the antenna minimizes signal loss.
• Multiple Frequency Support: Works with 2.4G, 868MHz, and 915MHz frequencies.

Specifications:

• Coaxial Cable Length: 65mm (2.4G), 90mm (868MHz/915MHz)
• Connector: SMA Male
• Gain: 2.3dBi (all frequencies)
• VSWR: <1.5 (2.4G), <2.0 (868MHz/915MHz)
• Polarization Type: Linear

Suitable for:

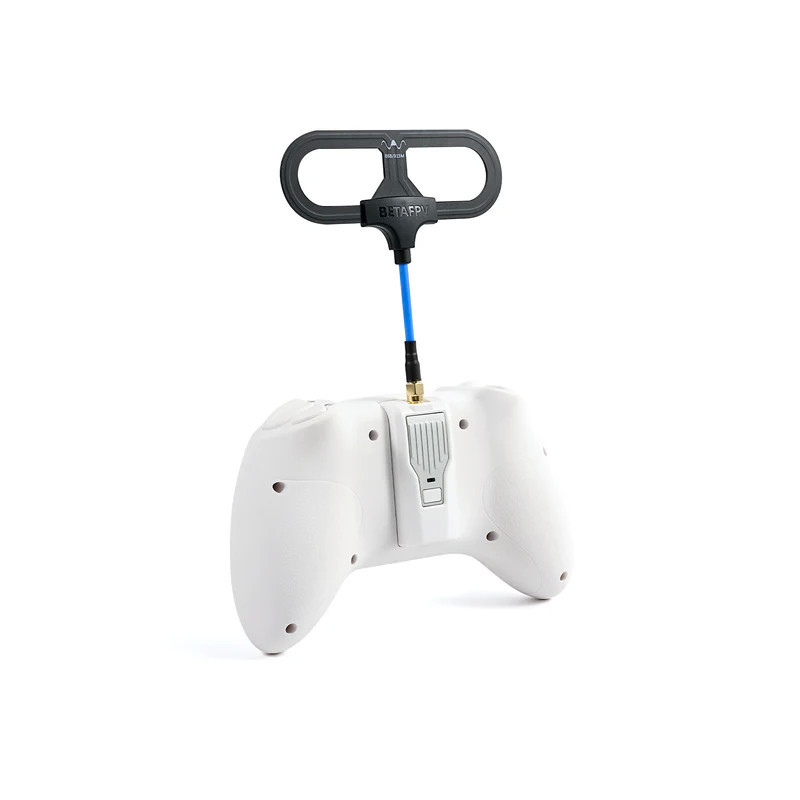

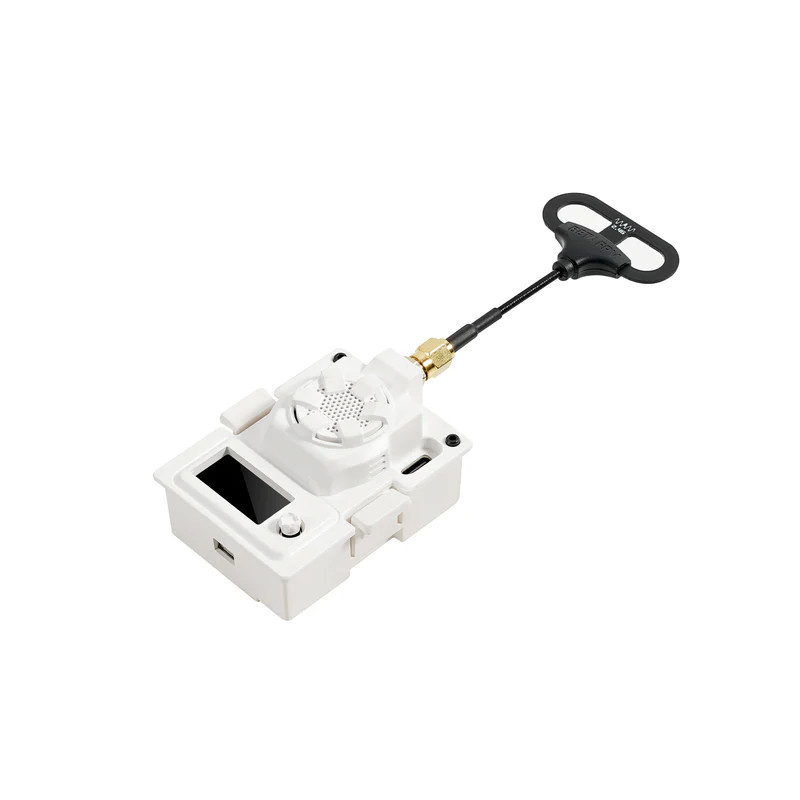

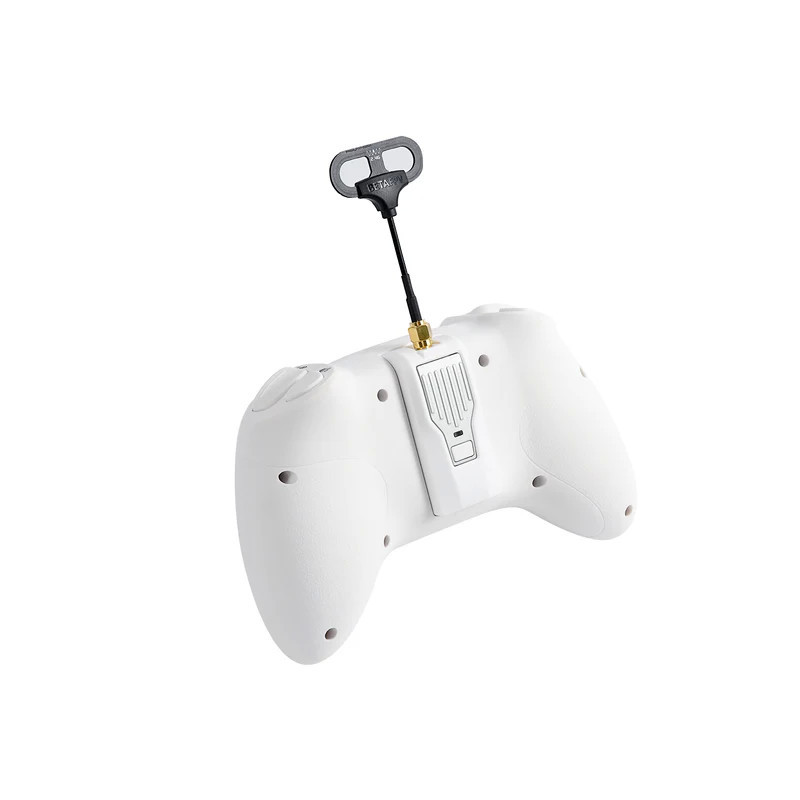

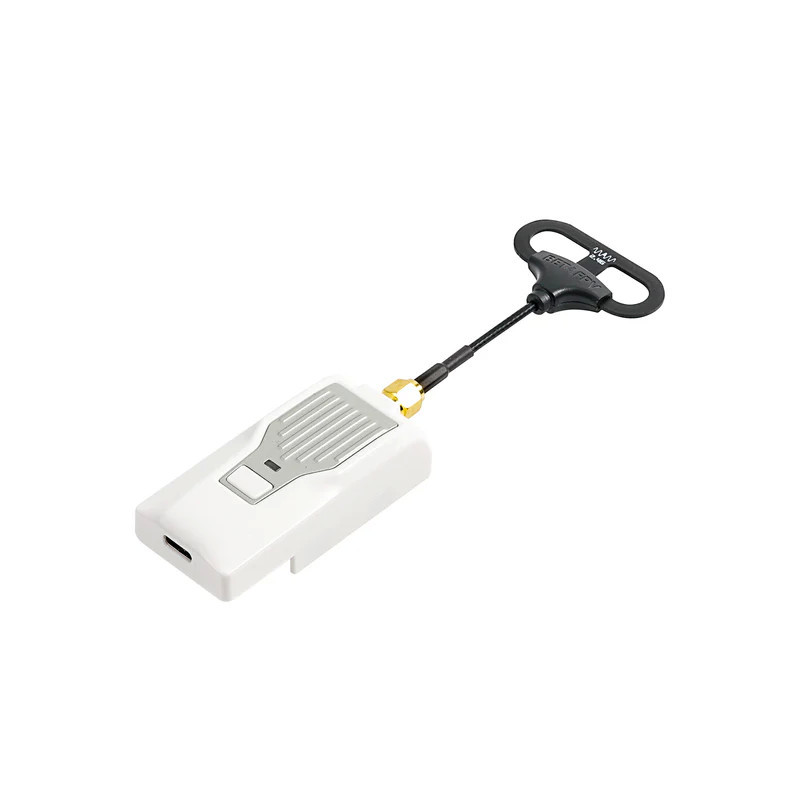

• BETAFPV Nano TX Module
• BETAFPV Micro TX Module
• Any 2.4G/868MHz/915MHz TX module or radio
• Short to medium range flights where consistent signal in all directions is important

Compared to BETAFPV Moxon Antenna:

• Loop Antenna: Omnidirectional, good for all-around coverage.
• Moxon Antenna: Directional, focuses signal for long-range flights in a specific direction.

Package Includes:

• 1x BETAFPV Loop Antenna (chosen frequency)
