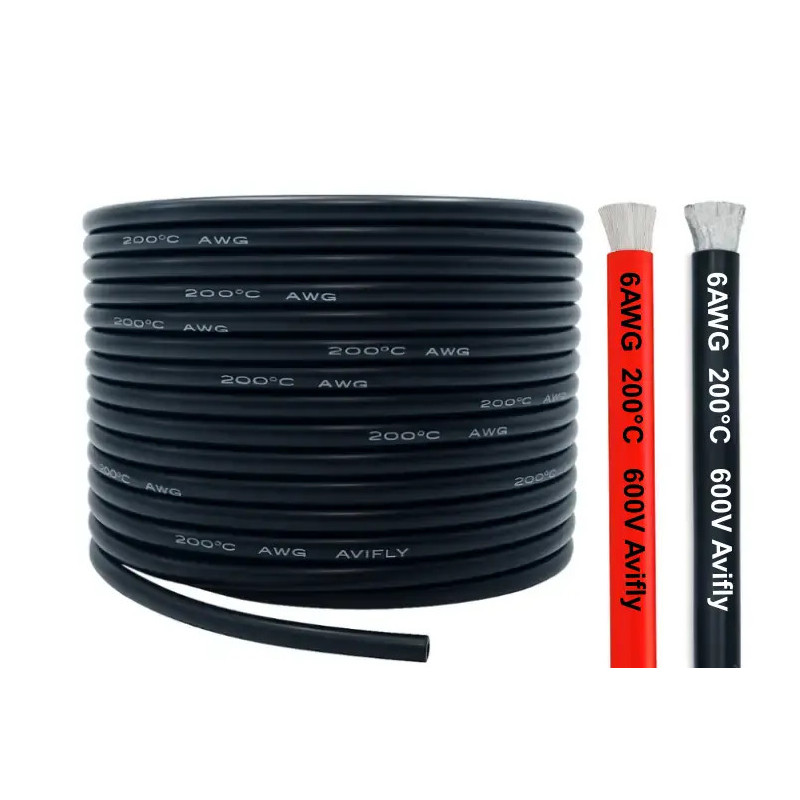

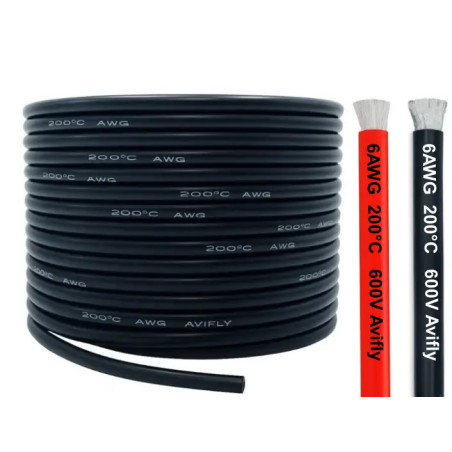

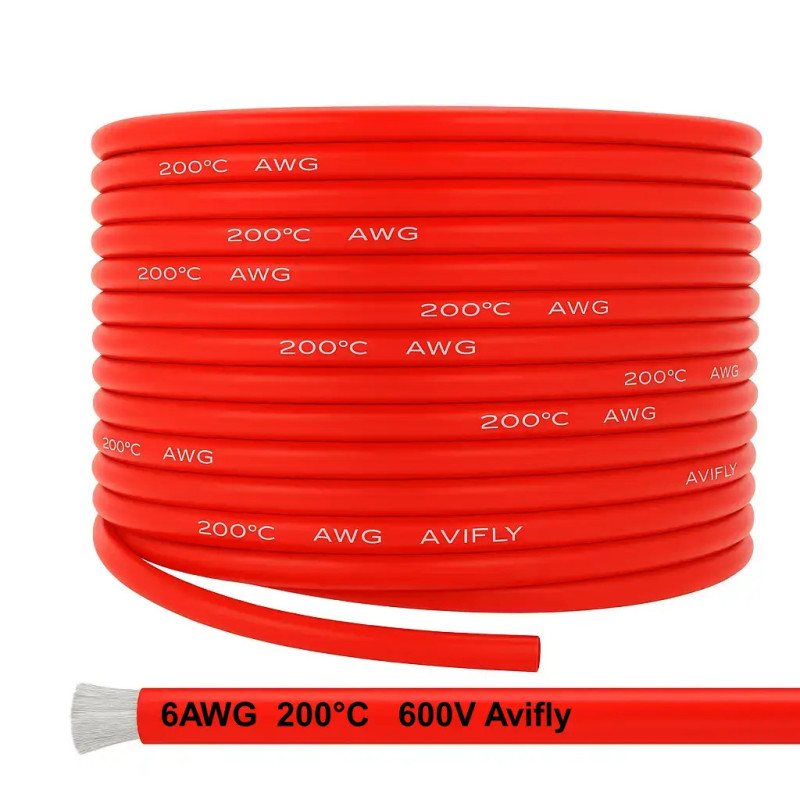

Amass Silicone Wire 6 AWG 1 m – Flexible Cable for FPV Drones, RC and Electronics (black/red)
29.77
Tax included
- ● Amass Silicone Wire 6 AWG – 1 m (Red / Black)
- ● Thick, flexible tinned copper wire for high-current power systems
- ● Ideal for LiPo batteries, ESCs, inverters, and RC power setups
- ● Silicone insulation – heat resistant from –60 °C to 200 °C
- ● Sold per meter – longer lengths shipped as one continuous piece
You might also like
Amass Silicone Wire 6 AWG – High Flexibility and Low Resistance
Available in Red or Black – perfect for high-current power connections
The Amass 6 AWG wire is a thick, flexible tinned-copper cable with soft silicone insulation. It combines extreme flexibility with very low electrical resistance, making it ideal for reliable power delivery in RC models, FPV drones, LiPo battery packs, and workshop power systems.
Technical Specifications
- AWG: 6
- Cross-sectional area: ≈ 13.3 mm²
- Conductor diameter (without insulation): ≈ 4.1 mm
- Outer diameter (with insulation): ≈ 6.0 mm

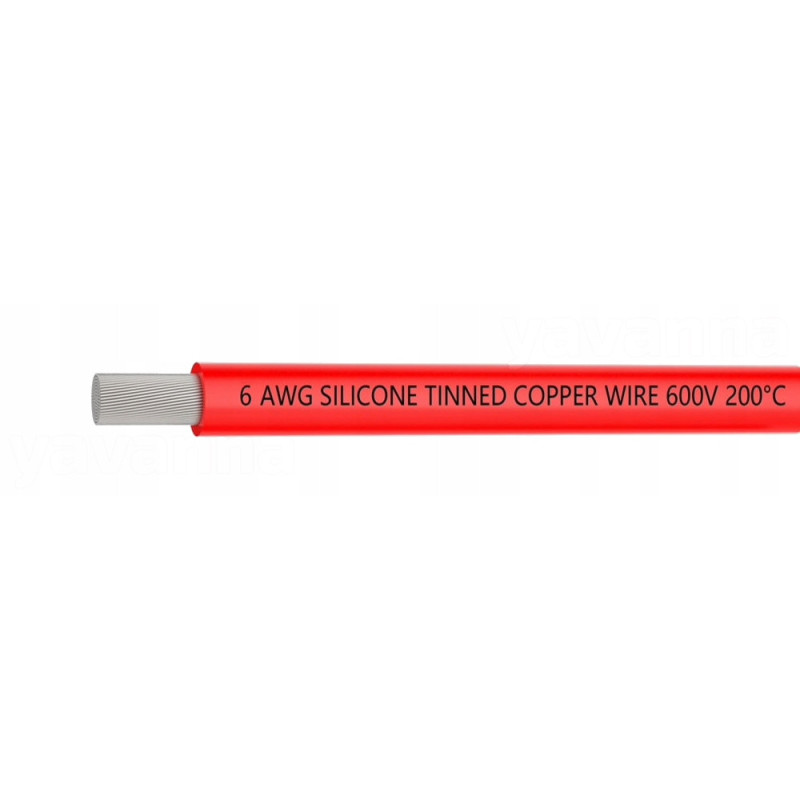

- Conductor material: Tinned copper (multi-strand)
- Insulation: High-temperature silicone
- Rated voltage: 600 V
- Operating temperature: –60 °C to 200 °C
- Colors: Red / Black

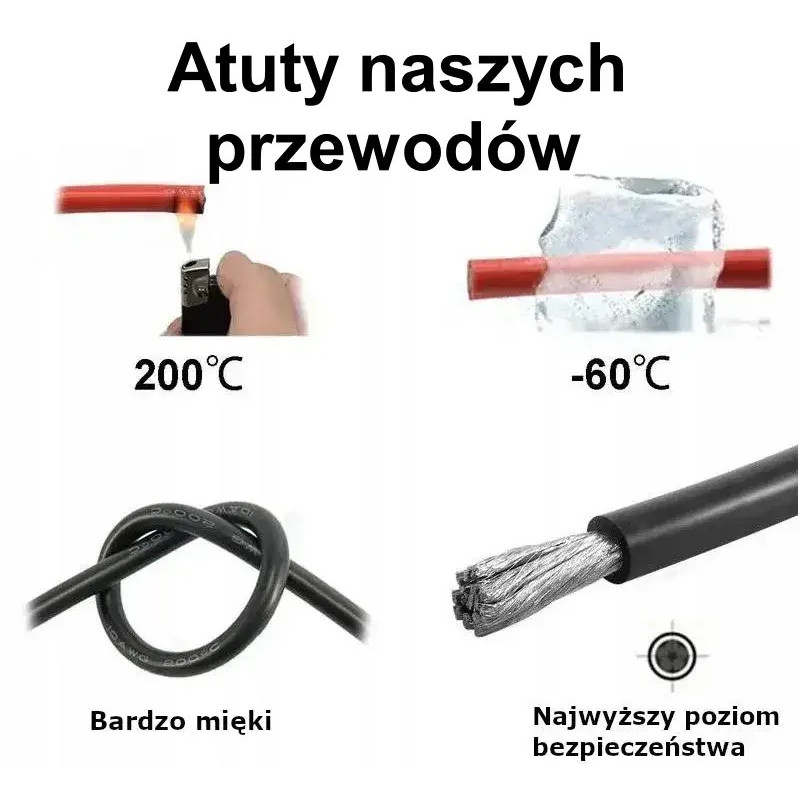

Product Features

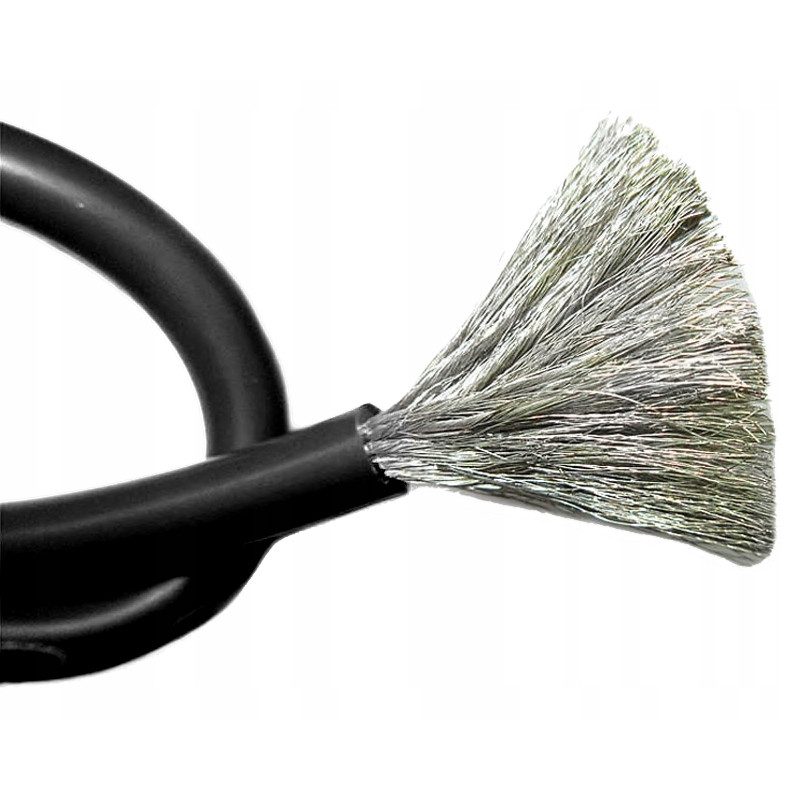

- Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
- Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
- High flexibility – wire does not retain bends and easily fits in tight spaces
- Stable performance across a wide temperature range from –60°C to 200°C
- Easy to solder – tinned copper strands and flexible silicone insulation
How to Choose the Right 6 AWG Wire
The Amass 6 AWG wire is designed for high-current applications that demand low resistance and maximum flexibility. The ≈ 13.3 mm² core allows safe continuous currents around 80 A while keeping voltage drop minimal. It is an excellent choice for power connections in RC models, LiPo battery systems, inverters and workshop power setups.

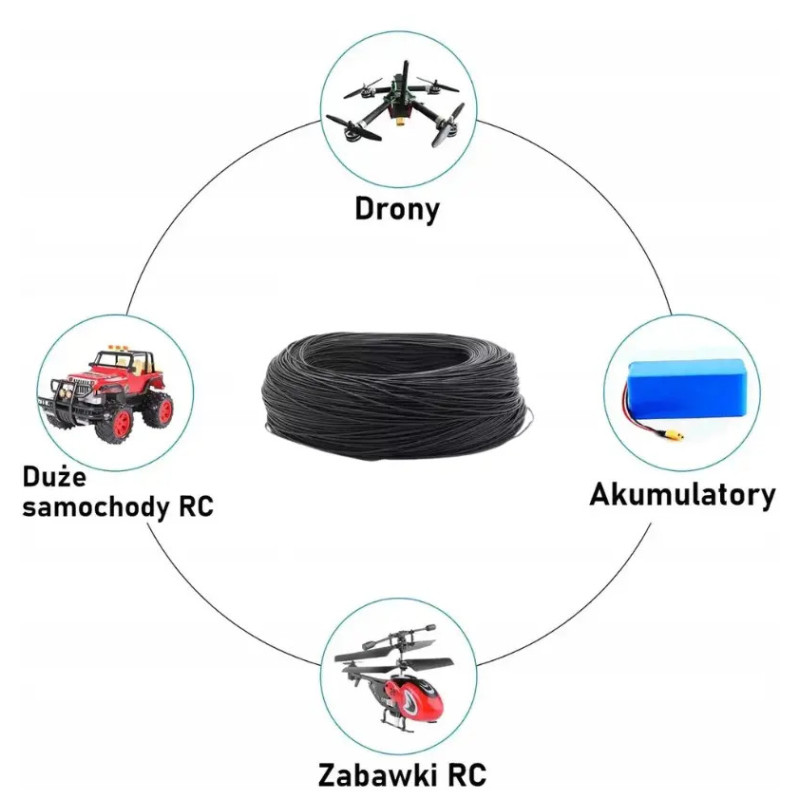

Typical 6 AWG Applications:
- Main power cables in large RC models, FPV drones and electric boats
- LiPo battery and converter connections for high load systems
- 12–48 V DC circuits in vehicles, workshops and power systems
- Ground or negative cables requiring large cross-section
Why Silicone?
- Maintains flexibility across a wide temperature range
- Does not crack, melt, or deform even under long-term heat exposure
- No “memory effect” – ideal for compact or mobile installations
6 AWG Applications
The Amass 6 AWG wire is perfect for applications requiring low resistance and the ability to carry high continuous current without overheating. Its flexible silicone insulation allows easy routing even in tight enclosures.
- Main power leads in RC models, FPV drones and electric boats
- LiPo battery, inverter and ESC connections
- 12–48 V DC workshop, automotive and audio power systems
- Ground and chassis connections with large cross-section
Practical Parameters (6 AWG)
- Continuous current: ≈ 80 A
- Peak current (short term): up to 180 A
- Resistance: ≈ 1.3 mΩ / m
- Recommended voltage range: 6 – 60 V DC
Assembly Tips
- Choose the proper AWG size based on current load and wire length
- Use flux and a clean soldering tip for solid, low-resistance joints
- Protect solder joints with heat-shrink tubing
Package Contents
- 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size
The Amass 6 AWG silicone wire is a premium-grade solution for high-current power applications. It offers superb flexibility, heat resistance, and low voltage drop, ensuring maximum efficiency and safety. Available in Red and Black – perfect for building complete power harnesses and battery systems.
