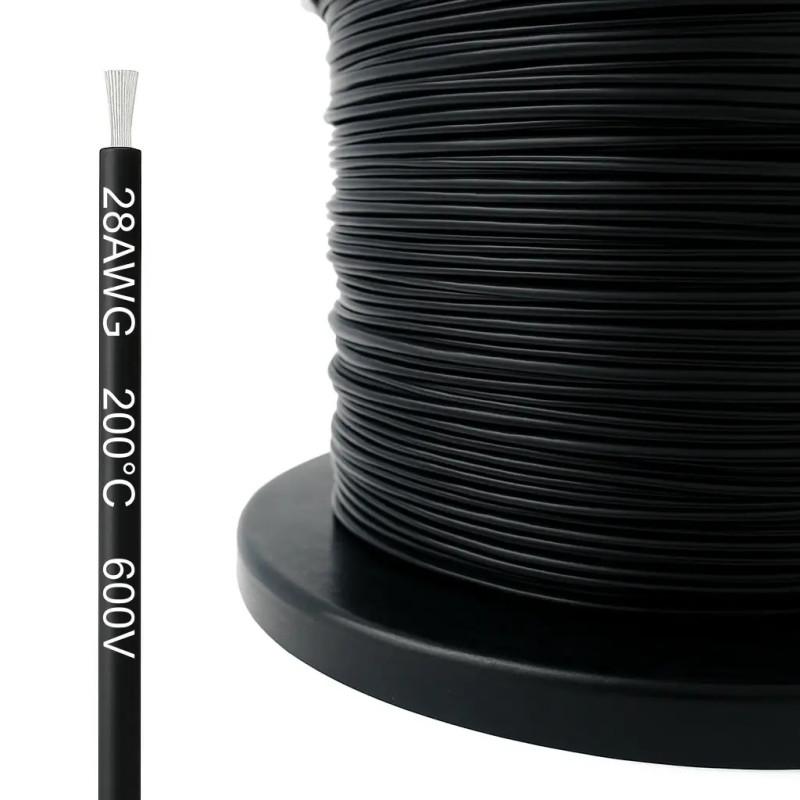

Amass 28AWG Silicone Wire – Multi-strand, Flexible – up to 200°C – 8 Colors

2.87
Tax included
  • ● Amass Silicone Wire 28 AWG – 1 m
  • ● Tinned copper multi-strand • high flexibility • low resistance

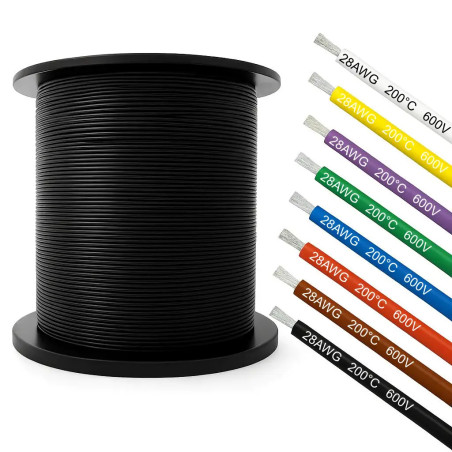

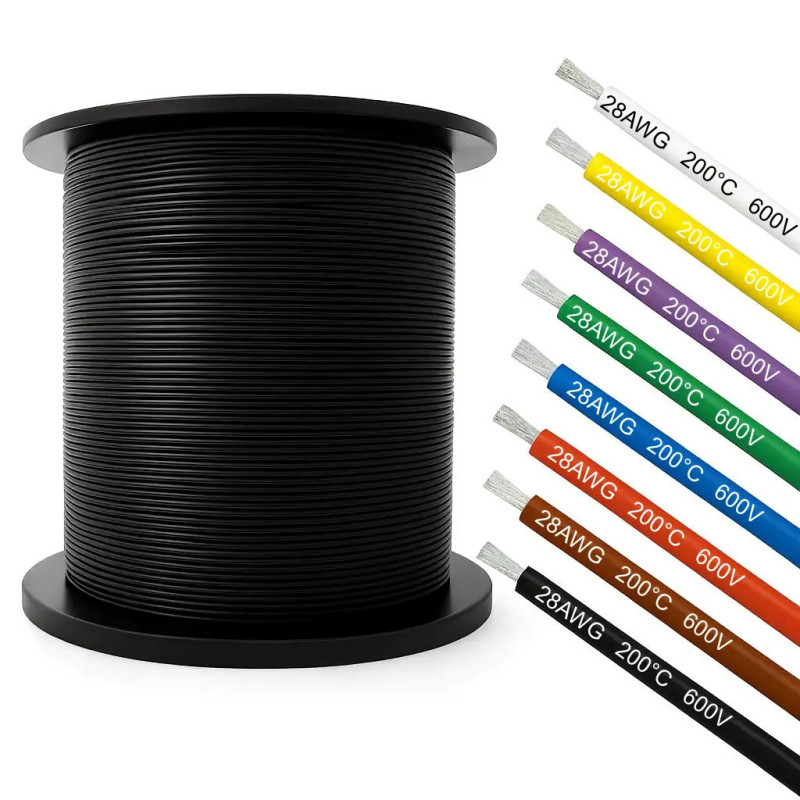

  • ● 8 colors: red, black, blue, white, green, yellow, purple, brown
  • ● Sold per meter – longer lengths shipped in one piece
  • ● Perfect for LEDs, FPV, sensors and microcontroller projects

Color
Brand
Avifly
Quantity:
3260
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

You might also like

Amass Silicone Wire 28 AWG – Ultra-Thin Flexible Signal Cable for FPV, LED and Electronics

Available in 8 colors: red, black, blue, white, green, yellow, purple and brown

The Amass 28 AWG wire is the thinnest in the Amass series – a lightweight tinned copper cable with soft silicone insulation. It offers exceptional flexibility, low resistance and heat endurance from –60 °C to 200 °C. Perfect for signal lines, LEDs, sensors, FPV modules and microcontroller projects.

Technical Specifications

  • AWG: 28
  • Cross-sectional area: ≈ 0.08 mm²
  • Conductor diameter (without insulation): ≈ 0.32 mm
  • Outer diameter (with insulation): ≈ 0.9 mm

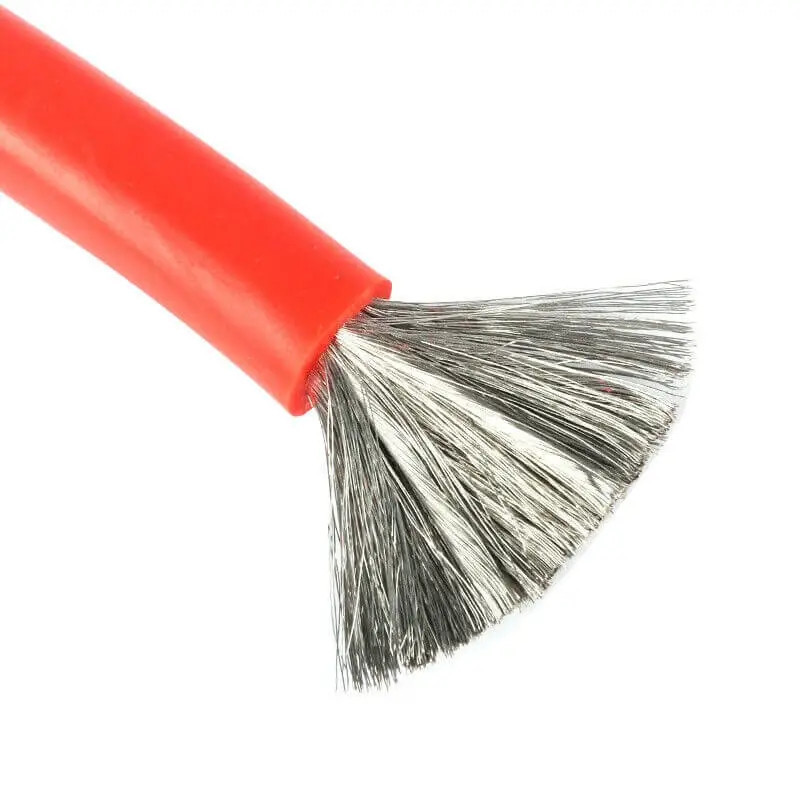

  • Conductor material: Tinned copper (multi-strand)
  • Insulation: Soft silicone – heat- and abrasion-resistant
  • Rated voltage: 600 V
  • Operating temperature: –60 °C to 200 °C
  • Colors: red, black, blue, white, green, yellow, purple, brown

Product Features

  • Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
  • Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
  • High flexibility – wire does not retain bends and easily fits in tight spaces
  • Stable performance across a wide temperature range from –60°C to 200°C
  • Easy to solder – tinned copper strands and flexible silicone insulation

How to Choose the Right 28 AWG Wire

The Amass 28 AWG wire is ideal for signal and control circuits carrying low current, where precision and light weight are essential. With a 0.08 mm² core, it handles ≈ 1.5 A continuous and up to 4 A peak current. Its soft silicone jacket remains flexible in tight spaces, making soldering and routing easy in micro-electronics, FPV frames and Arduino projects.

Typical 28 AWG Applications:

  • Signal and data wires for LEDs and sensors
  • Arduino and microcontroller connections
  • Miniature FPV and RC installations
  • DIY and precision electronics projects

Why Silicone?

  • Maintains flexibility across a wide temperature range
  • Does not crack, melt, or deform even under long-term heat exposure
  • No “memory effect” – ideal for compact or mobile installations

Applications

  • FPV drone and RC model wiring (ESC, power lines, LED strips)
  • DIY electronics projects and prototyping
  • Power supply connections for modules, sensors, and controllers
  • Applications requiring flexibility and high temperature resistance

Practical Parameters (28 AWG)

  • Continuous current: ≈ 1.5 A
  • Peak current: up to 4 A
  • Resistance: ≈ 212 mΩ/m
  • Voltage range: 3 – 12 V DC

Assembly Tips

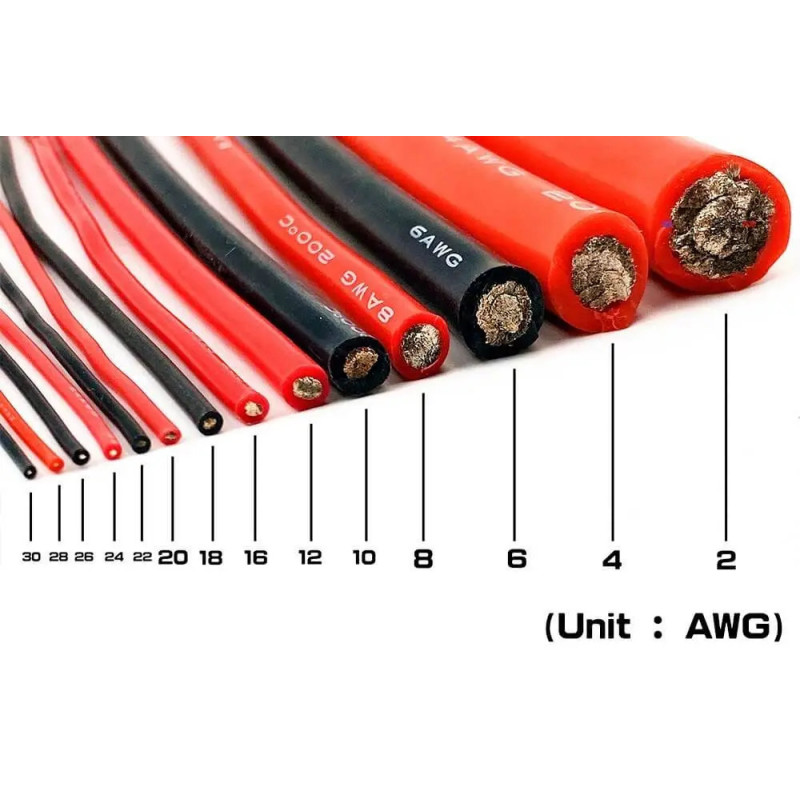

  • Choose the proper AWG size based on current load and wire length
  • Use flux and a clean soldering tip for solid, low-resistance joints
  • Protect solder joints with heat-shrink tubing

Package Contents

  • 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size

The Amass 28 AWG silicone wire combines ultra-thin design, high flexibility and durability for signal and low-current applications. It ensures clean solder joints and stable connections even in miniature
Available in 8 colors: red, black, blue, white, green, yellow, purple and brown.

FAQ

Frequently Asked Questions – Amass 28 AWG

The Amass 28 AWG wire is an ultra-thin signal cable designed for LEDs, sensors, microcontrollers and FPV projects.
It’s ideal for applications where low weight and precise wiring are required.

The 28 AWG wire safely handles about 1.5 A continuous and up to 4 A peak current.
It’s perfect for signal and control lines in electronic circuits.

Yes, all Amass wires feature soft silicone insulation resistant to temperatures from –60 °C to 200 °C.
They remain flexible and durable even under heavy use.

Yes — Amass wires are sold by the meter.
When you purchase multiple meters, they are supplied as one continuous piece.

Available in 8 colors: red, black, blue, white, green, yellow, purple and brown.
