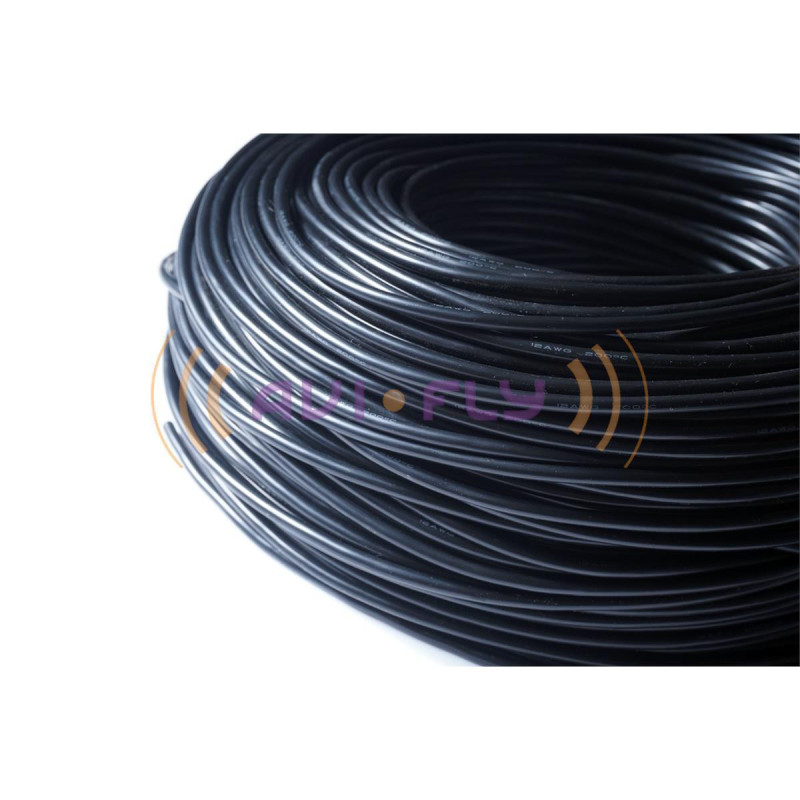

Amass Silicone Wire 13 AWG 1 m – Flexible Cable for FPV Drones, RC and Electronics (8 Colors)
5.77
Tax included
- ● Amass Silicone Wire 13 AWG – 1 m
- ● Tinned copper multi-strand • high flexibility • low resistance

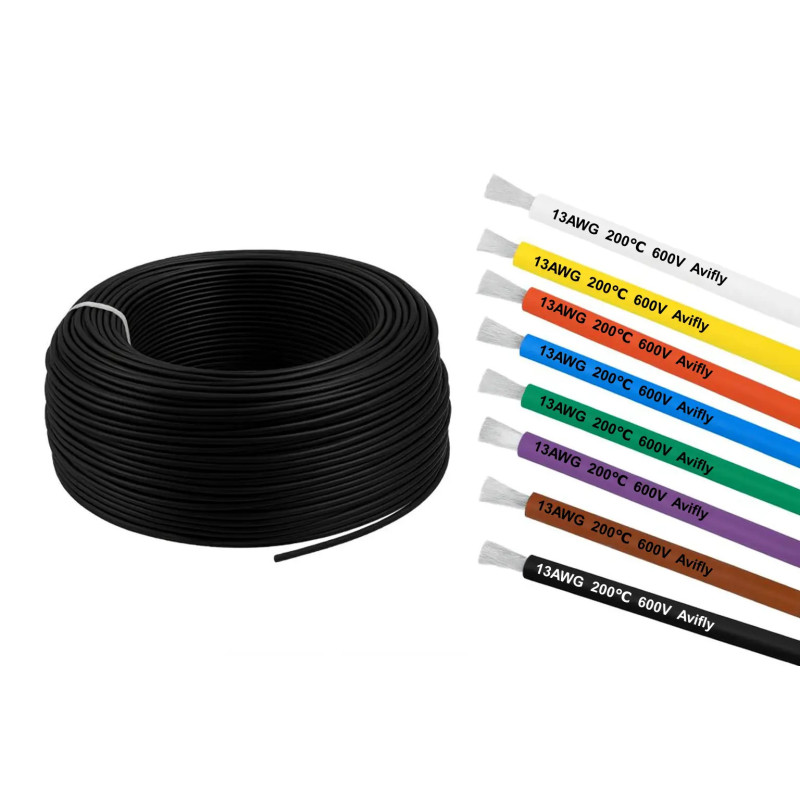

- ● 8 colors: red, black, blue, white, green, yellow, orange, brown
- ● Sold per meter – longer lengths shipped in one piece
- ● Perfect for LiPo batteries, ESC, converters and 12–48 V DC systems

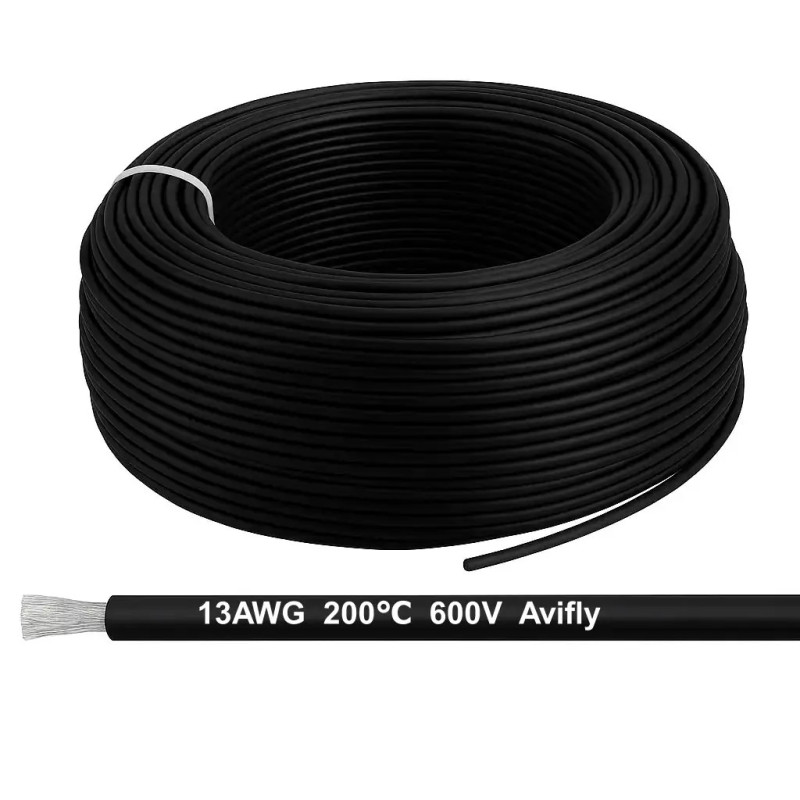

Amass Silicone Wire 13 AWG – Flexible Power Cable for LiPo, RC and FPV
Available in 8 colors: red, black, blue, white, green, yellow, purple and brown
The Amass 13 AWG wire is a high-quality tinned copper cable with soft silicone insulation for medium-current applications. It offers very low resistance, excellent flexibility and temperature resistance from –60 °C to 200 °C. Perfect for LiPo battery leads, ESC units, motors and 12–48 V DC power systems.
Technical Specifications
- AWG: 13
- Cross-sectional area: ≈ 2.62 mm²
- Conductor diameter (without insulation): ≈ 1.9 mm
- Outer diameter (with insulation): ≈ 3.5 mm
- Conductor material: Tinned copper (multi-strand)
- Insulation: Soft silicone – heat and abrasion resistant
- Rated voltage: 600 V
- Operating temperature: –60 °C to 200 °C
- Colors: red, black, blue, white, green, yellow, orange, brown
Product Features
- Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
- Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
- High flexibility – wire does not retain bends and easily fits in tight spaces
- Stable performance across a wide temperature range from –60°C to 200°C
- Easy to solder – tinned copper strands and flexible silicone insulation
How to Choose the Right 13 AWG Wire
The Amass 13 AWG wire is ideal for medium-current setups where efficiency and lightweight design are important. With a 2.62 mm² core, it supports ≈ 30 A continuous and peaks up to 65 A. The soft silicone jacket makes installation easy in tight RC and FPV builds.
Typical 13 AWG Applications:
- LiPo battery and ESC connections
- Brushless motor and controller leads
- 12–48 V DC installations in workshops and models
- Ground and chassis connections
Why Silicone?
- Maintains flexibility across a wide temperature range
- Does not crack, melt, or deform even under long-term heat exposure
- No “memory effect” – ideal for compact or mobile installations
Applications
- FPV drone and RC model wiring (ESC, power lines, LED strips)
- DIY electronics projects and prototyping
- Power supply connections for modules, sensors, and controllers
- Applications requiring flexibility and high temperature resistance
Practical Parameters (13 AWG)
- Continuous current: ≈ 30 A
- Peak current: up to 65 A
- Resistance: ≈ 6.5 mΩ/m
- Voltage range: 6 – 60 V DC
Assembly Tips
- Choose the proper AWG size based on current load and wire length
- Use flux and a clean soldering tip for solid, low-resistance joints
- Protect solder joints with heat-shrink tubing
Package Contents
- 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size
The Amass 13 AWG silicone wire provides reliable power transfer with low losses and excellent heat resistance. Perfect for FPV, RC, robotics, power supplies and electronics projects. Available in 8 colors: red, black, blue, white, green, yellow, purple and brown.
