Amass Silicone Wire 10 AWG 1 m – Flexible Cable for FPV Drones, RC and Electronics (4 Colors)

10.99
Tax included
  • ● Amass Silicone Wire 10 AWG – 1 m
  • ● Tinned copper multi-strand • high flexibility • low resistance
  • ● 4 colors: red, black, green and white
  • ● Sold per meter – longer lengths shipped in one piece
  • ● Perfect for LiPo batteries, ESC and 12–48 V DC systems

Color
Brand
Amass
Quantity:
673
Shipment:

On monday

Supply:
for freeCheck delivery costs
Gift:
Soon!

You might also like

Amass Silicone Wire 10 AWG – Flexible High-Current Power Cable

Available in 4 colors: Red, Black, Green and White

The Amass 10 AWG wire is a flexible tinned copper cable with heat-resistant silicone insulation. It provides low resistance and excellent flexibility, ideal for LiPo battery leads, ESCs, and 12–48 V DC power systems. Perfect for FPV drones, RC vehicles, audio setups and workshop use.

Technical Specifications

  • AWG: 10
  • Cross-sectional area: ≈ 5.26 mm²
  • Conductor diameter (without insulation): ≈ 2.6 mm
  • Outer diameter (with insulation): ≈ 4.8 mm
  • Conductor material: Tinned copper (multi-strand)
  • Insulation: Flexible silicone, heat-resistant
  • Rated voltage: 600 V
  • Operating temperature: –60 °C to 200 °C
  • Colors: Red / Black / Green / White

Product Features

  • Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
  • Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
  • High flexibility – wire does not retain bends and easily fits in tight spaces
  • Stable performance across a wide temperature range from –60°C to 200°C
  • Easy to solder – tinned copper strands and flexible silicone insulation

How to Choose the Right 10 AWG Wire

The Amass 10 AWG wire offers an excellent balance between power capacity and ease of installation. With a 5.26 mm² core, it handles continuous currents of ≈ 50 A and peaks up to 100 A. Ideal for ESC, LiPo battery leads, RC power wiring and 12–48 V systems.

Typical 10 AWG Applications:

  • LiPo battery and ESC power connections
  • Power wiring for RC cars, drones and FPV builds
  • 12–48 V DC installations in boats, audio and workshop systems
  • Ground and chassis connections

Why Silicone?

  • Maintains flexibility across a wide temperature range
  • Does not crack, melt, or deform even under long-term heat exposure
  • No “memory effect” – ideal for compact or mobile installations

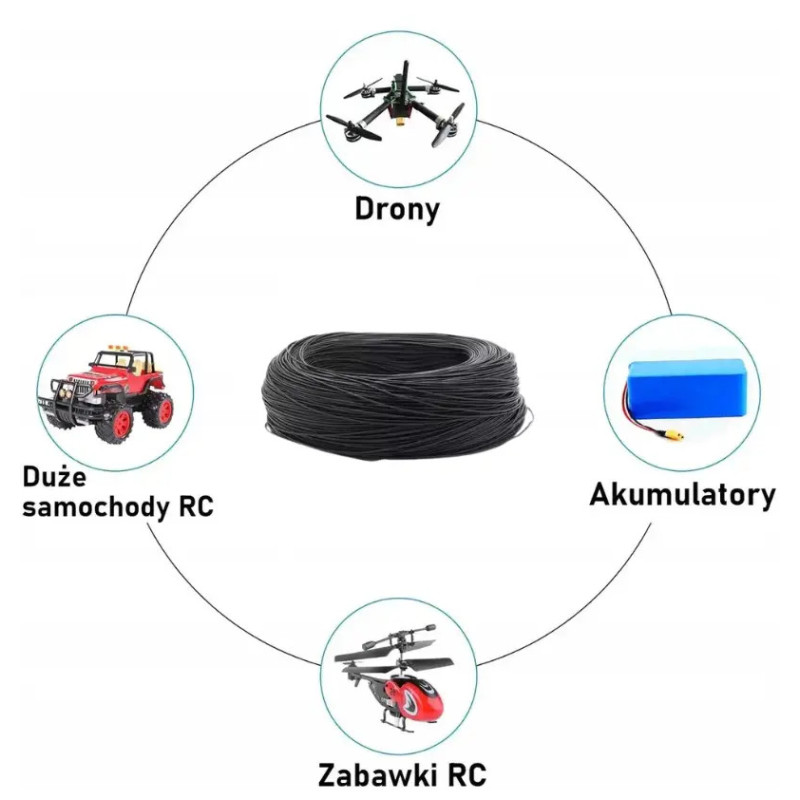

Applications

  • FPV drone and RC model wiring (ESC, power lines, LED strips)
  • DIY electronics projects and prototyping
  • Power supply connections for modules, sensors, and controllers
  • Applications requiring flexibility and high temperature resistance

Practical Parameters (10 AWG)

  • Continuous current: ≈ 50 A
  • Peak current (short-term): ≈ 100 A
  • Resistance: ≈ 3.3 mΩ/m
  • Recommended voltage range: 6 – 60 V DC

Assembly Tips

  • Choose the proper AWG size based on current load and wire length
  • Use flux and a clean soldering tip for solid, low-resistance joints
  • Protect solder joints with heat-shrink tubing

Package Contents

  • 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size

The Amass 10 AWG silicone wire is a premium flexible cable for medium to high current power systems. It combines low resistance, high heat tolerance and excellent flexibility. Available in four colors: Red, Black, Green and White.

FAQ

Frequently Asked Questions – Amass 10 AWG

The Amass 10 AWG wire is a heavy-duty high-current cable designed for maximum performance and safety.

It’s ideal for large LiPo batteries, ESCs, PDB connections, chargers and 12 – 60 V DC power systems.

I am The 10 AWG wire safely carries about 60 A continuous and up to 150 A peak current.
With short runs and adequate cooling, it can handle up to 180 A. content. Click edit button to change this text.

Yes, 10 AWG is the standard for large FPV drones (8 – 10 inch) and high-power RC systems.

It’s commonly used as a main battery lead or power connection between ESC and PDB.

Use a 5 – 6 mm soldering tip at 440 – 480 °C.

Heat for several seconds until the solder fully flows into the strands.

The Amass silicone insulation is heat-resistant and remains flexible after soldering.

The 10 AWG wire has a cross-section of ≈ 5.26 mm², while 12 AWG is ≈ 3.31 mm².
10 AWG carries more current but is thicker and heavier; 12 AWG is lighter for compact setups.
