Rurka koszulka termokurczliwa 6,0/3,0 mm czerwona czarna 1m
  • Rurka koszulka termokurczliwa 6,0/3,0 mm czerwona czarna 1m
  • RC solder protection shrink tube 6 mm
  • Heat shrink for 12–16 AWG wires
  • Heat shrink tubing 6.0 mm 2:1 red black set 2 m

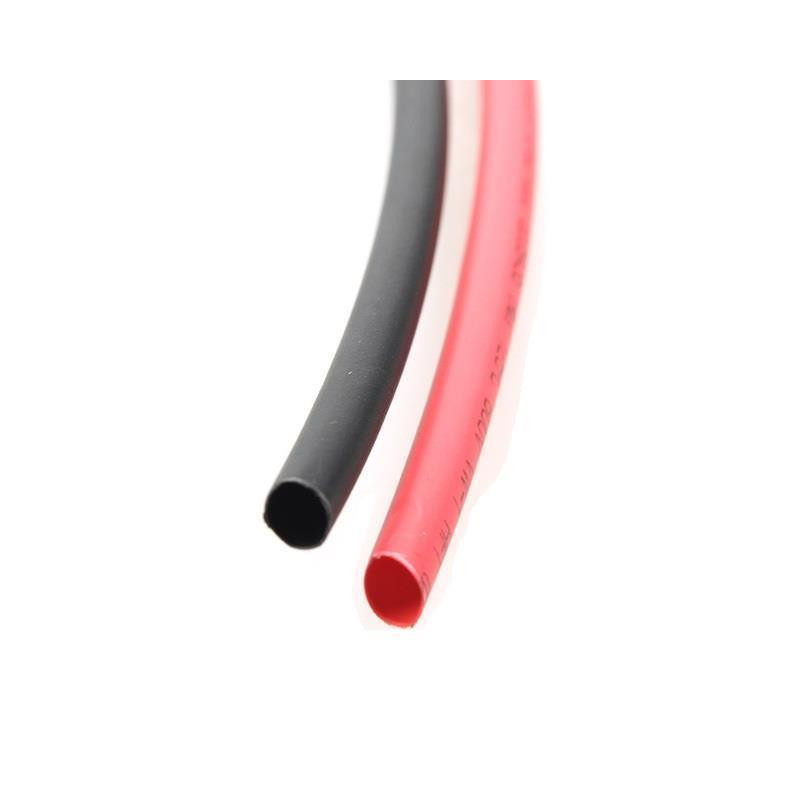

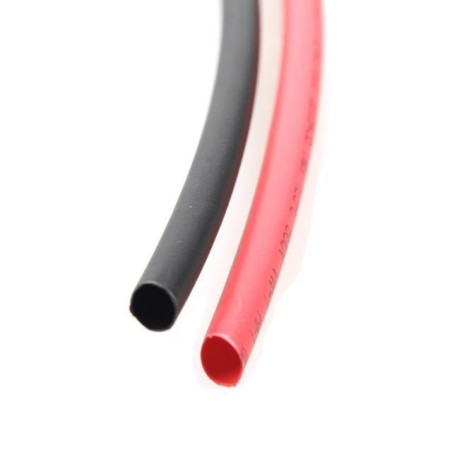

Heat Shrink Tubing 6.0 mm 2:1 red + black set 2 m (1 m + 1 m)

Avifly

SKU: TERMO 6MM
3.07
In stock – 947 szt.

  • 30-day returns No questions asked
  • 12 mo warranty Manufacturer + Avifly
  • Shipping availability Same day before 12:00

Heat Shrink Tubing 6.0 mm 2:1 red + black set 2 m

Durable 6 mm 2:1 heat shrink tubing for RC and FPV wire insulation and solder protection

The 6.0 mm (2:1) heat shrink tubing made of high-quality polyolefin provides reliable insulation, mechanical protection and clean cable routing in RC and FPV installations. When heated, it shrinks to approximately 3.0 mm, forming a strong and flexible protective layer. The set includes 1 m red and 1 m black tubing for polarity marking.

Key features and benefits

  • • 2:1 shrink ratio — from 6 mm to approx. 3 mm
  • • Suitable for 12–16 AWG silicone wires
  • • Includes 1 m red + 1 m black tubing for polarity identification
  • • Resistant to oils, greases and model fuels
  • • Durable and UV-resistant
  • • Halogen-free and safe for electronic components
  • • Strong mechanical protection and flexibility
  • • Easy application with heat gun or hot-air
  • • Operating range: –55°C to +125°C
  • • Professional finish for wiring in RC models

Technical specifications

  • • Diameter before shrink: 6.0 mm
  • • Diameter after shrink: approx. 3.0 mm
  • • Shrink ratio: 2:1
  • • Material: polyolefin heat-shrink
  • • Shrink temperature: > 90°C
  • • Operating temperature: –55°C to +125°C
  • • Flammability rating: UL94 HB

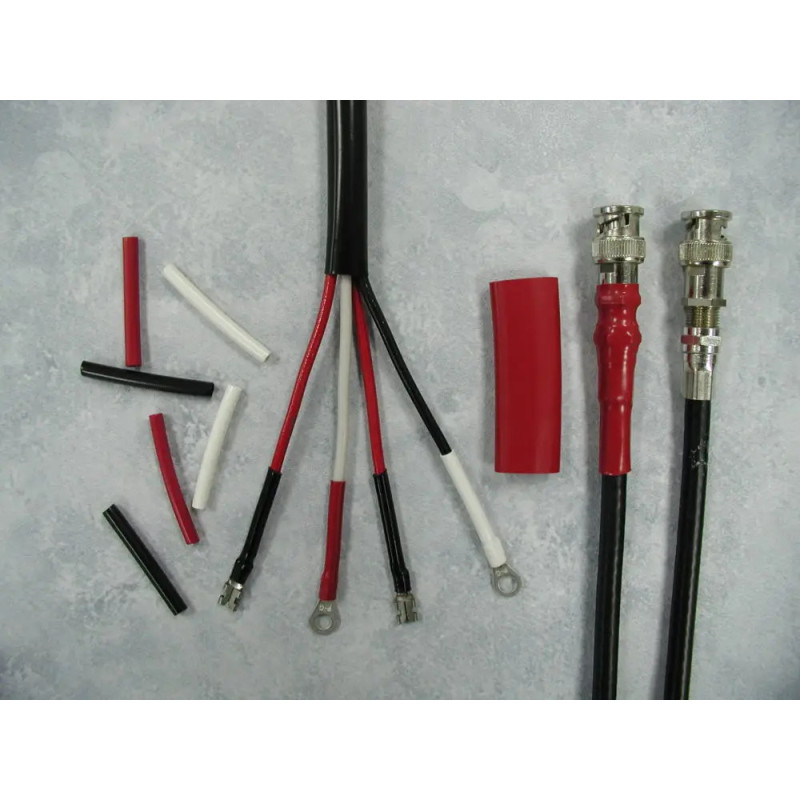

Applications

  • • Insulating 12–16 AWG wires
  • • Protecting XT60 / XT90 solder joints
  • • Securing power leads and ESC wiring
  • • Marking polarity (red/black)
  • • Cable management in FPV drones, RC cars and airplanes

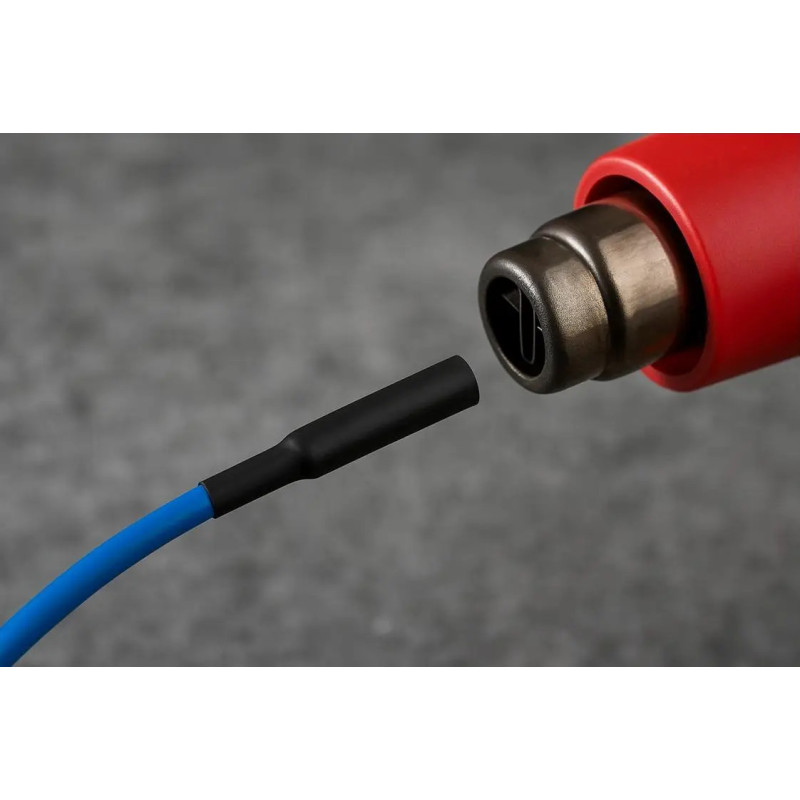

How to use

  • • Cut to required length
  • • Slide over the cable or solder joint
  • • Apply even heat (heat gun or hot-air)
  • • Tubing shrinks to approx. 3 mm
  • • Allow to cool before handling


How to choose the correct size

6.0 mm tubing fits wires with an outer diameter of 3.2–5.0 mm, such as:

  • • 12–16 AWG silicone wires
  • • ESC and battery leads
  • • Thick wiring used in RC models

In the box

  • • 1 m red 6.0 mm heat shrink tubing
  • • 1 m black 6.0 mm heat shrink tubing
Technical data and safety data sheet (SDS) for Salipt Heat-Shrink Tubing

FAQ

Frequently Asked Questions

It is used for insulating 12–16 AWG wires, securing solder joints and protecting thick power leads.

Yes — commonly used on ESC wiring, battery leads and high-current cables.

It begins to shrink above 90°C and fully shrinks at 110–120°C.

2:1 — from 6 mm down to approx. 3 mm.

Yes, it can be cut freely without affecting performance.

Yes — red indicates positive, black negative.

Comments (0)
No customer reviews for the moment.
