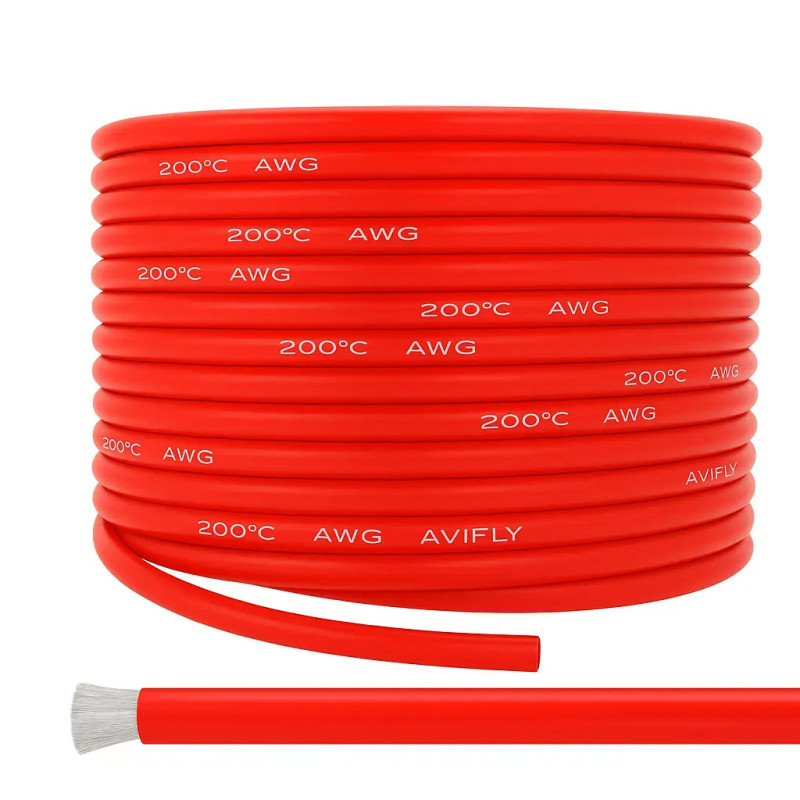

Amass Silicone Wire 8 AWG 1 m – Flexible Cable for FPV Drones, RC and Electronics (black/red)
19.09
Tax included
You might also like
Amass Silicone Wire 8 AWG – Flexible Power Cable for LiPo and RC Applications
Available in Red / Black – for high-current power systems
The Amass 8 AWG wire is a high-quality tinned copper cable with soft silicone insulation and excellent flexibility. It offers low resistance and reliable performance for power distribution in LiPo battery packs, ESC units, and DC systems from 12 V to 48 V. Ideal for FPV drones, RC vehicles, audio and workshop setups.
Technical Specifications
- AWG: 8
- Cross-sectional area: ≈ 8.36 mm²
- Conductor diameter (without insulation): ≈ 3.3 mm
- Outer diameter (with insulation): ≈ 5.5 mm
- Conductor material: Tinned copper (multi-strand)
- Insulation: Flexible high-temperature silicone
- Rated voltage: 600 V
- Operating temperature: –60 °C to 200 °C
- Colors: Red / Black
Product Features
- Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
- Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
- High flexibility – wire does not retain bends and easily fits in tight spaces
- Stable performance across a wide temperature range from –60°C to 200°C
- Easy to solder – tinned copper strands and flexible silicone insulation
How to Choose the Right 8 AWG Wire
The Amass 8 AWG wire is designed for power-intensive applications requiring low resistance and high safety. With a cross-section of 8.36 mm², it can handle continuous currents up to 60 A and peaks around 120 A. Ideal for power wiring between LiPo batteries, motors and ESCs in RC models.
Typical 8 AWG Applications:
- ESC and motor power leads for high-load RC vehicles and drones
- LiPo battery and main power connections
- 12–48 V DC installations in vehicles and workshops
- Ground and chassis connections with large current load
Why Silicone?
- Maintains flexibility across a wide temperature range
- Does not crack, melt, or deform even under long-term heat exposure
- No “memory effect” – ideal for compact or mobile installations
Applications

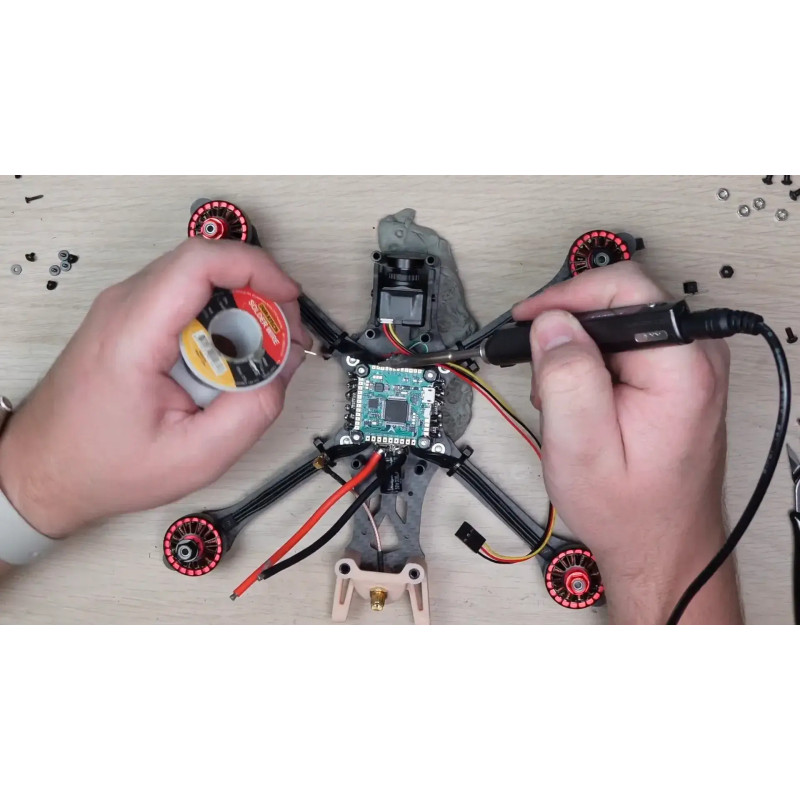

- FPV drone and RC model wiring (ESC, power lines, LED strips)
- DIY electronics projects and prototyping
- Power supply connections for modules, sensors, and controllers
- Applications requiring flexibility and high temperature resistance
Practical Parameters (8 AWG)
- Continuous current: ≈ 60 A
- Peak current (short-term): up to 120 A
- Resistance: ≈ 2.0 mΩ/m
- Recommended voltage range: 6–60 V DC
Assembly Tips
- Choose the proper AWG size based on current load and wire length
- Use flux and a clean soldering tip for solid, low-resistance joints
- Protect solder joints with heat-shrink tubing
Package Contents
- 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size
The Amass 8 AWG silicone wire is a durable, flexible power cable for high-current systems. Combining superior conductivity with excellent heat resistance, it’s the perfect choice for RC, FPV, LiPo, and industrial power setups. Available in Red and Black.
