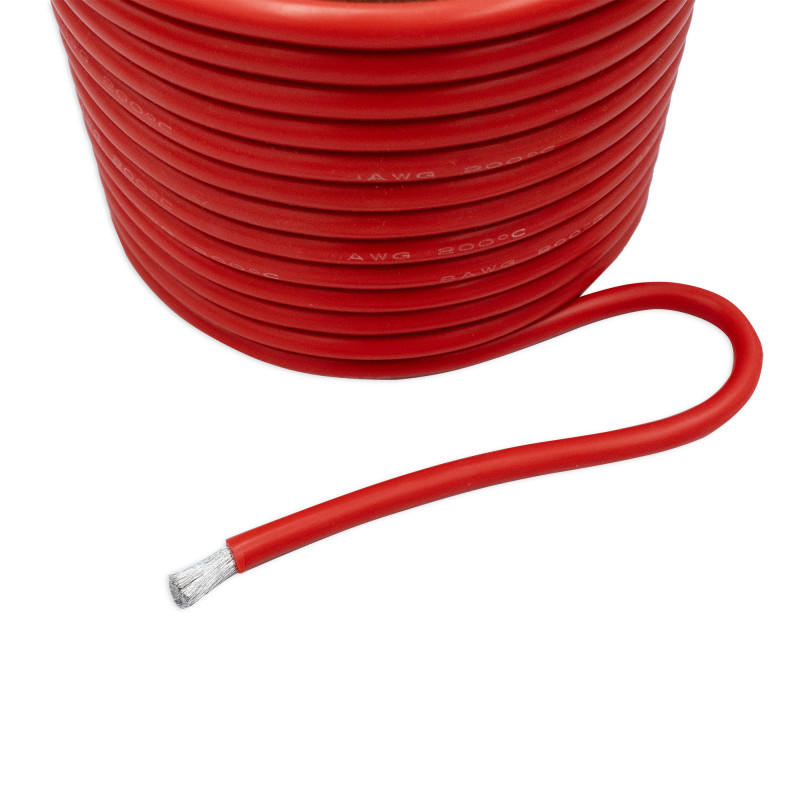

Amass Silicone Wire 4 AWG 1 m – Flexible Cable for FPV Drones, RC and Electronics (black/red)
49.77
Tax included
- ● Amass Silicone Wire 4 AWG – 1 m (Red / Black)
- ● Thick, flexible tinned copper wire for high-current applications
- ● Perfect for LiPo batteries, ESCs, inverters, and RC power systems
- ● Flexible silicone insulation – heat resistant from –60 °C to 200 °C
- ● Sold per meter – longer lengths shipped as a single continuous piece

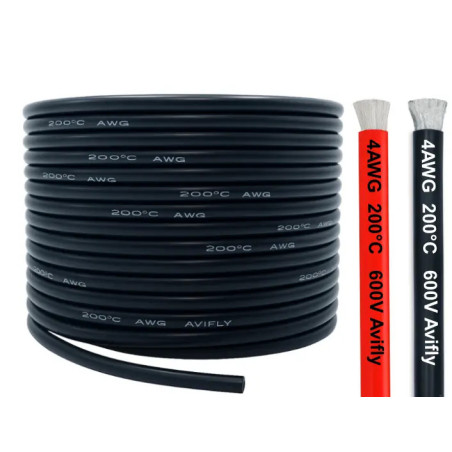

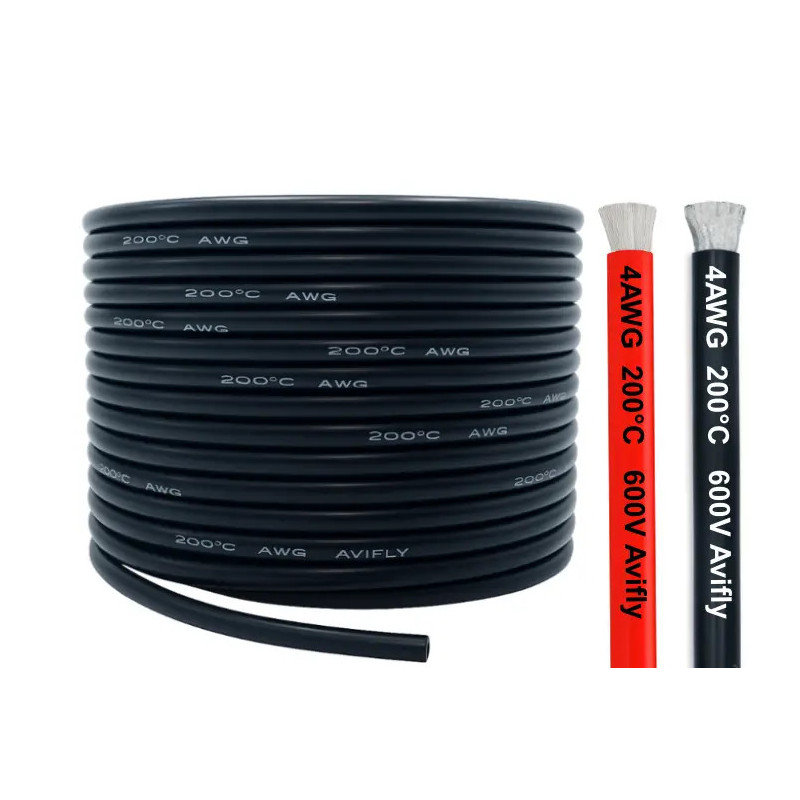

Amass Silicone Wire 4 AWG – Maximum Conductivity and Durability

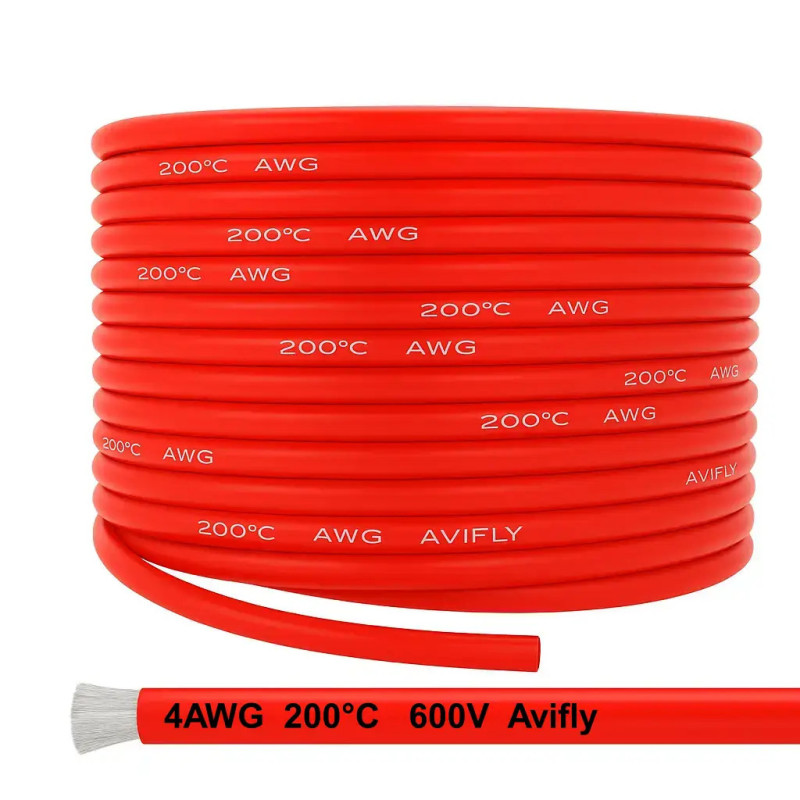

Available in Red or Black – ideal high-current power wire
The Amass 4 AWG silicone wire is a thick, ultra-flexible tinned copper cable designed for heavy-duty power applications. It offers minimal resistance, excellent flexibility, and outstanding heat resistance. Perfect for LiPo battery connections, ESCs, power supplies, and workshop systems.
Technical Specifications
- AWG: 4
- Cross-sectional area: approx. 21 mm²
- Conductor diameter: ~5.2 mm (without insulation)
- Outer diameter: ~7.5 mm (with insulation)
- Rated voltage: 600 V
- Temperature range: –60 °C to 200 °C
- Conductor material: Tinned copper
- Insulation: Industrial-grade silicone
- Colors: Red / Black
Product Features

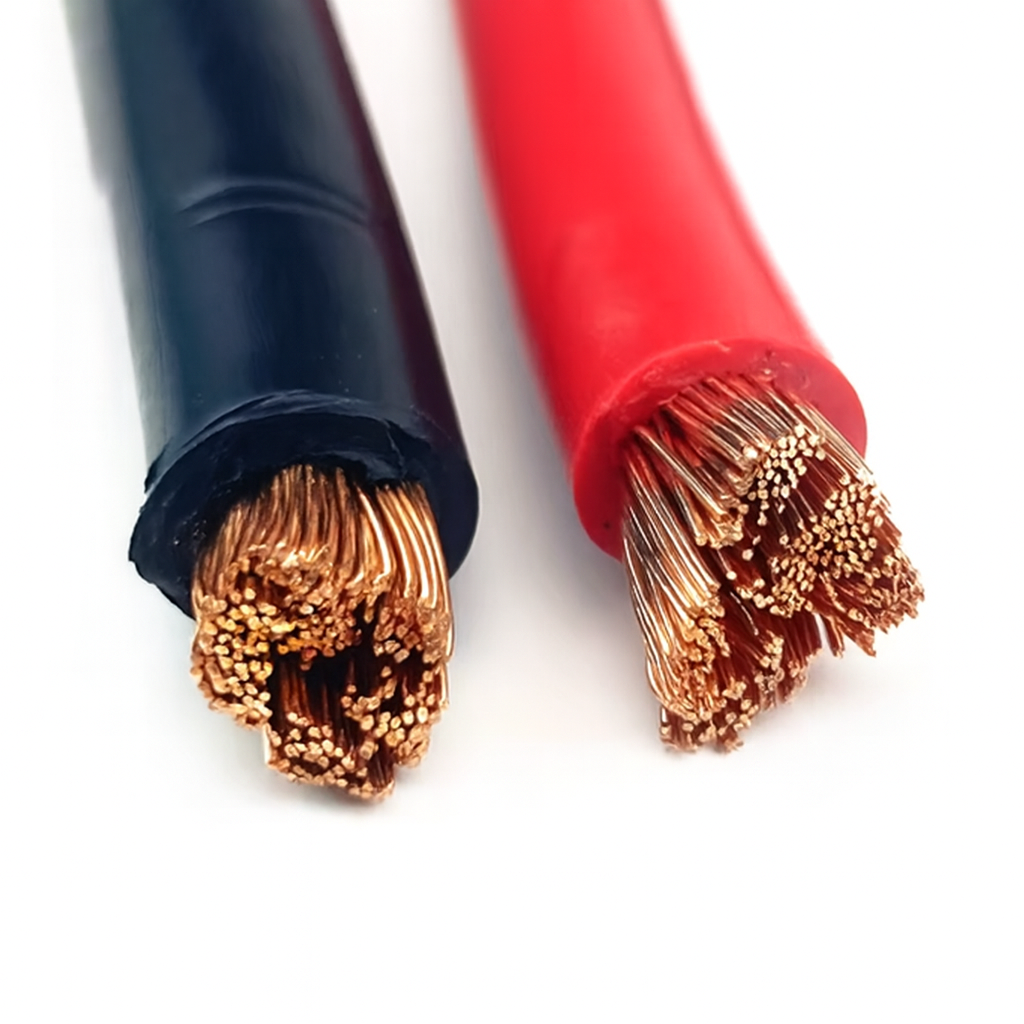

- Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
- Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
- High flexibility – wire does not retain bends and easily fits in tight spaces
- Stable performance across a wide temperature range from –60°C to 200°C
- Easy to solder – tinned copper strands and flexible silicone insulation

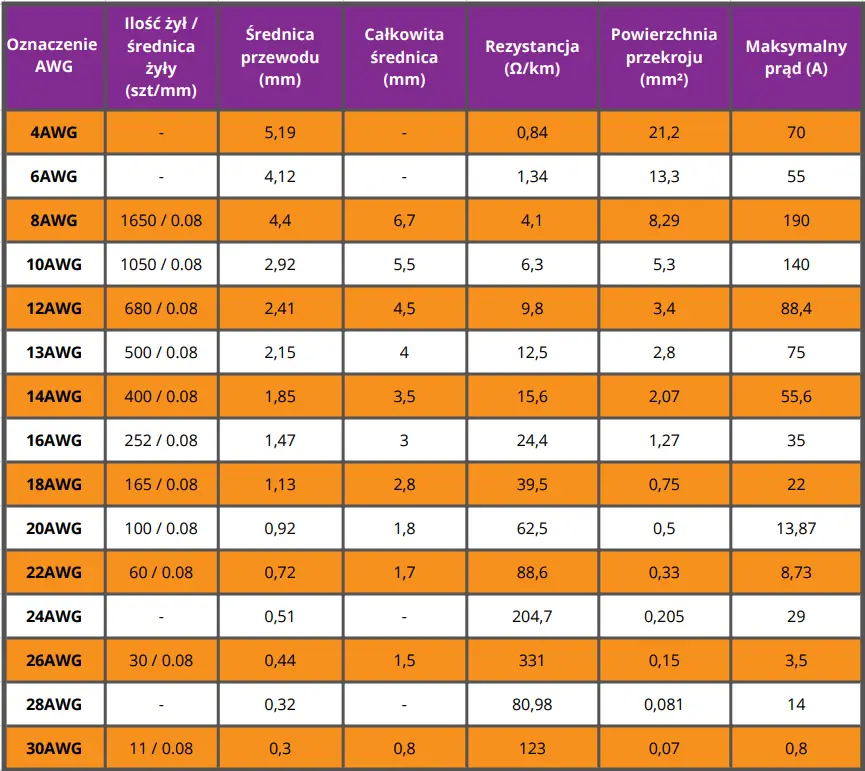

How to Choose the Right 4 AWG Wire
The Amass 4 AWG silicone wire is built for high-current power systems where maximum efficiency and low resistance are essential. The 21 mm² copper core can safely handle continuous loads exceeding 100 A, making it ideal for high-performance drones, RC vehicles, and power supply systems.
Typical 4 AWG Applications:

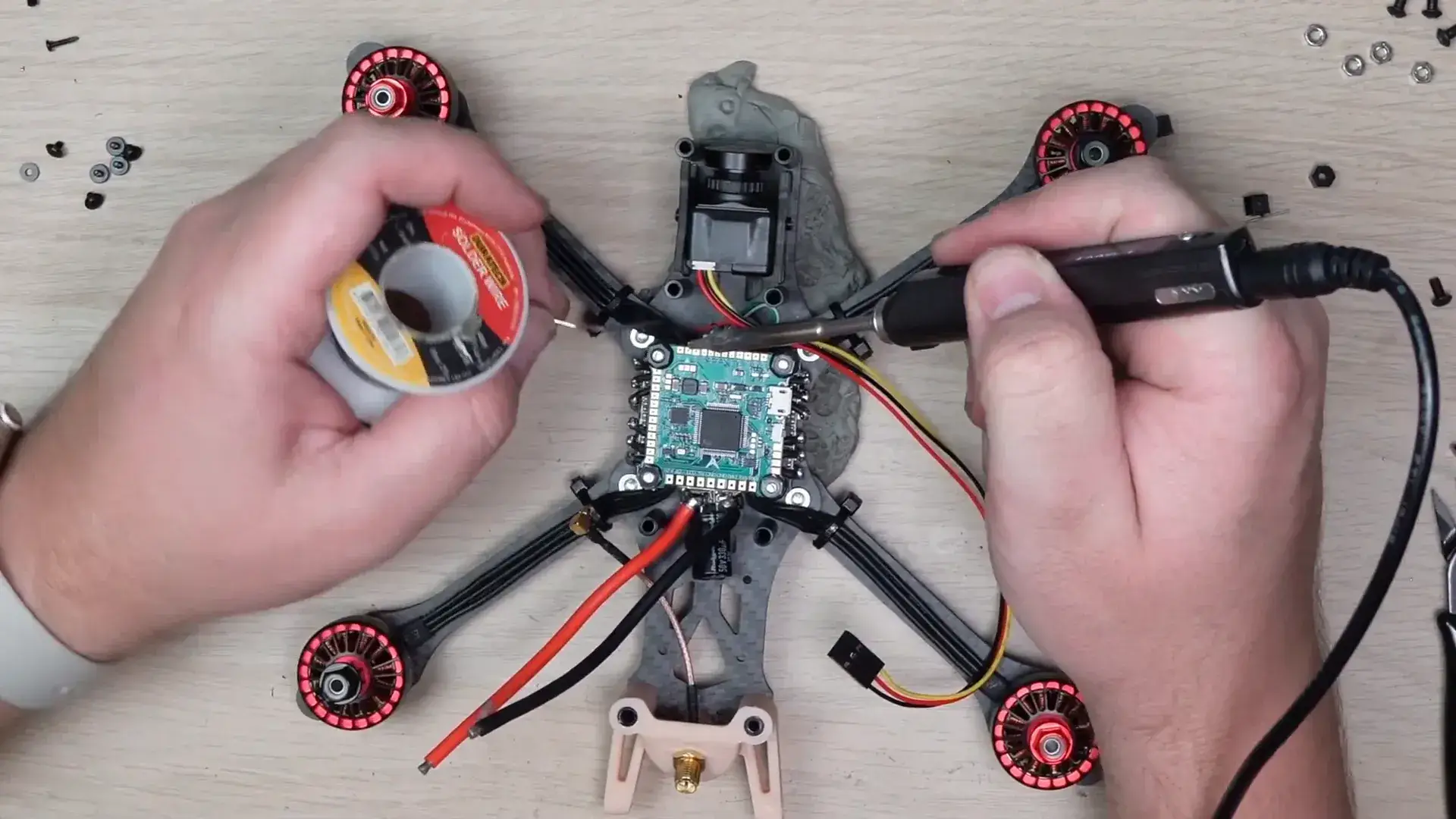

- Main power leads for large FPV drones and RC models
- LiPo battery and inverter connections
- 12–48 V DC power systems in workshops, boats, or vehicles
- Ground and chassis connections requiring large cross-section

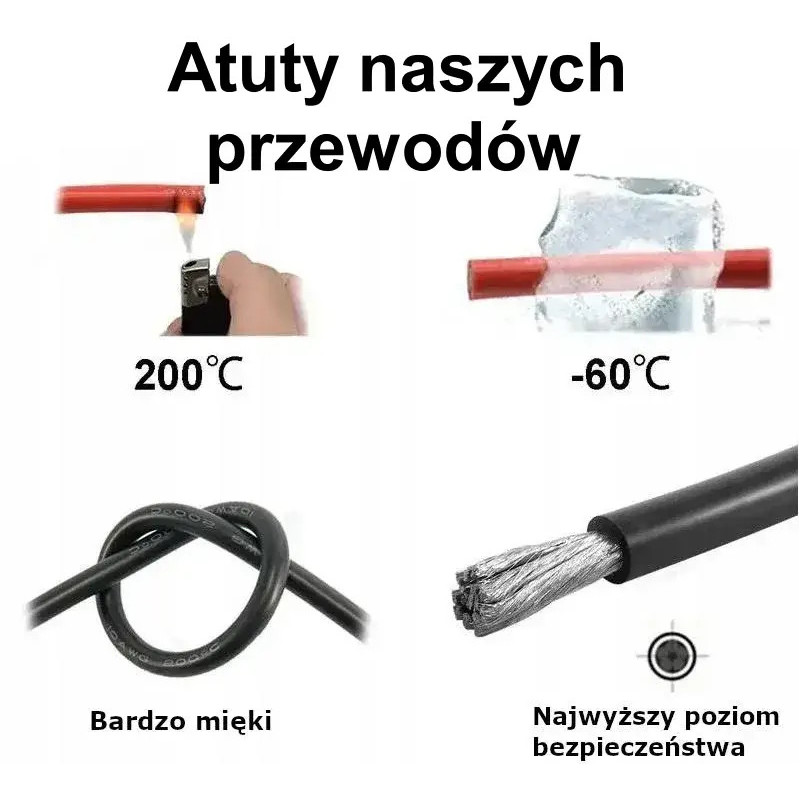

Why Silicone?
- Maintains flexibility across a wide temperature range
- Does not crack, melt, or deform even under long-term heat exposure
- No “memory effect” – ideal for compact or mobile installations

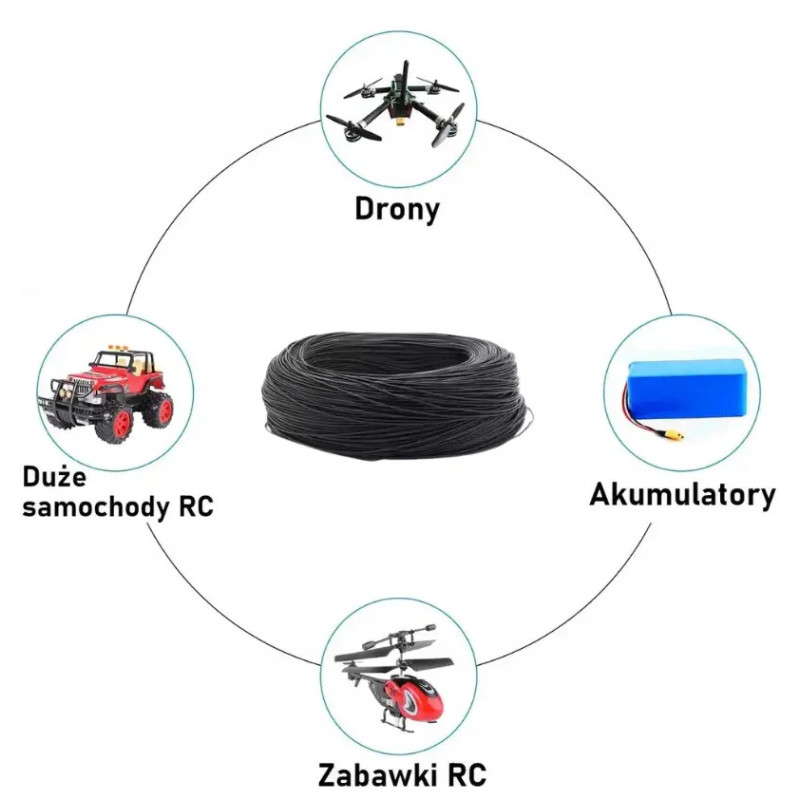

Applications
- FPV drone and RC model wiring (ESC, power lines, LED strips)
- DIY electronics projects and prototyping
- Power supply connections for modules, sensors, and controllers
- Applications requiring flexibility and high temperature resistance
Practical Parameters (4 AWG)
- Continuous current: approx. 100–120 A
- Peak current (short-term): up to 250 A
- Resistance: approx. 0.8 mΩ/m
- Recommended voltage range: 6–60 V DC

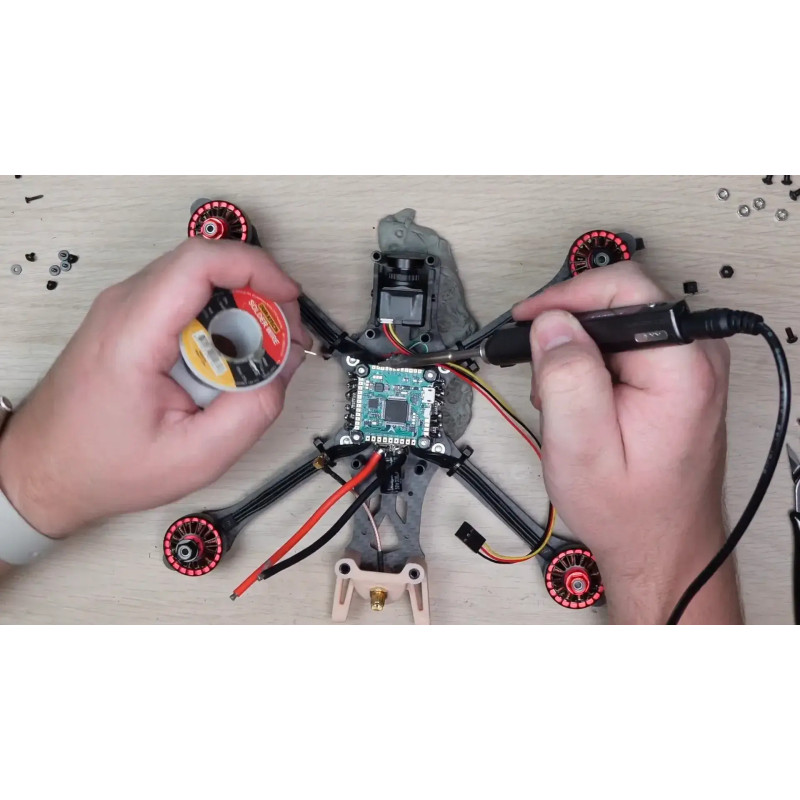

Assembly Tips
- Choose the proper AWG size based on current load and wire length
- Use flux and a clean soldering tip for solid, low-resistance joints

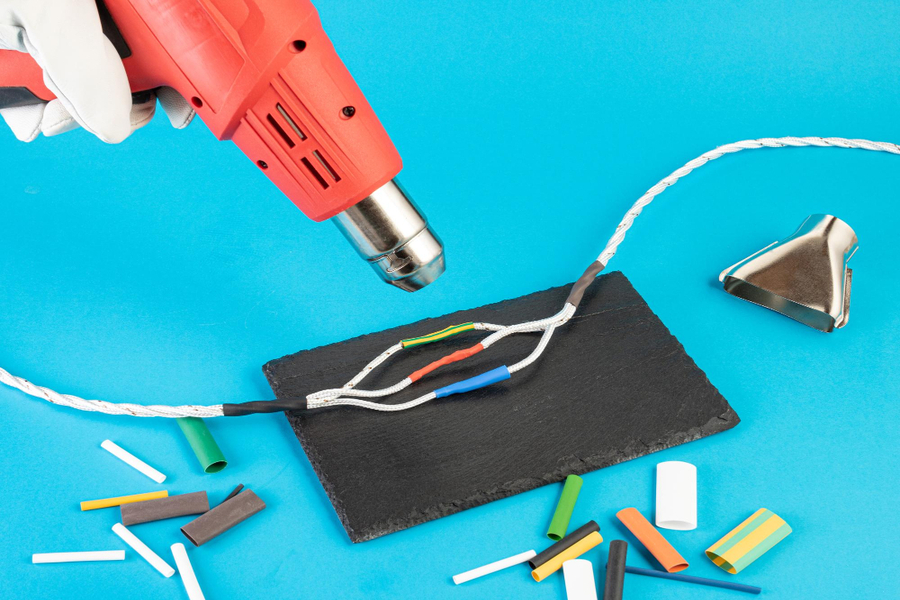

- Protect solder joints with heat-shrink tubing
Package Contents
- 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size
The Amass 4 AWG silicone wire is the ultimate choice for demanding power systems. It delivers exceptional flexibility, minimal voltage drop, and excellent heat resistance. Available in red and black to create complete and reliable power harnesses.
