Amass 18AWG silicone wire 0.82mm² – flexible wire set, 8 colors
search

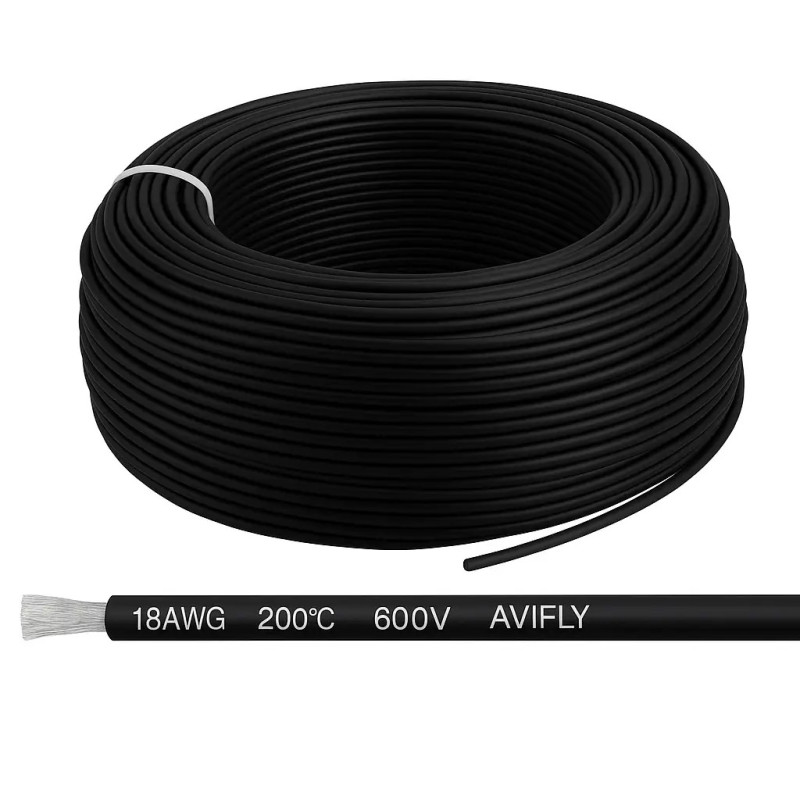

  • mass 18AWG silicone wire 0.82mm² black – flexible 1m
  • Amass 18AWG silicone wire 0.82mm² – flexible wire set, 8 colors
  • Amass Silicone Wire 18 AWG 1 m – Flexible Power Cable
  • Amass Silicone Wire 18 AWG 1 m – Flexible Power Cable
  • Amass Silicone Wire 18 AWG 1 m – Flexible Power Cable
  • Amass Silicone Wire 18 AWG 1 m – Flexible Power Cable

Silicone wire Amass 18AWG 0,85mm2 red 1m

3.37
Tax included
  • ● Amass Silicone Wire 18 AWG – 1 m
  • ● Tinned copper multi-strand • high flexibility • low resistance

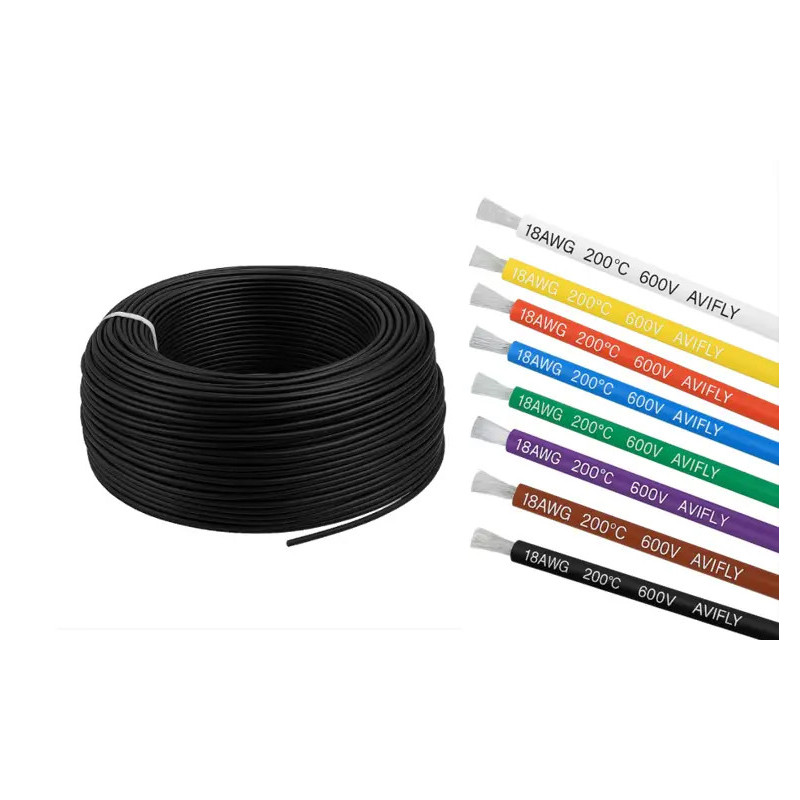

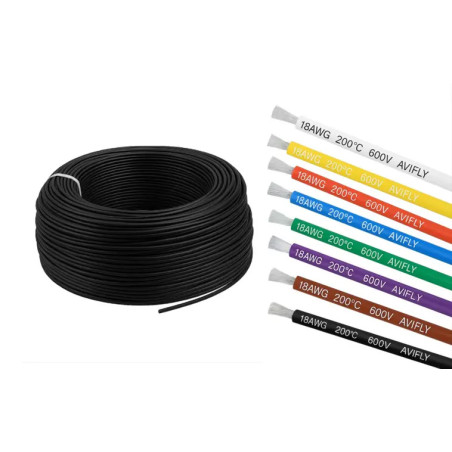

  • ● 8 colors: red, black, blue, white, green, yellow, purple, brown
  • ● Sold per meter – longer lengths shipped in one piece
  • ● Perfect for FPV, ESC, LEDs and 12–24 V DC systems

Color
Brand
Amass
Quantity:
2000
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

You might also like

Amass Silicone Wire 18 AWG – Flexible Power Cable for LiPo, RC and FPV

Available in 8 colors: red, black, blue, white, green, yellow, purple and brown

The Amass 18 AWG wire is a premium tinned copper cable with soft silicone insulation for light and medium current applications. It offers low resistance, excellent flexibility and a wide temperature range from –60 °C to 200 °C. Perfect for LiPo battery leads, FPV modules, LEDs and 12–24 V DC circuits.

Technical Specifications

  • AWG: 4
  • Cross-sectional area: approx. 21 mm²
  • Conductor diameter: ~5.2 mm (without insulation)
  • Outer diameter: ~7.5 mm (with insulation)
  • Rated voltage: 600 V
  • Temperature range: –60 °C to 200 °C
  • Conductor material: Tinned copper
  • Insulation: Industrial-grade silicone
  • Colors: Red / Black

Product Features

  • Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
  • Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
  • High flexibility – wire does not retain bends and easily fits in tight spaces
  • Stable performance across a wide temperature range from –60°C to 200°C
  • Easy to solder – tinned copper strands and flexible silicone insulation

How to Choose the Right 18 AWG Wire

The Amass 18 AWG wire is ideal for lightweight FPV and RC systems where efficiency and flexibility matter. With a 0.82 mm² core, it supports ≈ 15 A continuous and up to 35 A peak. The soft silicone jacket stays flexible in cold or hot conditions, making it easy to install in compact frames and tight builds.

Typical 18 AWG Applications:

  • Power leads for FPV cameras and transmitters
  • Small LiPo (1S–3S) and ESC connections
  • 12–24 V DC workshop and vehicle circuits
  • Accessory wiring for lights, fans and modules

Why Silicone?

  • Maintains flexibility across a wide temperature range
  • Does not crack, melt, or deform even under long-term heat exposure
  • No “memory effect” – ideal for compact or mobile installations

Applications

  • FPV drone and RC model wiring (ESC, power lines, LED strips)
  • DIY electronics projects and prototyping
  • Power supply connections for modules, sensors, and controllers
  • Applications requiring flexibility and high temperature resistance

Practical Parameters (18 AWG)

  • Continuous current: ≈ 15 A
  • Peak current: up to 35 A
  • Resistance: ≈ 21 mΩ/m
  • Voltage range: 6 – 48 V DC

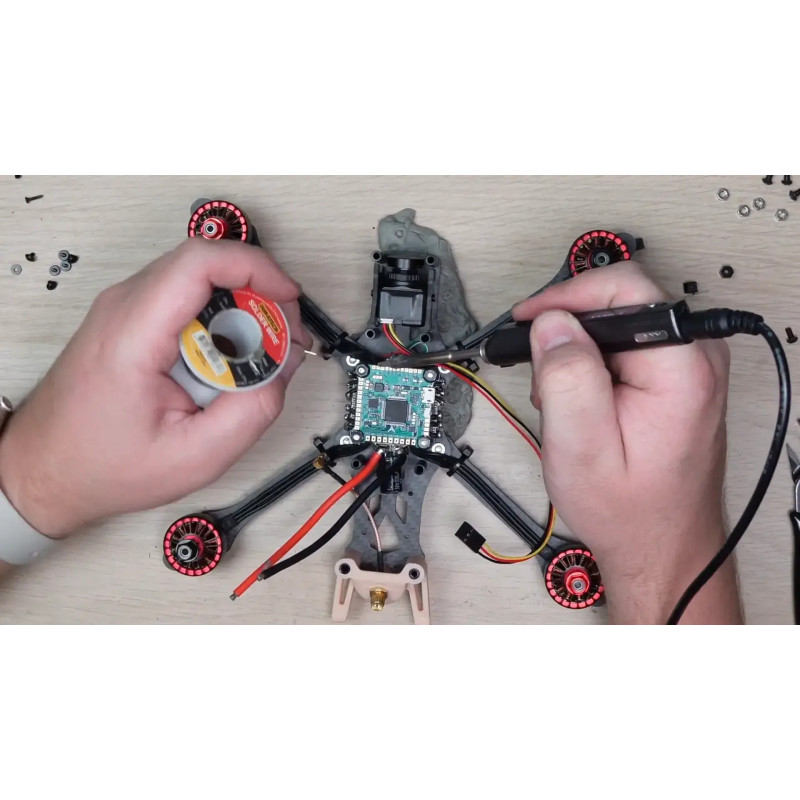

Assembly Tips

  • Choose the proper AWG size based on current load and wire length
  • Use flux and a clean soldering tip for solid, low-resistance joints
  • Protect solder joints with heat-shrink tubing

Package Contents

  • 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size

The Amass 18 AWG wire provides stable power delivery with minimal loss and high flexibility. Perfect for FPV, RC, robotics and electronic hobby projects. Available in 8 colors: red, black, blue, white, green, yellow, purple, brown.

FAQ

Frequently Asked Questions – Amass 18 AWG

The Amass 18 AWG wire is designed for medium-to-high current applications.
It’s ideal for powering motors, ESCs, flight controllers and FPV modules in 4–5 inch drones.

The 18 AWG wire safely carries about 10 A continuous and up to 25 A peak current.

Over short runs, it can handle up to 30 A in FPV or bench power systems.

Yes, 18 AWG is commonly used to power brushless motors and ESCs in mid-power drones.
It offers low resistance, excellent flexibility and high heat resistance.

Use a 2–3 mm soldering tip at 380–420 °C with flux and 1 mm solder.

The silicone insulation is heat-resistant and won’t shrink while soldering.

The 18 AWG wire has a cross-section of ≈ 0.82 mm², while 16 AWG is ≈ 1.31 mm².
16 AWG carries more current, but 18 AWG is lighter and more flexible for compact builds.
