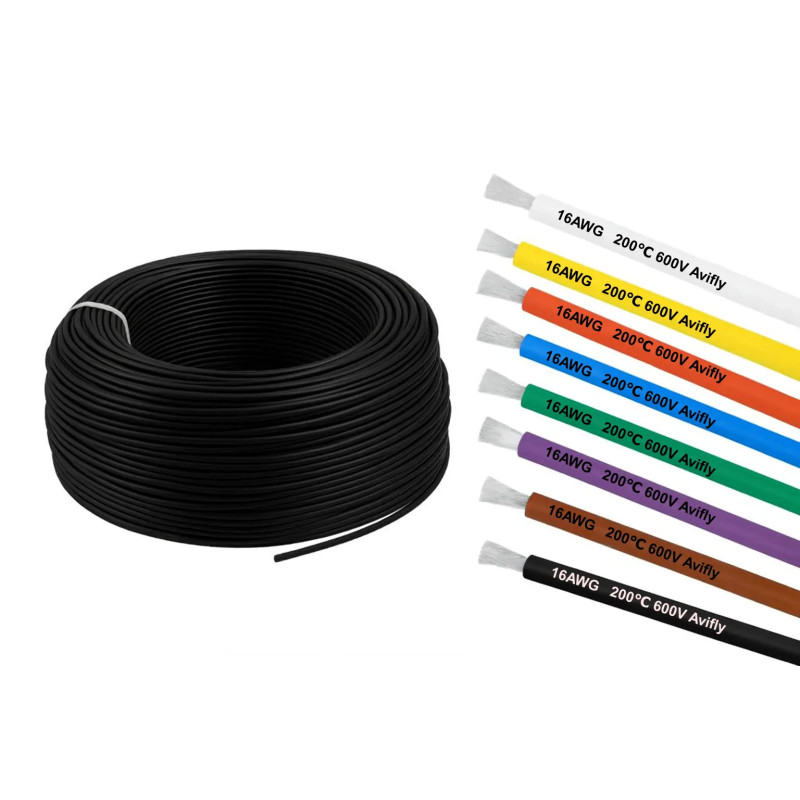

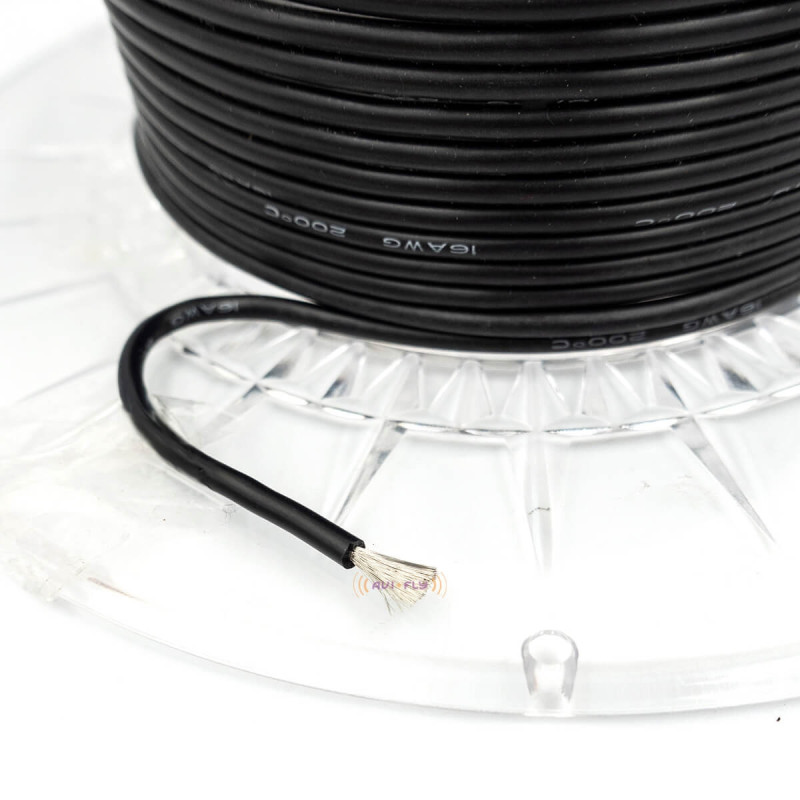

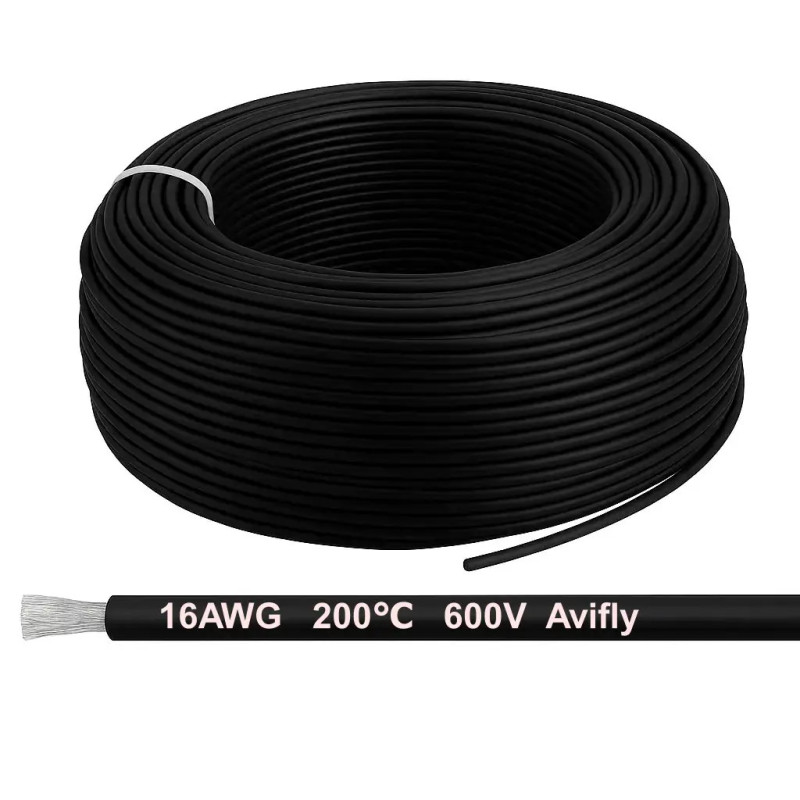

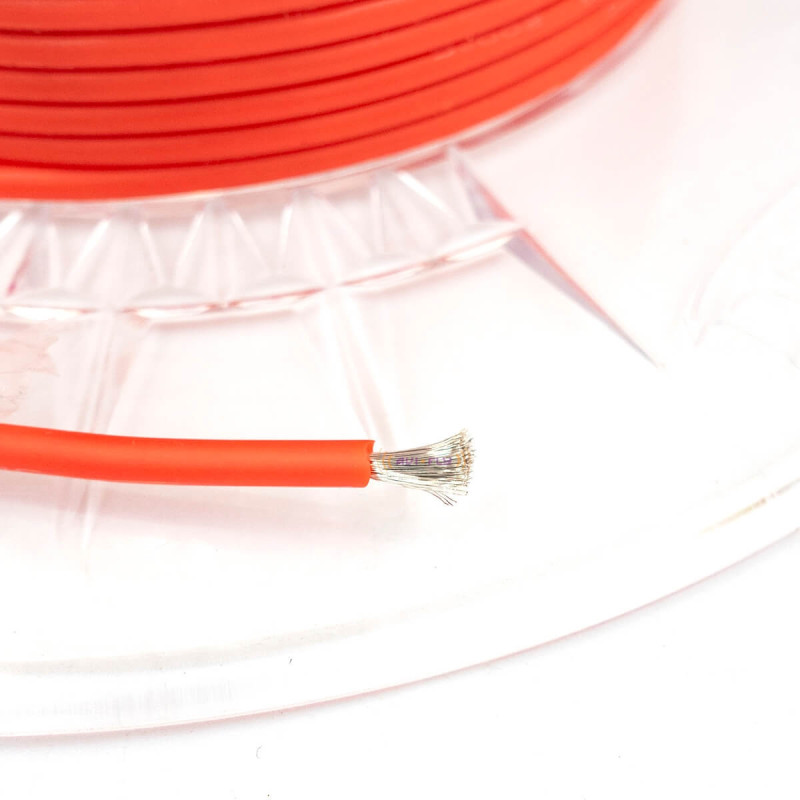

Amass Silicone Wire 16 AWG 1 m – Flexible Cable for FPV Drones, RC and Electronics (8 Colors)

3.47
Tax included
  • ● Amass Silicone Wire 16 AWG – 1 m
  • ● Tinned copper multi-strand • high flexibility • low resistance
  • ● 8 colors: red, black, blue, white, green, yellow, purple, brown
  • ● Sold per meter – longer lengths shipped in one piece
  • ● Perfect for LiPo batteries, ESC, converters and 12–48 V DC systems

Color
Brand
Amass
Quantity:
382
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

You might also like

Amass Silicone Wire 16 AWG – Flexible Power Cable for LiPo, RC and FPV

Available in 8 colors: red, black, blue, white, green, yellow, purple and brown

The Amass 16 AWG wire is a premium tinned copper cable with soft silicone insulation for low-to-medium current applications. It offers low resistance, excellent flexibility and temperature range from –60 °C to 200 °C. Perfect for LiPo batteries, ESCs, motors and 12–48 V DC FPV systems.

Technical Specifications

  • AWG: 16
  • Cross-sectional area: ≈ 1.31 mm²
  • Conductor diameter: ≈ 1.3 mm
  • Outer diameter (with insulation): ≈ 2.6 mm
  • Material: Tinned copper (multi-strand)
  • Insulation: Soft silicone – heat & abrasion resistant
  • Rated voltage: 600 V
  • Operating temperature: –60 °C to 200 °C
  • Colors: red, black, blue, white, green, yellow, purple, brown

Product Features

  • Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
  • Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
  • High flexibility – wire does not retain bends and easily fits in tight spaces
  • Stable performance across a wide temperature range from –60°C to 200°C
  • Easy to solder – tinned copper strands and flexible silicone insulation

How to Choose the Right 16 AWG Wire

The Amass 16 AWG wire is a perfect choice for applications that require flexibility and reliable current flow without adding weight. With a 1.31 mm² tinned copper core, it safely carries around 20 A continuously and up to 45 A peak. The soft silicone insulation remains flexible even in extreme temperatures, making it easy to install in tight FPV frames or compact RC builds. Its balance between efficiency, size, and flexibility makes it ideal for power lines, signal connections, and medium-current circuits in drones and hobby electronics.

Typical 16 AWG Applications:

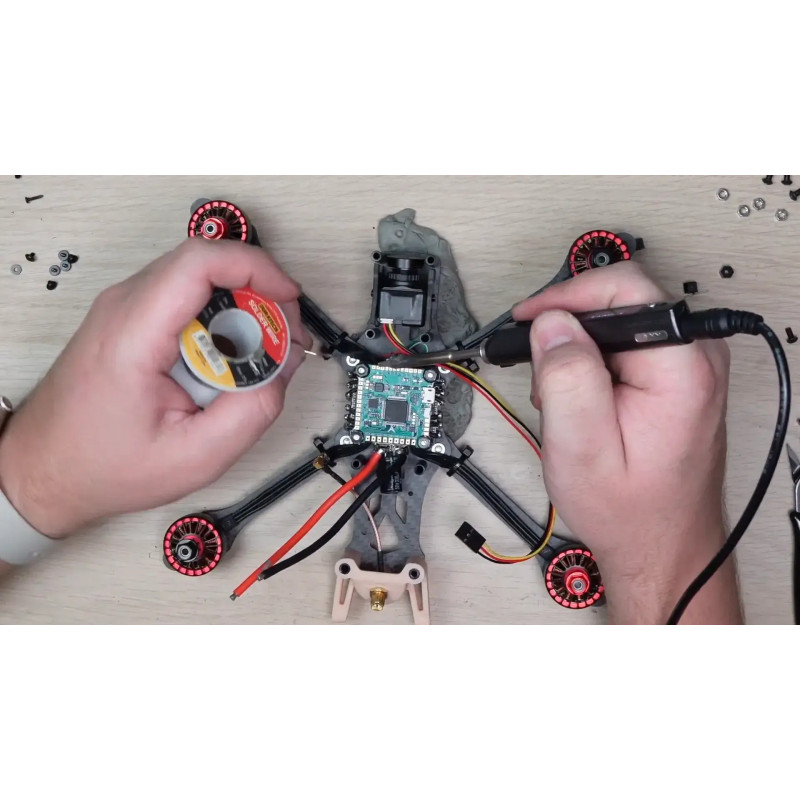

  • LiPo battery and ESC connections in FPV drones and RC models
  • Power supply leads for motors, controllers, and converters
  • 12–48 V DC installations in workshops, vehicles, and robotics
  • Auxiliary device wiring such as fans, lights, and FPV modules

Why Silicone?

  • Maintains flexibility across a wide temperature range
  • Does not crack, melt, or deform even under long-term heat exposure
  • No “memory effect” – ideal for compact or mobile installations

Applications

  • FPV drone and RC model wiring (ESC, power lines, LED strips)
  • DIY electronics projects and prototyping
  • Power supply connections for modules, sensors, and controllers
  • Applications requiring flexibility and high temperature resistance

Practical Parameters (16 AWG)

  • Continuous current: ≈ 20 A
  • Peak current: up to 45 A
  • Resistance: ≈ 13 mΩ/m
  • Voltage range: 6 – 60 V DC

Assembly Tips

  • Choose the proper AWG size based on current load and wire length
  • Use flux and a clean soldering tip for solid, low-resistance joints
  • Protect solder joints with heat-shrink tubing

Package Contents

  • 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size

The Amass 16 AWG silicone wire ensures stable power delivery with low loss and high flexibility. Suitable for FPV, RC, robotics and electronics projects. Available in 8 colors: red, black, blue, white, green, yellow, purple, brown.

FAQ

Frequently Asked Questions – Amass 16 AWG

The Amass 16 AWG wire is a strong power cable designed for high-current applications.
It’s perfect for 5–7 inch drones, RC systems, power supplies, converters and 12–48 V DC installations.

The 16 AWG wire safely carries about 15 A continuous and up to 35 A peak current.
Over short runs, it can handle up to 40 A with minimal voltage loss.

Yes, 16 AWG is ideal for connecting LiPo batteries, brushless motors, ESCs and power distribution boards.
It’s thick, flexible and has very low resistance.

Use a 3–4 mm soldering tip at 400–430 °C.

Heat the joint for 2–3 seconds to let solder flow between strands. The silicone insulation resists heat and prevents melting.

The 16 AWG wire has a cross-section of ≈ 1.31 mm², while 14 AWG is ≈ 2.08 mm².

14 AWG can carry higher current, but 16 AWG is lighter and more flexible — ideal for FPV and RC builds.
