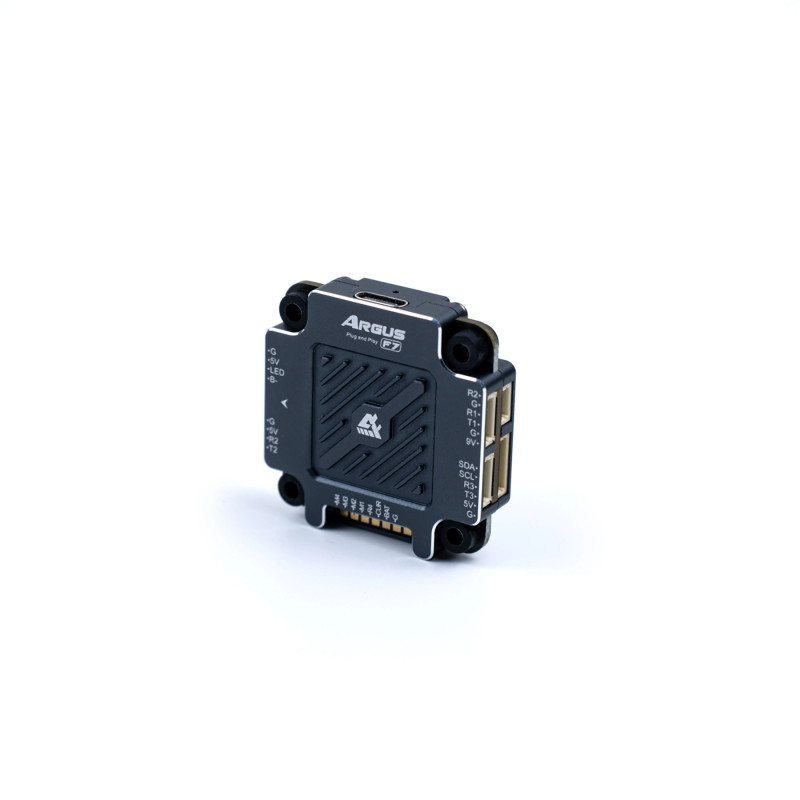

Axisflying Argus PRO Plug&Play Stack – F722 FC + ESC 55A/65A

32‑bit F722 flight controller and high‑current ESC, ready for 3–6S FPV builds

The Axisflying Argus PRO Plug&Play Stack combines a premium F722 flight controller with either a 55 A or 65 A 4‑in‑1 ESC (65 A in-stock), wrapped in a full CNC aluminum heat‑sink shell. It supports up to 8 motors, integrated dual BECs, built‑in barometer, OSD, BlackBox, telemetry, and direct plug‑in support for DJI Air Units. Ideal for rugged, high-performance freestyle, X8, cinewhoop, and cinematic drones :contentReference[oaicite:1]{index=1}.

Product Features

  • ● 32‑bit STM32F722 FC with BMI270 gyro, barometer, integrated OSD & BlackBox (16 MB) :contentReference[oaicite:2]{index=2}
  • ● 4‑in‑1 ESC in 55 A or 65 A continuous ratings (BLHeli_32, 96 kHz, DSHOT1200) :contentReference[oaicite:3]{index=3}
  • ● CNC aluminum cover (IP54) for excellent heat dissipation & durability :contentReference[oaicite:4]{index=4}
  • ● Plug & Play connectors for camera, VTX (including DJI O3), GPS, receiver :contentReference[oaicite:5]{index=5}
  • ● Supports up to 8 motor outputs (e.g., X8 configurations) :contentReference[oaicite:6]{index=6}
  • ● Dual BECs (5 V/2 A and 9 V/2 A) and full protection suite (OCP, OVP, OTP) :contentReference[oaicite:7]{index=7}

Technical Specifications

  • ● ESC ratings: 55 A or 65 A continuous, with 75 A burst :contentReference[oaicite:8]{index=8}
  • ● Voltage: 3–6S LiPo (12–26 V nominal, ESC rated to ~30–50 V input) :contentReference[oaicite:9]{index=9}
  • ● FC MCU: STM32F722RET6; Gyro: BMI270; Flash: 16 MB BlackBox :contentReference[oaicite:10]{index=10}
  • ● Mounting footprint: 30.5×30.5 mm (M3); PCB size: ≈48.6×46.6×26 mm; Weight: ~59 g :contentReference[oaicite:11]{index=11}
  • ● UARTs: 6; BEC: 5 V/2 A & 9 V/2 A :contentReference[oaicite:12]{index=12}

Package Contents

  • 1× Axisflying Argus PRO Plug&Play Stack (F722 FC + ESC, 55 A or 65 A variant)
  • 1× Set of Signal & Power Harnesses (camera, VTX, RX, GPS)
  • 1× Mounting screws & soft-rubber standoffs
  • Note: 65 A ESC version is in-stock. 55 A ESC variant available by special order.
