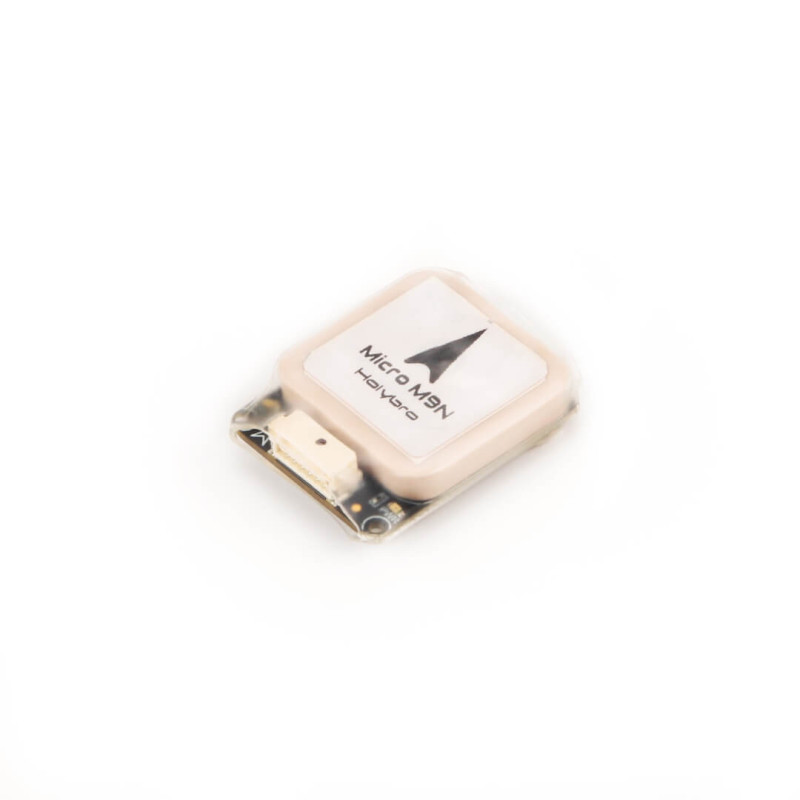

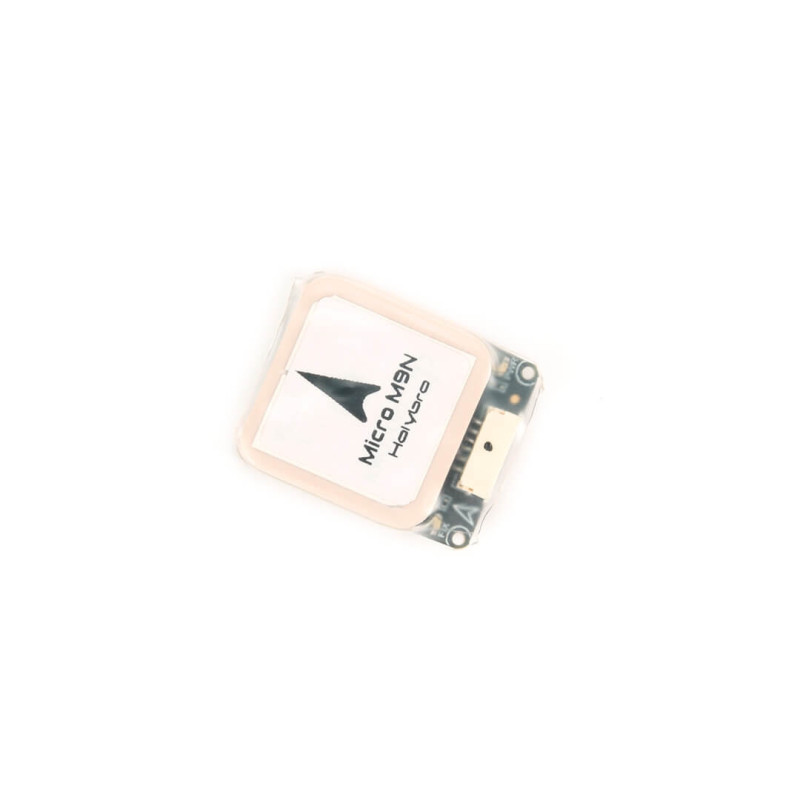

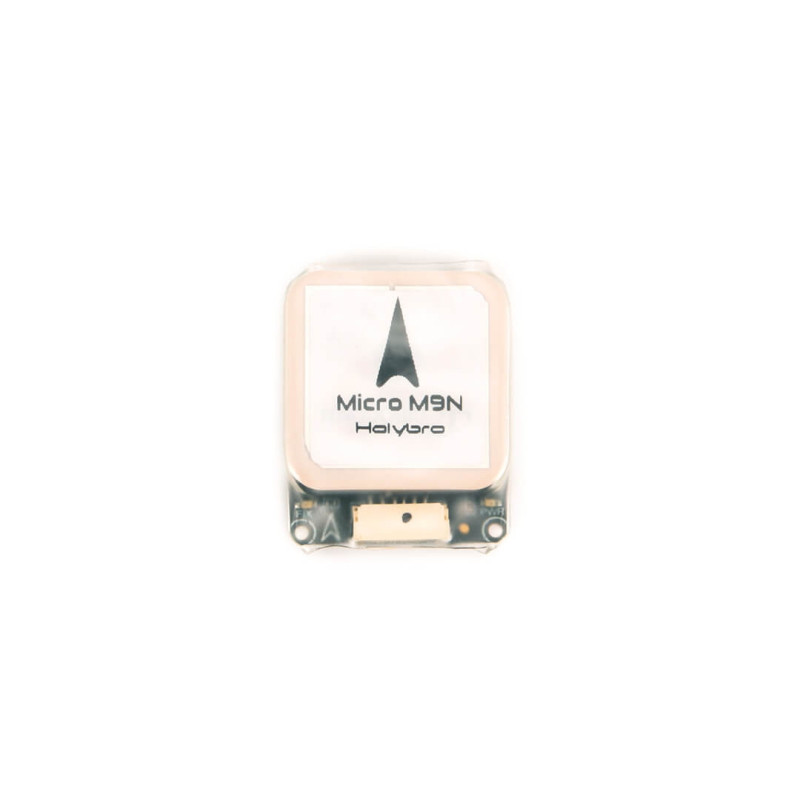

Holybro Micro M9N GPS

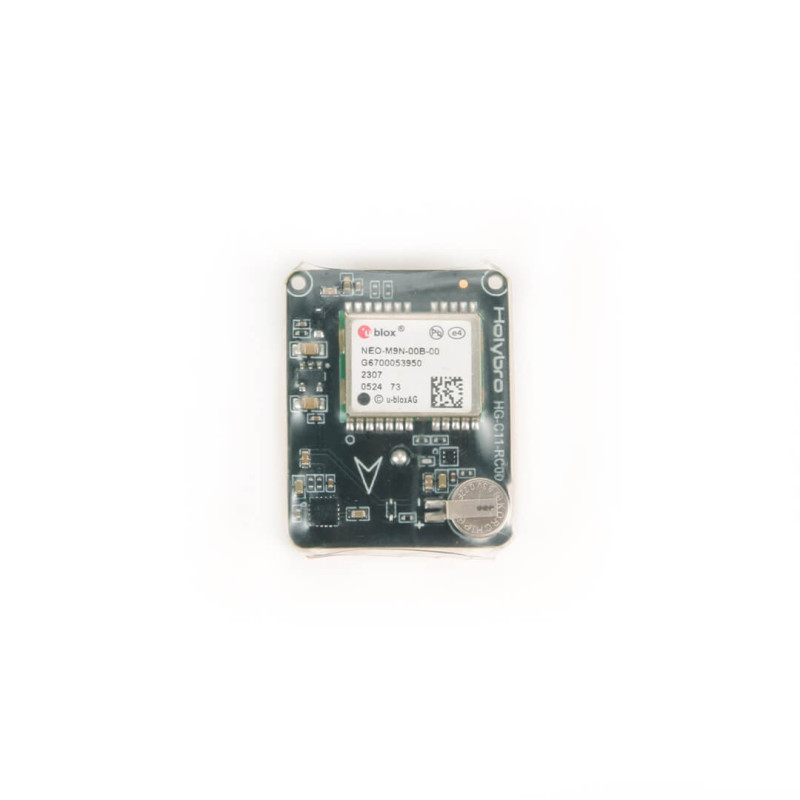

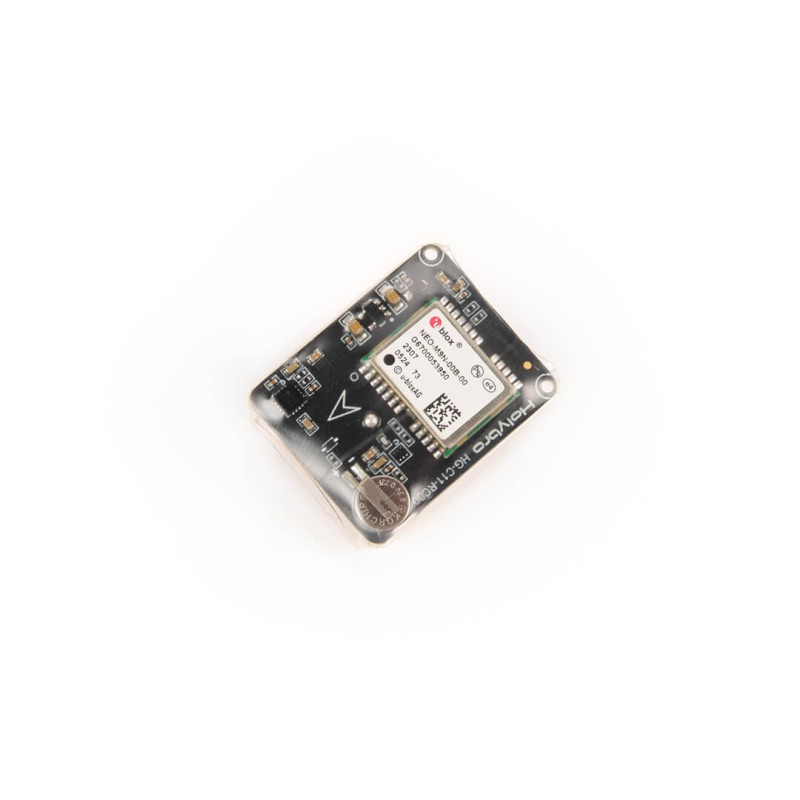

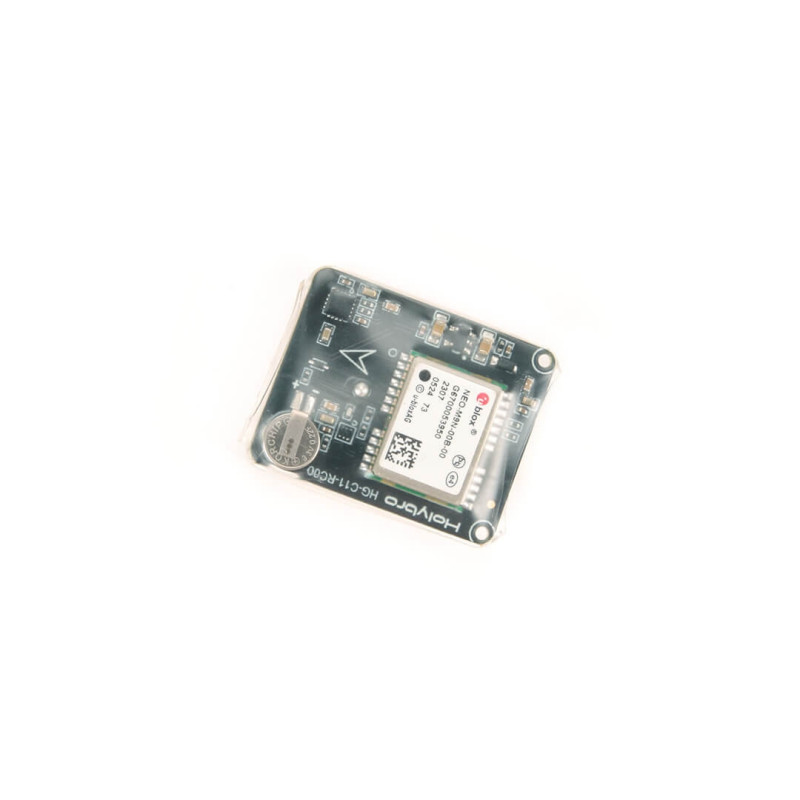

This Micro M9N incorporates the Ublox M9N GNSS Chip and IST8310 digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Features

  • Ublox M9N GNSS Reciever
  • Fast & Accurate Positioning
  • IST8310 Compass
  • Small Form Factor

Specifications:

Micro M9N GPS
GNSS ReceiverUblox M9N Receiver
Number of Concurrent GNSS

Up to 4 GNSS

  • BeiDou
  • Galileo
  • GLONASS
  • GPS
  • QZSS
CompassIST8310
Frequency Band
  • GPS L1
  • Galileo E1
  • GLONASS L1
  • BeiDou B1
  • SBAS L1
  • QZSS L1
Output Protocol
  • UBX (U-blox)
  • NMEA
Nav. Update Rate
  • Up to 25 Hz
GNSS Augmentation System
  • EGNOS, GAGAN, MSAS and WAAS supported
  • QZSS: L1S
Default Baud Rate38400
Input Voltage 4.7-5.2V
Velocity Accuracy0.05 m/s

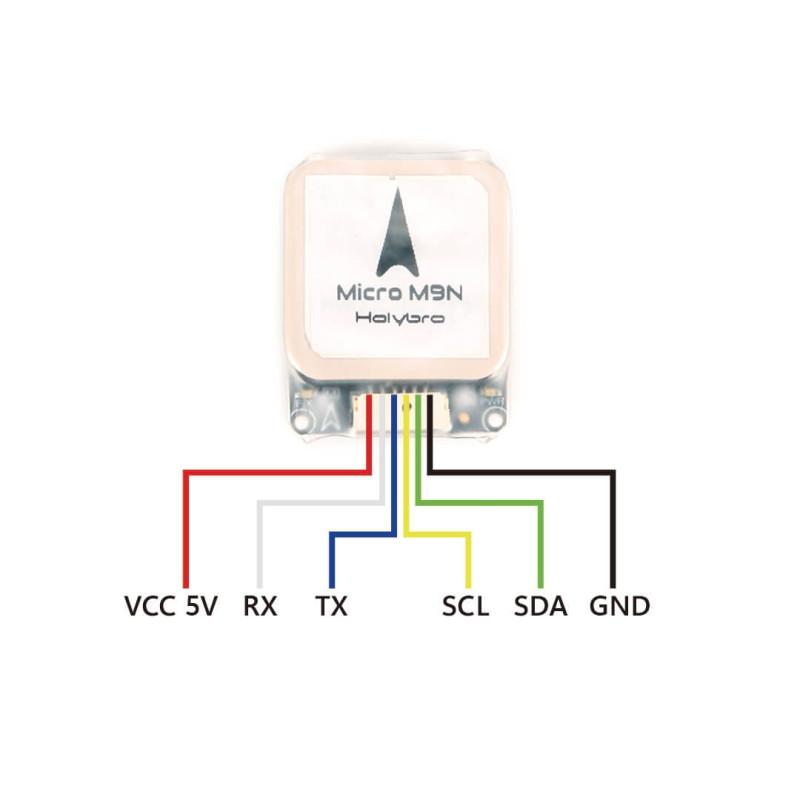

Port TypeJST-GH-6P
Antenna25 x 25 x 4 mm ceramic patch antenna
Power consumptionLess than 200mA @ 5V
Operating Temperature-40~80C
Dimension32 x 26 x 9mm

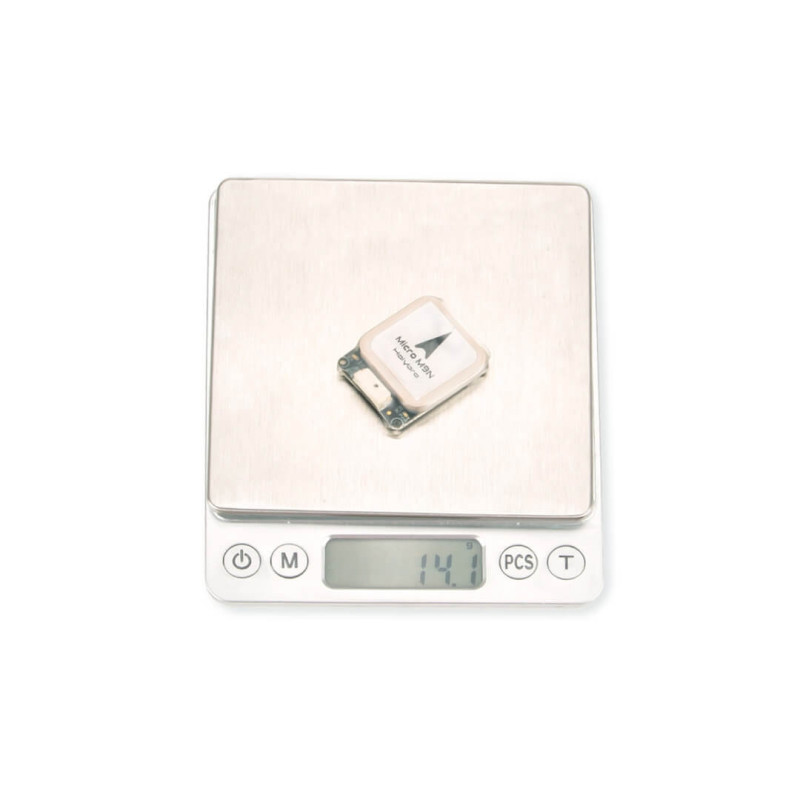

Weight14g
Other NotesLNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance
Low noise 3.3V regulator
