ESC RC T-Motor AT12A 2–3S Fixed Wing for Outdoor Aircraft 12A

Lightweight 12A ESC for RC airplanes with fast throttle response and safety functions

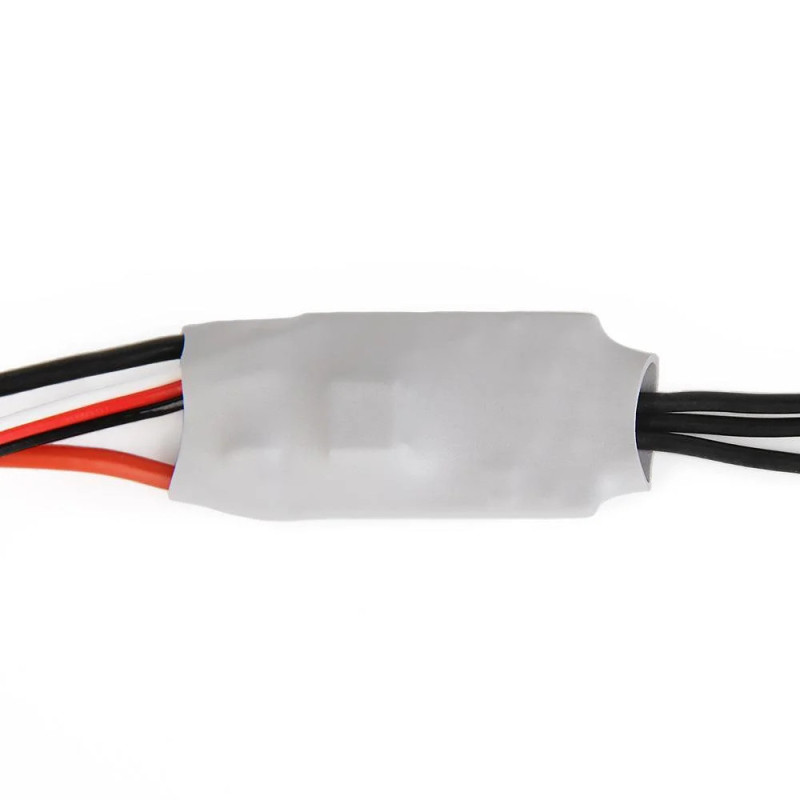

T-Motor AT12A is a compact ESC designed for lightweight fixed-wing RC models running on 2–3S LiPo batteries. It offers stable output, fast throttle response and a complete safety package including voltage, current and temperature protection. Multiple programmable parameters allow fine-tuning of brake mode, cutoff type, soft start and timing.

Key features

• • Supports 2–3S LiPo batteries
• • Continuous current 12A with 15A burst
• • Fast and linear throttle response
• • Safety functions: undervoltage, over-current, over-heat, failsafe

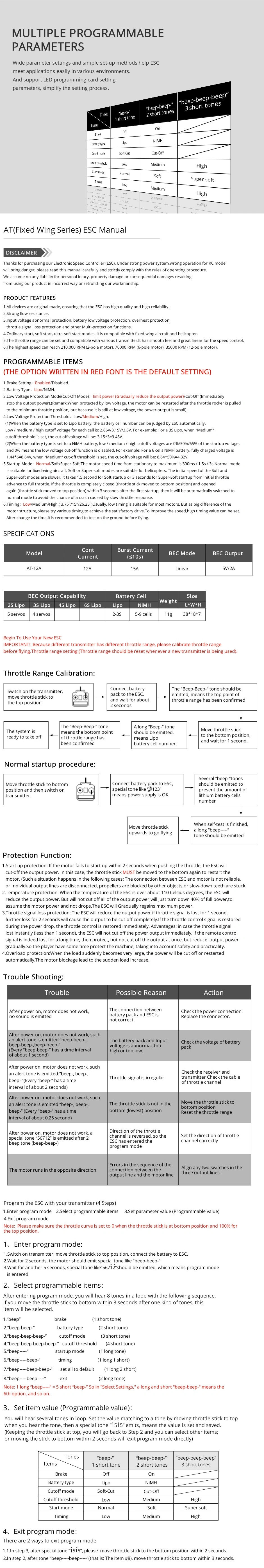

• • Programmable settings (brake, cutoff, timing, soft start)
• • Stable operation in outdoor and fixed-wing models
• • Low weight and compact size

Technical specifications

• • Model: T-Motor AT12A
• • Continuous current: 12A
• • Burst current: 15A
• • Battery support: 2–3S LiPo
• • BEC mode: linear
• • BEC output: 5V / 2A
• • Weight: 13 g
• • Size: 31 × 18 × 7 mm
• • No battery connector installed (user soldering required)

In the box

• • 1 × T-Motor AT12A 2–3S 12A ESC
• • Manufacturer documentation
