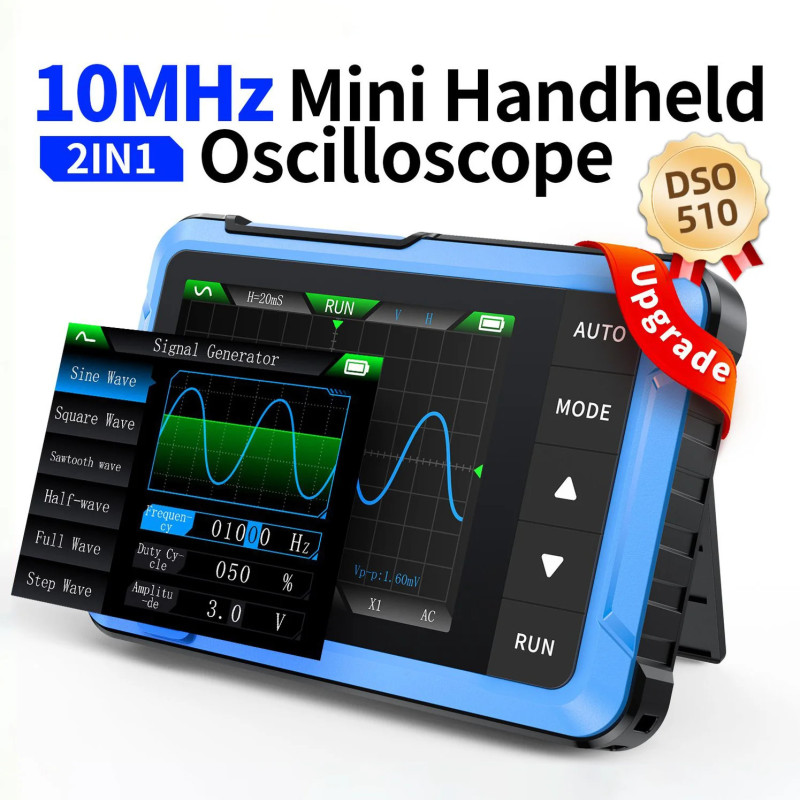

FNIRSI DSO-510 – 10 MHz / 48 MS/s Mini Digital Oscilloscope with DDS Signal Generator

Compact 2-in-1 Oscilloscope and Function Generator with USB-C Charging

FNIRSI DSO-510 is a powerful handheld digital oscilloscope that combines signal measurement and generation in a pocket-sized body. Featuring a 10 MHz bandwidth and 48 MS/s sampling rate, it offers reliable waveform analysis for repair, diagnostics, and learning. The built-in DDS function generator supports multiple waveform types up to 50 kHz. With a 2.8" color TFT display, 1000 mAh battery, USB-C charging, and intuitive controls, it’s an ideal all-in-one tool for electronics enthusiasts and technicians.

Product Features

  • ● 2-in-1 design: oscilloscope + DDS function generator
  • ● Oscilloscope bandwidth: 10 MHz, sample rate: 48 MS/s
  • ● DDS output up to 50 kHz – multiple waveform options
  • ● Trigger modes: Auto / Normal / Single
  • ● Large and bright 2.8" TFT color screen (320×240 px)
  • ● Rechargeable 1000 mAh battery – up to 4 hours operation
  • ● Compact and lightweight – fits easily in your tool bag or pocket

Technical Specifications

  • ● Model: FNIRSI DSO-510
  • ● Channels: 1
  • ● Bandwidth: 10 MHz
  • ● Sampling Rate: 48 MS/s
  • ● Voltage Range: ±40 V (X1), ±400 V (X10)
  • ● Time Base: 50 ns/div – 20 s/div
  • ● Display: 2.8" TFT LCD, 320×240 px

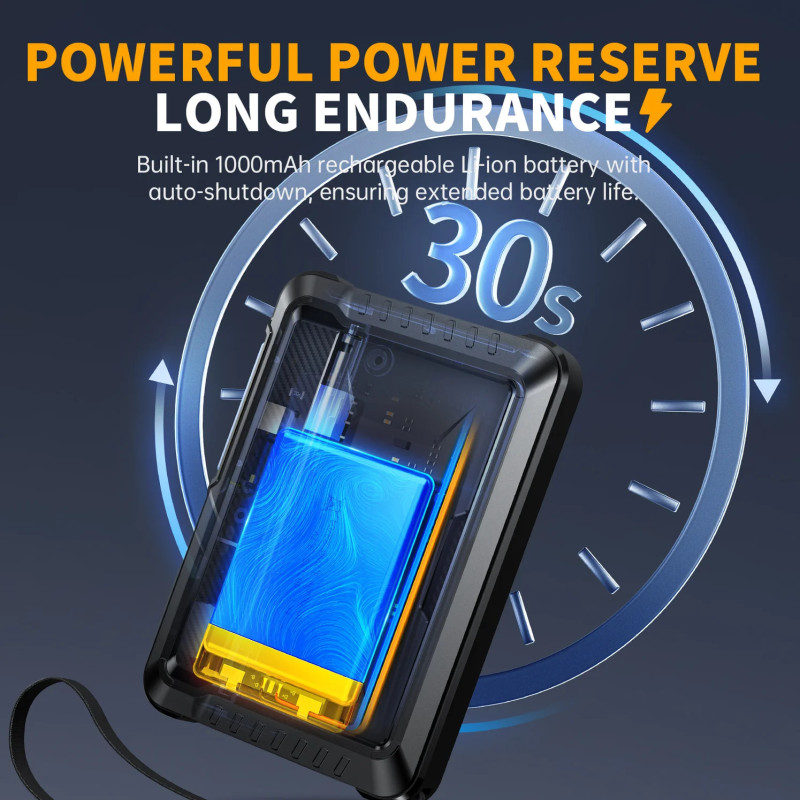

  • ● Battery: 1000 mAh, USB-C charging
  • ● Operating Time: Up to 4 hours
  • ● Dimensions: 99 × 68.3 × 19.5 mm
  • ● Weight: 104 g

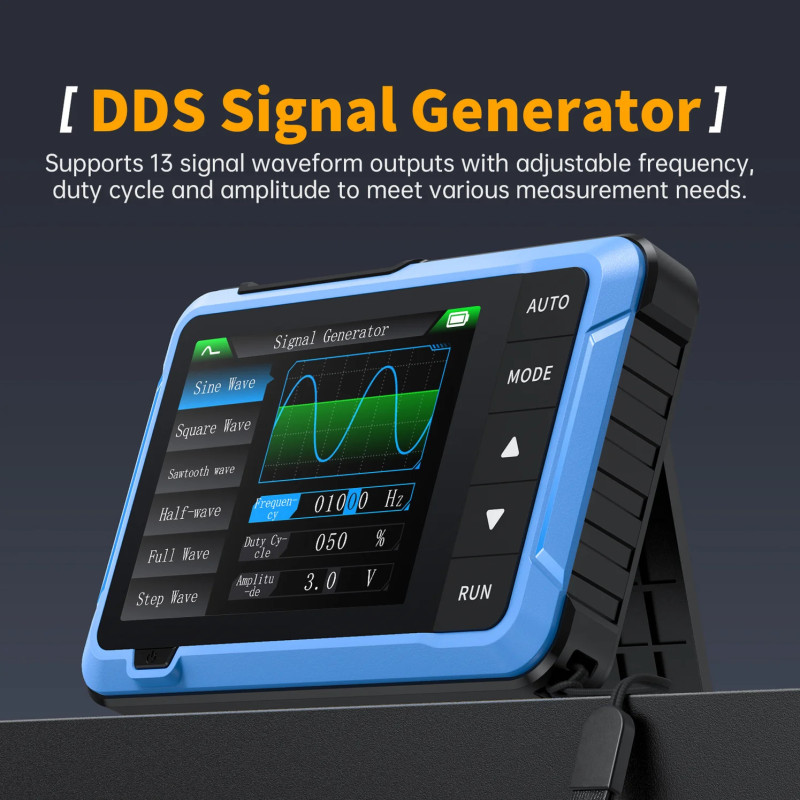

Function Generator

  • ● Frequency Output: 0 – 50 kHz
  • ● Output Voltage: 0.1 – 3.0 V
  • ● Waveforms: Sine, Square, Triangle, Half-wave, Full-wave, Step, Inverted Step, Exponential Rise/Fall, DC, Multi-tone, Impulse Sink, Lorentz

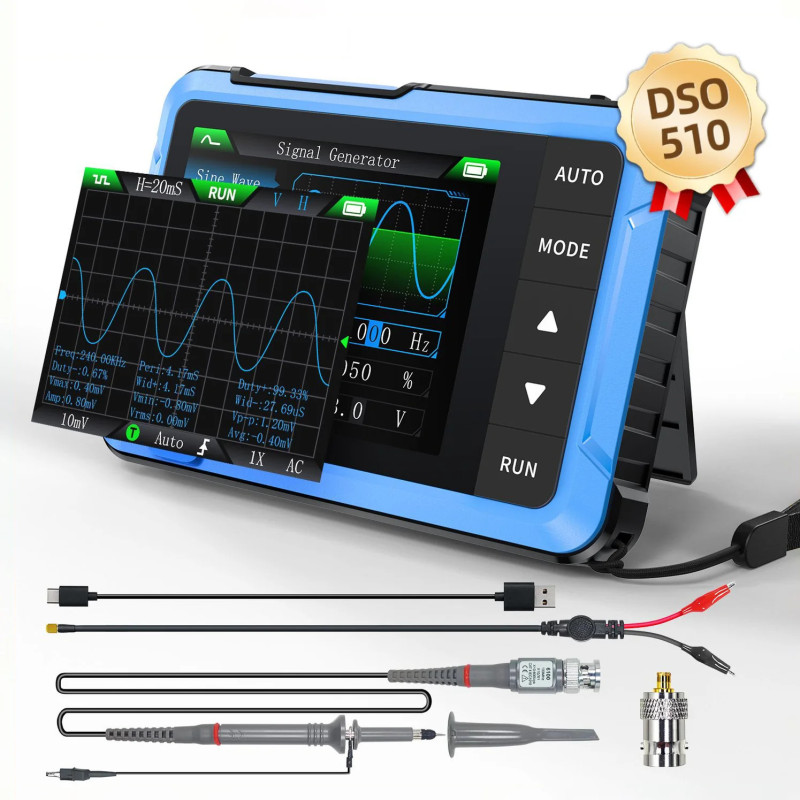

Package Contents

  • ● 1× FNIRSI DSO-510 Oscilloscope
  • ● 1× Test probe (X1/X10 switchable)
  • ● 1× USB-C cable
  • ● 1× Lanyard
  • ● 1× User manual
  • Note: Storage pouch/case is not included.

FAQ

Najczęściej zadawane pytania o FNIRSI DSO-152 (przenośny oscyloskop cyfrowy 200 kHz)

Oscyloskop jednokanałowy z pasmem 200 kHz i próbkowaniem 2,5 MS/s
Kolorowy wyświetlacz TFT 2,8" (320×240 px)
Tryby wyzwalania: Auto, Normal, Single
Zasilanie przez USB-C, wbudowany akumulator 1000 mAh
Pomiar napięć do ±400 V z sondą X10

Zakres podstawy czasu: 10 μs – 50 s/działkę
Czułość pionowa: 10 mV/działkę – 20 V/działkę
Zakres napięcia: X1: ±40 V (Vpp: 80 V), X10: ±400 V (Vpp: 800 V)
Metody sprzężenia: AC/DC
Wymiary: 99 × 68,3 × 19,5 mm
Waga: 100 g

Sonda oscyloskopowa P6100 (1×/10×)
Przewód pomiarowy z krokodylkami
Adapter BNC do MCX
Kabel USB-C do ładowania
Smycz na rękę
Instrukcja obsługi

Diagnostyka serwisowa i naprawy
Projekty edukacyjne i DIY
Analiza sygnałów analogowych i cyfrowych
Testowanie układów elektronicznych w terenie

​
