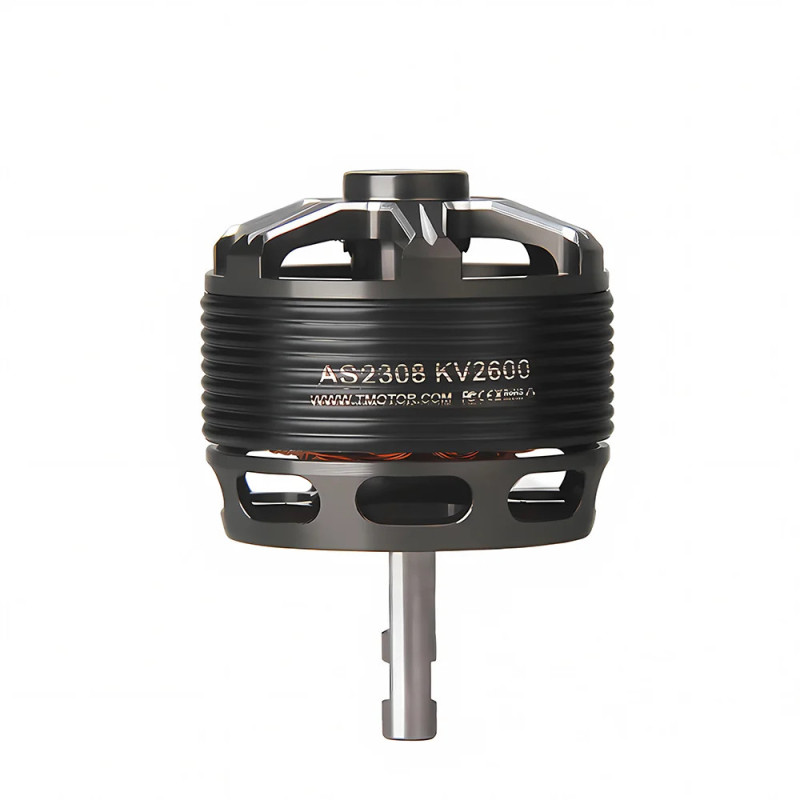

Brushless Motor RC T-Motor AS2308 Long Shaft 1450KV / 2600KV for Airplanes

Precision long-shaft motor for 3D and outdoor RC airplanes

The T-Motor AS2308 Long Shaft series is designed for RC pilots seeking high efficiency, smooth throttle response and excellent build quality. The extended shaft simplifies installation in 3D airframes, while strong arc magnets and durable bearings provide stability across the entire throttle range. Two KV variants — 1450KV and 2600KV — allow matching the motor to different propellers and flight styles for 6–9 inch props.

Key features

• • Lightweight and efficient design
• • Long shaft for easy airplane installation
• • High-quality bearings for smooth operation
• • Strong arc magnets for stable throttle response
• • Two KV options: 1450KV for precision, 2600KV for dynamic flight
• • Recommended propellers: 6–9 inch
• • Ideal for 3D and outdoor airplane builds

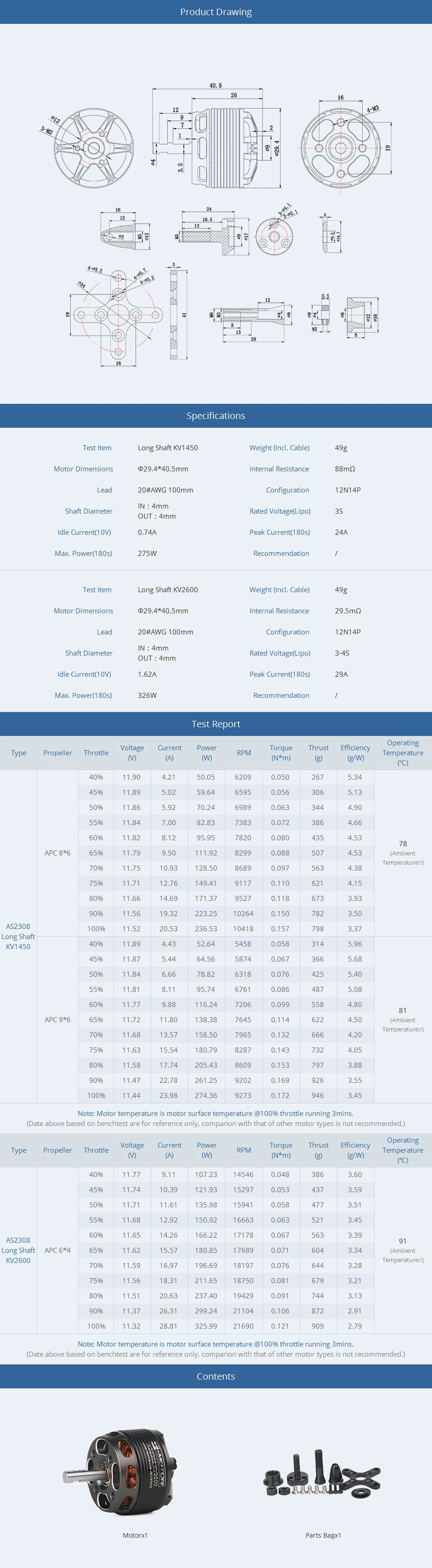

Technical specifications

• • Available KV: 1450KV / 2600KV
• • Dimensions: Ø29.4 × 40.5 mm
• • Weight: 49 g (incl. cable)
• • Shaft diameter: 4 mm (IN / OUT)
• • Rated voltage: 3–4S LiPo (depending on KV)
• • Max power: 275W (1450KV) / 326W (2600KV)
• • Configuration: 12N14P
• • Wires: 20AWG / 100 mm
• • Recommended takeoff weight: 320–500 g*

*Approximate value depending on airplane configuration.

In the box

• • 1 × T-Motor AS2308 Long Shaft Motor (1450KV or 2600KV)
• • 1 × Mounting screw set
• • 1 × Hardware and adapter pack
• • Manufacturer’s documentation
