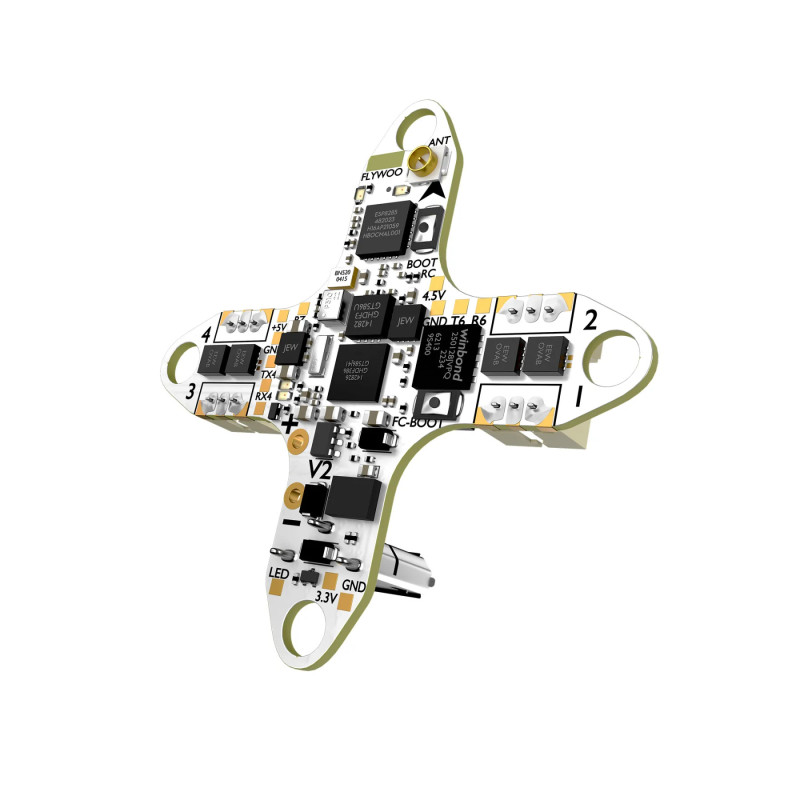

Flywoo GOKU F405 HD 1S 5A AIO V2.0 ELRS Flight Controller
Ultra-light AIO board for micro HD drones – compatible with DJI O4, Walksnail and HDZero
The Flywoo GOKU F405 HD 1S 5A AIO V2.0 is an upgraded all-in-one flight controller combining FC, ESC, BEC and an integrated ELRS 2.4G receiver with TCXO stability. Powered by the STM32F405 MCU and ICM42688P gyro, it ensures excellent flight performance, precision control and ultra-low latency for micro FPV builds. Weighing only 2.6 g, it fits most 1S whoop and HD micro frames.
Key Features
- ● Ultra-lightweight design – only 2.6 g
- ● Integrated ExpressLRS 2.4G receiver with TCXO for low-latency signal
- ● STM32F405 MCU and ICM42688P gyro for ultra-smooth control
- ● Supports DJI O4, Walksnail, HDZero video systems
- ● Built-in 5 V BEC for HD module power
- ● 4-in-1 ESC 5 A 1S (BB21 16.6 firmware)
- ● 8 MB Blackbox for flight data recording
- ● Mounting patterns 25.5 × 25.5 mm / 30.5 × 30.5 mm
Specifications
- ● Brand: Flywoo
- ● Model: GOKU F405 HD 1S 5A AIO V2.0
- ● MCU: STM32F405 | Gyro: ICM42688P
- ● ESC: 4-in-1 5 A 1S (BB21 16.6)
- ● Blackbox: 8 MB | Receiver: ExpressLRS 2.4G with TCXO
- ● Built-in BEC: 5 V for HD module
- ● Mounting holes: 25.5 × 25.5 mm / 30.5 × 30.5 mm
- ● Dimensions: 41 × 41 × 9.5 mm | Weight: 2.6 g
Package Includes
- ● 1 × Flywoo GOKU F405 HD 1S 5A AIO V2.0 flight controller
Why Choose
The Flywoo GOKU F405 HD 1S 5A AIO V2.0 offers next-level integration for micro HD FPV drones. With a built-in ELRS receiver, powerful MCU, modern gyro and dedicated 5V BEC, it’s the perfect choice for pilots seeking reliability, low latency and compact design.
