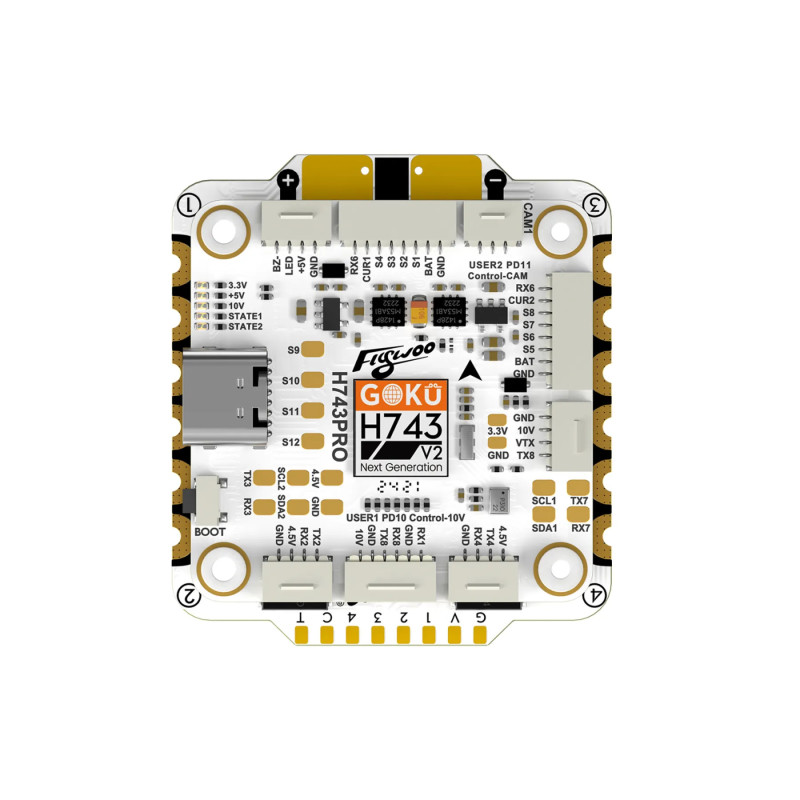

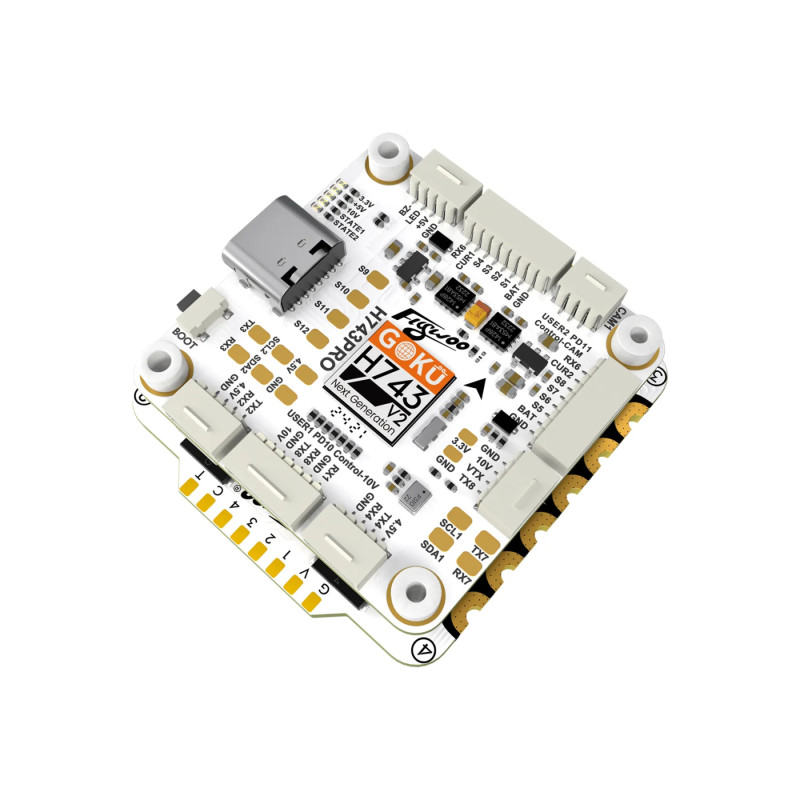

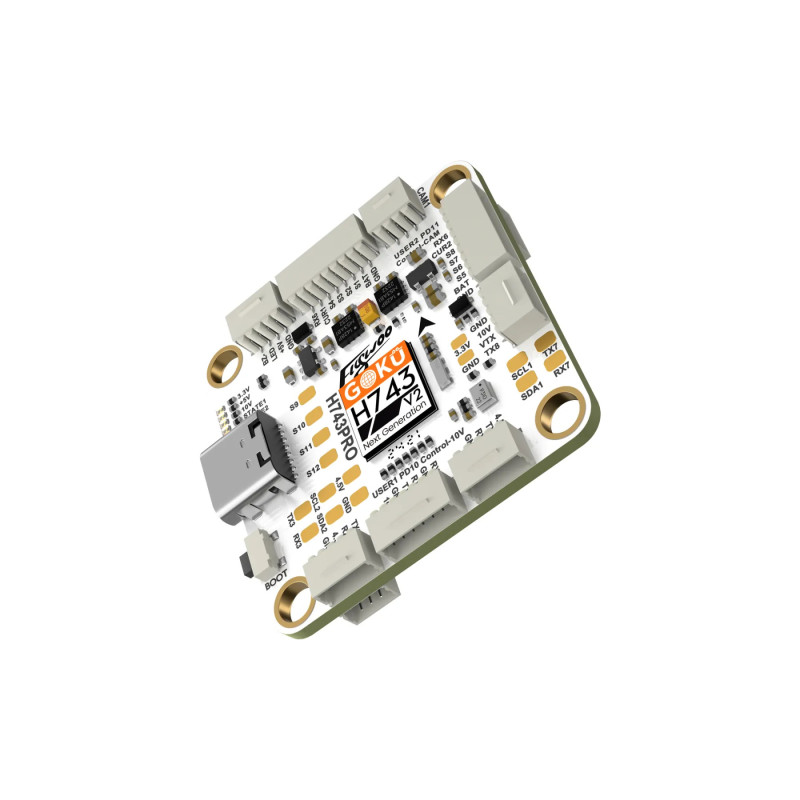

Flywoo GOKU H743 PRO 55A 32Bit 128K 30×30 Flight Controller

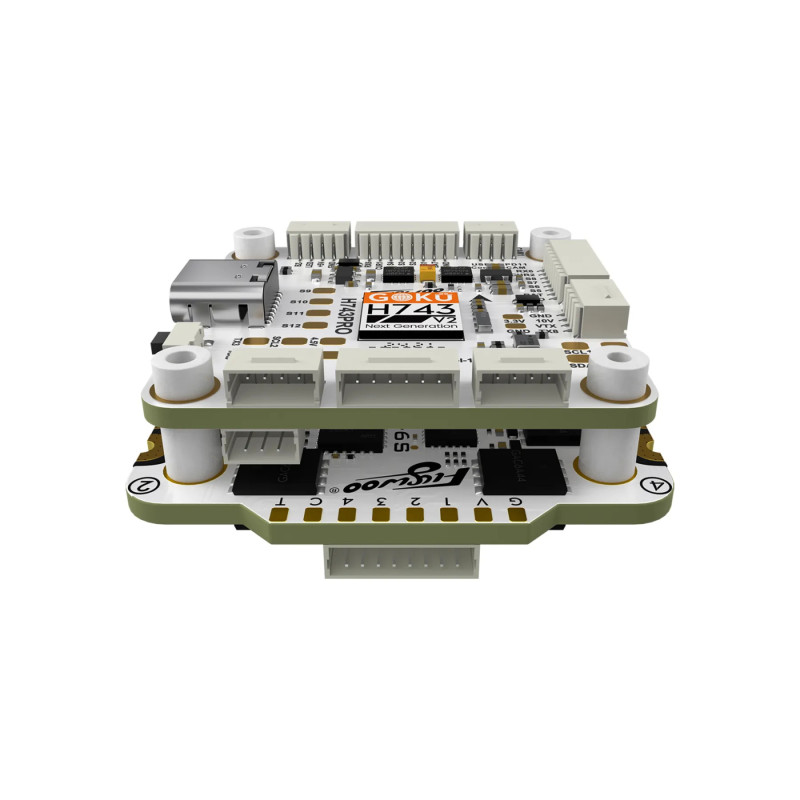

Flagship FC + 4in1 ESC Stack – Plug&Play for DJI O4 / O4 Pro

The Flywoo GOKU H743 PRO 55A 32Bit Stack is a flagship-grade flight system built for advanced FPV pilots. Featuring a STM32H743VIH6 (Cortex-M7, 480 MHz) processor and dual ICM42688P gyroscopes, it delivers exceptional flight precision, ultra-low latency, and long-term reliability. Fully Plug&Play with DJI O4 / O4 Pro / Walksnail / HDZero, this stack supports Betaflight, INAV, and ArduPilot right out of the box.

Key Features

  • ● Available versions: H743 PRO FC / H743 PRO 55A Stack / G55M 55A 4in1 ESC
  • ● STM32H743VIH6 MCU – Cortex-M7 480 MHz processor for extreme responsiveness
  • ● Dual ICM42688P gyros ensure rock-solid stability and noise resistance
  • ● Dual BEC 10V/3A and 5V/3A to power HD VTX and accessories independently
  • ● 512 MB Blackbox flash for complete flight data logging and analysis
  • ● Supports 8 motor outputs (X8), dual camera switching and dual ESC ports
  • ● Fully compatible with Betaflight / INAV / ArduPilot

Product Versions

VersionIncluded ComponentsDescriptionRecommended Use
GOKU H743 PRO FC
(Flight Controller only)		1 × H743 PRO FC board
1 × wiring set		Standalone flight controller with dual gyro and 512 MB Blackbox flash. Ideal for custom setups with separate ESCs.Perfect for builders using their own 4in1 ESC or stack configuration.
GOKU H743 PRO 55A AM32 Stack
(FC + 4in1 ESC combo)		1 × H743 PRO FC
1 × G55M 55A 4in1 ESC (AM32)

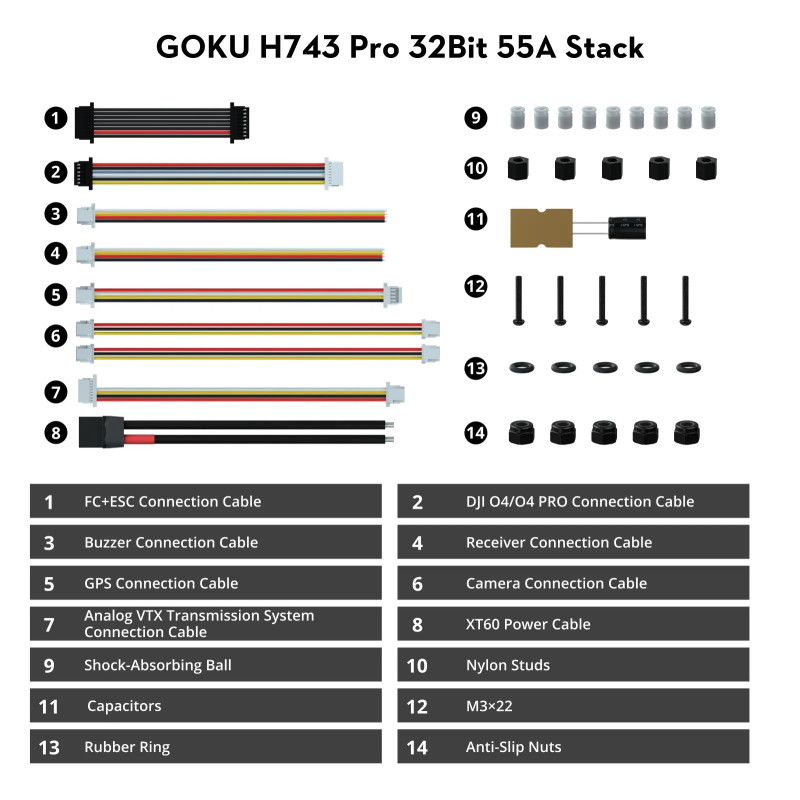

Full cable set, capacitor, mounting hardware		Flagship 30×30 stack featuring a 55A 4in1 ESC with AM32 firmware – powerful, reliable, and ready for DJI O4 integration.5–7” freestyle, racing, long-range and cinematic FPV builds.
GOKU G55M 55A AM32 4in1 ESC
(ESC only)		1 × G55M 55A 4in1 ESC
1 × cable set		High-efficiency 4in1 55A AM32 ESC supporting DShot300/600 and PWM 24–128 kHz for super-smooth motor response.For pilots upgrading their ESC in 30×30 frames or custom stacks.

Technical Specifications

  • ● MCU: STM32H743VIH6 (Cortex-M7, 480 MHz)
  • ● Gyro: Dual ICM42688P
  • ● Flash Memory: 512 MB Blackbox

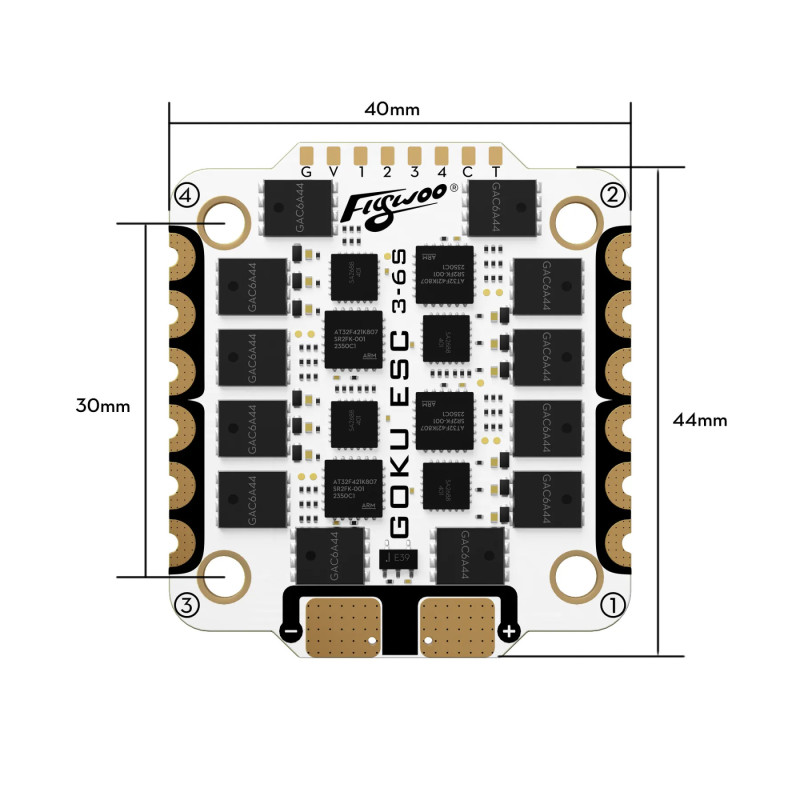

  • ● ESC: G55M 55A 4in1 AM32 (AT32DEVF421)
  • ● Input Voltage: 3–6S LiPo
  • ● BEC Outputs: 10V/3A and 5V/3A

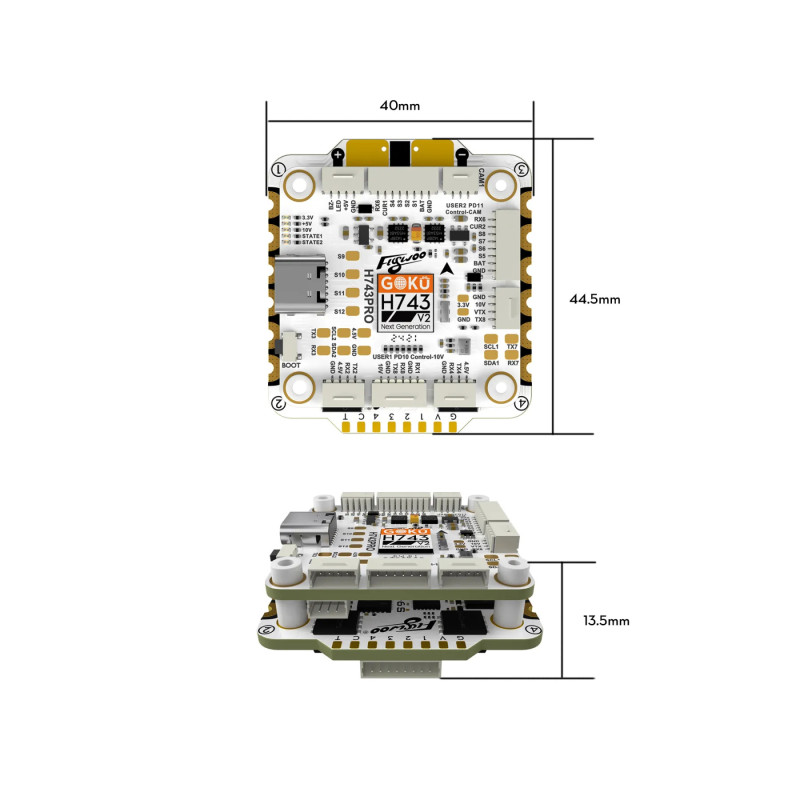

  • ● Mounting Pattern: 30×30 mm (M3)

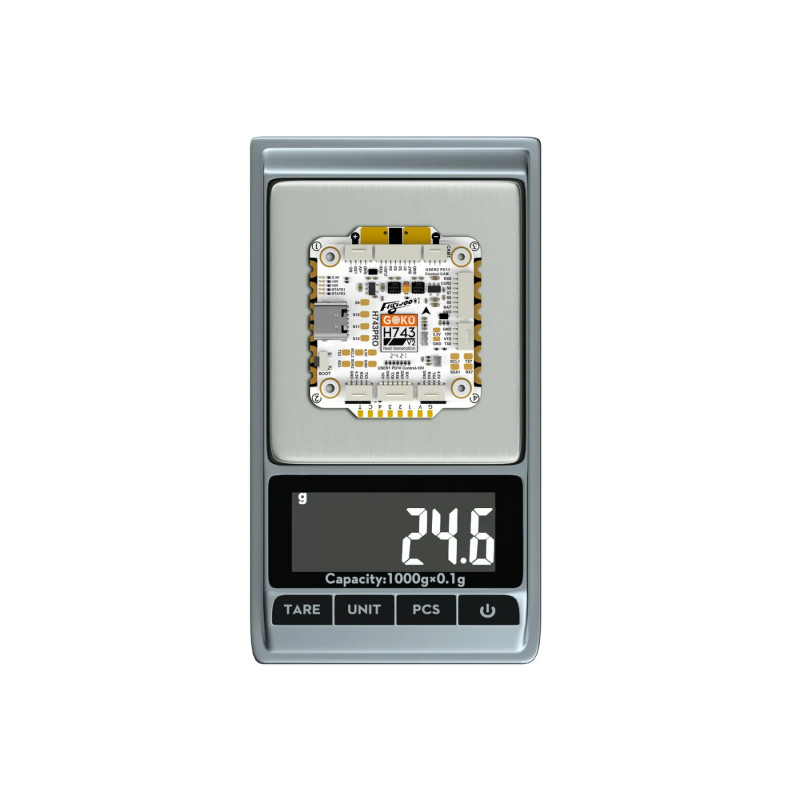

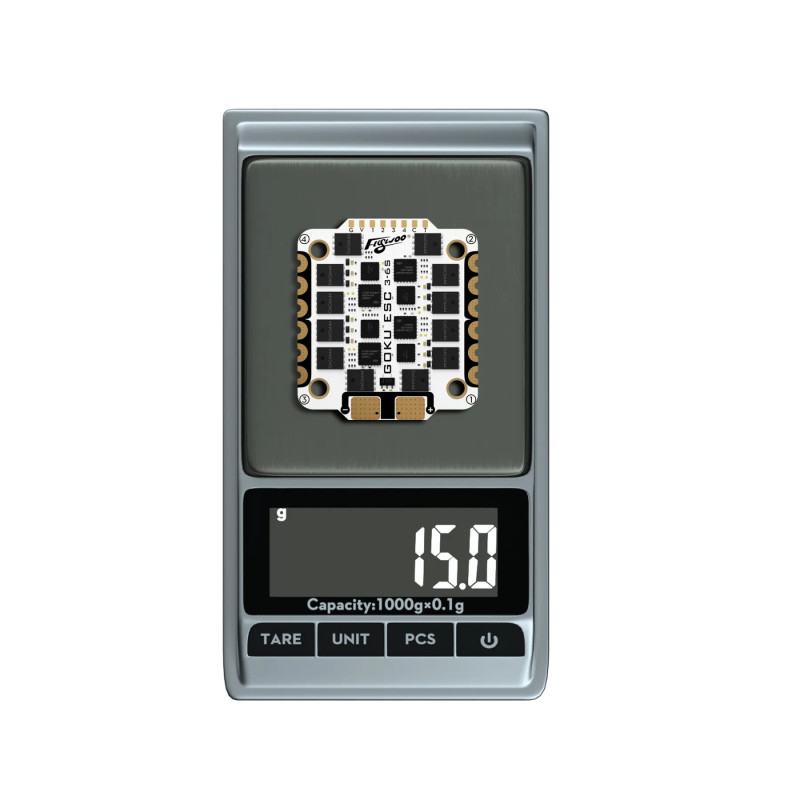

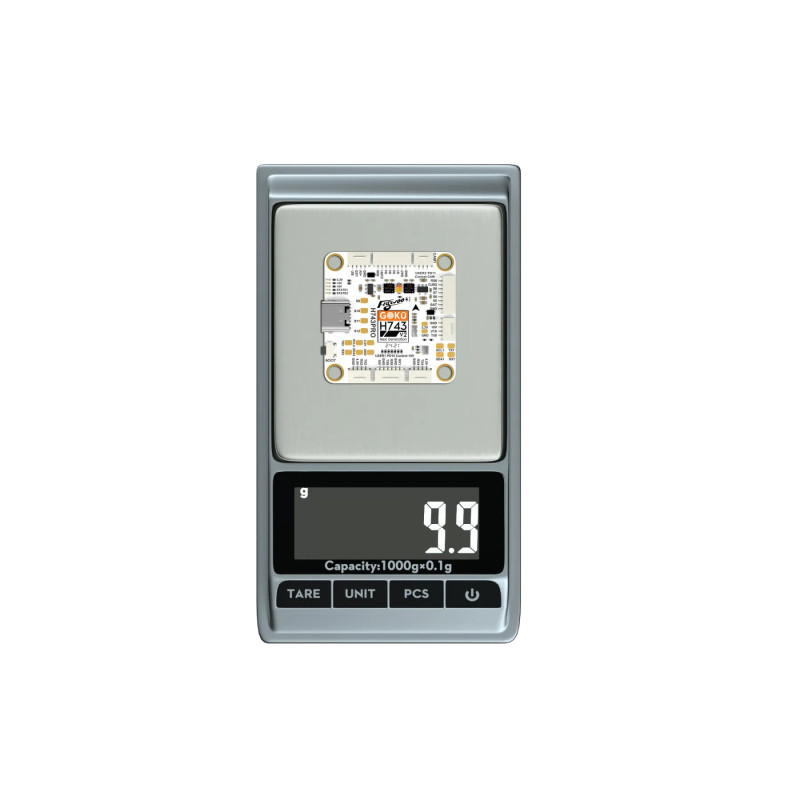

  • ● Weight: FC 9.9 g / ESC 15 g

Why Choose Flywoo GOKU H743 PRO 55A

The Flywoo GOKU H743 PRO 55A offers top-tier stability and power for professional FPV pilots. Dual gyros, dual BECs and a 512 MB blackbox make it ideal for racing and long-range flying. The AM32 4in1 ESC delivers open-source performance, adaptive motor control and a smooth, precise throttle response that matches the demands of modern HD systems like DJI O4.
