ELRS 2.4 GHz Receiver TCXO EL24E / EL24P – Flywoo

Next-generation ExpressLRS receiver with TCXO

The new Flywoo TCXO 2.4G ELRS uses a temperature-compensated crystal oscillator (TCXO) to improve MCU clock accuracy, enhancing link performance and reliability. It enables longer control distances, with low latency and a high refresh rate, making it ideal for demanding FPV applications.

Receiver versions

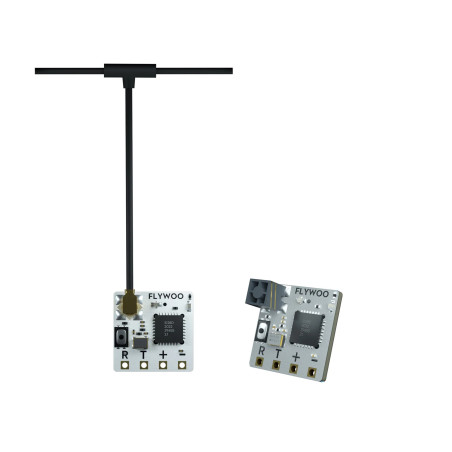

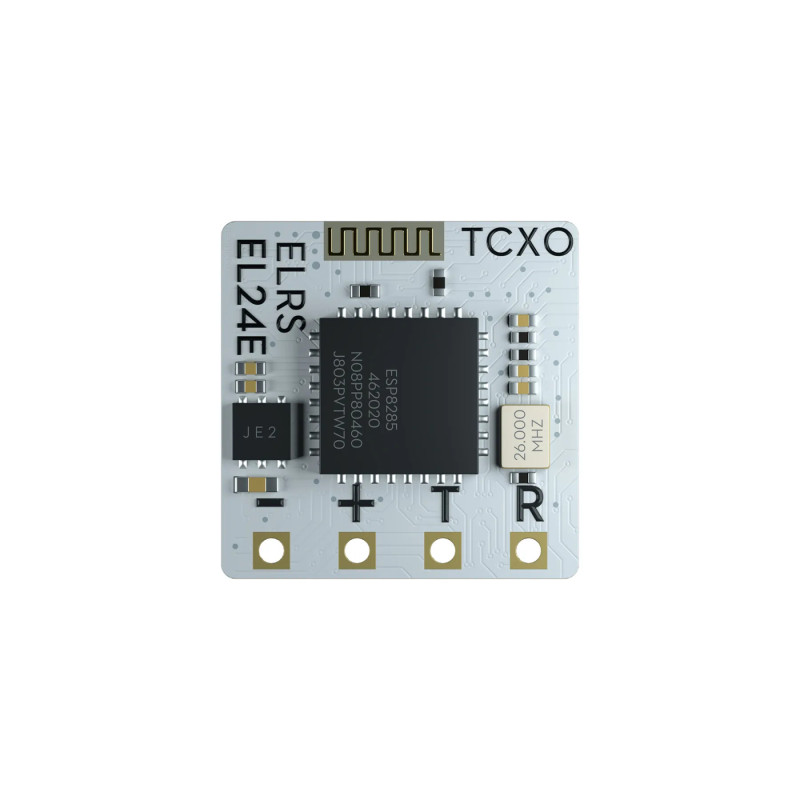

  • ● EL24E – built-in SMD antenna
  • ● EL24P – IPEX connector for dipole antenna

Key features

  • ● Increased MCU clock accuracy with TCXO
  • ● Improved RC link stability and performance
  • ● Long-range control capability
  • ● Low latency and high refresh rate (25–500 Hz)
  • ● MCU ESP8285 + RF module SX1280 / SX1281
  • ● Wi-Fi upgradeable
  • ● Ultra-light – only 0.44 g

Technical specifications

  • ● Type: ISM 2.4 GHz
  • ● MCU: ESP8285
  • ● RF: SX1280 / SX1281 IMLTR
  • ● Frequency range: 2400–2500 MHz
  • ● Refresh rate: 25–500 Hz
  • ● Operating voltage: 5 V
  • ● Weight: 0.44 g (without antenna)
  • ● Dimensions: 10 × 10 × 6 mm
  • ● Protocol: CRSF (Betaflight)
  • ● Peak gain: 3.7 dB
  • ● Factory firmware: Flywoo EL24E 2.4 GHz RX 3.XX

Package contents

  • ● 1× Flywoo TCXO 2.4G ELRS EL24E or EL24P
  • ● 1× Silicone cable
  • ● 1× Heat-shrink tube
  • ● (EL24P) 1× XT antenna
