Radiomaster GR-01 ExpressLRS 2.4GHz Receiver for DJI RS Camera Gimbals

Name: Radiomaster GR-01 ExpressLRS 2.4GHz Receiver for DJI RS Camera Gimbals
Brand: RadioMaster
SKU: HP0157.RX-GR-01
Price: 211.77 PLN
Availability: InStock

RadioMaster

SKU: HP0157.RX-GR-01

241,77 zł

211,77 zł Zniżka 30,00 zł

Ostatnie sztuki w magazynie – 2 szt.

14 dni na zwrot Bez zbędnych pytań
12 mies. gwarancji Producent + Avifly
Dostępność wysyłki Tego samego dnia do 12:00

The GR-01 ExpressLRS 2.4GHz receiver has been developed for Cinelifter setups utilizing the DJI RS2 and RS3 Pro gimbal platforms. Designed for professional use and easy installation the GR-01 features a sturdy aluminum case and built in USB-C interface for easy firmware updates. Two antennas have been included to assist setting up the receiver to best suit your custom solution. Take control of your RS gimbal like never before and elevate your cinematography game with the RadioMaster GR-01.

GR-01 ExpressLRS 2.4GHz Receiver for DJI RS Camera Gimbals

Features

Compatible with the DJI RS2 and RS3 Pro camera gimbals
Professional & durable CNC housing
Convenient direct NATO port mounting
Built in USB-C port for easy firmware updates
Replaceable 2.4Ghz antennas

Specifications

Item: GR-01 ExpressLRS 2.4GHz Receiver
Frequency: ISM2400MHz (2.4GHz)
MCU: ESP8285
RF Chip: SEMTECH SX1281
Antenna: 2.4GHz Omni
Frequency Range: 2400 MHz to 2480 MHz
Firmware Version: ExpressLRS v3.3.0
FW Target: RadioMaster RP1/2 2400 RX
Output protocol: DJI RS Pro
Firmware flash method: UART or Wifi
Connector Type: NATO Port
Voltage: 5V

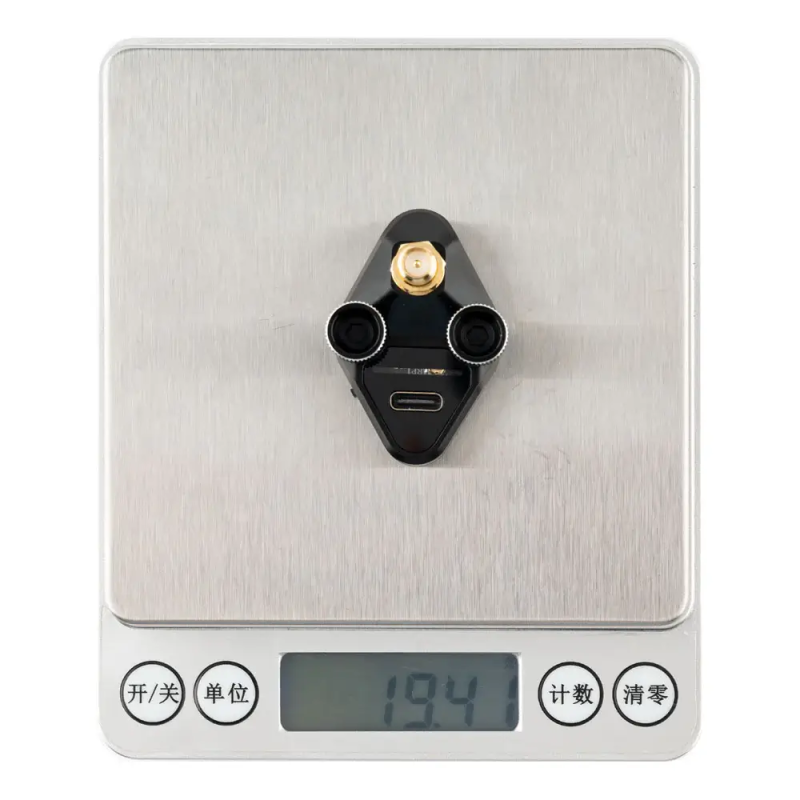

Weight: 18.80g(without antenna)
Dimension: 43.00×27.70×27.50mm

GR-01 ExpressLRS 2.4GHz Receiver for DJI RS Camera Gimbals

How to bind

Quickly power the Rx 3 times using the USB-C port

The green LED will double-blink when the Rx is in binding mode.
Enter ExpressLRS LUA script on your radio, press [BIND]. The LED will go to solid green “ON” if bind is successful.

Alternatively use the ExpressLRS binding phrase method for binding
After a successful bind procedure, make sure the output protocol is “DJI RS Pro”. Return to main menu and re-enter the ExpressLRS LUA Go to “Other Devices” at the bottom of the screen and select “RMRP1” and ensure “DJI RS Pro” is selected.
