BetaFPV C03 FPV Micro Camera

99,99 zł
Brutto

Producent
BetaFPV
Ilość:
3
Wysyłka:

W poniedziałek

Availability:
Ostatnie sztuki w magazynie
Supply:
for freeCheck delivery costs
Gift:
Soon!

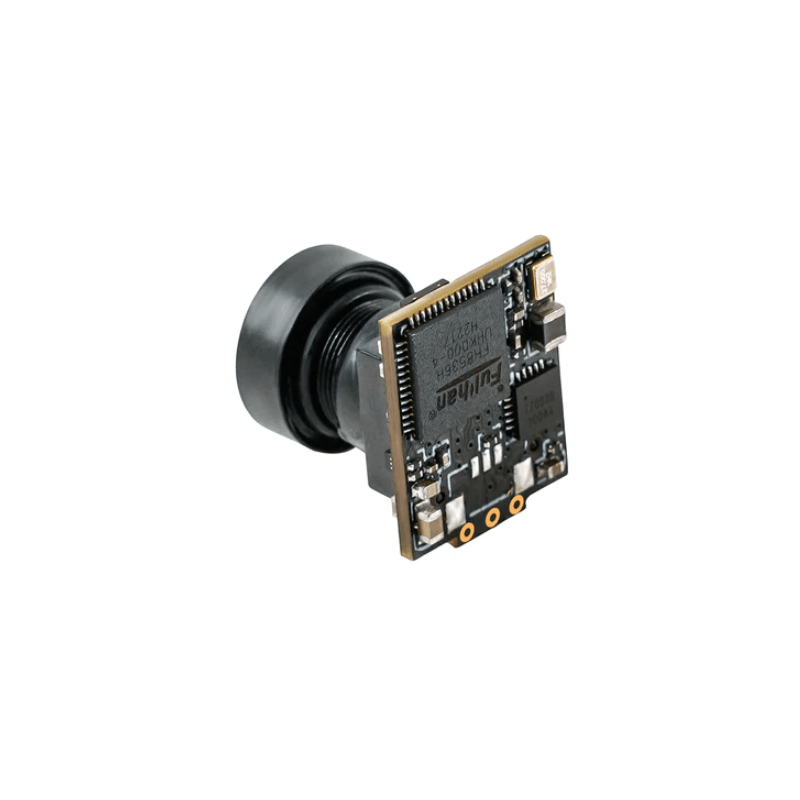

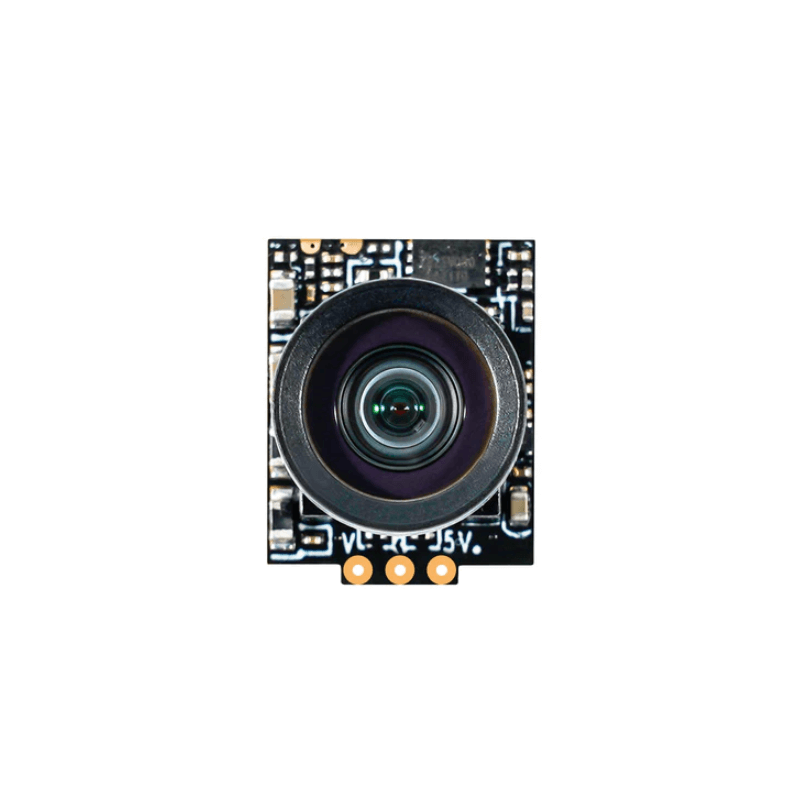

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BETAFPV Micro Canopy, which perfectly fits for C03 camera, making it more convenient for pilots to build quads.



Bullet Points

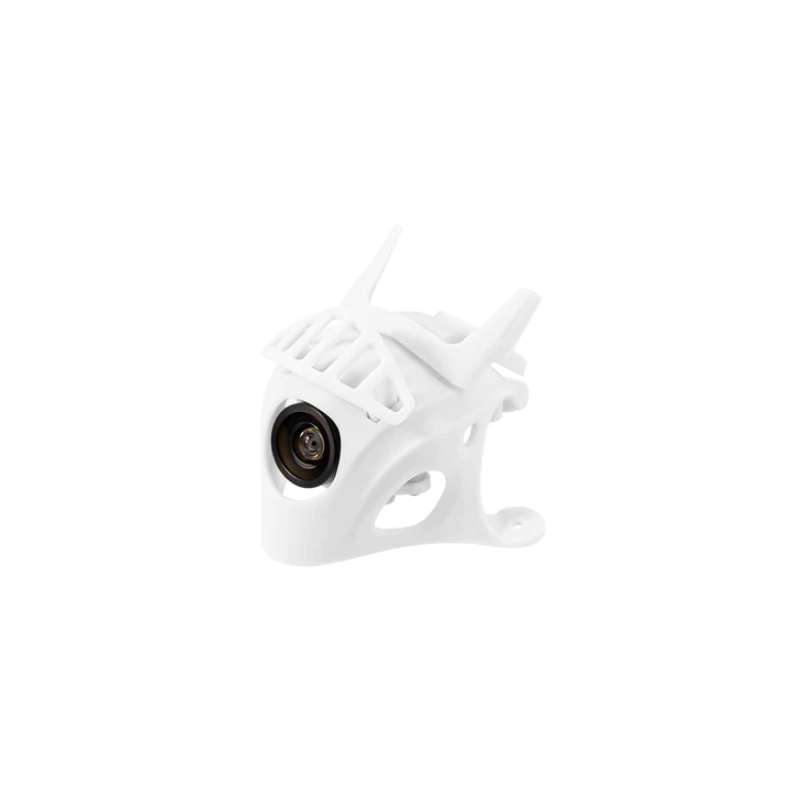

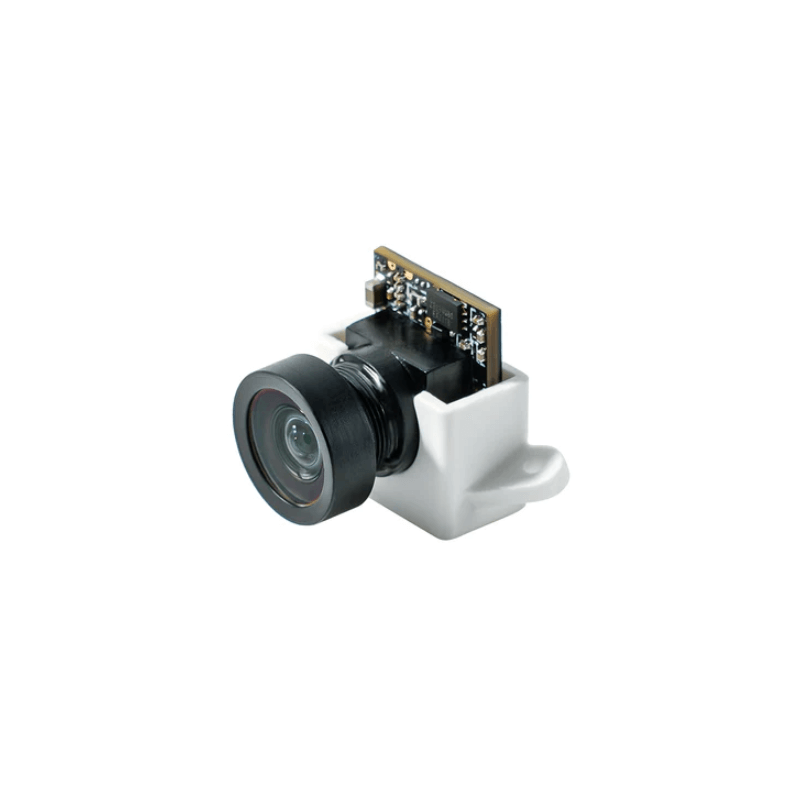

  • Comes with BETAFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.
  • Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
  • Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.
  • 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
  • Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
  • 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specification

  • Item: C03 FPV Micro Camera
  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal: 1200TVL with Global WDR
  • Signal System: NTSC (4:3)
  • Lens : 2.1mm(M7) FOV 160°
  • S/N Ratio: >50db
  • Electronic Shutter Speed: Auto
  • Auto Gain Control (AGC): Auto
  • Min. Illumination: 0.01Lux@1.2F
  • D-WDR: Auto
  • Day/Night: Color
  • Power: DC 3-5.5V
  • Current: 100mA@5V / 120mA@3.3V
  • Housing Material: ABS
  • Dimension: 11*14.1*13.5mm

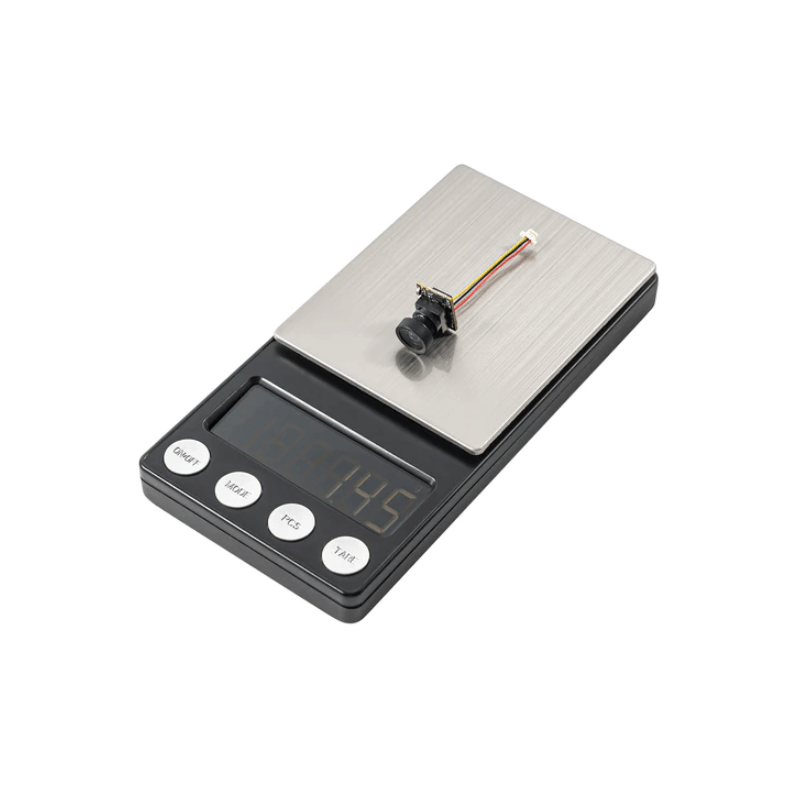

  • Net weight: 1.45g



Plug-N-Play Connector
C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Recommend Parts

  • Canopy: BETAFPV Canopy for Micro Camera 2022
  • VTX: BETAFPV M03 5.8G VTX
  • FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers
  • Drones: Meteor65/75 drones, or other micro whoop drones in the market.

Package

  • 1 * C03 FPV Micro Camera
  • 1 * BETAFPV Micro Canopy
  • 1 * 20° Lens Camera Mount for C02
  • 1 * 20° Lens Camera Mount for C03
  • 1 * 30° Lens Camera Mount for C03
  • 3 * Decorative Parts
  • 4 * M1.4*5 Screws (Sliver)
  • 6 * M1.4*4 Screws (Black)
