T-Motorhobby AM83 Motor KV2560 with Optional P5B Combo

Lightweight, precise and engineered for top-level F3P / P5B indoor performance

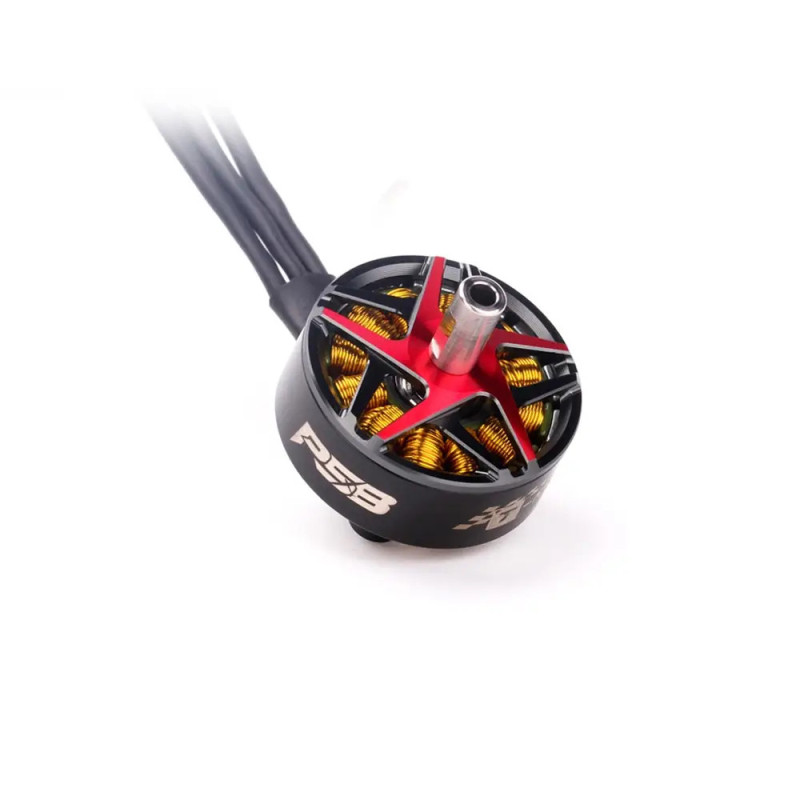

The AM83 KV2560 is an ultra-light, high-response motor developed specifically for competitive indoor models. When paired with the AM53A 53A ESC, it forms the P5B Combo – a power system optimized for rapid acceleration, instantaneous throttle response and maximum precision, ideal for demanding indoor classes.

Key Features

• • AM83 KV2560 motor with 5 mm shaft, tuned for F3P and P5B applications
• • Ultra-light rotor mass (13.7 g) for instant acceleration and braking
• • AM53A ESC delivers 53A continuous and 63A peak current
• • Competition-proven performance with 115–122 m in 3 seconds (manufacturer tests)
• • Precision-machined shaft and low internal resistance for maximum efficiency

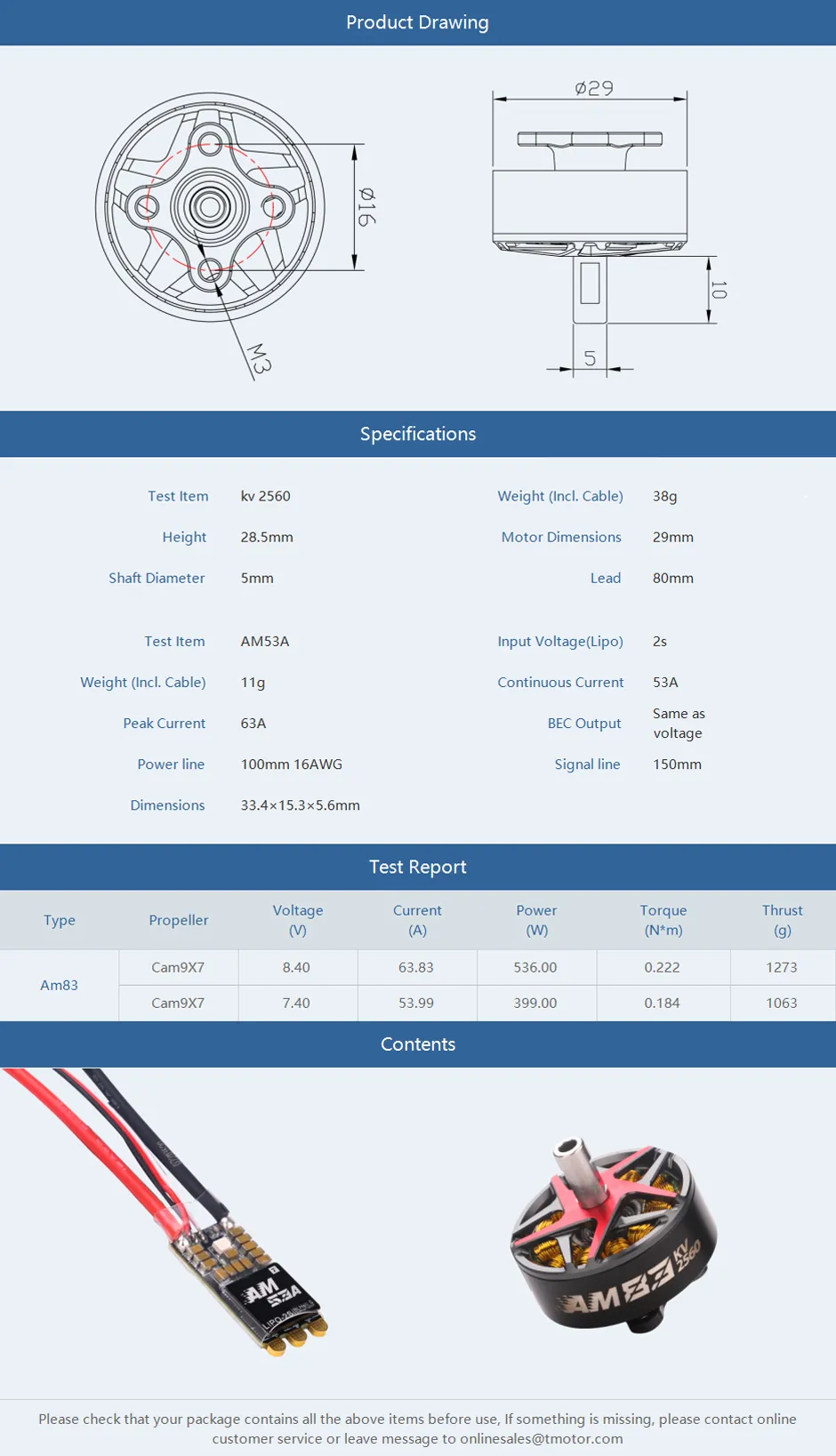

Technical Specifications – AM83 Motor

• • KV: 2560
• • Height: 28.5 mm
• • Weight (without wires): 38 g
• • Motor diameter: 29 mm
• • Shaft diameter: 5 mm

Technical Specifications – AM53A ESC

• • Input voltage: 2S LiPo
• • Continuous current: 53A
• • Peak current: 63A
• • Weight: 11 g

Package Contents

• • Variant 1: AM83 Motor KV2560
• • Variant 2: P5B Combo – AM83 Motor + AM53A ESC
