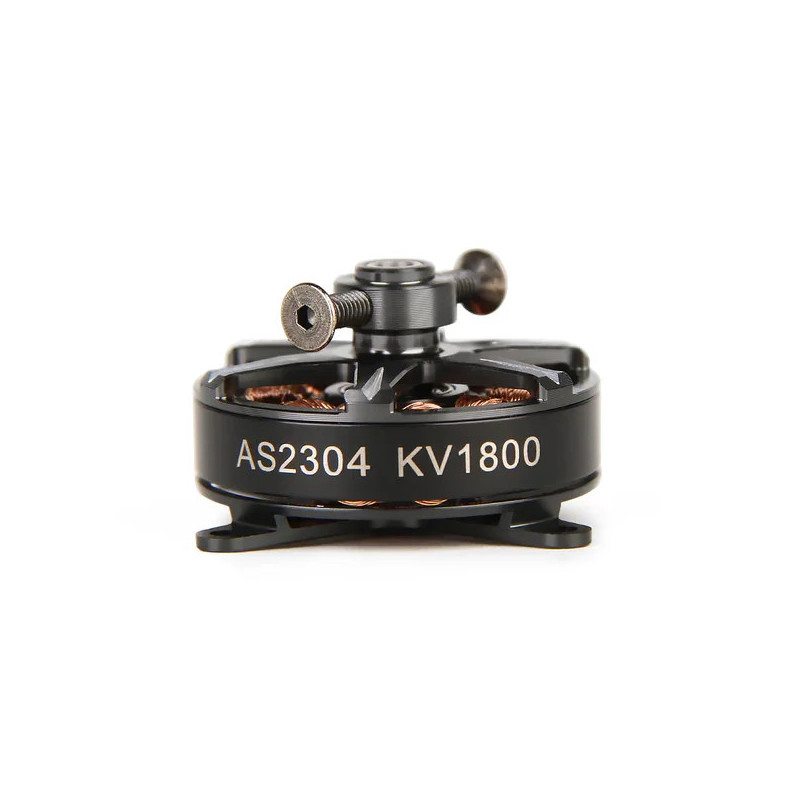

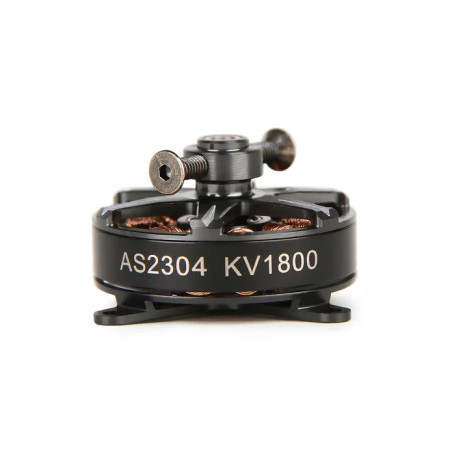

T-Motor AS2304 Brushless Motor – KV1500 / KV1800 / KV2300 (F3P / 3D Indoor)

0.00
Tax included

Brand
T-MOTOR
Quantity:
0
Shipment:
No information
Availability:
Out-of-Stock
Supply:
for freeCheck delivery costs
Gift:
Soon!

T-Motor AS2304 Brushless Motor – KV1500 / KV1800 / KV2300

Ultra-light motor designed for F3P and indoor 3D airplanes

Key Features

  • Super lightweight construction – only 20 g including wires.
  • Fast response and very low inertia – ideal for precise 3D maneuvers.
  • N52 ARC magnets for stable output and smooth operation.
  • Three KV options to match different prop sizes and flight styles.
  • Short shaft optimized for F3P props (7–10”).

Which KV to choose?

Variant Best for Flight Characteristics
KV1500 Large props 9–10”, precision flying Maximum smoothness and control
KV1800 8–9” props, perfect F3P balance Best all-round performance
KV2300 7–8” props, aggressive 3D Highest punch and dynamic response

Recommended Setup

  • Frame: F3P indoor / 3D EPP aircraft
  • ESC: T-Motor AT30A Fixed Wing ESC
  • Propellers: 7–10” depending on KV
  • Takeoff weight: 170–220 g

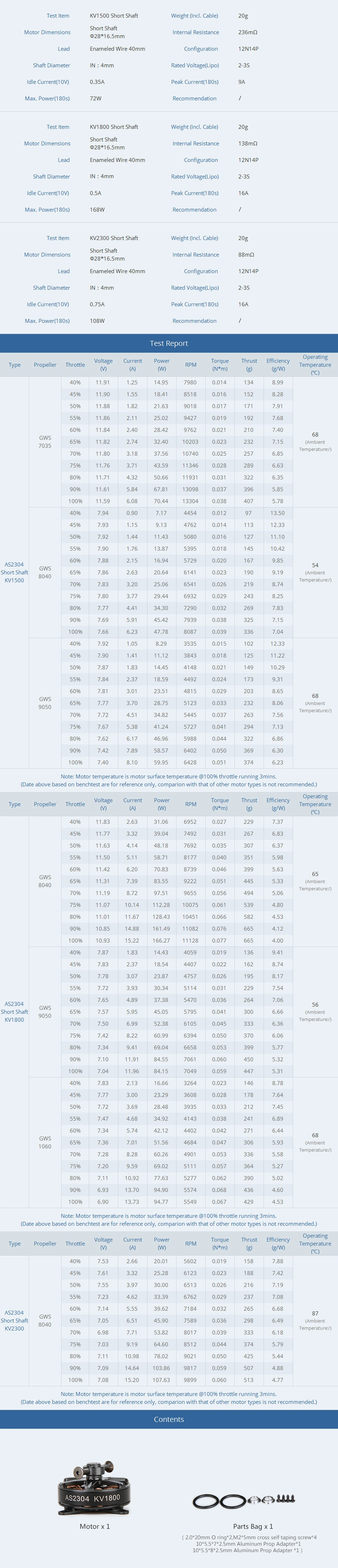

Technical Specifications

Parameter KV1500 KV1800 KV2300
Weight (incl. cable) 20 g 20 g 20 g
Construction N52 ARC magnets, 12N14P
Voltage 2–3S LiPo
Peak Current (180s) 9 A 11 A 16 A
Max Power (180s) 72 W 168 W 108 W

Package Includes

  • T-Motor AS2304 Motor (selected KV) × 1
  • Mounting screws set
  • Aluminum prop adapter
  • Rubber damping O-rings
