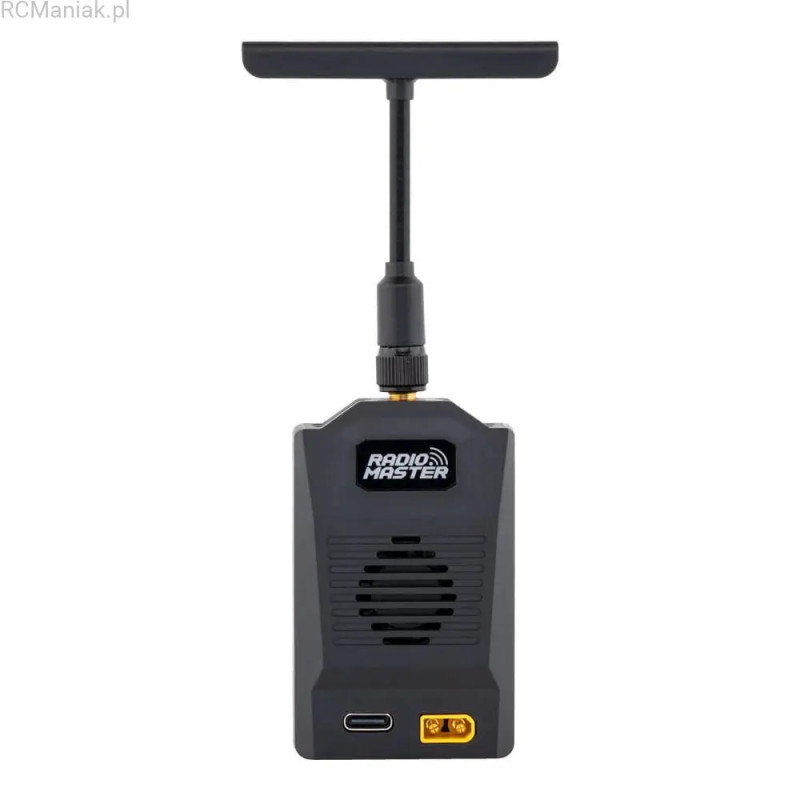

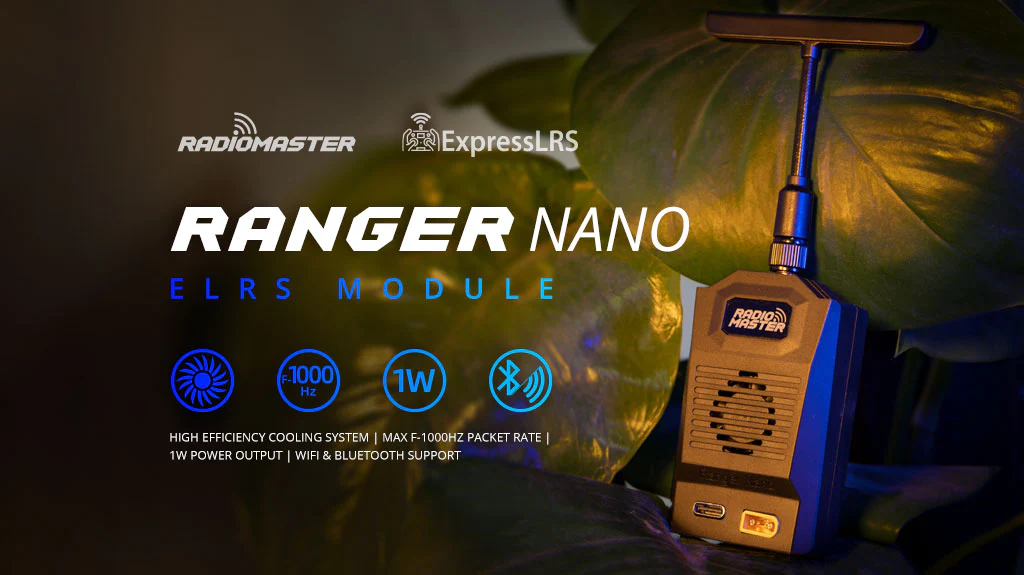

RadioMaster Ranger Nano 2.4GHz ELRS EU-LBT Module – compact ExpressLRS TX unit

High-performance Nano-bay ELRS module with WiFi, Bluetooth and F-1000Hz support

The Ranger Nano 2.4GHz ELRS EU-LBT module delivers the full ExpressLRS experience in a compact Nano form factor. Designed for users who require stable long-range performance, low latency and full compatibility with RadioMaster radios such as the Zorro or Pocket. The EU-LBT version meets European RF regulations, offers up to 20 dBm output power and supports high packet refresh rates up to F-1000Hz.

Key Features

• • EU-LBT compliant version for safe use in EU airspace
• • Adjustable 20 dBm output power (EU max)
• • Ultra-responsive link with up to F-1000Hz packet rate
• • Built-in WiFi and Bluetooth for updates and configuration
• • High-efficiency cooling system for stable operation
• • Nano connector – ideal for RadioMaster Zorro / Pocket radios
• • Includes T-shape antenna for optimal signal coverage

Technical Specifications

• • Regulatory Domain: EU-LBT / ISM2400
• • MCU: ESP32 (main), ESP8285 (ELRS Backpack)
• • RF Chip: SX1281IMLTRT
• • Frequency Range: 2400–2480 MHz
• • Packet Rate: 25 Hz – 500 Hz / F-1000Hz (EdgeTX 2.7.1+)
• • Output Power: 20 dBm EU-LBT (adjustable via LUA)
• • WiFi: Yes
• • Bluetooth: Yes
• • Power Input (XT30): 6–16.8 V DC
• • Weight: 48 g with antenna / 39 g without
• • Dimensions: 136×42×26 mm (with T antenna) / 74×42×26 mm (without)
