LCR ESR Meter FNIRSI LCR-ST2 2-in-1 Tweezers/Kelvin — Standard / Plus

LCR ESR Meter FNIRSI LCR-ST2 2-in-1 Tweezers/Kelvin — Standard / Plus

Compact 100 kHz LCR & ESR meter with tweezers mode, Kelvin 4-wire testing and 100 Hz–100 kHz sweep

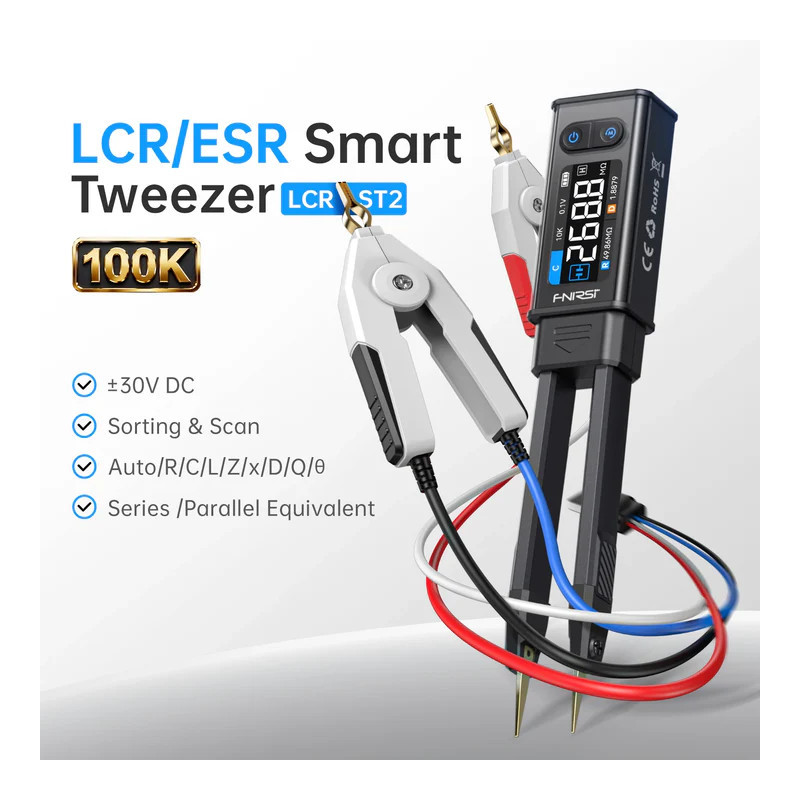

The FNIRSI LCR-ST2 is a professional dual-mode LCR meter designed for precise testing of electronic components. It combines tweezer-based SMD measurement with Kelvin 4-wire testing (Plus version) for large and high-accuracy components. It measures R/C/L, ESR, D/Q/Z/X/θ, diodes and up to ±30 V, offering five test frequencies and full-band sweep.

With intelligent auto-recognition, tolerance grading, a bright 1.47" HD display, magnetic body and a 300 mAh battery, the LCR-ST2 is ideal for lab diagnostics, on-site service work and component verification.

Key Features

• • Wide-range R/C/L measurement: 10 mΩ–10 MΩ, 1 pF–22 mF, 1 μH–10 H
• • Full electrical parameters: ESR, D, Q, Z, X, θ

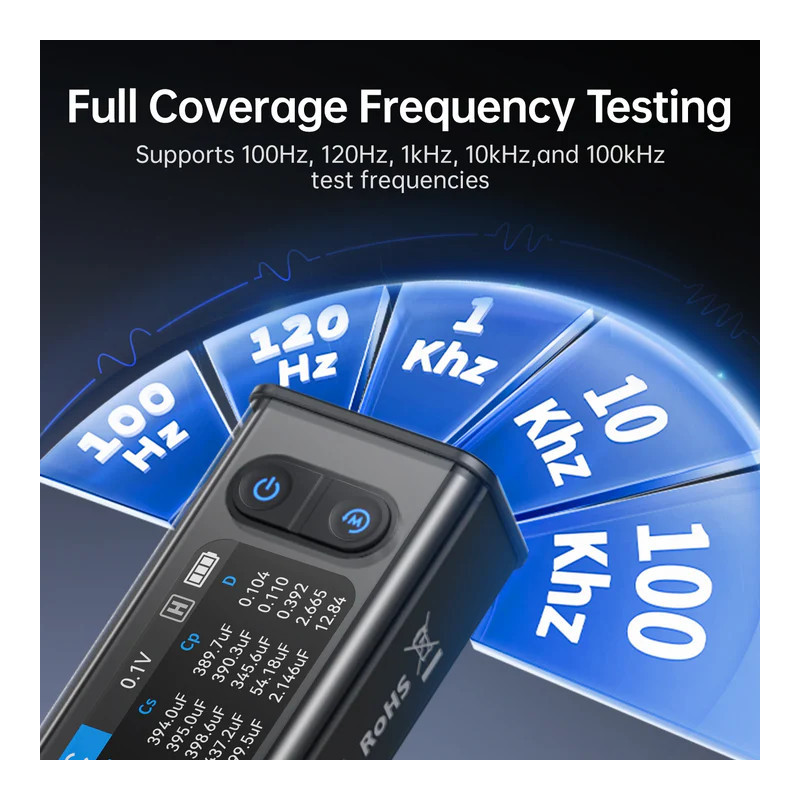

• • Five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz

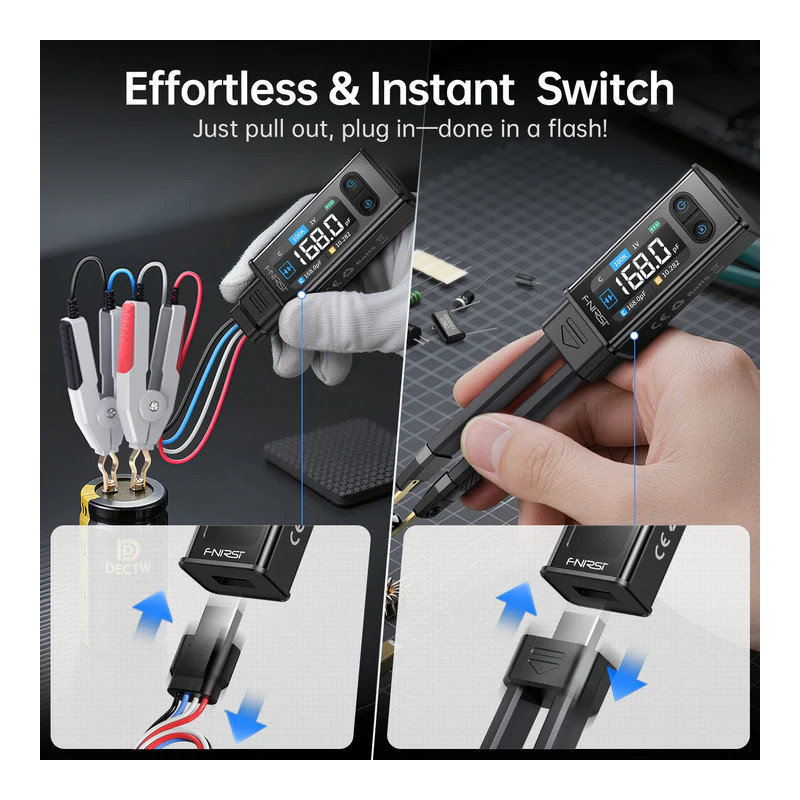

• • Dual-mode testing: tweezers + Kelvin 4-wire (Plus)
• • Sweep mode 100 Hz–100 kHz for frequency characterization

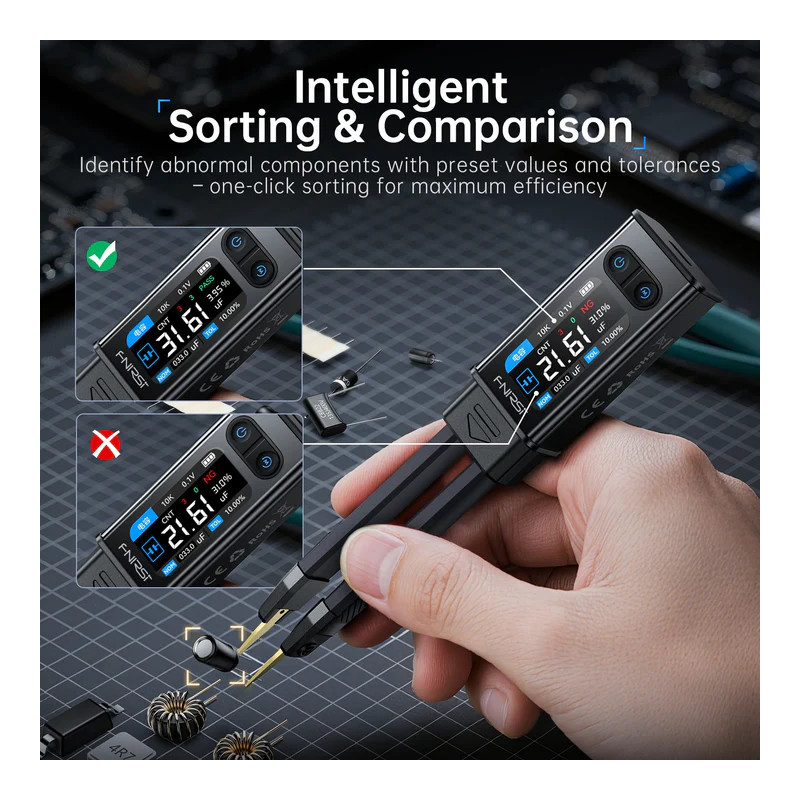

• • Auto R/C/L recognition + tolerance grading
• • Diode ≤ 0.7 V and voltage ±30 V testing
• • HOLD / MIN / MAX and dual-parameter display

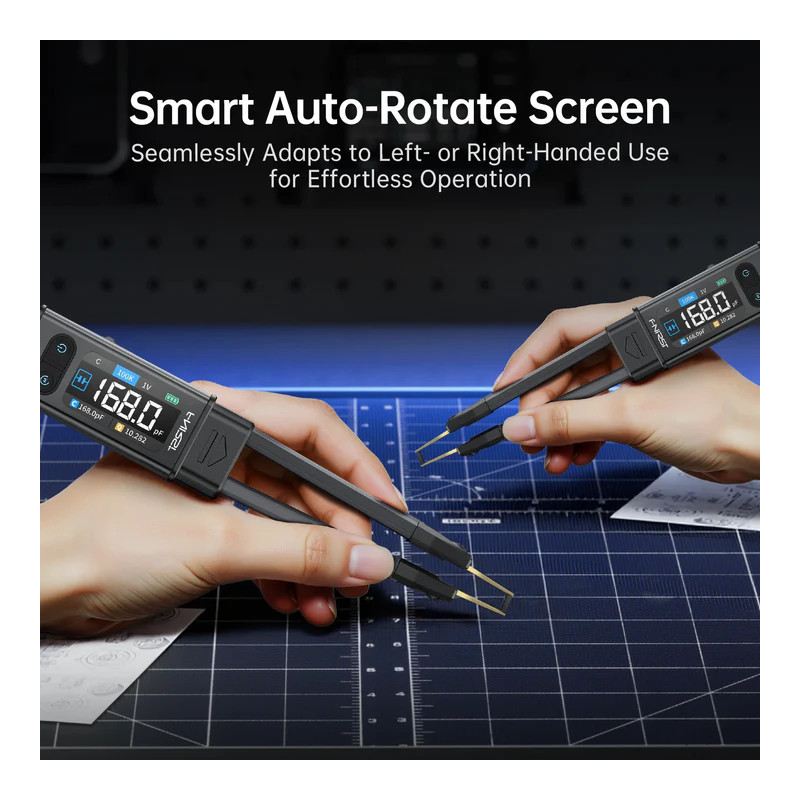

• • Auto-rotate display
• • 1.47" HD screen
• • 300 mAh battery + USB-C charging

Specifications

• • Model: FNIRSI LCR-ST2
• • Resistance: 10 mΩ–10 MΩ
• • Capacitance: 1 pF–22 mF
• • Inductance: 1 μH–10 H
• • Test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz

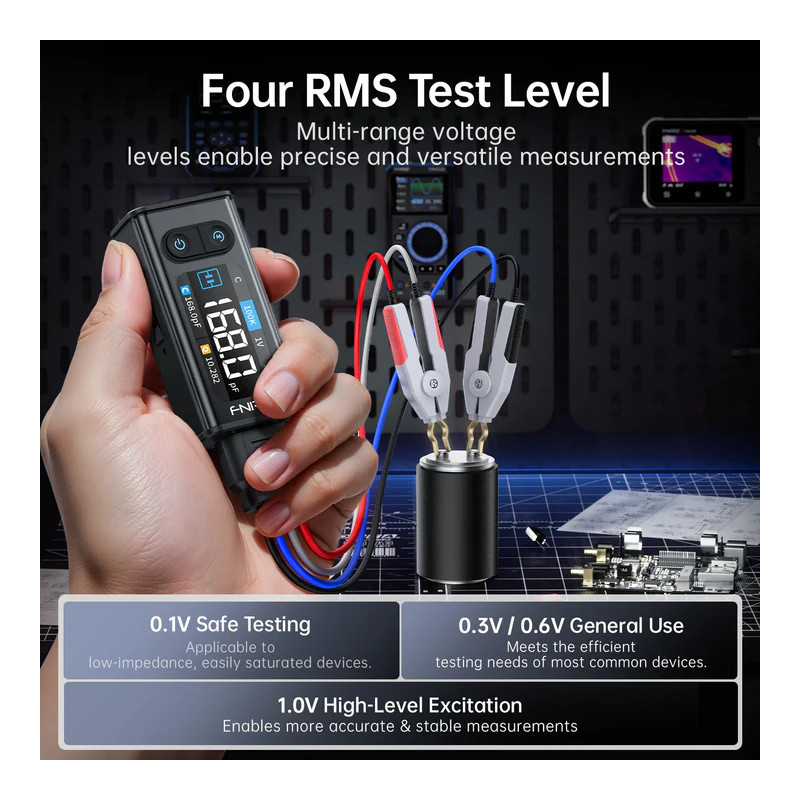

• • RMS levels: 0.1/0.3/0.6/1.0 V
• • Diode: ≤ 0.7 V
• • Voltage: ±30 V
• • Display: 1.47" HD
• • Battery: 300 mAh
• • Size: 31 × 170.7 × 20.3 mm
• • Weight: ≈60.8 g

Standard vs Plus

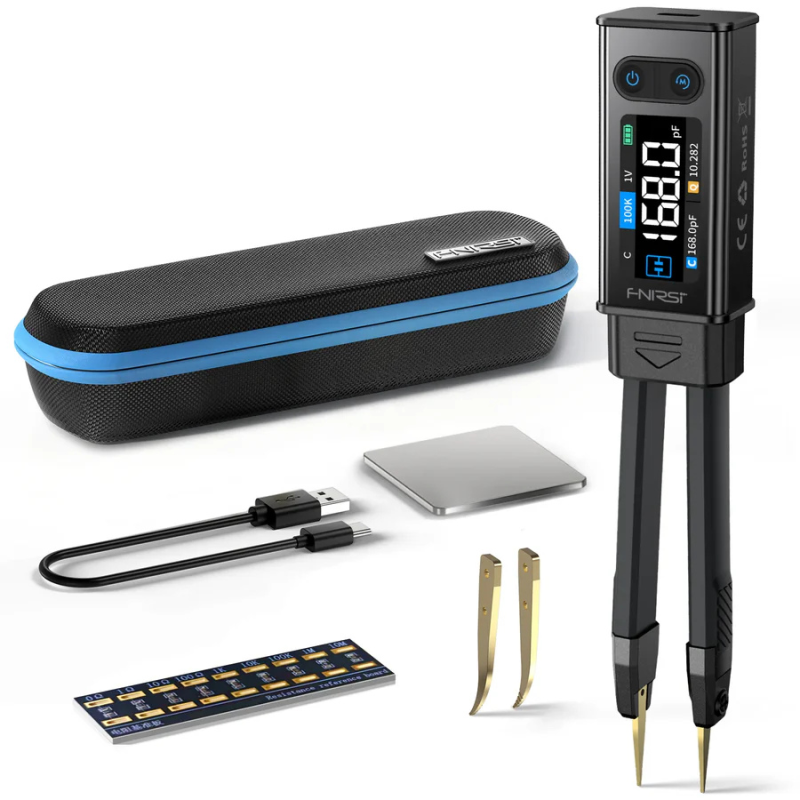

Package Contents

Standard:

• • LCR-ST2 Tweezers
• • Storage Bag

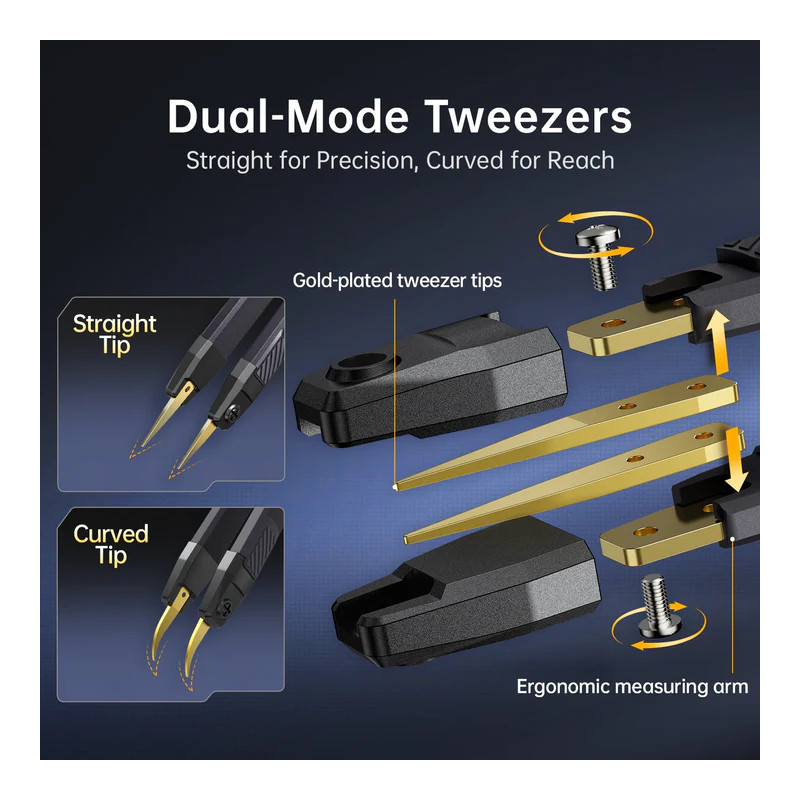

• • Curved Tip
• • Shorting Plate
• • USB-C Cable

Plus:

• • LCR-ST2 Tweezers
• • Kelvin Test Clip
• • Storage Bag
• • Curved Tip
• • Shorting Plate
• • USB-C Cable
