FNIRSI® DPOS350P – 4-in-1 Oscilloscope, Signal Generator, Spectrum Analyzer & Bode Plot

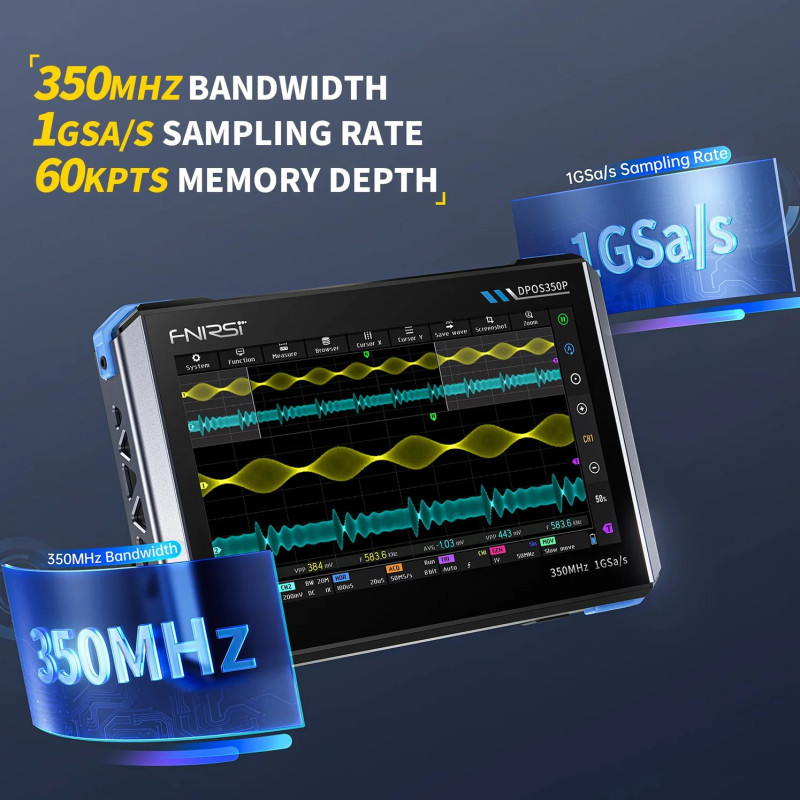

Portable diagnostic tool with 7" IPS screen, 350 MHz bandwidth and 1 GSa/s sampling

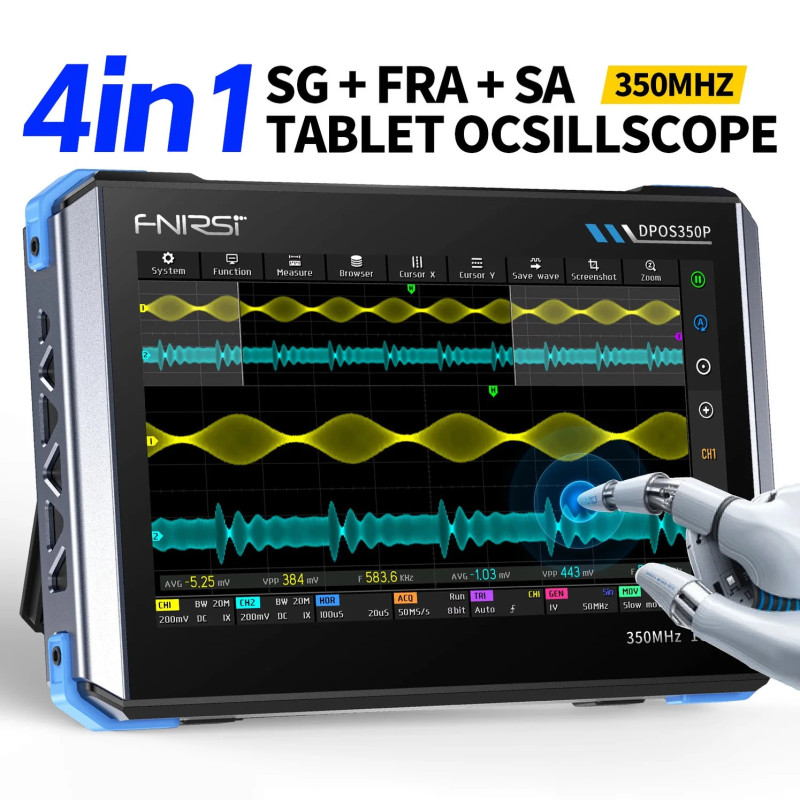

The FNIRSI DPOS350P is a powerful 4-in-1 device combining a digital oscilloscope, signal generator, spectrum analyzer, and frequency response (Bode plot) analyzer. With a wide 350 MHz bandwidth and 1 GSa/s real-time sampling, it's ideal for high-precision diagnostics. The large 7” touch IPS display, 8000 mAh battery, and compact design make it perfect for labs, repair work, and mobile testing.

Key Features

  • ● 350 MHz oscilloscope with 1 GSa/s sampling rate
  • ● Signal generator with 14 waveforms, up to 50 MHz

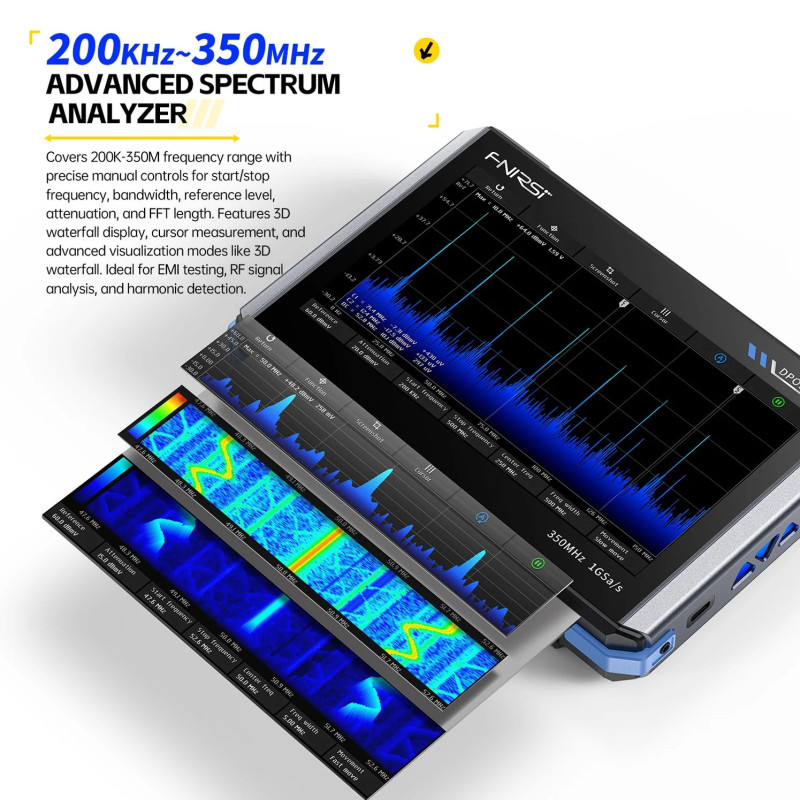

  • ● Spectrum analyzer: 200 kHz to 350 MHz

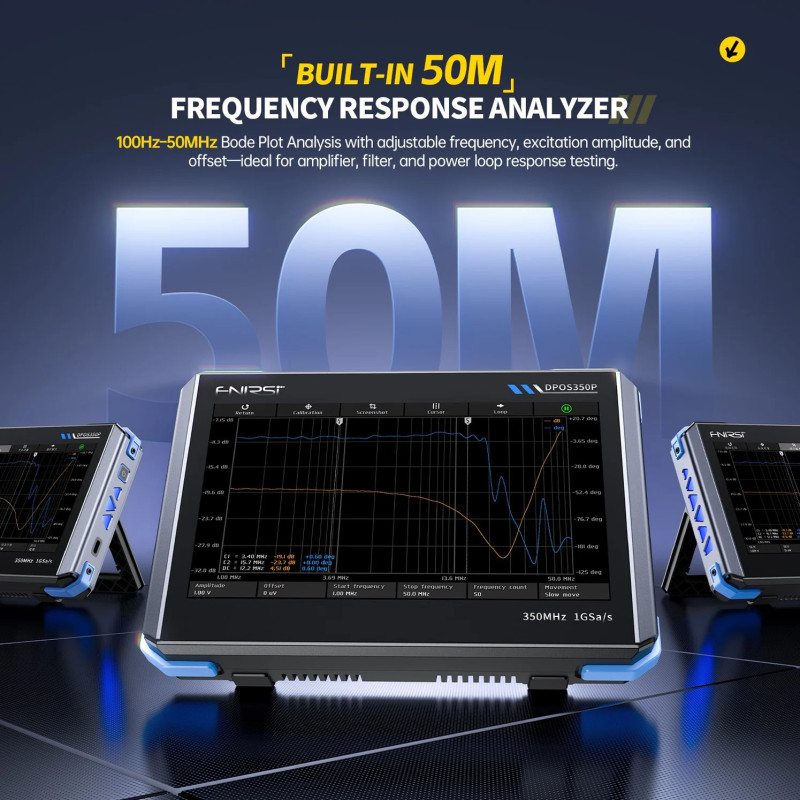

  • ● Frequency response (Bode plot) up to 50 MHz
  • ● 7" IPS touchscreen (1024×600) with high visibility
  • ● 8000 mAh battery with USB-C fast charging (QC18W)
  • ● Size: 190×128×37 mm; weight: 800 g

Technical Specifications

  • ● Max input voltage: up to 400 V (recommended ≤40 V)
  • ● Vertical sensitivity: 2 mV/div to 20 V/div
  • ● Time base: 5 ns/div to 50 s/div
  • ● Trigger modes: Auto / Normal / Single
  • ● Memory depth: 60 Kpts; storage: up to 500 waveforms / 90 screenshots
  • ● Ports: USB-C, signal out, probe in

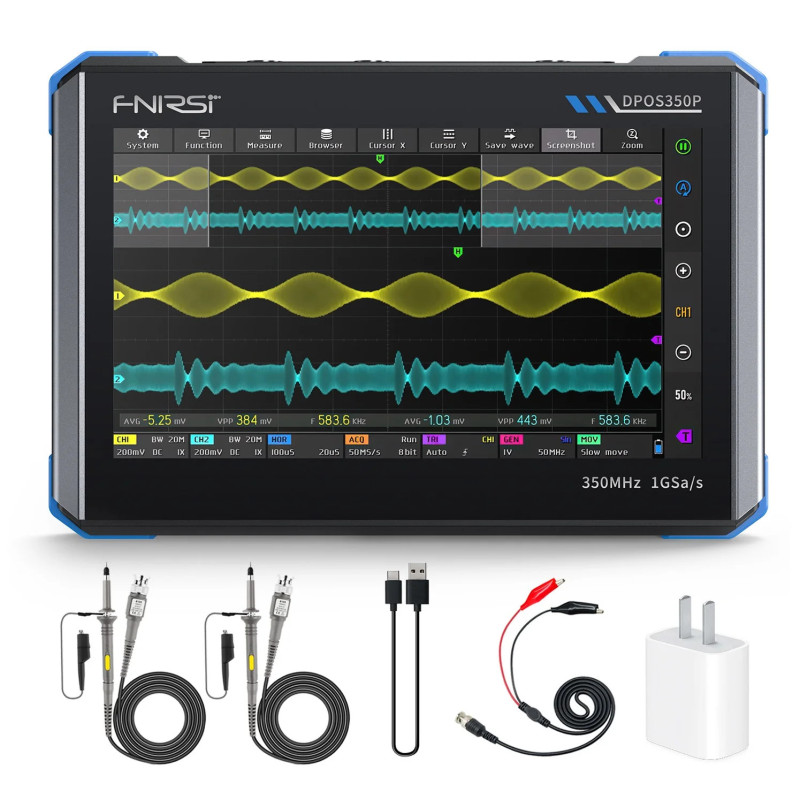

Package Contents

  • ● 1× FNIRSI DPOS350P unit
  • ● 1× USB-C charging cable
  • ● 2× P6100 probes (1X/10X)
  • ● 1× User manual
  • Note: No AC power adapter or protective case included.
Touchscreen oscilloscope with Bode plot mode
FNIRSI DPOS350P spectrum analyzer and scope
Lab oscilloscope with probes and waveform output

FAQ

Frequently Asked Questions about FNIRSI DPOS350P (Oscilloscope + Signal Generator + Spectrum Analyzer + Frequency Response Analyzer)

Oscilloscope 350 MHz, 1 GSa/s
Signal generator 50 MHz
Spectrum analyzer 200 kHz–350 MHz
Frequency response analyzer up to 50 MHz

Analog bandwidth: 350 MHz (1 channel), 180 MHz (2 channels)
Sampling rate: 1 GSa/s
Waveform refresh rate: 50,000 wfms/s
Memory depth: 60 kpts
Display: 7" IPS, 1024×600, touchscreen
Trigger modes: Auto, Normal, Single
Overvoltage protection: up to 400 V

14 waveform types: sine, square, triangle, sawtooth, etc
Frequency up to 50 MHz
Custom waveform creation supported

Display: 7" IPS, 1024×600
Battery: 4000 mAh
Fast charging: QC 18 W (full in 2 h)
Size: A5 format with foldable stand
Ports: USB, stores up to 500 waveforms and 90 screenshots

​
