FNIRSI 2D15P 3-in-1 Benchtop 2CH 100 MHz Phosphor Oscilloscope Multimeter Signal Generator

0.00
Tax included

Brand
Fnirsi
Quantity:
0
Shipment:
No information
Availability:
Out-of-Stock
Supply:
for freeCheck delivery costs
Gift:
Soon!

FNIRSI 2D15P 3-in-1 Benchtop Digital Oscilloscope 100 MHz + True RMS Multimeter + 10 MHz Signal Generator

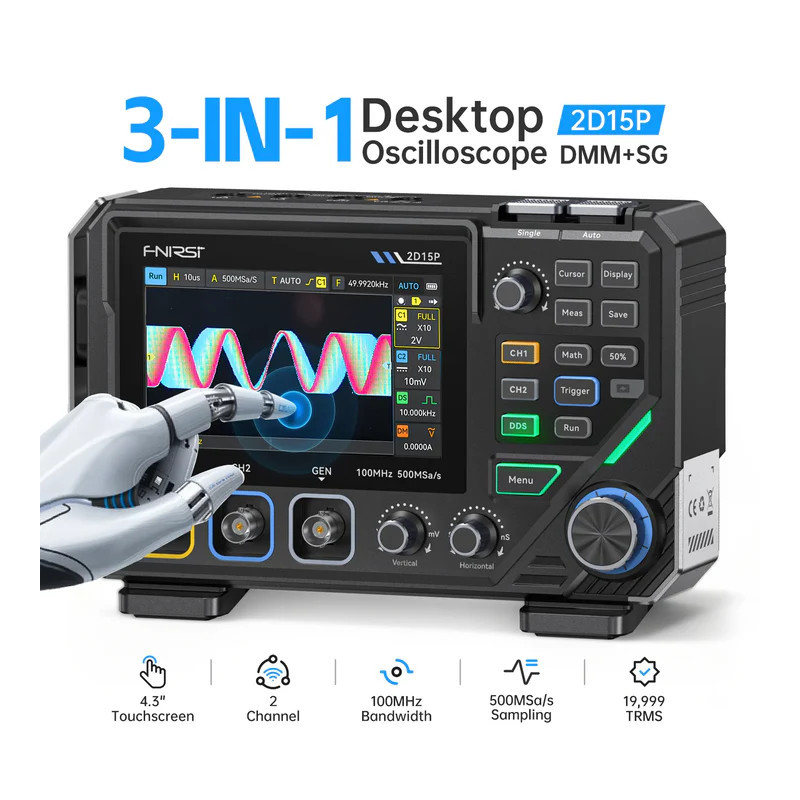

The FNIRSI 2D15P is an advanced multifunction bench oscilloscope combining three professional-grade tools in one device: a dual-channel digital oscilloscope, a True RMS multimeter (19,999 counts), and a DDS signal generator. Featuring a 4.3″ capacitive touchscreen with intuitive button controls, it allows accurate waveform capture, real-time signal analysis, and circuit diagnostics. Powered by a 5000 mAh rechargeable battery, it’s designed for laboratory, educational, and field applications — compact, reliable, and built for precision.

Key Features

  • ● Dual-channel measurement – 100 MHz (single) / 50 MHz (dual), 500 MSa/s sampling rate

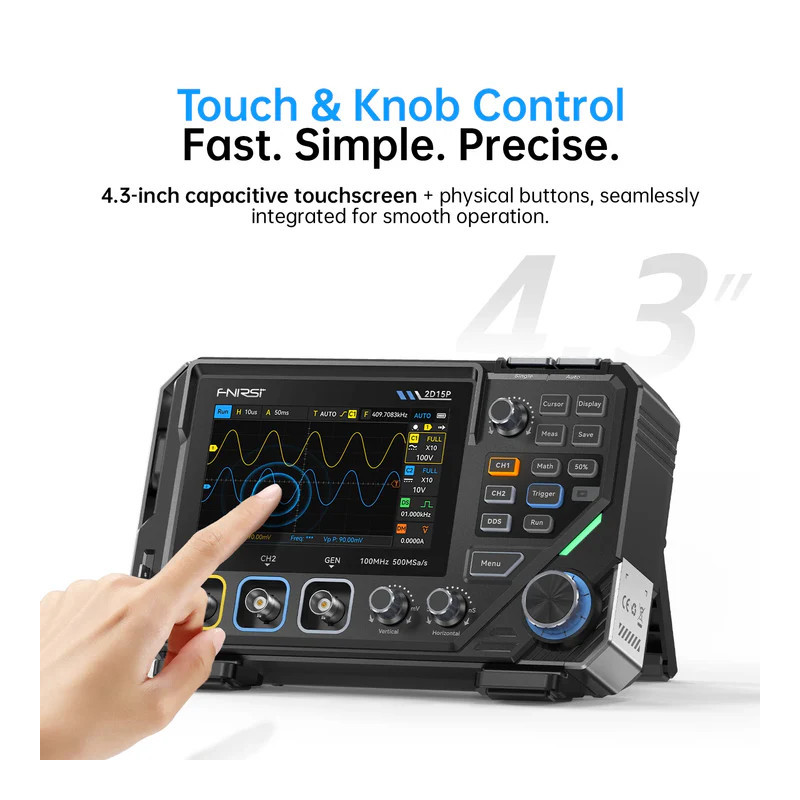

  • ● 4.3″ touchscreen display with 128-level grayscale visualization
  • ● 10 MHz DDS signal generator – 11 waveform types with adjustable amplitude & duty cycle

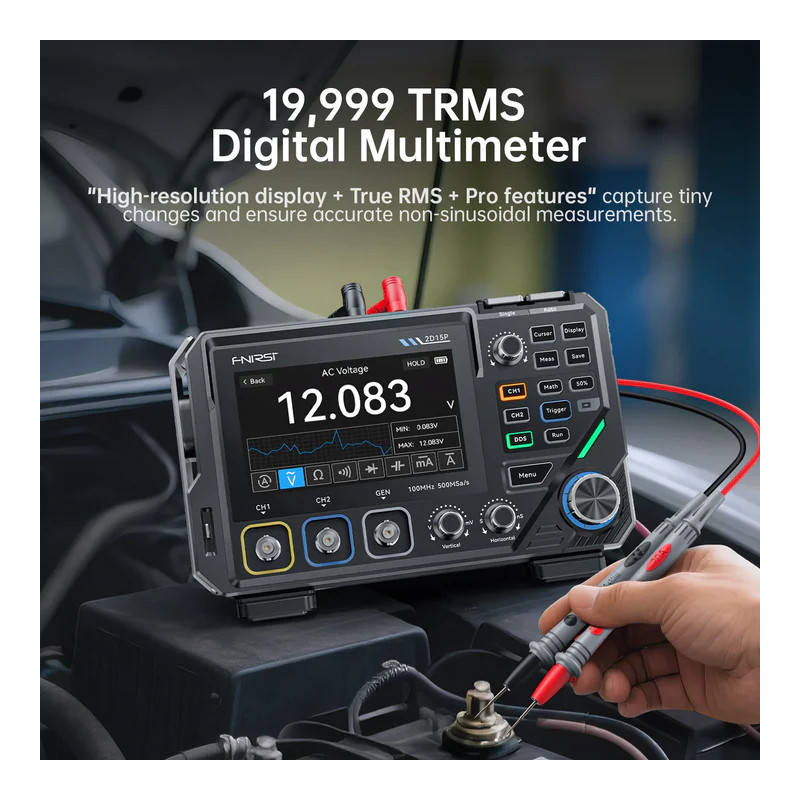

  • ● 19,999-count True RMS multimeter – voltage, current, resistance, capacitance, diode & continuity tests
  • ● Trigger modes: Auto / Normal / Single for full signal control

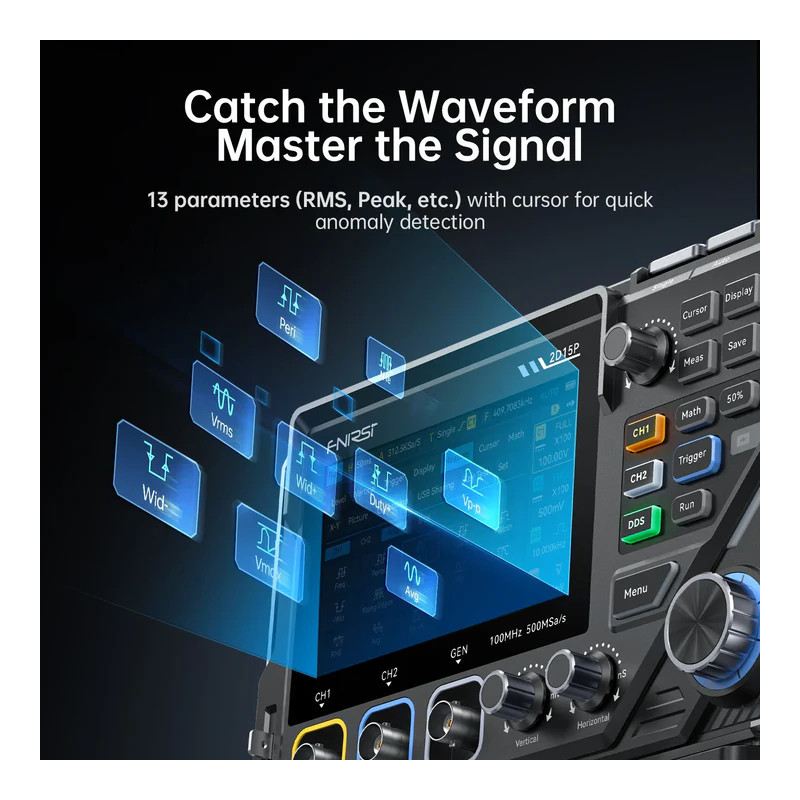

  • ● Built-in math operations (Add, Sub, Mul, Div), XY mode, and cursor measurement
  • ● Waveform storage and USB data export for analysis

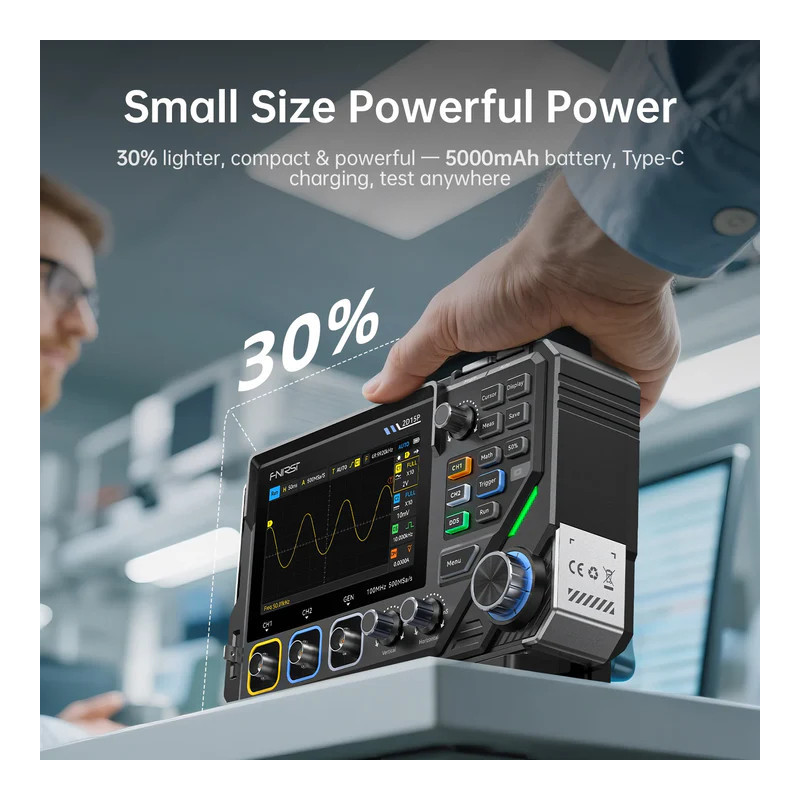

  • ● Type-C charging and 5000 mAh Li-ion battery for extended portable use

Technical Specifications (Oscilloscope)

Parameter Value
Channels Dual Channel
Analog Bandwidth 100 MHz (Single) / 50 MHz (Dual)
Sampling Rate 500 MSa/s
Memory Depth 10 K / 100 K / 1 M
Vertical Sensitivity 10 mV – 10 V/div
Timebase Range 5 ns – 50 s/div
Trigger Modes Auto / Normal / Single

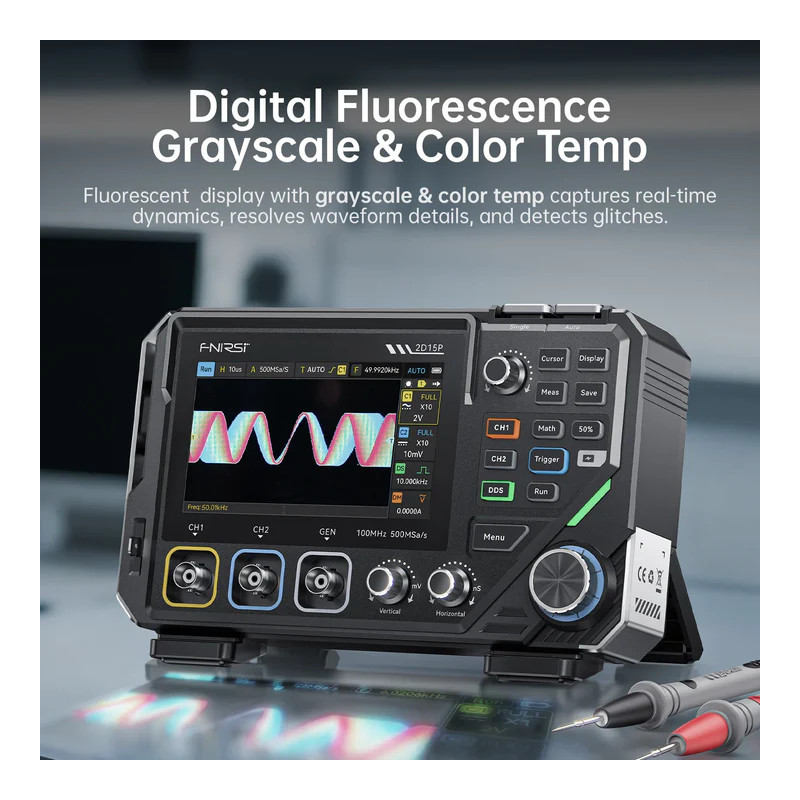

Display Modes Dot, Vector, Color Temperature
Power Supply 5000 mAh Li-ion, USB-C Charging

Additional Specifications (Multimeter & Signal Generator)

Function Range / Parameters
DC Voltage 1.9999 V – 1000 V
AC Voltage 1.9999 V – 750 V
DC Current 19.999 mA – 9.999 A
AC Current 19.999 mA – 9.999 A
Resistance 199.99 Ω – 19.999 MΩ
Capacitance 9.999 nF – 99.99 mF
Signal Generator 0 – 10 MHz / 0.1–3.0 Vpp / 0–100 % Duty
Other Functions Diode Test, Continuity, True RMS Measurement

Package Contents

  • ● FNIRSI 2D15P Oscilloscope / Multimeter / Signal Generator
  • ● P6100 Probes × 2
  • ● Multimeter Probes × 1 + Alligator Clip Cables
  • ● USB-C Data Cable
  • ● User Manual
