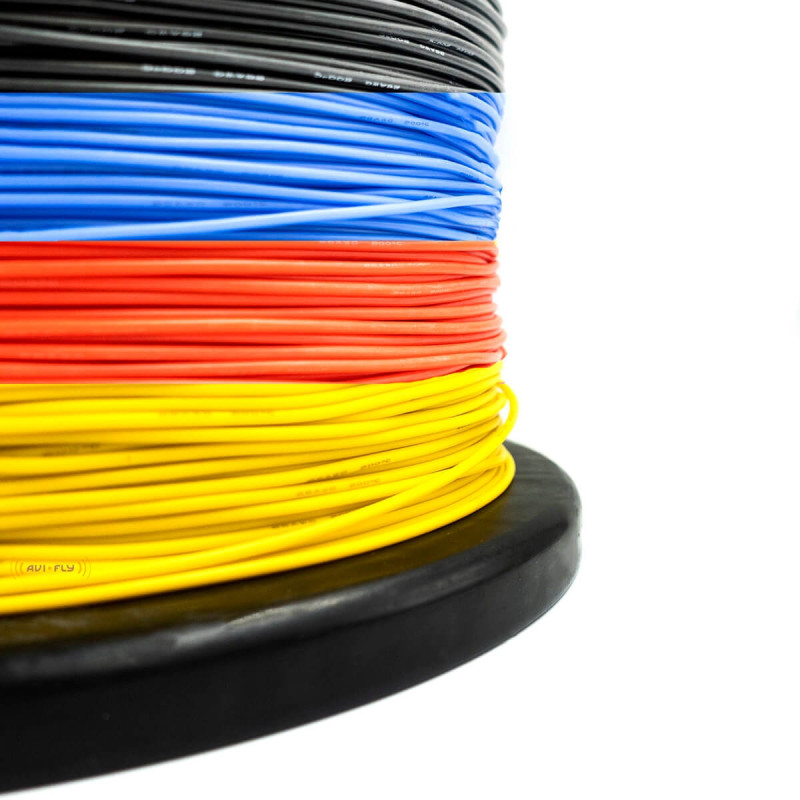

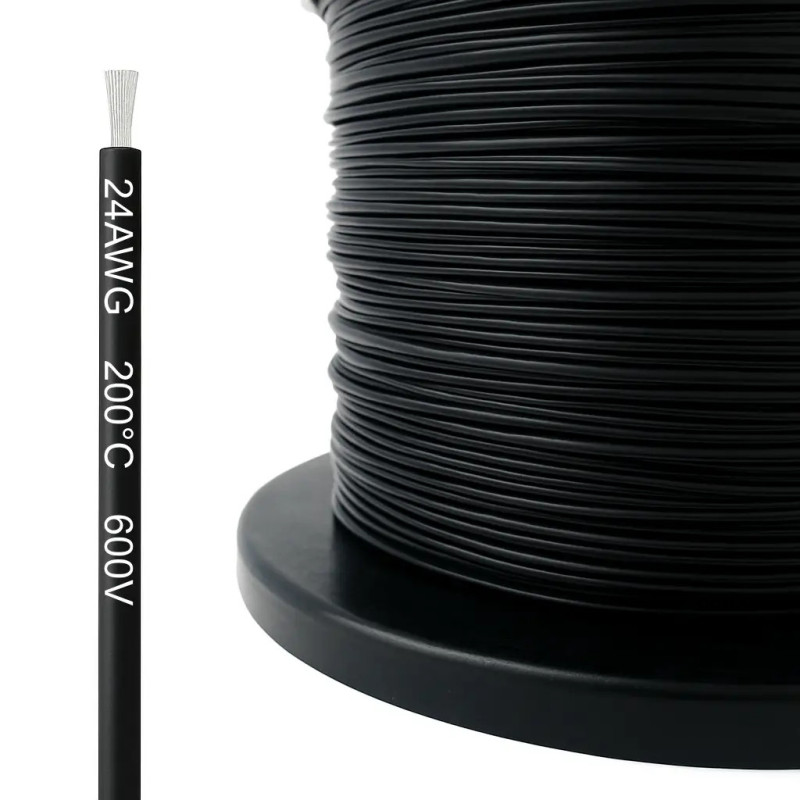

Amass 24AWG Silicone Wire – Multi-strand, Flexible – up to 200°C – 8 Colors

3.07
Tax included
  • ● Amass Silicone Wire 24 AWG – 1 m
  • ● Tinned copper multi-strand • high flexibility • low resistance
  • ● 8 colors: red, black, blue, white, green, yellow, purple, brown
  • ● Sold per meter – longer lengths shipped in one piece
  • ● Perfect for FPV, LEDs, sensors and microcontroller projects

Color
Brand
Amass
Quantity:
510
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

You might also like

Amass Silicone Wire 24 AWG – Thin and Flexible Cable for FPV, RC and Electronics

Available in 8 colors: red, black, blue, white, green, yellow, purple and brown

The Amass 24 AWG wire is an ultra-thin and lightweight tinned copper cable with soft silicone insulation. It combines excellent flexibility, low resistance and heat resistance from –60 °C to 200 °C. Perfect for signal lines, FPV systems, LEDs, sensors, microcontrollers and other lightweight electronic projects.

Technical Specifications

  • AWG: 24
  • Cross-sectional area: ≈ 0.20 mm²
  • Conductor diameter (without insulation): ≈ 0.51 mm
  • Outer diameter (with insulation): ≈ 1.3 mm

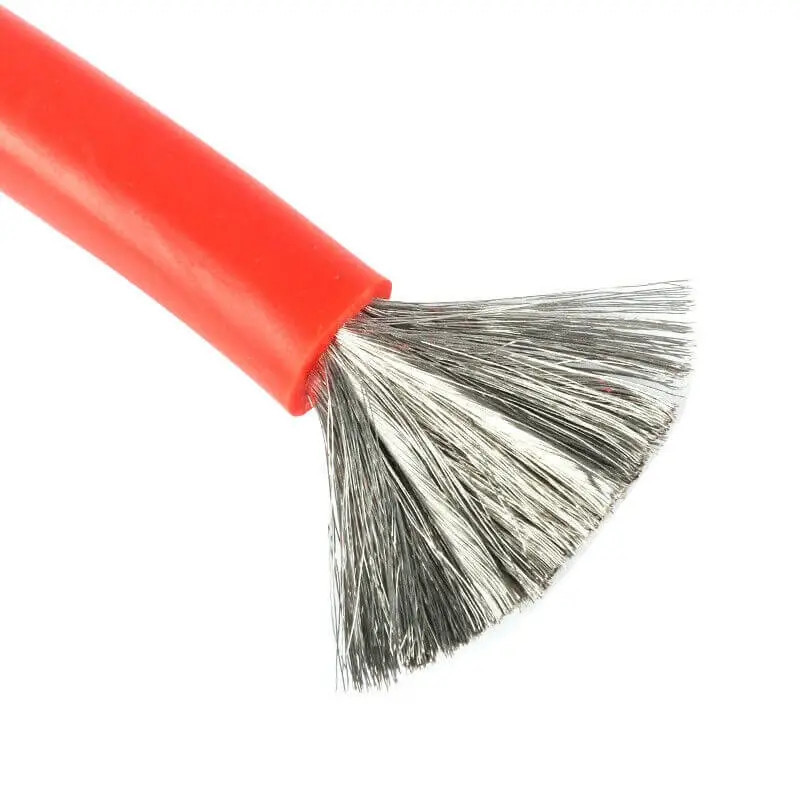

  • Conductor material: Tinned copper (multi-strand)
  • Insulation: Soft silicone – heat and abrasion resistant
  • Rated voltage: 600 V
  • Operating temperature: –60 °C to 200 °C

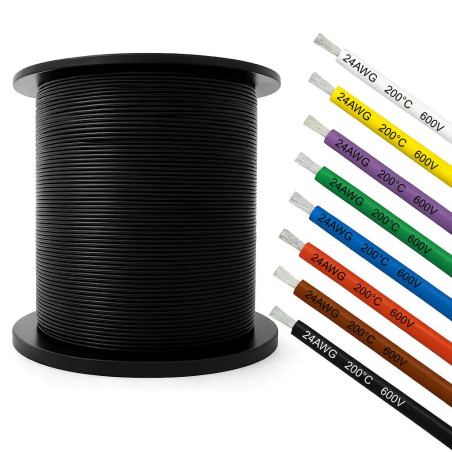

  • Colors: red, black, blue, white, green, yellow, purple, brown

Product Features

  • Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
  • Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
  • High flexibility – wire does not retain bends and easily fits in tight spaces
  • Stable performance across a wide temperature range from –60°C to 200°C
  • Easy to solder – tinned copper strands and flexible silicone insulation

How to Choose the Right 24 AWG Wire

The Amass 24 AWG wire is ideal for low-current and signal applications where precision, low weight and flexibility are crucial. With a 0.20 mm² core, it supports ≈ 3.5 A continuous current and up to 10 A peak. Its soft silicone jacket remains pliable even in tight builds, making soldering and routing easy in FPV frames and compact electronics.

Typical 24 AWG Applications:

  • Signal and power wiring for FPV modules and microcontrollers
  • LED and sensor connections
  • Receiver and servo wires in RC models
  • DIY, robotics and prototype electronics

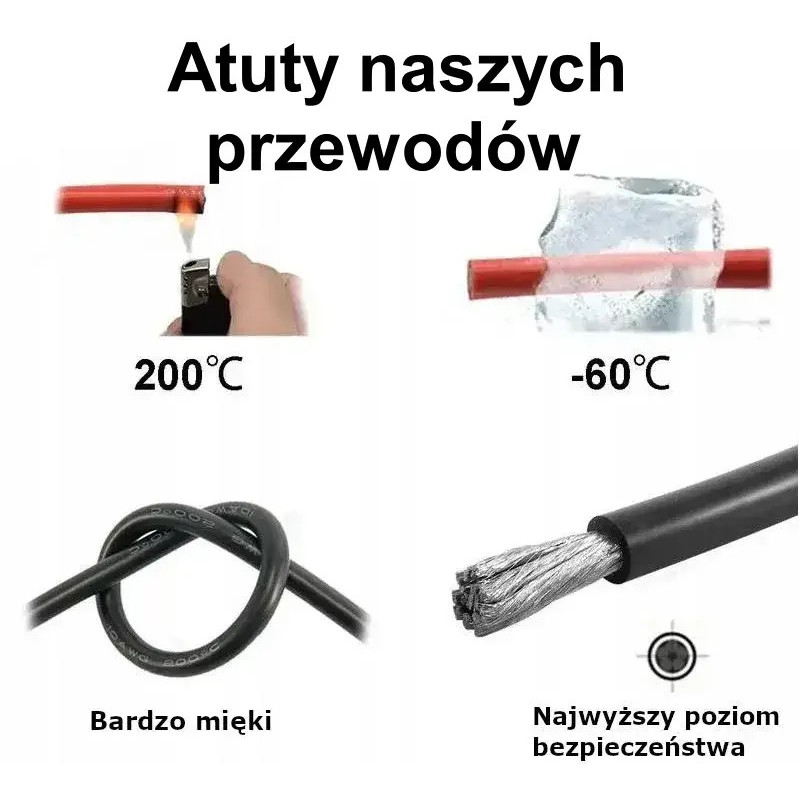

Why Silicone?

  • Maintains flexibility across a wide temperature range
  • Does not crack, melt, or deform even under long-term heat exposure
  • No “memory effect” – ideal for compact or mobile installations

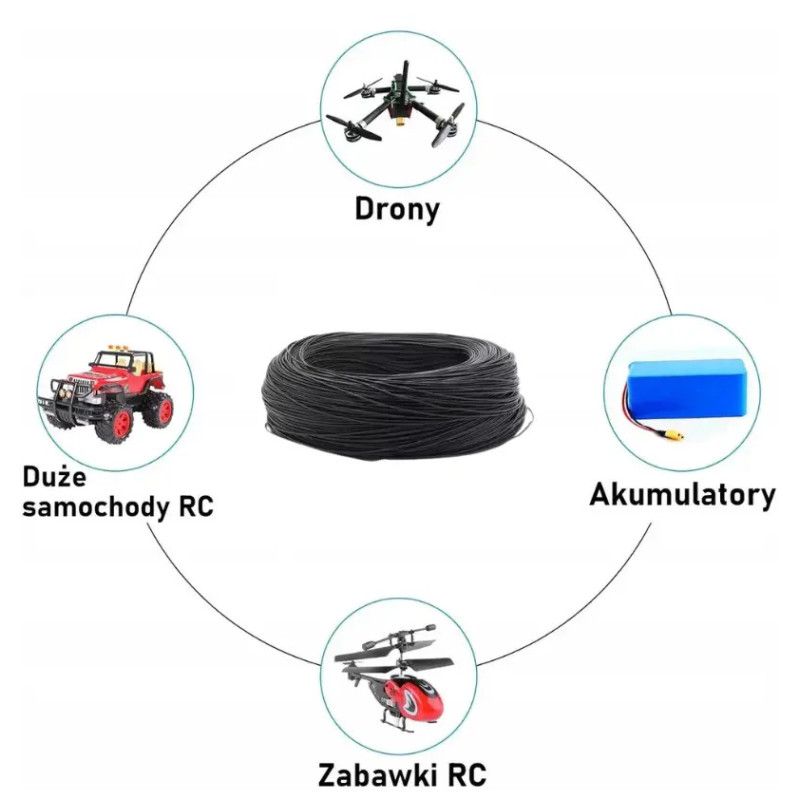

Applications

  • FPV drone and RC model wiring (ESC, power lines, LED strips)
  • DIY electronics projects and prototyping
  • Power supply connections for modules, sensors, and controllers
  • Applications requiring flexibility and high temperature resistance

Practical Parameters (24 AWG)

  • Continuous current: ≈ 3.5 A
  • Peak current: up to 10 A
  • Resistance: ≈ 84 mΩ/m
  • Voltage range: 6 – 24 V DC

Assembly Tips

  • Choose the proper AWG size based on current load and wire length
  • Use flux and a clean soldering tip for solid, low-resistance joints
  • Protect solder joints with heat-shrink tubing

Package Contents

  • 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size

The Amass 24 AWG silicone wire combines exceptional flexibility, low resistance and durability for precision electronics and FPV applications. It ensures clean solder joints, stable connections and minimal voltage loss. Available in 8 colors: red, black, blue, white, green, yellow, purple and brown.

FAQ

Frequently Asked Questions – Amass 24 AWG

The Amass 24 AWG wire is designed for light power and signal connections.
Perfect for LEDs, sensors, microcontrollers, RC receivers and FPV electronics.

The Amass 24 AWG wire safely carries about 3.5 A continuous and up to 10 A peak current.
It’s suitable for low-voltage DC applications (6–24 V).

Yes, 24 AWG works well for short LED strip runs (12–24 V).
For longer runs or higher power, thicker wire such as 22 AWG or 20 AWG is recommended.

Use thin solder (0.5–0.8 mm) at 350–380 °C and apply a bit of flux for better wetting.
The silicone insulation doesn’t melt, making precise soldering easy.

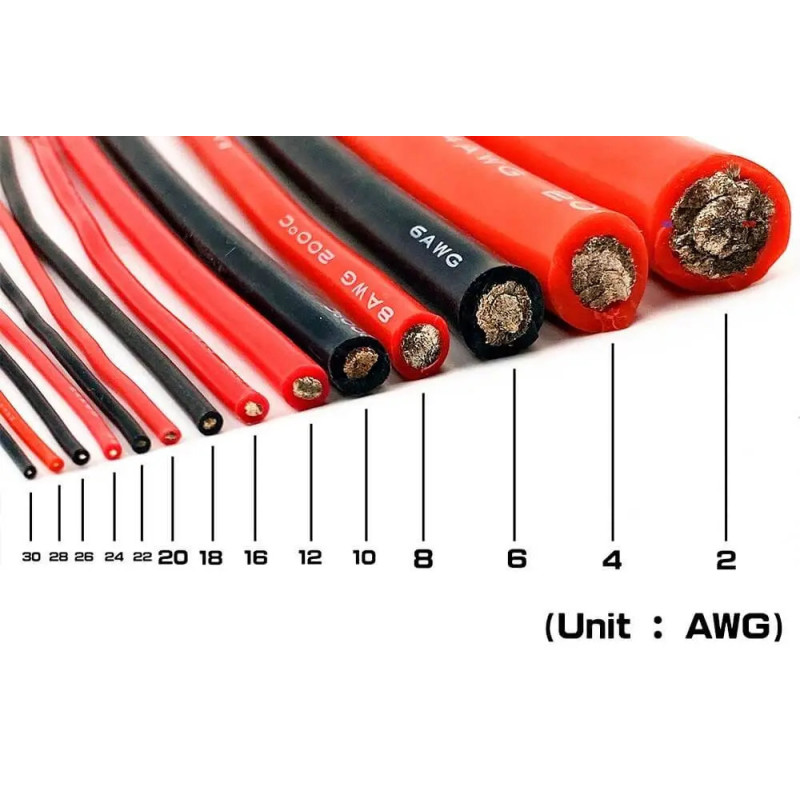

The 24 AWG wire has a larger cross-section (≈ 0.20 mm²) and carries more current than 26 AWG.
It’s slightly thicker but remains flexible — great for both signal and power lines.
