Heat Shrink Tubing 5.0 mm 2:1 red + black set 2 m (1 m + 1 m)

2.07
Tax included

Brand
Avifly
Quantity:
305
Shipment:

On monday

Supply:
for freeCheck delivery costs
Gift:
Soon!

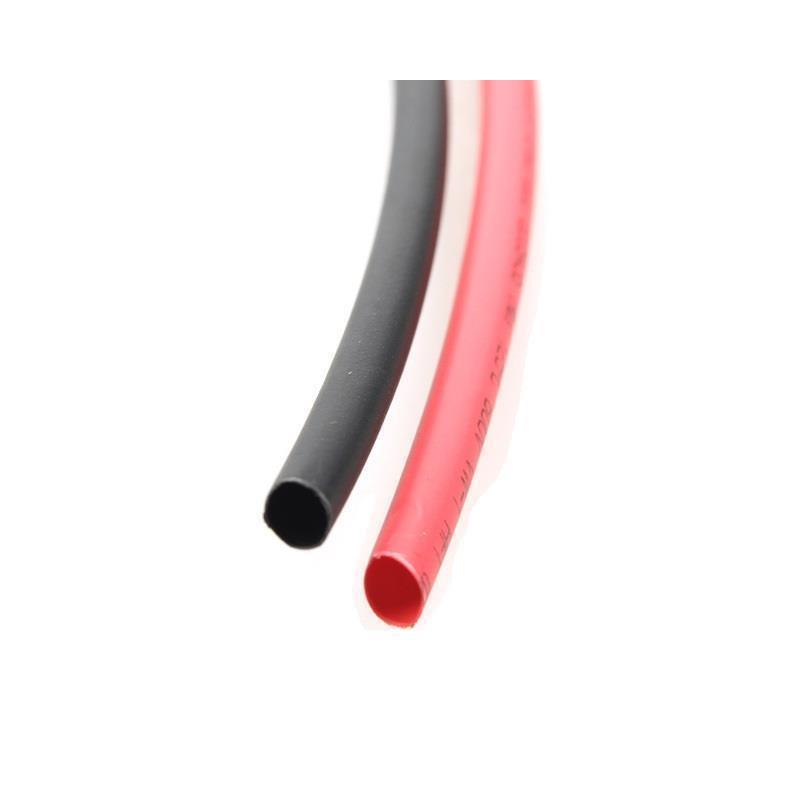

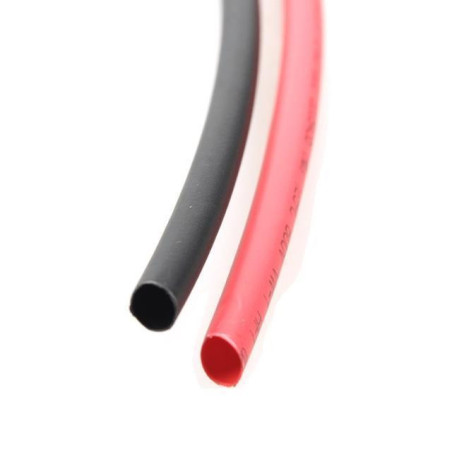

Heat Shrink Tubing 5.0 mm 2:1 red + black set 2 m

Durable 5 mm heat shrink tubing for RC and FPV cable insulation and solder protection

The 5.0 mm (2:1) heat shrink tubing made of high-quality polyolefin provides reliable insulation, solder joint protection and clean wire organization in RC and FPV electronics. When heated, it shrinks down to approximately 2.5 mm, creating a strong and flexible protective layer. The set includes 1 m red and 1 m black tubing for easy polarity marking.

Key features and benefits

  • • 2:1 shrink ratio — from 5 mm down to approx. 2.5 mm
  • • Suitable for 14–18 AWG wires
  • • Includes 1 m red + 1 m black tubing for polarity identification
  • • Chemical resistance to oils, greases and fuels
  • • Environmental resistance — UV, moisture and temperature variations
  • • Halogen-free material — safe for electronics and handling
  • • High flexibility and mechanical durability
  • • Clean and professional wire routing
  • • Easy to apply with a heat gun or hot-air
  • • Working range: –55°C to +125°C
  • • Strong abrasion resistance

Technical specifications

  • • Diameter before shrink: 5.0 mm
  • • Diameter after shrink: approx. 2.5 mm
  • • Shrink ratio: 2:1
  • • Material: polyolefin
  • • Shrink temperature: > 90°C
  • • Working temperature: –55°C to +125°C
  • • Flammability: UL94 HB

Applications

  • • Insulating 14–18 AWG silicone wires
  • • Protecting XT30 / XT60 solder joints
  • • Securing motor and power leads
  • • Polarity marking (red = positive, black = negative)
  • • Cable organization in FPV and RC models

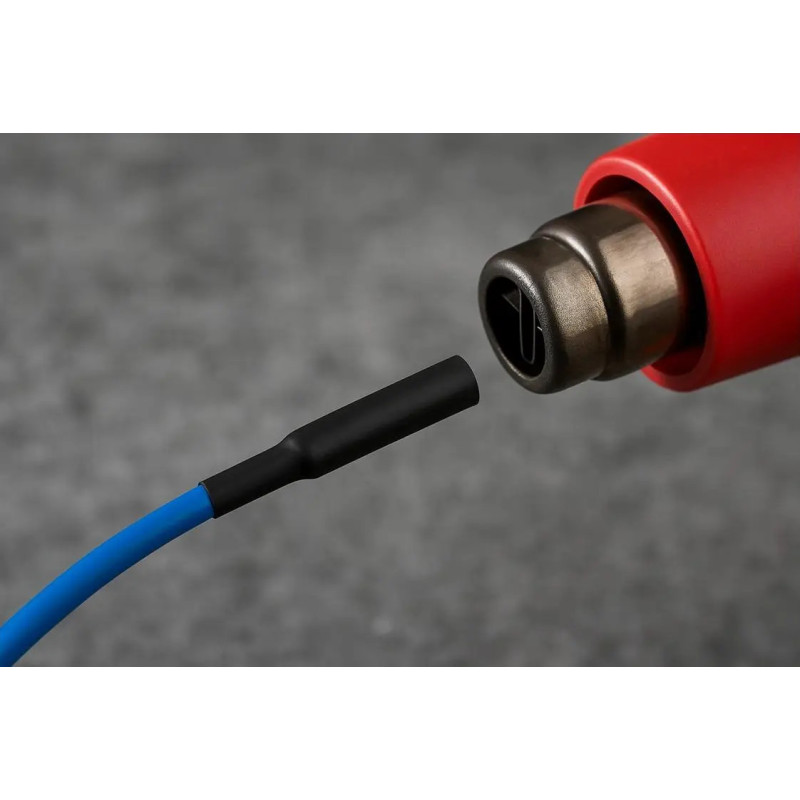

How to use

  • • Cut the tubing to the required length
  • • Slide it over the wire or solder joint
  • • Apply even heat (heat gun or hot-air)
  • • The tubing shrinks to approx. 2.5 mm
  • • Allow it to cool before handling


How to choose the correct size

5.0 mm tubing is ideal for wires with an outer diameter of 2.6–4.0 mm, such as:

  • • 14–18 AWG silicone wires
  • • servo wires and power leads
  • • wiring in larger RC models

In the box

  • • 1 m red 5.0 mm heat shrink tubing
  • • 1 m black 5.0 mm heat shrink tubing
Technical data and safety data sheet (SDS) for Salipt Heat-Shrink Tubing

FAQ

Frequently Asked Questions

For insulating wires, protecting solder joints and securing 14–18 AWG cables.

Yes, it fits the wire gauges commonly used in FC, ESC, motors and FPV systems.

It begins to shrink above 90°C and fully shrinks at 110–120°C.

2:1 — from 5 mm to about 2.5 mm.

Yes, it can be cut freely without affecting performance.

Yes — red indicates positive, black negative.
