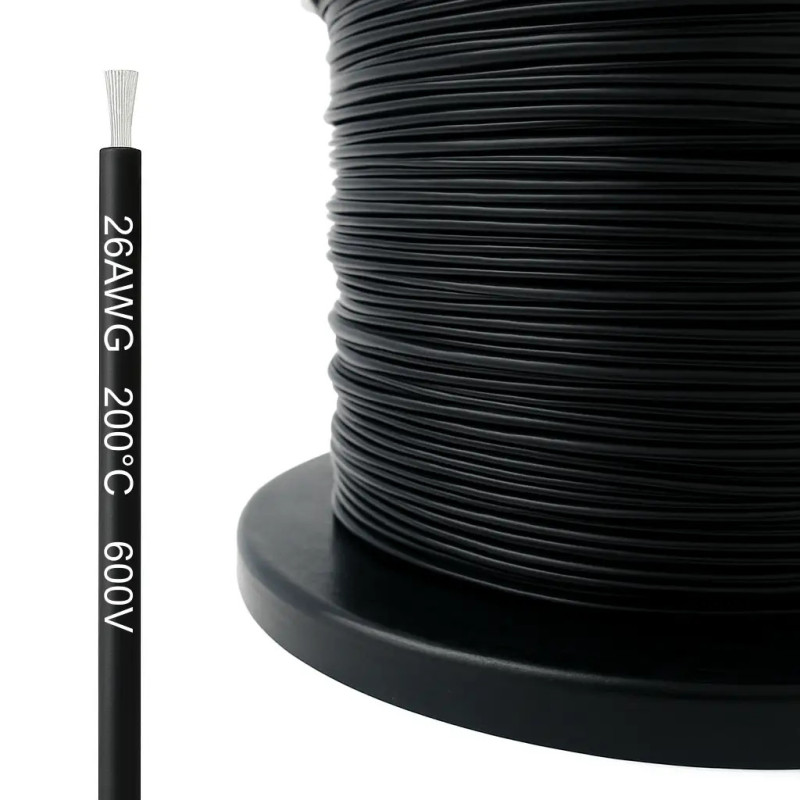

Amass 26AWG Silicone Wire – Multi-strand, Flexible – up to 200°C – 8 Colors
2.97
Tax included
- ● Amass Silicone Wire 26 AWG – 1 m
- ● Tinned copper multi-strand • high flexibility • low resistance

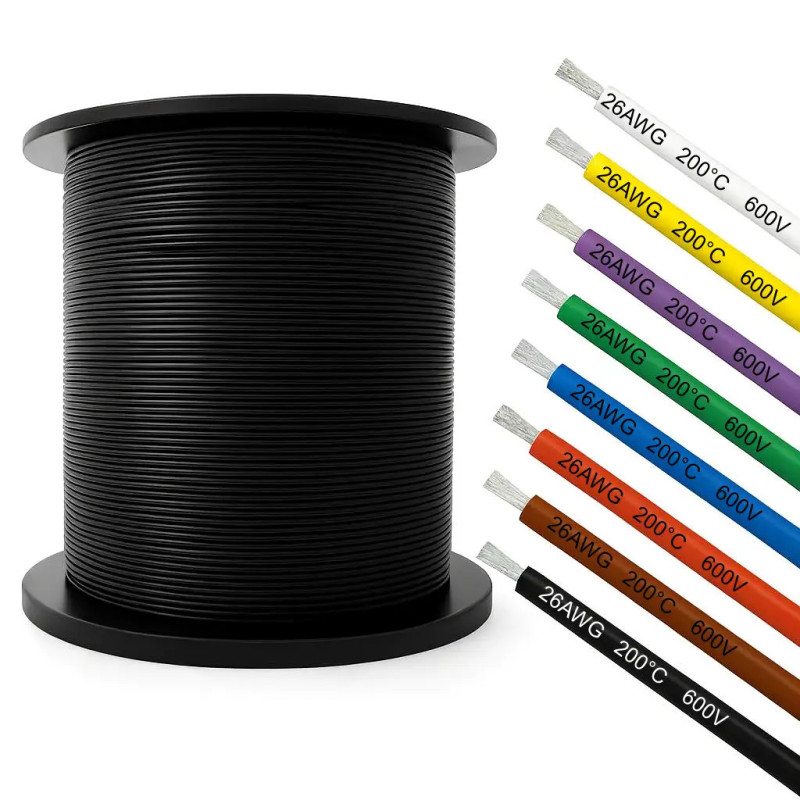

- ● 8 colors: red, black, blue, white, green, yellow, purple, brown
- ● Sold per meter – longer lengths shipped in one piece
- ● Perfect for LEDs, FPV, sensors and microcontrollers
You might also like
Amass Silicone Wire 26 AWG – Thin and Flexible Signal Cable for FPV, LED and RC Electronics
Available in 8 colors: red, black, blue, white, green, yellow, purple and brown
The Amass 26 AWG wire is an ultra-thin, lightweight tinned copper cable with soft silicone insulation. It combines high flexibility, low resistance and temperature endurance from –60 °C to 200 °C. Perfect for signal connections, LEDs, sensors, FPV systems and microcontroller or DIY electronics projects.
Technical Specifications
- AWG: 26
- Cross-sectional area: ≈ 0.13 mm²
- Conductor diameter (without insulation): ≈ 0.40 mm
- Outer diameter (with insulation): ≈ 1.1 mm
- Conductor material: Tinned copper (multi-strand)
- Insulation: Soft silicone – heat and abrasion resistant
- Rated voltage: 600 V
- Operating temperature: –60 °C to 200 °C
- Colors: red, black, blue, white, green, yellow, purple, brown
Product Features
- Multi-strand tinned copper wire – excellent conductivity and corrosion resistance
- Soft silicone insulation – highly resistant to heat, wear, and mechanical stress
- High flexibility – wire does not retain bends and easily fits in tight spaces
- Stable performance across a wide temperature range from –60°C to 200°C
- Easy to solder – tinned copper strands and flexible silicone insulation
How to Choose the Right 26 AWG Wire
The Amass 26 AWG wire is perfect for low-current and signal applications where lightness and precision are essential. With a 0.13 mm² core, it carries ≈ 2.5 A continuous and up to 7 A peak current. The soft silicone jacket remains flexible even in tight spaces, making it ideal for FPV, LED lighting, sensors and Arduino-based projects.
Typical 26 AWG Applications:
- Signal and data connections in FPV and microcontroller circuits
- LED and sensor wiring
- Receiver and servo leads in RC models
- DIY, robotics and prototype electronics
Why Silicone?
- Maintains flexibility across a wide temperature range
- Does not crack, melt, or deform even under long-term heat exposure
- No “memory effect” – ideal for compact or mobile installations
Applications
- FPV drone and RC model wiring (ESC, power lines, LED strips)
- DIY electronics projects and prototyping
- Power supply connections for modules, sensors, and controllers
- Applications requiring flexibility and high temperature resistance
Practical Parameters (26 AWG)
- Continuous current: ≈ 2.5 A
- Peak current: up to 7 A
- Resistance: ≈ 133 mΩ/m
- Voltage range: 5 – 24 V DC
Assembly Tips
- Choose the proper AWG size based on current load and wire length
- Use flux and a clean soldering tip for solid, low-resistance joints
- Protect solder joints with heat-shrink tubing
Package Contents
- 1 piece = 1 meter of Amass silicone wire – chosen color and AWG size
The Amass 26 AWG silicone wire combines high flexibility, low resistance and durability for precision electronics and FPV applications. It ensures clean solder joints and stable connections even in miniature circuits. Available in 8 colors: red, black, blue, white, green, yellow, purple and brown.
