SpeedyBee 2306.5-1800KV Motor Master5V2 5 inch FPV 1/4pcs

87.77
Tax included
SpeedyBee – innovative FPV flight controllers, stacks, and accessories officially distributed by Avifly.

version
Quantity:
20
Shipment:

Up to 24 hours

Supply:
for freeCheck delivery costs
Gift:
Soon!

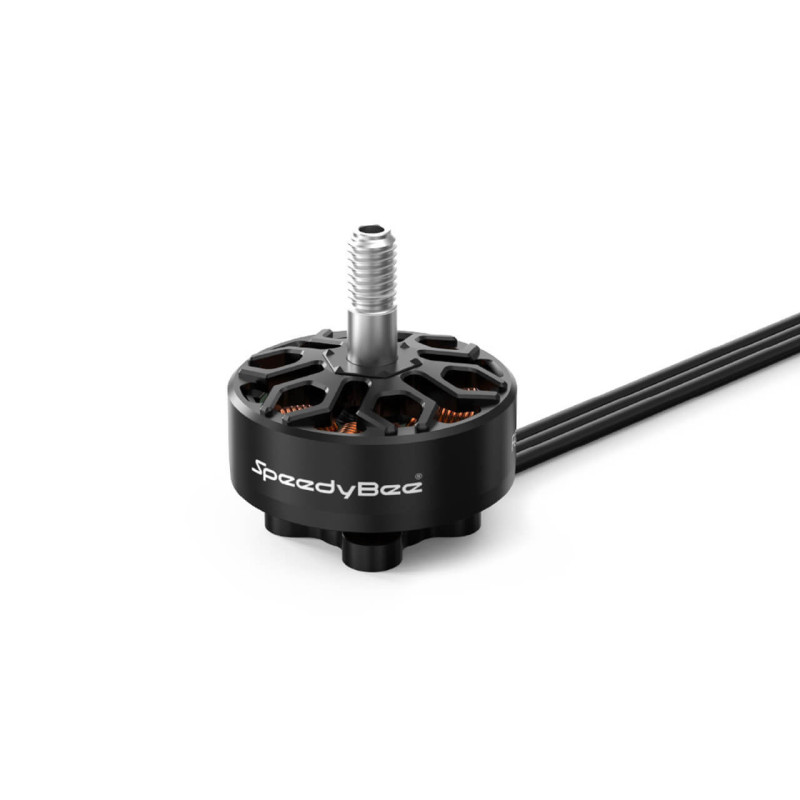

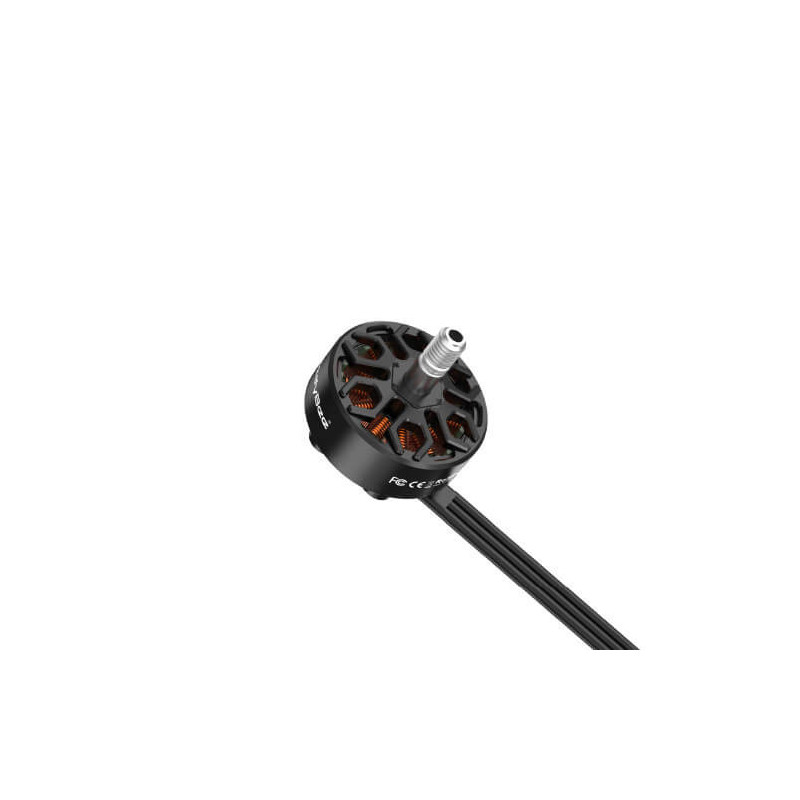

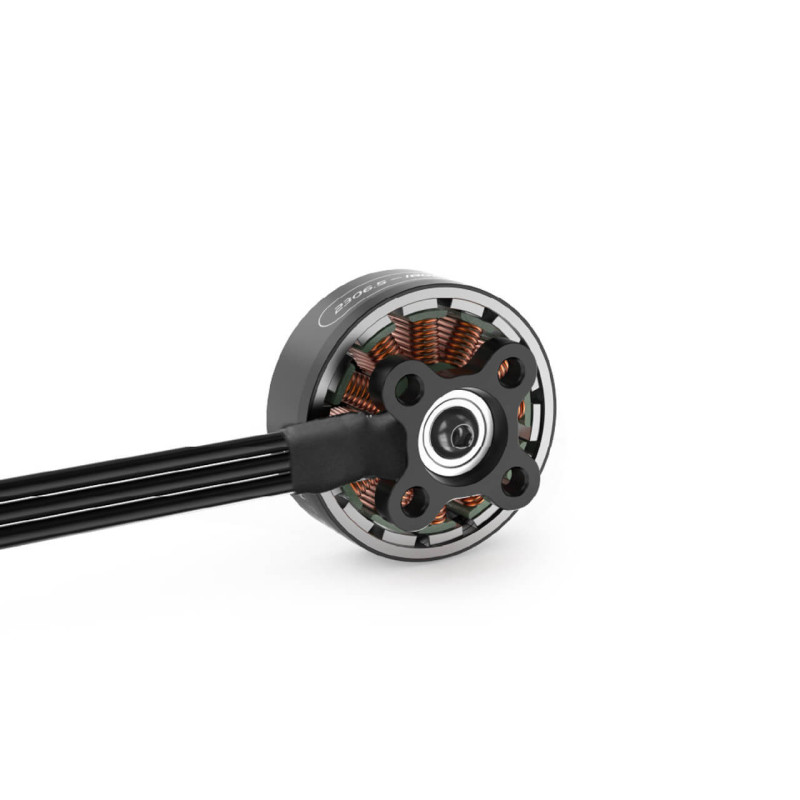

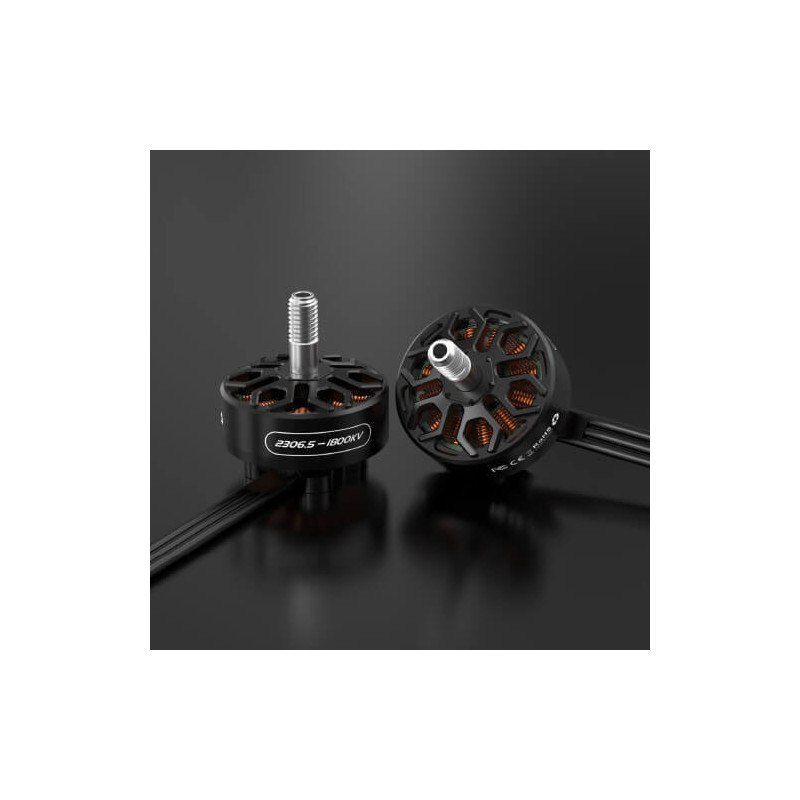

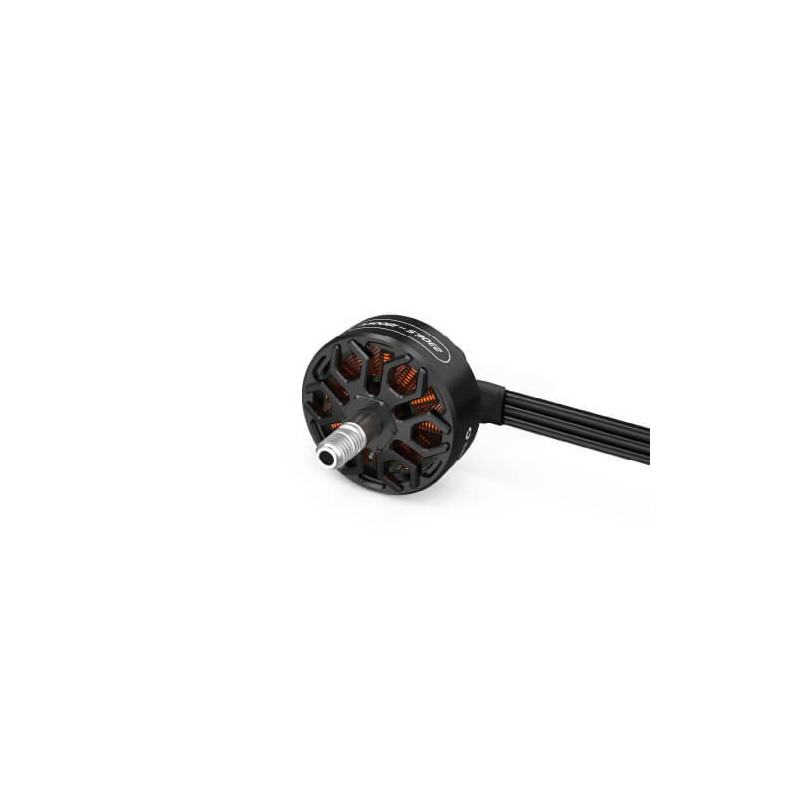

SpeedyBee 2306.5-1800KV Motor Master5V2 5 inch FPV

The SpeedyBee 2306.5-1800KV motor from the Master5V2 series is a high-quality brushless motor specifically designed for 5-inch class FPV drones. It features an optimal KV value of 1800, providing an excellent balance between power and efficiency when powered by 6S LiPo batteries. The motor weighs just 34.34g (including wires) and offers an impressive maximum power of 721.97W and a maximum current of 30.76A. It is equipped with 12 stator poles and 14 magnets, a 4mm shaft diameter, and 150mm long 20AWG silicone wires. It is available individually or in an economical set of 4.


Key Features:

  • Optimal 1800KV: Excellent for 5-inch FPV drones.
  • High Power: Maximum of 721.97W.
  • Lightweight Design: Only 34.34g with wires.
  • Optimized for 6S: Ideal for powerful setups.
  • Available Individually or in a Set: Purchase flexibility.


Specifications:

  • Model: SpeedyBee 2306.5-1800KV Motor Master5V2
  • KV: 1800
  • Stator Poles: 12N14P
  • Shaft Diameter: 4mm
  • Silicone Wire: 20AWG, 150mm
  • Motor Weight (including wires): 34.34g
  • Phase Resistance (including wires): 77.55 mΩ
  • Operating Voltage: 6S (25.2V)
  • No-load Current (10V): 0.71A
  • Maximum Power: 721.97W
  • Maximum Current: 30.76A
Manual
UserManualEnglish UserManual中文
