Oscyloskop cyfrowy FNIRSI 2C23T 3w1 50 MS/s 10 MHz – Standard / Plus

FNIRSI 2C23T Digital Oscilloscope 3-in-1 50 MS/s 10 MHz

Dual-channel oscilloscope, True RMS multimeter and DDS signal generator in one compact device

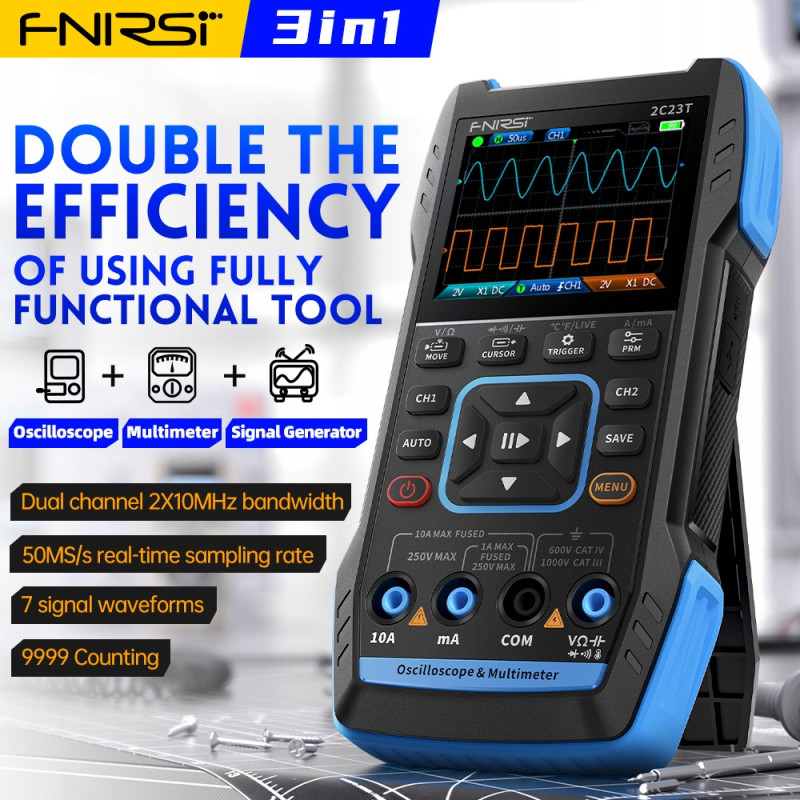

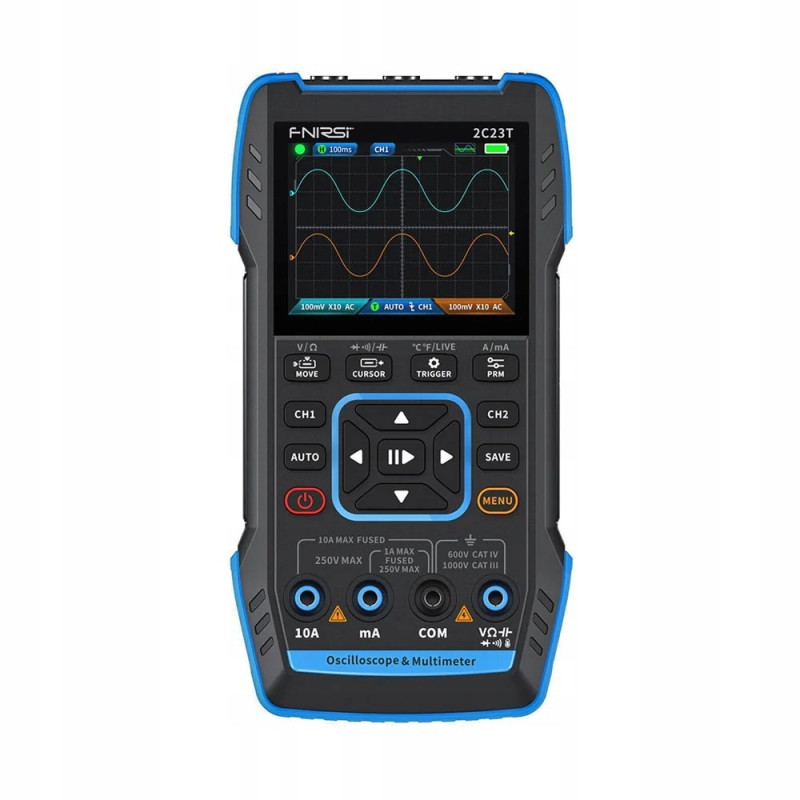

The FNIRSI 2C23T is a versatile 3-in-1 digital measuring instrument that combines a dual-channel oscilloscope, a True RMS multimeter, and a DDS signal generator in a single portable unit. Designed for maintenance, diagnostics, education and development work, it is built on an advanced FPGA + MCU + ADC architecture, offering a sampling rate of 50 MS/s and an analog bandwidth of 10 MHz.

The oscilloscope supports peak voltage measurements up to ±400 V and allows users to capture, save and analyze waveform screenshots. A bright 2.8-inch HD color display ensures clear signal visualization, while the compact form factor and internal 3000 mAh rechargeable battery make the FNIRSI 2C23T ideal for both bench and field use.

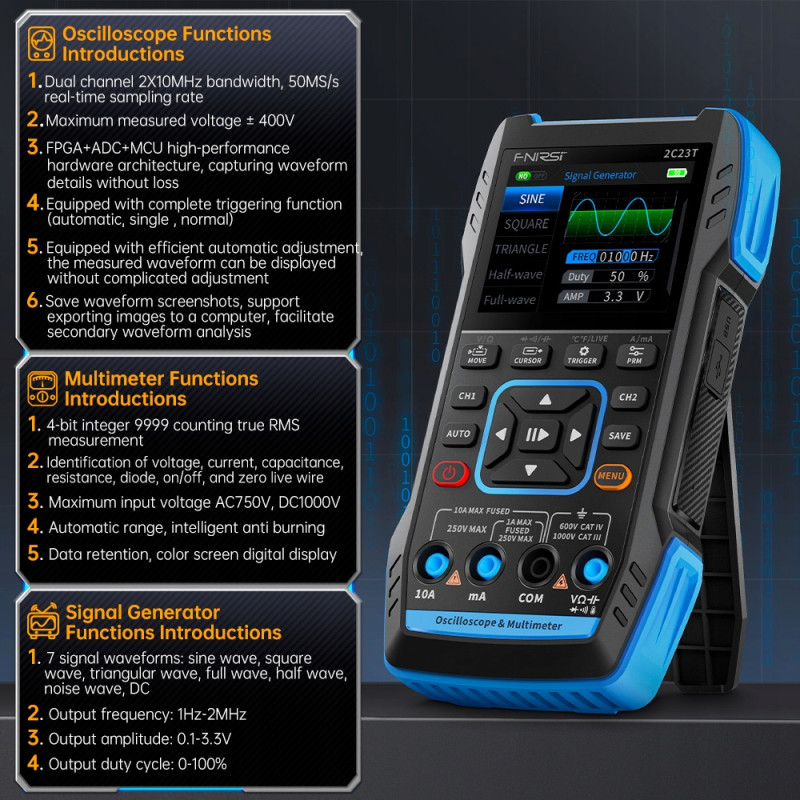

Key Features

• • 3-in-1 device: oscilloscope, multimeter and signal generator

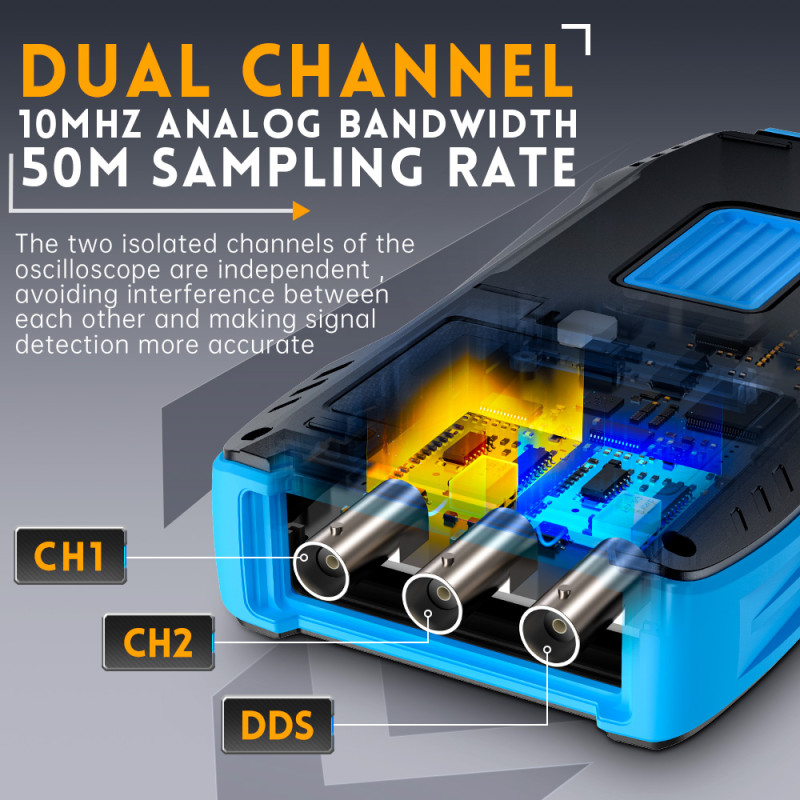

• • Dual-channel oscilloscope with 50 MS/s sampling rate and 10 MHz bandwidth
• • High-voltage measurement capability up to ±400 V
• • True RMS multimeter with 10,000-count resolution
• • Built-in DDS signal generator up to 2 MHz

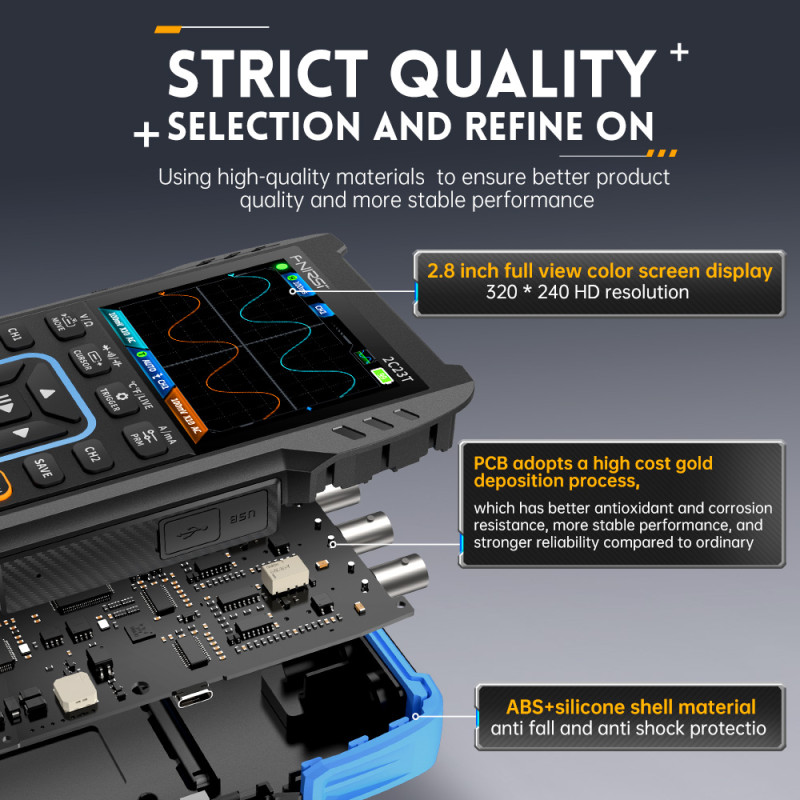

• • 2.8” HD color LCD (320×240) for clear waveform display

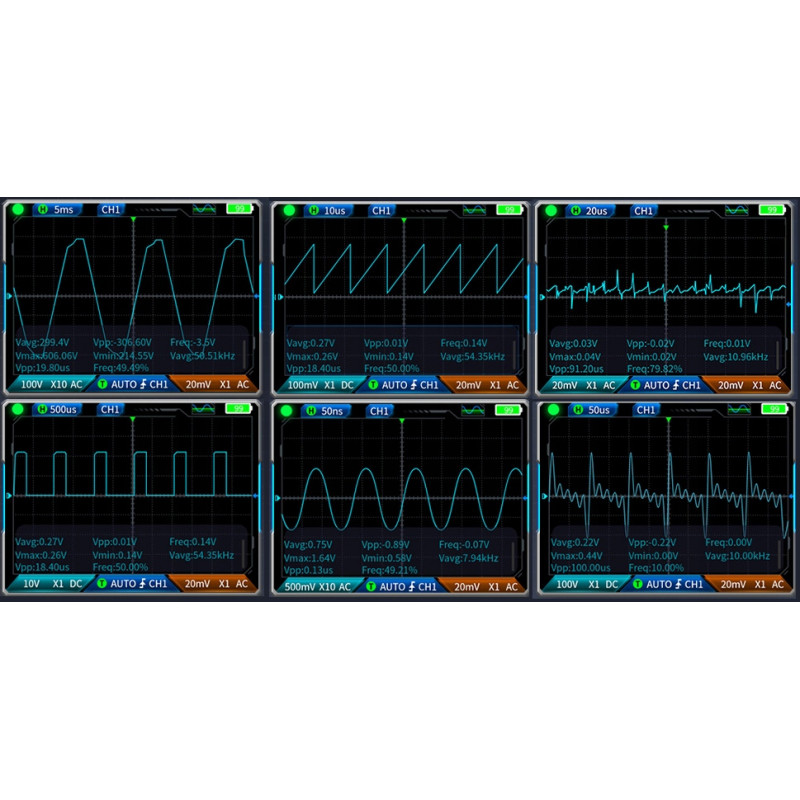

• • Waveform screenshot capture and export support
• • Multiple trigger modes and waveform display modes

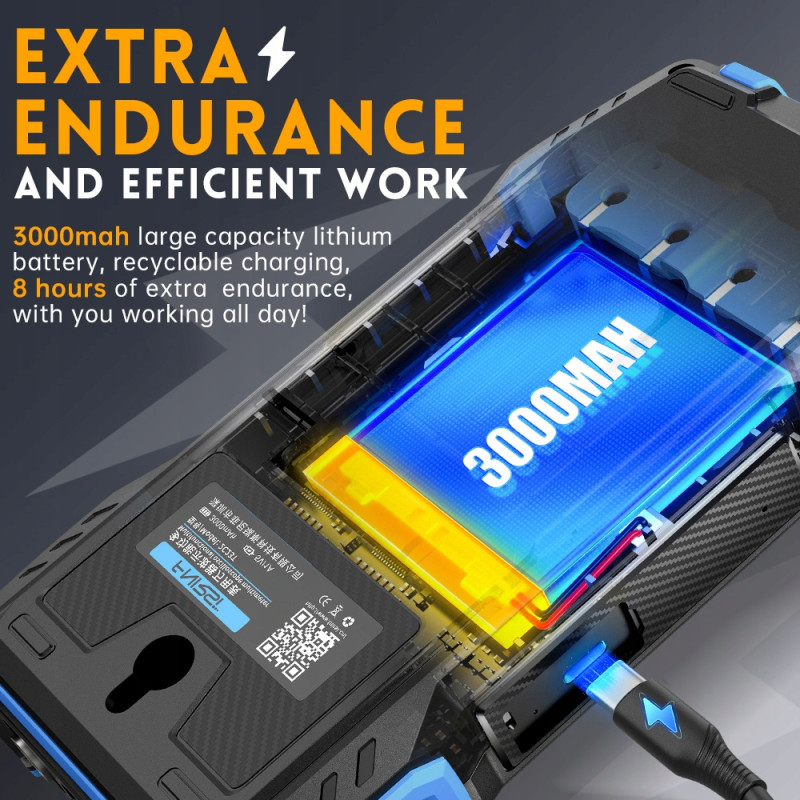

• • Rechargeable 3000 mAh battery with up to 6 hours standby time

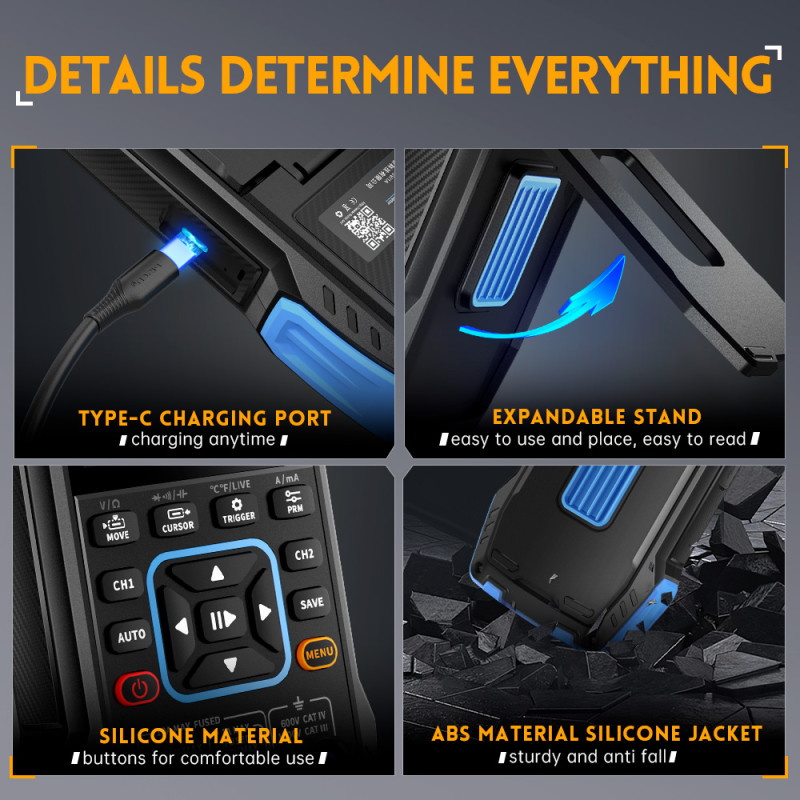

• • Compact, portable design for laboratory and field diagnostics

Standard vs Plus Version

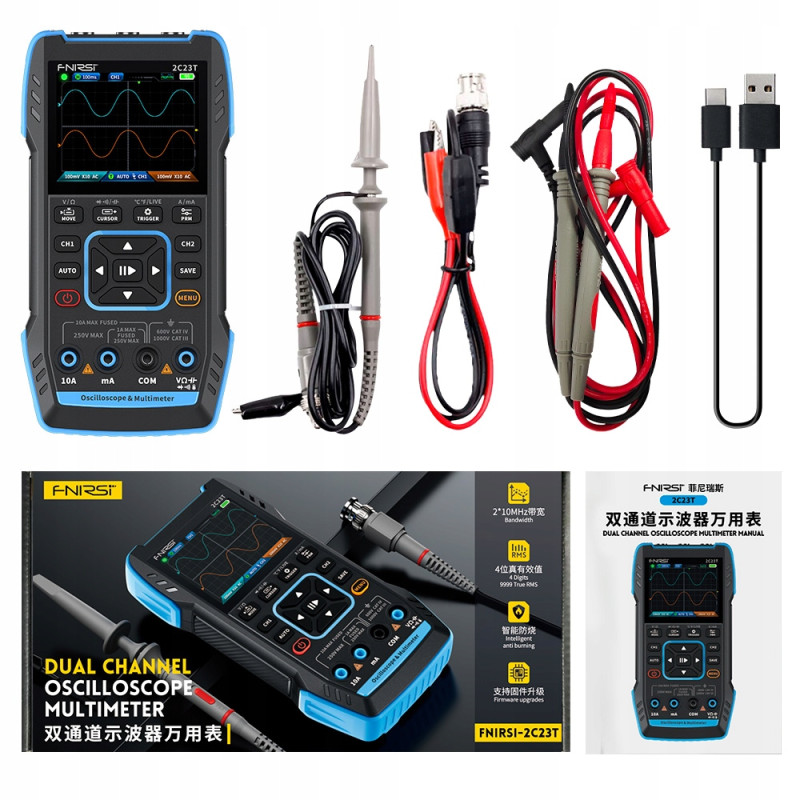

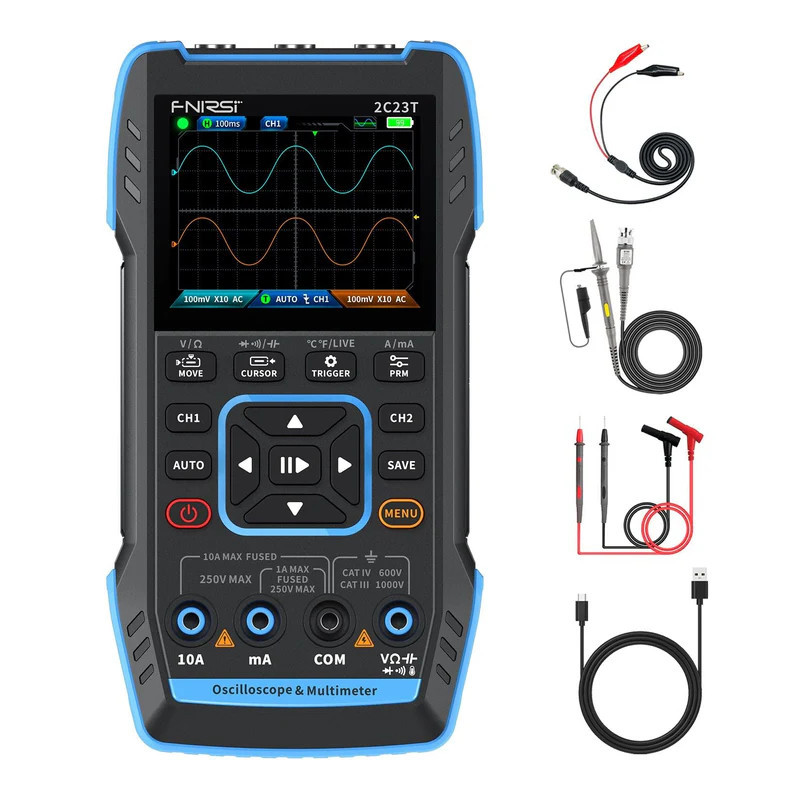

Package Contents

Standard Version:

• • FNIRSI 2C23T Digital Oscilloscope ×1
• • P6100 Oscilloscope Probe ×1
• • Crocodile Clip Probe ×1
• • Multimeter Test Leads ×1
• • USB Type-C Charging Cable ×1
• • User Manual ×1

Plus Version:

• • FNIRSI 2C23T Digital Oscilloscope ×1
• • P6100 Oscilloscope Probes ×2
• • Crocodile Clip Probe ×1
• • Multimeter Test Leads ×1
• • USB Type-C Charging Cable ×1
• • User Manual ×1
