FNIRSI 1014D 2-in-1 100 MHz 1 GS/s Digital Oscilloscope with DDS Signal Generator – Dual Channel (Standard / High Profile)
677.77
Tax included
.webp)

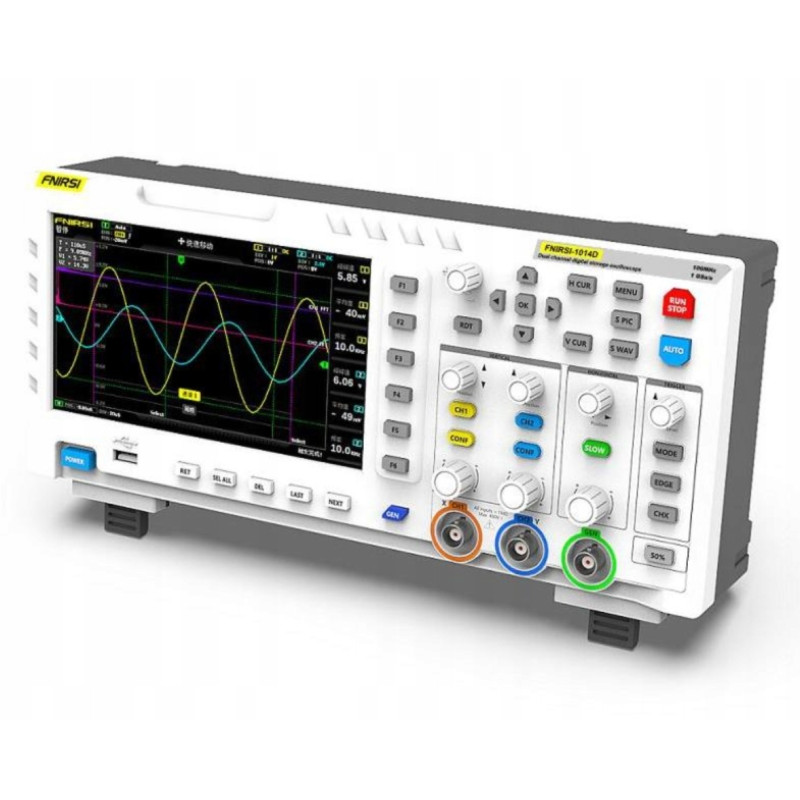

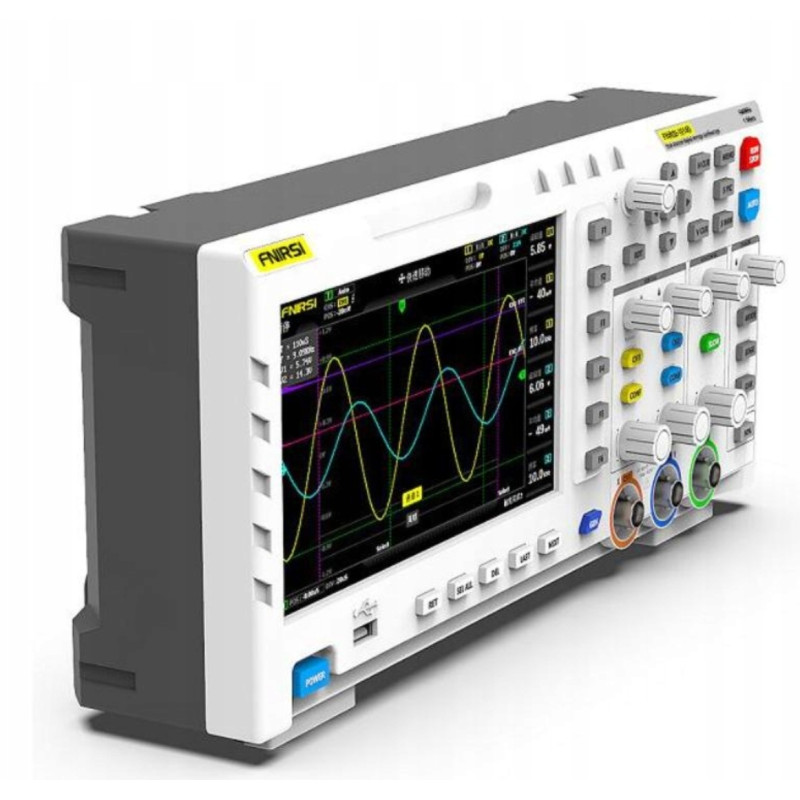

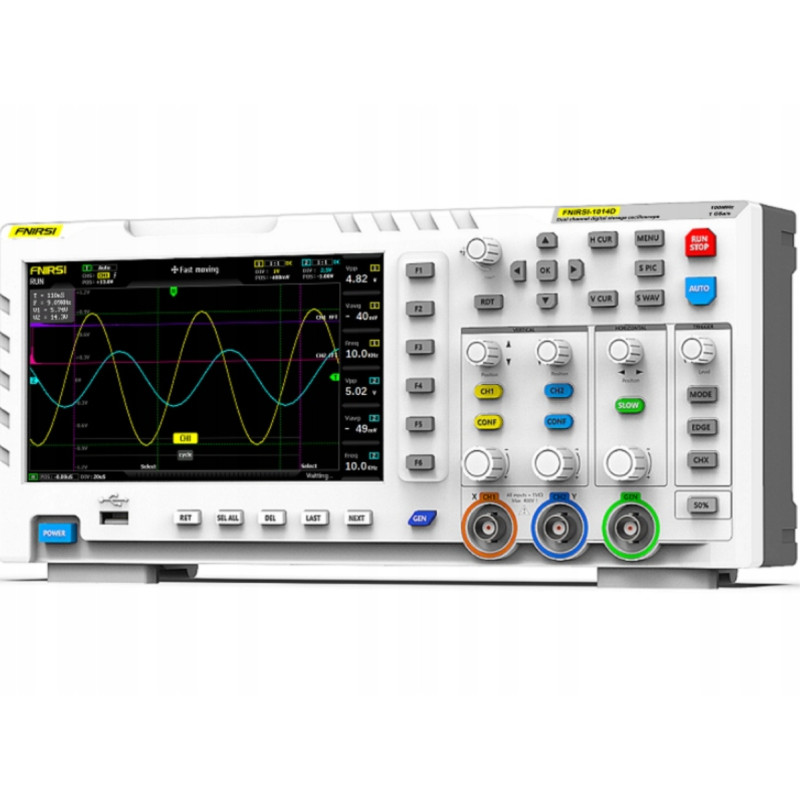

FNIRSI 1014D Digital Oscilloscope 2-in-1 100 MHz 1 GS/s with Signal Generator
Dual-channel oscilloscope with built-in DDS function generator – Standard & High Profile (P4100 Probes)

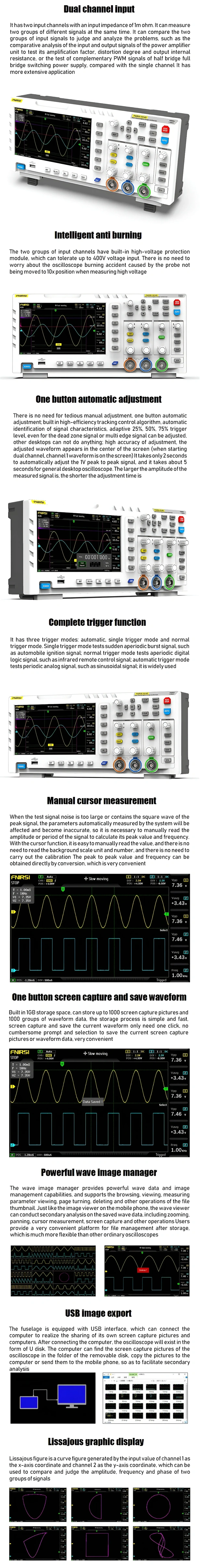

The FNIRSI 1014D is a high-performance digital oscilloscope designed for both professional and educational use. It features a dual 100 MHz analog bandwidth, a 1 GS/s sampling rate, and a built-in DDS function signal generator. The device provides accurate signal capture, clear visualization, and powerful analysis tools in a compact desktop form.

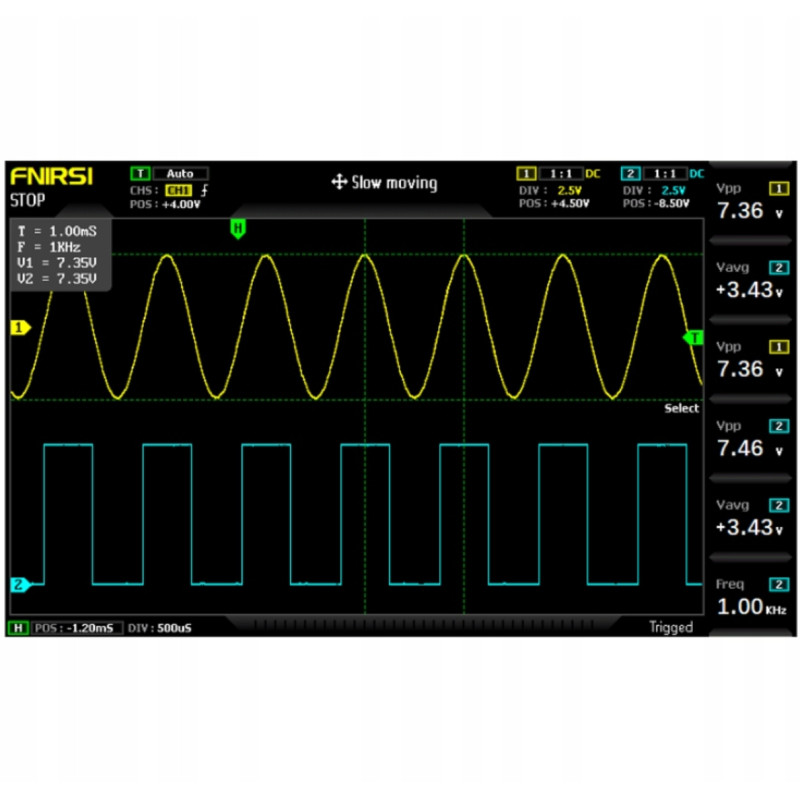

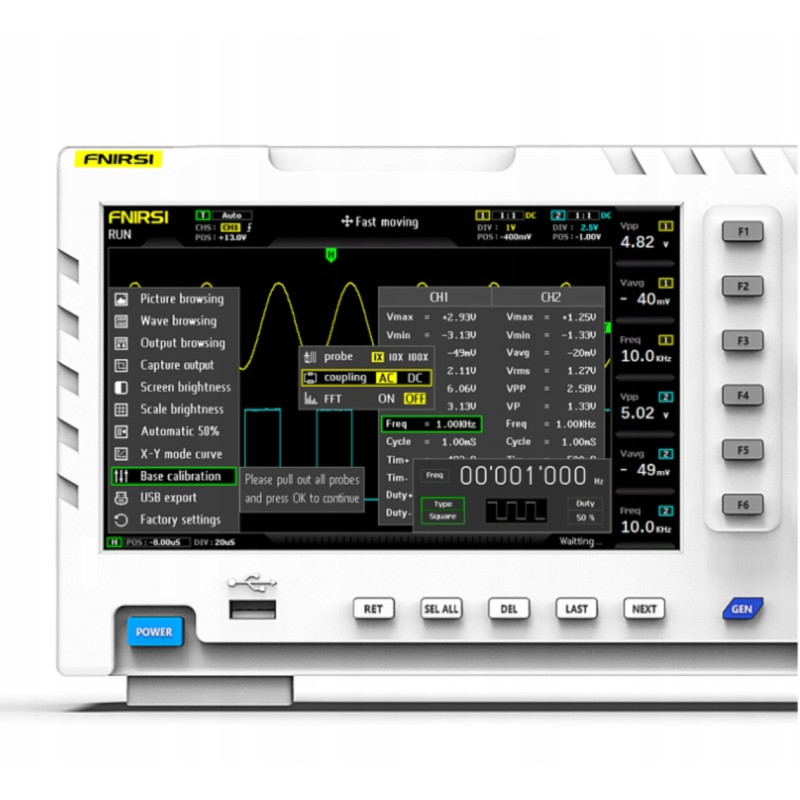

Its 7-inch TFT LCD display (800×480 px) delivers sharp waveforms with high contrast and color accuracy. The user-friendly interface includes One-Button AUTO setup, automatic trigger optimization (25 % / 50 % / 75 %), and a powerful waveform manager capable of storing 1000 screenshots + 1000 waveforms. USB image export and cursor-based manual measurement make the FNIRSI 1014D a complete diagnostic and learning instrument.
Key Features
- ● Dual-channel digital oscilloscope (100 MHz × 2) with 1 GS/s sampling
- ● Integrated DDS signal generator – 14 standard waveforms + 1 custom signal
- ● Automatic trigger modes (Auto / Normal / Single) with edge selection

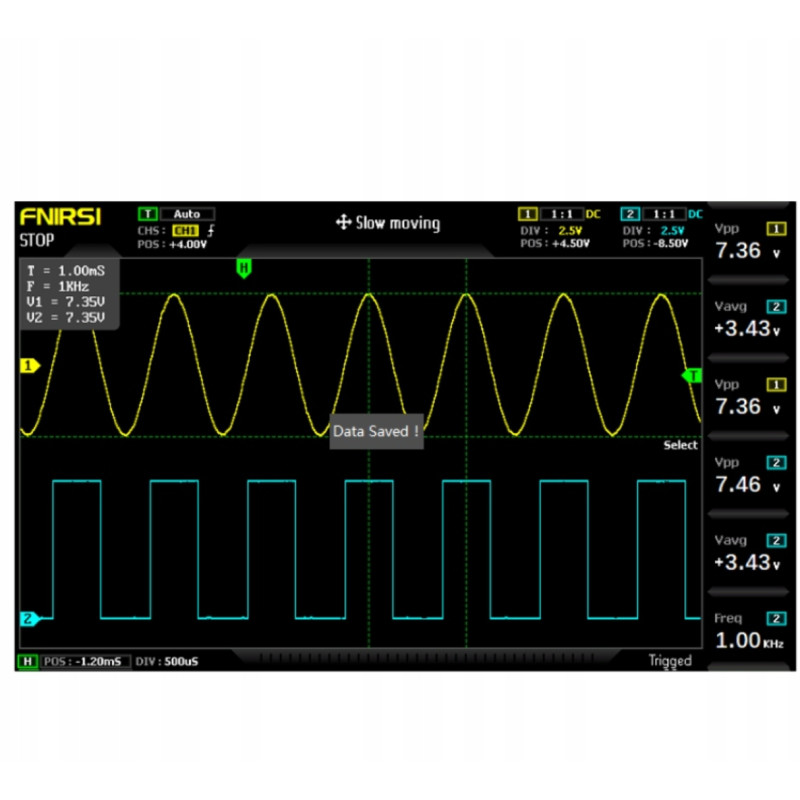

- ● Storage depth 240 Kbit, 1 GB internal memory (1000 pictures + 1000 waveforms)
- ● High-voltage protection module – up to 400 V (X10 probe)
- ● FFT, Lissajous and XY display modes for advanced signal analysis
- ● One-click AUTO calibration and USB data export
- ● ±0.01 % frequency precision and high stability sampling circuit

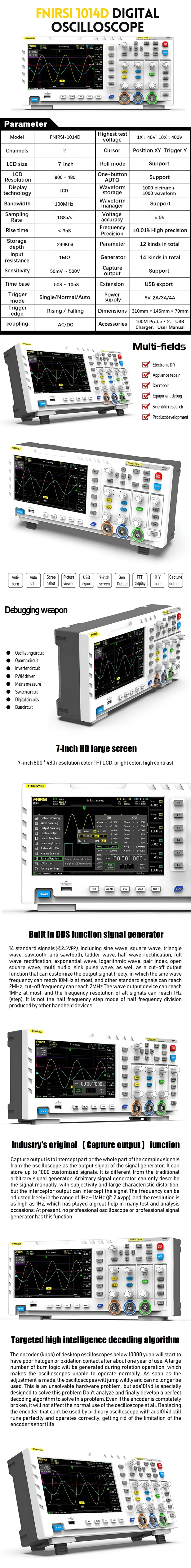

Technical Specifications
- ● Brand: FNIRSI
- ● Model: 1014D
- ● Channels: 2 | Bandwidth: 100 MHz × 2 | Sample Rate: 1 GS/s
- ● Vertical Sensitivity: 50 mV/div – 500 V/div | Rise Time: < 3 ns
- ● Horizontal Timebase: 50 s/div – 10 ns/div
- ● Waveform Generator: 0–10 MHz (Sine) | Other signals up to 2 MHz | 1 custom signal

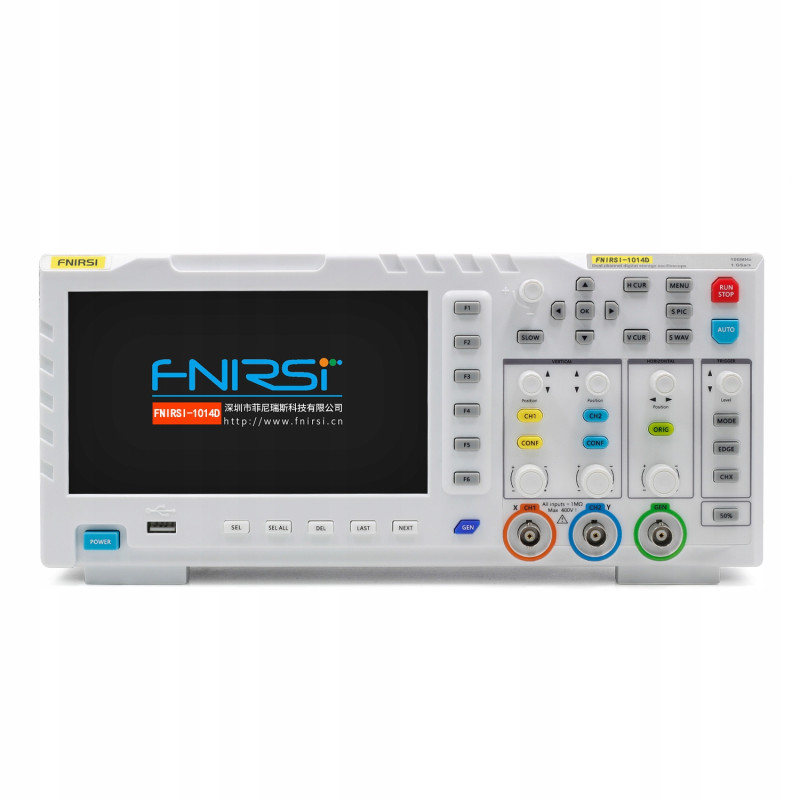

- ● Display: 7″ TFT LCD 800×480 px | Dimensions: 310×145×70 mm
- ● Display: 7″ TFT LCD 800×480 px | Dimensions: 310×145×70 mm
- ● Storage Depth: 240 Kbit | Internal Memory: 1 GB
- ● Power Supply: 5 V DC (2–4 A USB)
- ● Frequency Precision: ±0.01 % | Coupling: AC/DC
Version Comparison – Standard vs High Profile
| Feature | Standard Version | High Profile Version |
|---|---|---|
| Included Probes | Basic crocodile clip probes | 2 × FNIRSI P4100 professional 100 MHz probes (×1/×10) |
| Measurement Precision | High | Laboratory-grade, shielded with adjustable capacitance compensation |
| Usage | Educational, hobby, DIY electronics | Professional lab, service, high-voltage diagnostics |
| Accessories | Oscilloscope, power cable, USB cable, clips | Oscilloscope, 2 × P4100 probes, adapter, clips, power & USB cables |
Package Includes
- ● 1 × FNIRSI 1014D Digital Oscilloscope
- ● 1 × Power adapter 5 V / 2 A
- ● 1 × USB data cable
- ● 1 × Alligator clip test lead
- ● 1 × English user manual

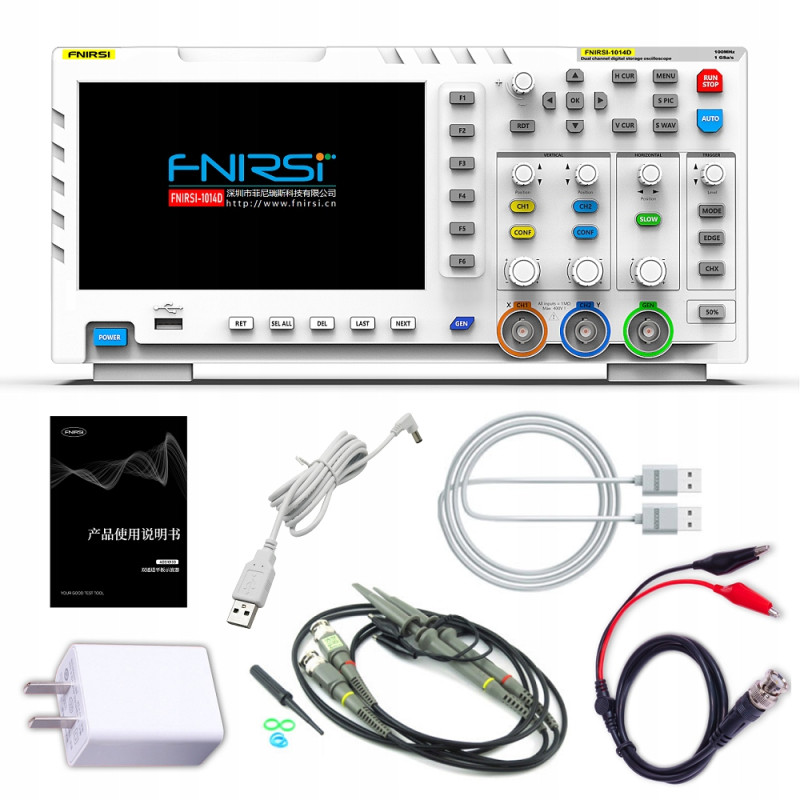

- ● High Profile: 2 × P4100 high-precision 100 MHz probes + adapter
Why Choose FNIRSI 1014D?
FNIRSI 1014D is an advanced digital oscilloscope that combines precise measurement, intuitive operation, and a powerful set of signal analysis tools. With dual 100 MHz channels, 1 GS/s sampling, and a full DDS waveform generator built in, it can easily replace both an oscilloscope and a standalone generator in your electronics workspace. The automatic calibration, high sampling accuracy, and large memory capacity make it ideal for complex signal analysis, including PWM, inverter, audio, and control circuits.
The High Profile version enhances usability with two professional FNIRSI P4100 probes, offering greater precision and safety for high-voltage and high-frequency applications. Combined with FFT and XY display capabilities, the 1014D is a complete, portable measurement center ready for any project.
Recommended Accessories (available at Avifly)
- ● FNIRSI P4100 / P6100 Probes – 100 MHz ×1/×10 switchable
- ● FNIRSI High-Voltage Probe Kit – up to 2 kV isolation
- ● BNC to Alligator Test Leads Set – for external signal connections
- ● Anti-static silicone mat for bench protection
- ● USB-C Power Supply 5 V / 3 A with low-noise output
