SpeedyBee F405 Mini BLS 35A 20×20 – Stack, FC or ESC

297.77
Tax included
SpeedyBee – innovative FPV flight controllers, stacks, and accessories officially distributed by Avifly.

version
Quantity:
5
Shipment:

Today!

Supply:
for freeCheck delivery costs
Gift:
Soon!

SpeedyBee F405 Mini BLS 35A 20×20 – Stack, FC or ESC

Choose full stack or individual flight controller / ESC

A compact FPV electronics solution from SpeedyBee in a 20×20 mm format. Perfect for cinewhoops, toothpicks, and lightweight freestyle builds. Available as ESC only, FC only, or a complete plug-and-play stack.

Available Versions

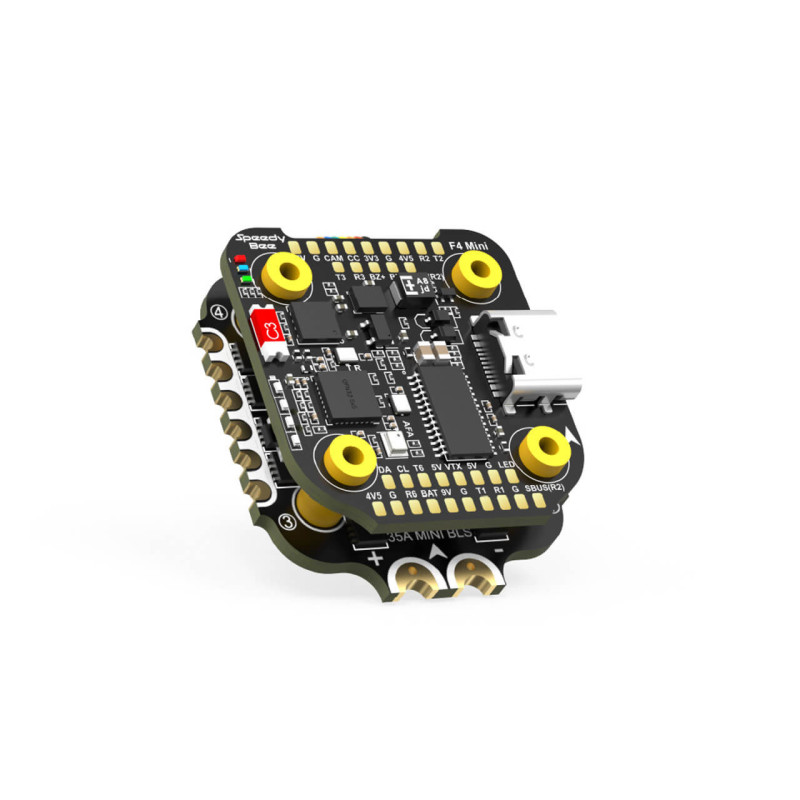

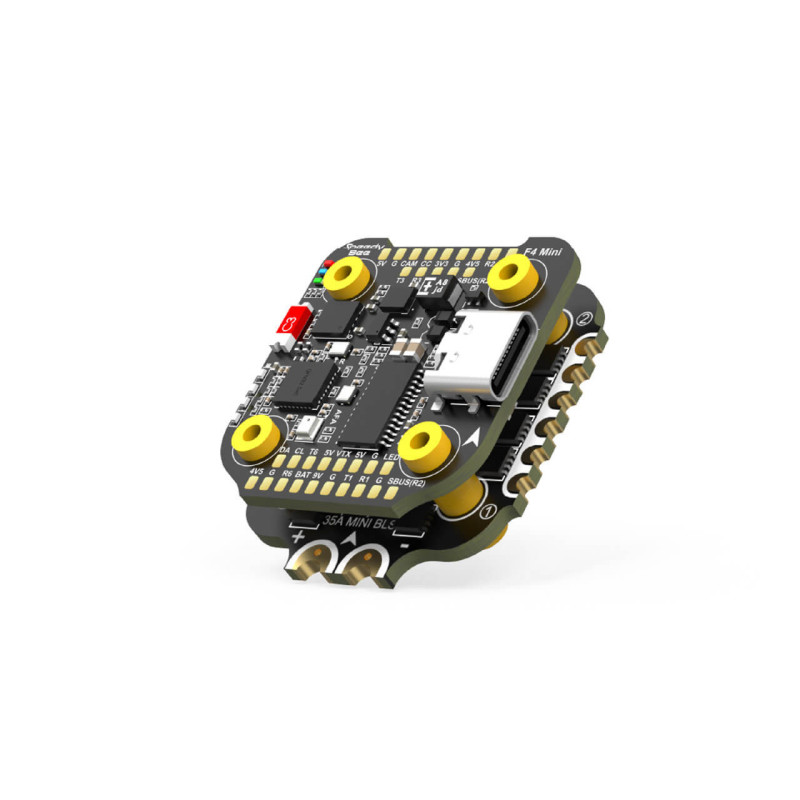

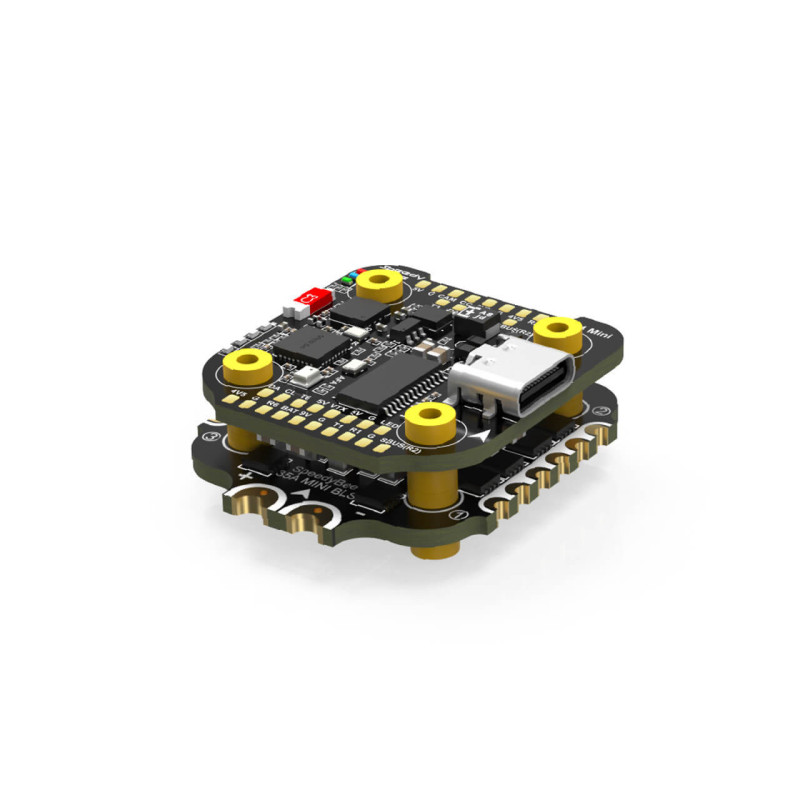

  • ● Stack: SpeedyBee F405 Mini + BLS 35A ESC (20×20)

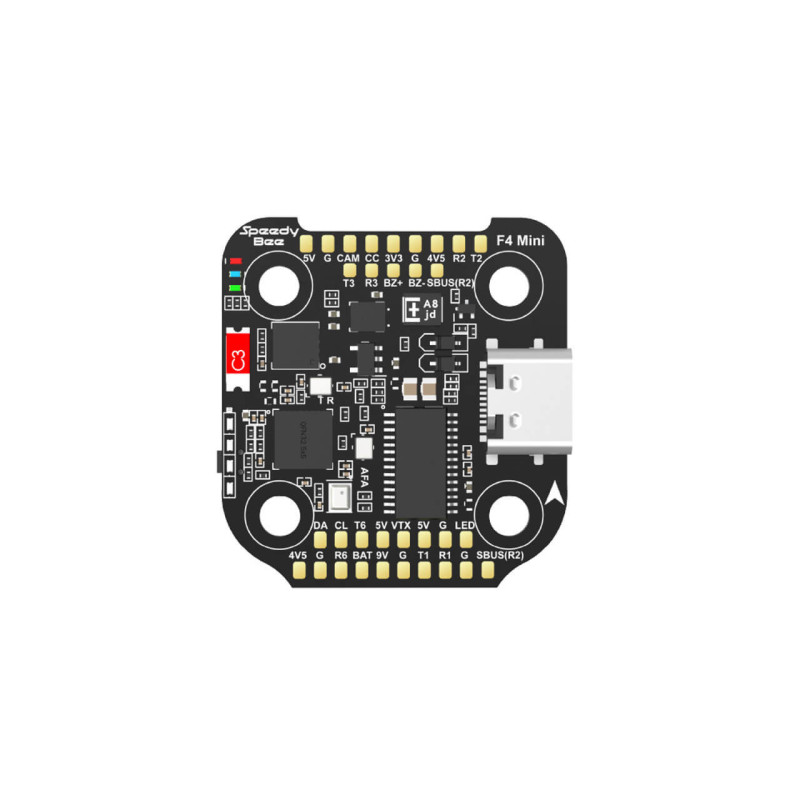

  • ● FC: SpeedyBee F405 Mini 20×20 Flight Controller

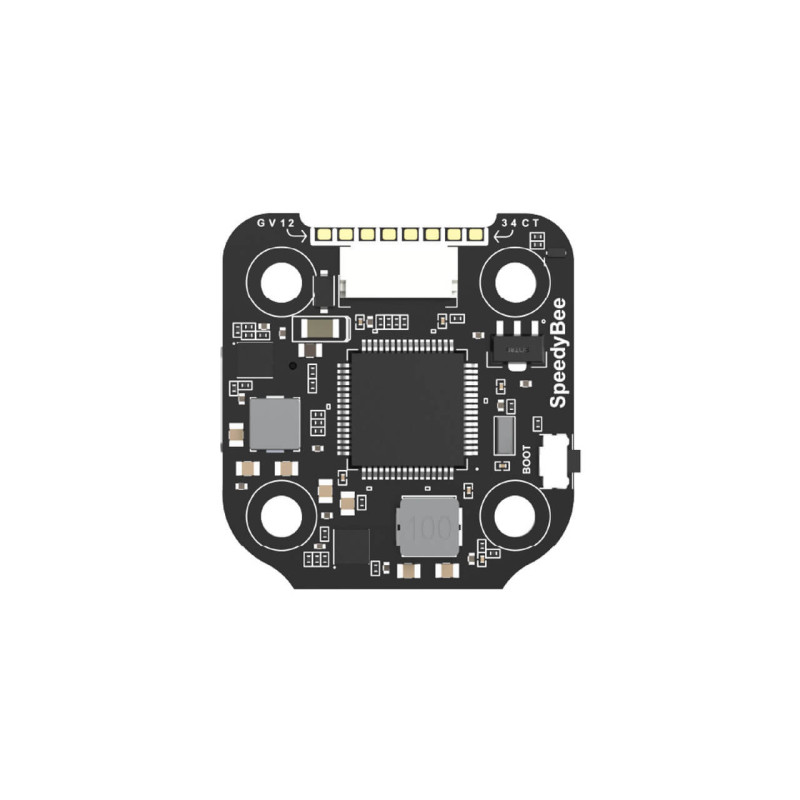

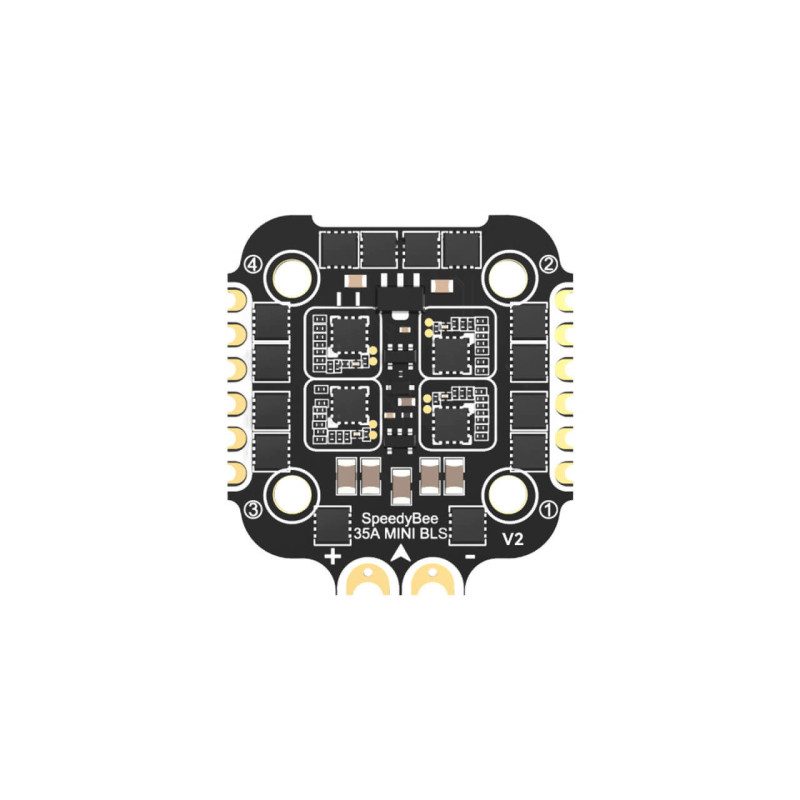

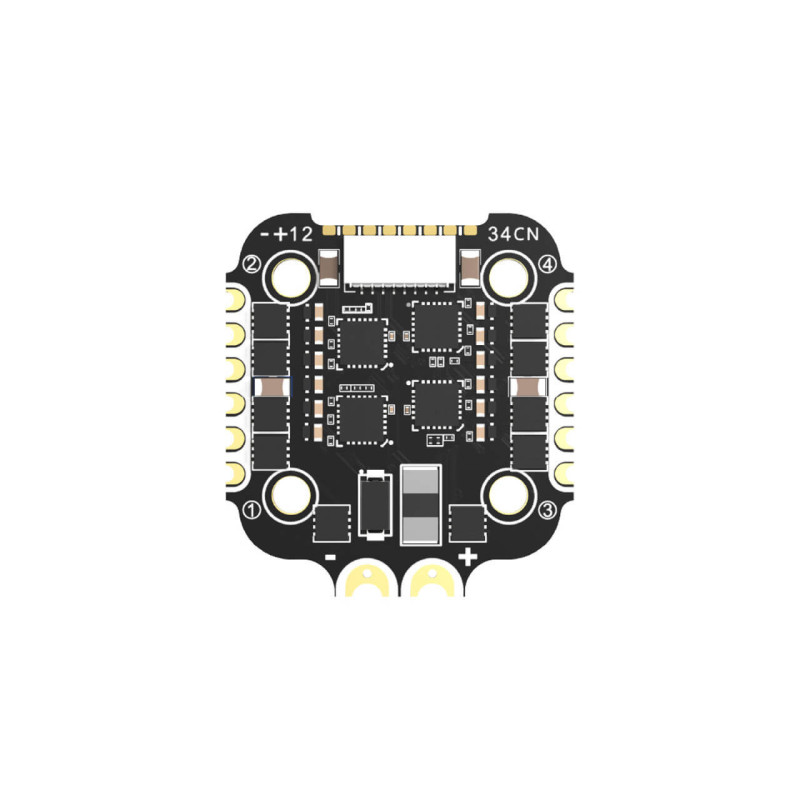

  • ● ESC: SpeedyBee BLS 35A Mini V2 4-in-1 20×20 ESC

Flight Controller – SpeedyBee F405 Mini

  • ● STM32F405, OSD, BMP280 barometer, 16 MB blackbox
  • ● Built-in BEC 5V/2A, DJI & analog compatible
  • ● USB-C and Bluetooth support (SpeedyBee App)

ESC – SpeedyBee BLS 35A Mini V2

  • ● 4-in-1 ESC, 35 A continuous (40 A burst), BLHeli_S
  • ● 2–6S LiPo support, 20×20 mounting (M2/M3 compatible)
  • ● LC filter and overcurrent protection included

Technical Specs (depending on version)

  • ● ESC: 35 A (40 A burst), BLHeli_S, 2–6S input
  • ● FC: STM32F405, barometer, 5V BEC 2A
  • ● Size: 20×20 mm, mounting holes M2/M3
  • ● Connectivity: USB-C + Bluetooth (wireless setup)

Applications

  • ● Cinewhoops, micro drones, toothpicks
  • ● Lightweight freestyle builds (3–4″)
  • ● Space-constrained DIY builds

Tip

Select the Stack version for a complete setup. Both FC and ESC can also be purchased individually to upgrade or replace existing parts.
